Initial 4x4 conversion vs. 4x2 performance and driveshaft length considerations

Just going to throw these things together in one topic. I want to show the major difference in a simple hill climb that resulted from converting my truck to a 4x4. Also, I want to show why it's advantageous to have the length of the driveshaft equal to the length of your radius arms.

The conditions of this test are: rear locker engaged for both shots. The approach was a "crawl" -- no momentum to speak of was used to enhance the distance on either shot.

First pic: 4x2 mode it actually started to "dig" in the rear and fell back a little. No matter what I did, that's about as far as I got.

Second pic: 4x4 mode -- I had to stop at the top because the hill ends in a guardrail.

Obviously quite a change for me!
Attached Thumbnails
Initial 4x4 conversion vs. 4x2 performance and driveshaft length considerations-p1010120-medium-.jpg   Initial 4x4 conversion vs. 4x2 performance and driveshaft length considerations-p1010121-medium-.jpg
Reply With Quote
  #2
Old 04-17-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
fun stuff
Reply With Quote
  #3
Old 04-17-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
If the length of the "radius" of front suspension movement during flex (either leaf or radius arm -- but we'll consider my radius arms here) is equal to the radius of driveshaft deflection, this minimizes the change in length required of the driveshaft as the suspension articulates.

Take my truck. Here's where the driveshaft is at "rest" -- that is, the truck on level ground with no suspension flex:



The following pictures show the extension of the driveshaft on near-total flex with the passenger side "stuffed" and drivers side "extended" in the front, along with pics of the flex. I just like to post flex shots so sue me. It's not total flex though, but close.
Attached Thumbnails
Initial 4x4 conversion vs. 4x2 performance and driveshaft length considerations-p1010123-medium-.jpg   Initial 4x4 conversion vs. 4x2 performance and driveshaft length considerations-p1010124-medium-.jpg   Initial 4x4 conversion vs. 4x2 performance and driveshaft length considerations-p1010122-medium-.jpg

Last edited by n3elz; 04-17-2008 at 02:01 PM.
Reply With Quote
  #4
Old 04-17-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620

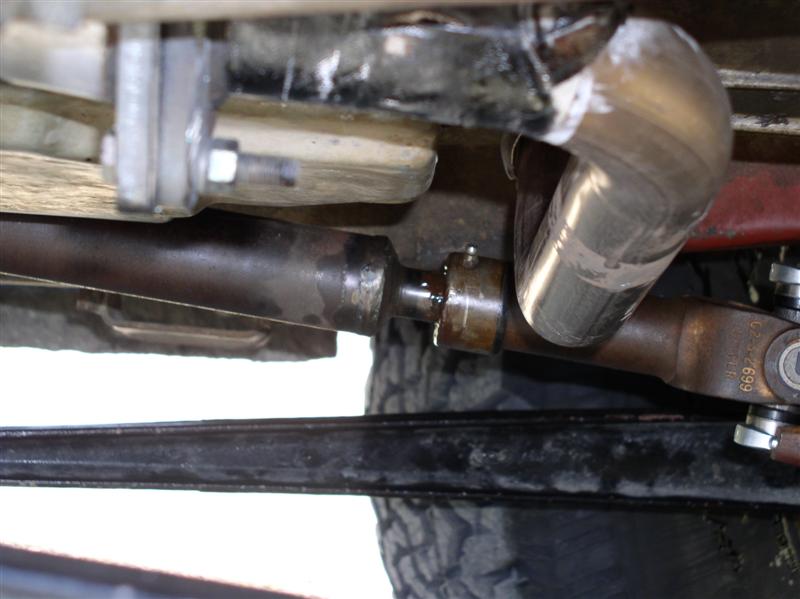

I got the other direction (passenger side extended, drivers side stuffed) to max out. This is it for my truck at least as far as the front stuffs.

As you can see, the length of the driveshaft changes very little over the entire range of suspension motion. Note I had to photograph the driveshaft from the other side (passengers) of the truck for this one.
Attached Thumbnails
Initial 4x4 conversion vs. 4x2 performance and driveshaft length considerations-p1010126-medium-.jpg   Initial 4x4 conversion vs. 4x2 performance and driveshaft length considerations-p1010128-medium-.jpg   Initial 4x4 conversion vs. 4x2 performance and driveshaft length considerations-p1010130-medium-.jpg   Initial 4x4 conversion vs. 4x2 performance and driveshaft length considerations-p1010127-medium-.jpg
Reply With Quote
  #5
Old 04-17-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Nice to see you can get it up now! BAM!
Reply With Quote
  #6
Old 04-17-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Ha ha! Insert "drum shot" here, lol...
Reply With Quote
  #7
Old 04-17-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
So what other plans you have or you almost "finished"
Reply With Quote
  #8
Old 04-17-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Finish my transfer case controller (using my test setup right now). Extend the t-case and axle vents, and replace one of the front axle differential seals that I apparently fubared because it leaks.

If I get that done, I'll be satisfied to make my first run on the 26th and I see no reason I won't finish that.
