Led grill lights

  #1
Old 03-26-2019
NLBurden's Avatar
Member
Thread Starter
Join Date: May 2016
Location: NL, Canada
Posts: 156
Led grill lights

Hi, any of you guys have some led lights in your grill ? I want to put in 3 small led lights similar to the raptor style in my grill. Can I tie them directly into my day lights ? I assume so because they draw virtually no current, but would like to make sure. Thanks

  #2
Old 03-27-2019
Scrambler82's Avatar
Old Guy Userů
iTrader: (12)
Join Date: Jul 2009
Location: SoCal
Posts: 7,296
Yes you can BUT don't ask me how ! My thought is why interrupt the DRL Circuit by adding load, consider this... If you do it this way, consider running a parallel circuit to the DLRs, the power to the DLR will actuate a relay, (.250 amp) that in turn draws power from the battery to the lights; at least the load for the actual lighting will be on the battery, the relay only draws 1/4 of an Amp so there shouldn't be any circuit problems.

Alternatives:

1) Connect them to the parking Light Circuit, which should be a little more robust to handle any additional load.

2) Go directly from a power-on circuit to a relay, then to the lights.
The new circuit lessen the load on any of the OEM Circuit you might want to tap power from (again .250 amp), also if something goes wrong with the lights you have a direct path to the power/relay/light wiring.

To me the old KISS Method is the way to do it... !

There are plenty of Lighting Circuit Schematics on the site, set one up and use a Power-On Line front the Truck to light things up.

Ltr

  #3
Old 03-28-2019
buggman's Avatar
Member
iTrader: (38)
Join Date: Apr 2007
Location: Dougal County
Posts: 1,651
I've done several variations on the raptor led's
Here's a link to my google album: https://photos.app.goo.gl/tmzZC2VWvRUSJCgK2
I just did a set using some high power round yellow led's (about 1/2" diameter) they're stupid bright.

  #4
Old 03-28-2019
Scrambler82's Avatar
Old Guy Userů
iTrader: (12)
Join Date: Jul 2009
Location: SoCal
Posts: 7,296
Originally Posted by buggman View Post
I've done several variations on the raptor led's
Here's a link to my google album: https://photos.app.goo.gl/tmzZC2VWvRUSJCgK2
I just did a set using some high power round yellow led's (about 1/2" diameter) they're stupid bright.
Looks good.
What are the dimensions of the larger letters ?
Can you give a little better picture of the Grille LEDs ?

Thanks Terry,

  #5
Old 03-29-2019
Member
Join Date: Jan 2019
Location: Jupiter, FL
Posts: 35

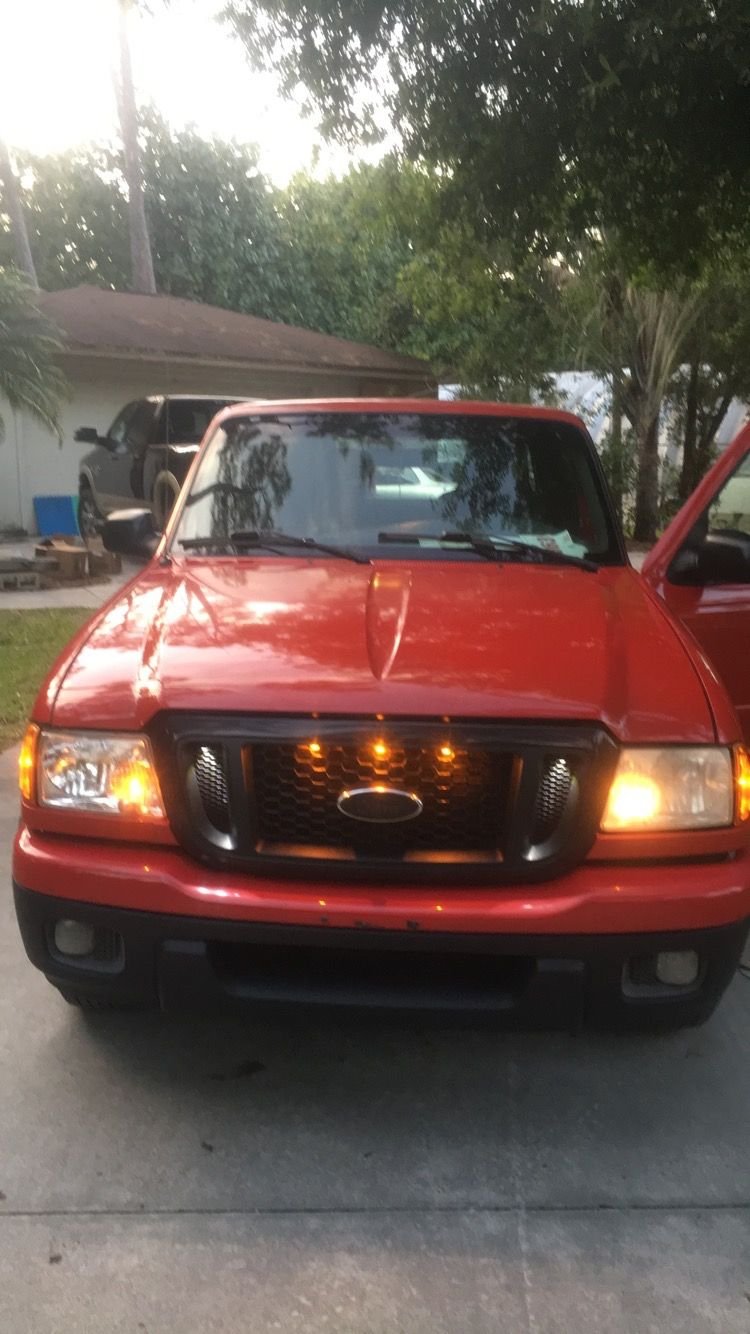

I did them, you can PM me for more details. It wasn't terribly difficult. I did three amber leds in the middle spaced out a little bit. Drill upward into the grille and mount them in with the rubber grommet that comes with it. I ran the positive to the running lights(Since they are on both with running and headlights) and brought the negative to the battery terminal. I would recommend drilling holes in the supports of the metal beam behind the grille in order to run the wire. Not really all that hard other than avoiding the ford emblem that sticks out in order to place the middle one, which is a pain, you have to drill on an angle unless you want to go through removing it, I didn't since I have the 04 grille. I also put some white ones on the far sides since the 04 grille has like 10% on each side sectioned off. The white ones were sticky which makes it easy. They look awesome IMO.
Link to lights
Amazon Amazon
I got the white sticky ones at walmart one day on sale


Last edited by RangerNick04; 03-29-2019 at 07:06 PM.
  #6
Old 03-29-2019
Scrambler82's Avatar
Old Guy Userů
iTrader: (12)
Join Date: Jul 2009
Location: SoCal
Posts: 7,296
Originally Posted by RangerNick04 View Post
I did them, you can PM me for more details.
Pictures... !

  #7
Old 03-29-2019
Member
Join Date: Jan 2019
Location: Jupiter, FL
Posts: 35
I'm new to the forum, ill do my best give me a minute to try n figure it out

  #8
Old 03-29-2019
Member
Join Date: Jan 2019
Location: Jupiter, FL
Posts: 35

  #9
Old 03-29-2019
Member
Join Date: Jan 2019
Location: Jupiter, FL
Posts: 35



  #10
Old 03-29-2019
Member
Join Date: Jan 2019
Location: Jupiter, FL
Posts: 35
Will post pictures of the actual bulbs and wiring so that you can see tomorrow, I am happy to post a how-to if theres people who want it

  #11
Old 03-29-2019
thyde's Avatar
Member
Join Date: Jan 2019
Location: Bethlehem, PA
Posts: 99
If you wired them into the parking light circuit I'd be really interested to see a writeup. I'm eager to put clearance lights on my ranger once I can finish the mechanical issues. Just did a cylinder head, and literally just now finished putting new u joints in the driveshaft. Going to put the shaft back on tomorrow and see if I am mechanically sound, and if I am the next project is clearance lights. I just like the way they look :)

  #12
Old 03-29-2019
Scrambler82's Avatar
Old Guy Userů
iTrader: (12)
Join Date: Jul 2009
Location: SoCal
Posts: 7,296
RangerNick04,

Lights are bright but look good !

Nice job, like the side white lights, interesting... !

  #13
Old 03-30-2019
NLBurden's Avatar
Member
Thread Starter
Join Date: May 2016
Location: NL, Canada
Posts: 156
Appreciate all the input. I'll probably just wire them straight to the parking light then, and if it doesnt work out well ill just run your usual relay set up and use the daily running lights as the signal line. Liking the pics in this thread! I got the older / 03 honeycomb grill style so ill just need a stud kind of amber lights and use washers behind them since the " holes" are already in the grill. Also got clearance lights to throw on the truck when exams conclude!

  #14
Old 03-30-2019
Member
Join Date: Jan 2019
Location: Jupiter, FL
Posts: 35
My opinion is to go to the running lights, super easy access and simple process. run the wires underneath the plastic lip of the grille, pics and videos coming
