??? - Let me see your sway bar!

Hey guys! I'm growing more and more concerned over the fact I wasn't able to connect either my Bronco II/Ranger nor my Explorer REAR sway bars.

Can I see the set-up on those of you who have an 8.8 or an Explorer rear swap??

Anyone got any ideas on what I should do to prevent body roll with the 8.8?
Reply With Quote
  #2
Old 04-24-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
This is a stock 2000 Ranger rear bar on a 2003 Ranger 31-spline 8.8. It's 100% bolt on.







The right side clamp goes right up against the differential housing casting on mine while the left side is about 2" from the housing.

The front mounts should line up with prepunched holes in the frame. The nut on the inside of the frame on the fuel tank side is a bit hard to reach.

Top of passenger side link mounted to frame (behind traction bar):





Front view of PS link:





Front view of PS clamp. Notice that the bolts fit right up against the housing flange and the clamp actually straddles both the axle tube and the diff housing:


Last edited by V8 Level II; 04-24-2007 at 06:36 PM.
Reply With Quote
  #3
Old 04-24-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836

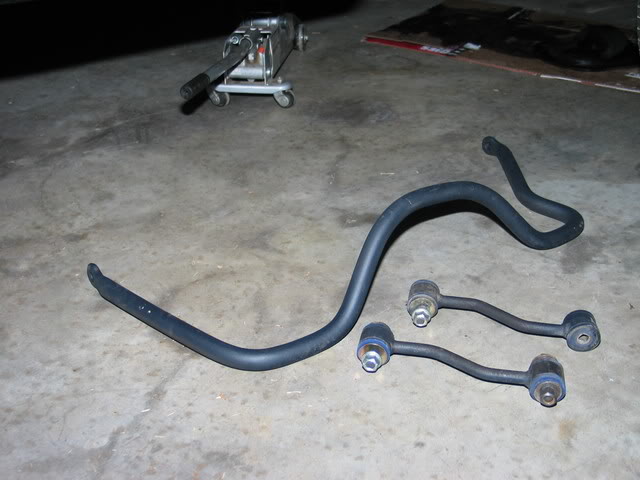

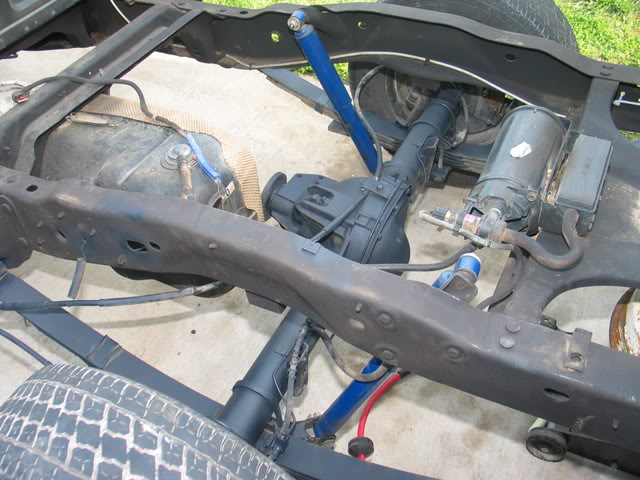

Yep...that is the Ranger/Bronco II bar I was talking about. However, since the Explorer is set up to have forward mounted shocks, the passenger's side interferes with the shock absorber.

Name:  IMG_4873.jpg
Views: 120
Size:  69.8 KB

Name:  IMG_4674.jpg
Views: 61
Size:  45.5 KB
Reply With Quote
  #4
Old 04-24-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Yes, my passenger side shock is also canted forward and the sway bar has a bend in it to accommodate the shock position. The difference is that I have the stock Ranger welded mounts and you have a combination of Ranger and Explorer parts and an axle flip.

Reply With Quote
  #5
Old 04-24-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Yes I figured the welded mounts that come on the Ranger stock 8.8 would make a big difference, but I didn't have a welder or anything to fab up the mounts.

Also...how do you figure I have an axle flip? That is the same set-up as it was when it came out of the Explorer.
Reply With Quote
  #6
Old 04-24-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
mine is like Bob's too Tim......i have taken it off if you want it......the only thing i don't have off yet is the links, but you could use the links you have....
Reply With Quote
  #7
Old 04-24-2007
Member

Join Date: Sep 2006
Location: parkville,md
Posts: 70
n.m
Reply With Quote
  #8
Old 04-24-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
mine didn't come with any welded mounts either....it has the lose mounts....
Reply With Quote
  #9
Old 04-24-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by Needforspeed3685
Also...how do you figure I have an axle flip? That is the same set-up as it was when it came out of the Explorer.
It's an axle flip compared to the stock Ranger setup that the factory sway bar was designed to fit.
Reply With Quote
  #10
Old 04-24-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by lifted97ranger
mine didn't come with any welded mounts either....it has the lose mounts....
I believe he means the welded SHOCK mounts.

David - thank you for the link! This isn't the first time I've thought about the sway bar being installed backwards. I'll give it a shot tomorrow for sure!
Reply With Quote
  #11
Old 04-24-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by rwenzing
It's an axle flip compared to the stock Ranger setup that the factory sway bar was designed to fit.
Gotcha....to the Ranger it's flipped, to the Explorer it's stock.
Reply With Quote
  #12
Old 04-24-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by lifted97ranger
mine didn't come with any welded mounts either....it has the lose mounts....
I was talking about welded shock mounts on the axle. He is using the bolt-on Explorer spring plates with the integral shock mounts. That and the flipped axle position puts his shocks in a completely different place relative to the sway bar.
Reply With Quote
  #13
Old 04-24-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by Needforspeed3685
Gotcha....to the Ranger it's flipped, to the Explorer it's stock.
There's no way to make the Ex swaybar fit?
Reply With Quote
  #14
Old 04-24-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by rwenzing
I was talking about welded shock mounts on the axle. He is using the bolt-on Explorer spring plates with the integral shock mounts. That and the flipped axle position puts his shocks in a completely different place relative to the sway bar.
ahhhh i didn't even notice that.......
Reply With Quote
  #15
Old 04-24-2007
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by rwenzing
There's no way to make the Ex swaybar fit?

explorer mounts bolts to welded on plates and then bolts to the frame behind the axle (not infront of like the stock ranger sway) and i THINK you have to drill new frame holes for it
Reply With Quote
  #16
Old 04-24-2007
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
mine looks like bob's and it came stock on my truck
Reply With Quote
  #17
Old 04-24-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Bob. You're exactly right. This is also why my Ranger is now sitting a good 6 inches lower in the rear.

I guess I need to start looking for an Explorer flip kit....huh? I was initially considering some Ranger lift shackles, but I don't think that would do it! (2 inches)
Reply With Quote
  #18
Old 04-24-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by Gay-briel
explorer mounts bolts to welded on plates and then bolts to the frame behind the axle
Correct. I was wondering if there was clearance on the Ranger to adapt it in the stock Explorer position.
Reply With Quote
  #19
Old 04-24-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by Gay-briel
explorer mounts bolts to welded on plates and then bolts to the frame behind the axle (not infront of like the stock ranger sway) and i THINK you have to drill new frame holes for it
That's what I was thinking. Based on the other pictures I've seen, and my own recollection, The Explorer's sway bar wraps around BEHIND the differential case.
Reply With Quote
  #20
Old 04-24-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by gatorblue92
mine looks like bob's and it came stock on my truck
Regular cab Edge/Sport and regular cab 4x4s are the only Rangers that still come with a rear bar. Many other models had them before 1998.
Reply With Quote
  #21
Old 04-24-2007
Member

Join Date: Sep 2006
Location: parkville,md
Posts: 70
hey need for yea the only problem i see is you will need to drill holes.
edit also probly shorter links
Reply With Quote
  #22
Old 04-24-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by rwenzing
Regular cab Edge/Sport and regular cab 4x4s are the only Rangers that still come with a rear bar. Many other models had them before 1998.
Not true. I was sporting the 2wd 2000 Ranger Sport reg cab, and it had the 7.5 open with no rear bar.

Quote:
Originally Posted by gray04edge
hey need for yea the only problem i see is you will need to drill holes.
edit also probly shorter links
Yes, but my Ranger/Bronco II rear bar is much thicker, so if I'm going to so much trouble I might as well try to use the Ranger bar backwards.
Reply With Quote
  #23
Old 04-24-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
I was wondering if the rearward position of the DS Ranger shock would cause problems with the Ex bar. On the Explorer, both shocks are canted forward.
Reply With Quote
  #24
Old 04-24-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by Needforspeed3685
Not true. I was sporting the 2wd 2000 Ranger Sport reg cab, and it had the 7.5 open with no rear bar.
I'm talking about the current Sport which is the new name for the Edge. That's why I said "Edge/Sport".
Reply With Quote
  #25
Old 04-24-2007
Member

Join Date: Sep 2006
Location: parkville,md
Posts: 70
either one id mount the better one too. tryed not to make it sound weird
Reply With Quote
