Lift Shackles & T-Bars

Can i get some pics from anyone, if anyone has it, all the lift is, is max t-bars with the chevy drop shackles.

I did not install my shackles and i can tell the *** end in lower, but not by much. So i just wanna see other who did those two mods, to compare to mine.

I want to order more shackles, but i dont want the rear to be sitting higher than the front.
Reply With Quote
  #2
Old 02-12-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Gary...there's a guy at my work that has cranked bars and AALs on 32s.....and he's taller than me, even with my 1" BL. It looks real good. I'll try and snap some pics.
Reply With Quote
  #3
Old 02-12-2008
garryyjr's Avatar
Member
Thread Starter

Join Date: May 2007
Location: Medford, OR.
Posts: 321
Thanks, also I see you like to use my name... Just remember GarRy.. two R's

I rather go with the shackles, but get some pics for sure.
Reply With Quote
  #4
Old 02-12-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
ok........gary. lol. sorry dude. is it two y's too?
Reply With Quote
  #5
Old 02-12-2008
RangerExtreme's Avatar
Member
iTrader: (4)

Join Date: Nov 2007
Location: Robinson, Pa
Posts: 2,047

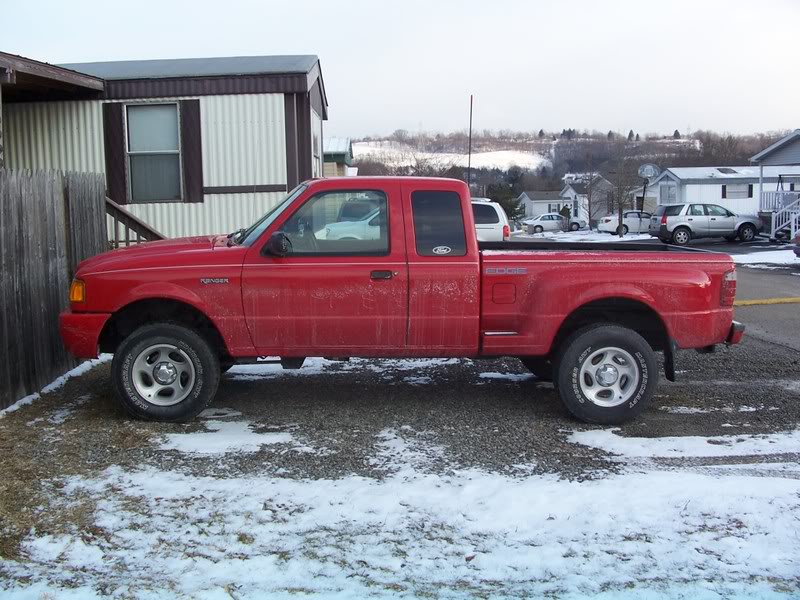

I have the T-bars cranked and the Shackles installed and it does sit even. The first picture isn't on a perfect flat but its close.

Name:  100_3359.jpg
Views: 9
Size:  111.3 KB

I can take more in alittle if u want.
Reply With Quote
  #6
Old 02-12-2008
garryyjr's Avatar
Member
Thread Starter

Join Date: May 2007
Location: Medford, OR.
Posts: 321
No.. my user name, garryyjr.. Stands for Garry Young Jr.
Reply With Quote
  #7
Old 02-12-2008
garryyjr's Avatar
Member
Thread Starter

Join Date: May 2007
Location: Medford, OR.
Posts: 321
RangerExtreme, are the t-bars maked? How much did you get with the shackles?
Reply With Quote
  #8
Old 02-15-2008
Ranger_Guy15's Avatar
Member

Join Date: Apr 2007
Location: MN
Posts: 2,827
Yea im wondering the same thing, how much do you get from shackles? And, which is more clearance, shackles or aals? Which is easier to install?
Reply With Quote
  #9
Old 02-15-2008
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Quote:
Originally Posted by Ranger_Guy15 View Post
Yea im wondering the same thing, how much do you get from shackles? And, which is more clearance, shackles or aals? Which is easier to install?

Neither would give more clearance.. the axle will still sit the same as it was.. its only raising the body higher off the axle.
Reply With Quote
  #10
Old 02-15-2008
RangerExtreme's Avatar
Member
iTrader: (4)

Join Date: Nov 2007
Location: Robinson, Pa
Posts: 2,047

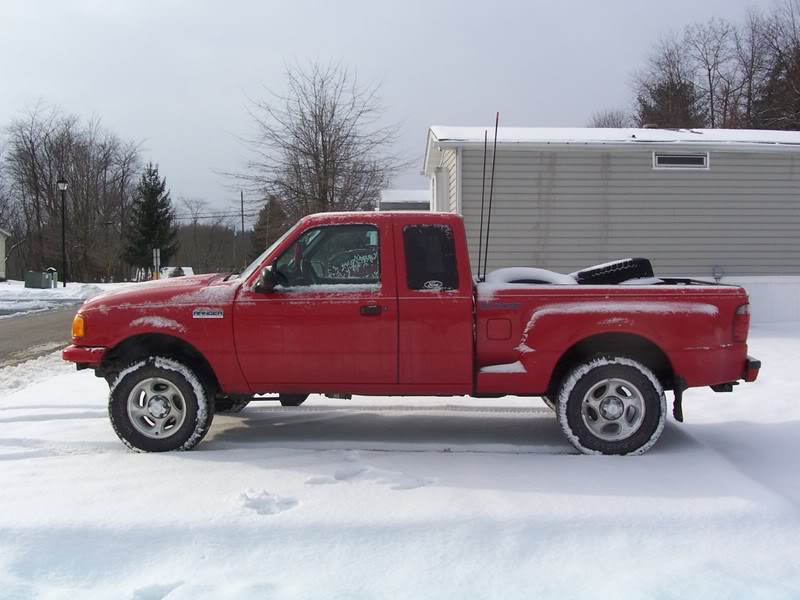

I just cranked till it was about even heres a picture fromt he side..the rear sits lower cause of the bed weight i have in the back. Better be ready to crank those t-bars a good deal if u put the shackles on to get it even. All i used was a tape measure and i measure from the center of the wheel to the bottom of the fender.

Name:  100_3408.jpg
Views: 9
Size:  73.7 KB
Reply With Quote
  #11
Old 02-16-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Reply With Quote
  #12
Old 02-17-2008
garryyjr's Avatar
Member
Thread Starter

Join Date: May 2007
Location: Medford, OR.
Posts: 321
Well my t-bars are maxed.. But i can tell the rear is lower.. Ill have to get a good side pic..
Reply With Quote
  #13
Old 02-17-2008
Ranger_Guy15's Avatar
Member

Join Date: Apr 2007
Location: MN
Posts: 2,827
Hey trigger, how much lift did both of those give you?
Reply With Quote
  #14
Old 02-18-2008
BBBB51's Avatar
Member

Join Date: Oct 2006
Location: Alb. N.M.
Posts: 213
Trigger Did u put the edge off road decal on . I havent ever seen that before but I like it , looks nice.
