My POR-15 & dual battery project

So I want to set my Ranger up with dual batteries for winching. I plan to put the second battery inside a toolbox in the bed. I'm going to remove the bed when I run the wiring. I want to POR-15 the frame from the rear of the cab back while I have the bed off. Amazon has a POR-15 starter kit that includes a 4 oz. can of POR-15 (enough to cover 12 square feet). Will this be enough to do the frame from the cab back?
Attached Thumbnails
My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-por-15-super-starter-kit.jpg
Reply With Quote
  #2
Old 11-09-2012
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
No it wont. Needs quart (the 4 inches tall? size can). Also I did the entire rear including: inside of frame, crossmembers, skid plates, leaf springs, blah blah whatever else there was. I didn't waste my time with all the "pre por-15" chemicals. I grabbed a wire brush to hit anything thick and washed off all the dirt and **** i could. OH, i did use a can of engine degreaser to help.

[img][/img]
Attached Thumbnails
My POR-15 & dual battery project-054870db.jpg
Reply With Quote
  #3
Old 11-09-2012
biketheozarks's Avatar
biketheozarks
Thread Starter

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
Did you have to remove anything (such as gas tank) to get coverage everywhere?
Here is the diagram for how I think I need to hook up the dual batteries. Do I have it right?
Attached Thumbnails
My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-dual-battery-diagram-143.jpg

Last edited by biketheozarks; 11-09-2012 at 11:03 PM.
Reply With Quote
  #4
Old 11-09-2012
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
I didn't cover areas that were improbable to get to. Bed was annoying enough as it is. I cannot remember exactly but my frame looked alright anyways. Wasn't interested in covering it 110%.
Reply With Quote
  #5
Old 11-09-2012
biketheozarks's Avatar
biketheozarks
Thread Starter

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205

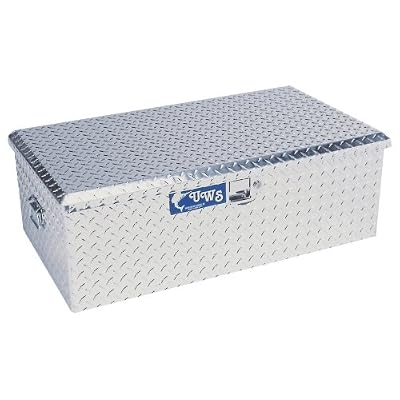

Here's the parts I've come up with for the project:







Attached Thumbnails
My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-spdt-switch-14395.jpg   My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-battery-terminal-14394.jpg   My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-anl-fuse-holder-14393.jpg   My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-quick-disconnect-14392.jpg   My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-tekonsha-battery-isolato.jpg

My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-uws-footlocker-14390.jpg   My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-camco-rv-battery-box-143.jpg   My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-jumper-clamps-14396.jpg   My POR-15 & dual battery project-31mzfrszcbl._sl500_aa300_.jpg   My POR-15 & dual battery project-51acazrgwdl._sl500_aa300_.jpg

My POR-15 & dual battery project-31mzfrszcbl._sl500_aa300_.jpg   My POR-15 & dual battery project-51acazrgwdl._sl500_aa300_.jpg   My POR-15 & dual battery project-411ykmh1k9l._ss500_.jpg   My POR-15 & dual battery project-41oiqjk96fl._sl500_aa300_.jpg   My POR-15 & dual battery project-41%252bznu7%252bhwl._sl500_aa300_.jpg


Last edited by biketheozarks; 11-10-2012 at 11:25 PM.
Reply With Quote
  #6
Old 11-09-2012
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
lol posted in wrong thread
Reply With Quote
  #7
Old 11-09-2012
biketheozarks's Avatar
biketheozarks
Thread Starter

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
I posted in wrong thread? I really wasn't sure where I should post this.
Attached Thumbnails
My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-dual-battery-wiring-diag.jpg   My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-dual-battery-wiring-diag.jpg

Last edited by biketheozarks; 11-10-2012 at 01:15 AM.
Reply With Quote
  #8
Old 11-10-2012
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Quote:
Originally Posted by biketheozarks View Post
I posted in wrong thread? I really wasn't sure where I should post this.
Oh I'm sorry I wasn't looking at usernames, and the sudden switch to electronics stuff confused me. My bad, you're fine. I've thought of second battery too but without insulating it, it'd just die in the winter for me.
Reply With Quote
  #9
Old 11-10-2012
biketheozarks's Avatar
biketheozarks
Thread Starter

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
I've been reading up on dual battery setups @ the piranha off road website.
According to the info on that website my wiring plan won't work for a newer vehicle because a standard battery isolator won't protect modern electronics from power spikes. They offer an isolator that has built in protection (http://piranhaoffroad.com.au/index.p...s/dbe140s.html), but it only has 3 poles which won't allow me to hook up a SPDT switch, which I really wanted to do so I could self-jump start. Anyone have any thoughts about this? I know there are members on RF that have used a standard solenoid isolator, has anyone had problems with this setup? The piranhaoffroad website also says to only run a winch off of the auxiliary battery, and not the primary battery. I had planned on using the primary battery for winching when I have the winch on the front of the truck, and use the auxiliary battery when winching at the rear of the truck, this way I reduce the distance between the winch and the battery. Any advise would be greatly appreciated!
Reply With Quote
  #10
Old 11-11-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,765
If you haven’t already finished the POR-15 thing, consider removing all components from the frame that you can without broken bolts. Dirt and all kinds of stuff get un the corners of the frame and cause corrosion, rot that is and rusting, get all of the stuff out you can; I used an air gun to blow out a lot of stuff behind and under everything.

Remember POR-15 needs a cover paint.

On the electrical side of the thread - have you looked at Painless Wiring Kit offering a dual battery kit ?

Painless Performance: 250 Amp Waterproof Dual Battery Current Control System

Manual: http://www.painlesswiring.com/Manuals/40103.pdf

Also, consider running your ground wires to a common point under the hood, this will eliminate or at least reduce corrosion problem associated with grounds under the truck. The frame although always used for grounds does not always offer good connections.
Use a good quality heat shrink with internal adhesive on all connections, this will reduce corrosion and help to support the cable ends.

Just thinking out loud, when I read your thread, hope it all works out.
Reply With Quote
  #11
Old 11-11-2012
biketheozarks's Avatar
biketheozarks
Thread Starter

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
Thanks for the advise. I am actually working out of state right now and won't be starting this project until i get home, December 15th. I do plan on stripping as many parts off of the frame as I can to get the POR-15 everywhere. I have considered the Painless Wiring kit, but I determined I can buy the parts separately for less money. And I plan on using 1/0 wire. For some reason, @ weldingsupply.com, the 1/0 wire actually costs less than 2 gauge. I plan on buying 50 feet since 50ft or more gets you a small discount. However much cable I have left after wiring up the dual batteries I am going to use to make jumper cables. I'm going to put a quick disconnect on the front and rear bumpers so I can plug in my winch or the jumper cables at either end of the truck. I also decided I want to solder all of the cable lugs into place rather than just crimping them. I am going to use heat shrink tubing at all the ends, and I'm going to run all the cable inside of loom.
Reply With Quote
  #12
Old 11-11-2012
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
what kind of OTHER electrics are you going to be running when winching? if your running a basically stock set up, i.e. no big stereo, no off road lights, you can probably just upgrade to an explorer alternator and a better battery.
Reply With Quote
  #13
Old 11-11-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,765
Quote:
Originally Posted by biketheozarks View Post
I do plan on stripping as many parts off of the frame as I can to get the POR-15 everywhere.
It’s the best bet, if you do all the work to get there and then only do part of the job might not be worth it, if you know what I mean.

Quote:
Originally Posted by biketheozarks View Post
I have considered the Painless Wiring kit, but I determined I can buy the parts separately for less money. And I plan on using 1/0 wire. For some reason, @ weldingsupply.com, the 1/0 wire actually costs less than 2 gauge.
Ok on buying part separately, I do that most of the time but the kit from Painless is nice, all of the parts are there and they back it up.
Thinking buy a kit similar to Painless and all of the extra cable from this Welder’s Supply.
If you need a good suppler for solenoids try Northwest Power Products / Wrangler Power Products, they have great heavy duty stuff.

Quote:
Originally Posted by biketheozarks View Post
I plan on buying 50 feet since 50ft or more gets you a small discount. However much cable I have left after wiring up the dual batteries I am going to use to make jumper cables.
Just thinking here, I have a great set of jumper cables, “0” gauge, 25 feet long with the Connector you want to use, this allows me to change the ends from Clamps, so I can help others, to Push In Connector, for quick use of my truck when needed.

Think 50 feet for the jumpers with extensions.


Quote:
Originally Posted by biketheozarks View Post
I'm going to put a quick disconnect on the front and rear bumpers so I can plug in my winch or the jumper cables at either end of the truck. I also decided I want to solder all of the cable lugs into place rather than just crimping them. I am going to use heat shrink tubing at all the ends, and I'm going to run all the cable inside of loom.
Great idea, I am doing the same thing with the new bumpers but thinking for jumpers only.
The winch, what make winch, warn uses three wires from the Control Box to the Winch so you will need the control box mounted on the Slide-Mount.


The Vehicle Schematics is great, like it !



Luck with the project.
Reply With Quote
  #14
Old 11-12-2012
biketheozarks's Avatar
biketheozarks
Thread Starter

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
Quote:
what kind of OTHER electrics are you going to be running when winching? if your running a basically stock set up, i.e. no big stereo, no off road lights, you can probably just upgrade to an explorer alternator and a better battery.
Currently I have no other electronics. However someday I would love to upgrade to a better stereo with an amp & some off road lights also. I kind of have my heart set on the dual battery setup. I think I might upgrade to a better alternator anyway, but not right away since I just had mine rebuilt. I have a brand new battery, and when I do the second battery I'm going to buy the same one I have as a primary so they match. What years/engines of explorers would the alternators work for my '06 4.0L?

Quote:
Think 50 feet for the jumpers with extensions.
I was beginning to think that 50 feet might not be enough by the time I do my ground wires.

Quote:
The winch, what make winch, warn uses three wires from the Control Box to the Winch so you will need the control box mounted on the Slide-Mount.
It's a Warn XD9000i portable series.
Attached Thumbnails
My POR-15 & dual battery project-biketheozarks-38335-albums-jeff-s-06-ford-ranger-sport-4x4-2042-picture-warn-37441-14182.jpg

Last edited by biketheozarks; 11-12-2012 at 05:43 AM. Reason: had wrong warn model #
Reply With Quote
  #15
Old 11-12-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,765
Quote:
Originally Posted by biketheozarks View Post
Currently I have no other electronics. However someday I would love to upgrade to a better stereo with an amp & some off road lights also. I kind of have my heart set on the dual battery setup. I think I might upgrade to a better alternator anyway, but not right away since I just had mine rebuilt. I have a brand new battery, and when I do the second battery I'm going to buy the same one I have as a primary so they match. What years/engines of explorers would the alternators work for my '06 4.0L?
Stereo and amp upgrade make a big difference and off road lighting looks good even if you don’t use it but both need more power.
Batteries need to be as close to the same age as possible in a dual battery setup.
Larger Alternator is a must, I’m thinking 180 to 200 amps, get as large a unit as you can.

Quote:
Originally Posted by biketheozarks View Post
I was beginning to think that 50 feet might not be enough by the time I do my ground wires.
two runs of the truck will take at least half of the cable then you will have 12 foot jumpers, OK with the Connectors on the front and rear bumper but the longer the better. I find the 25 foot jumpers work out well, there is always that one tractor or truck that is positioned with the front buried away from you.

Quote:
Originally Posted by biketheozarks View Post
It's a Warn XD9000i portable series.
Nice winch, should work ok with your setup.
Mine has a separate control box so I need to mount the box to the motor.


When you do your new wiring, get extra ground cable so you can redo the grounds under the hood, battery to frame, to engine and two others, one to the alternator housing and one to the starter mounting bolt or housing.

As said before, grounds are very important to a good electrical system.

Sorry to get carried away on this thread.
Luck with the new system.
Reply With Quote
  #16
Old 11-13-2012
biketheozarks's Avatar
biketheozarks
Thread Starter

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
Quote:
When you do your new wiring, get extra ground cable so you can redo the grounds under the hood, battery to frame, to engine and two others, one to the alternator housing and one to the starter mounting bolt or housing.
Ok so here's what I'm thinking for lengths... I'm still out of state or I would do some pre-measuring using some rope, & I would like to have all my parts waiting for me when I get home...

Positive from front quick disconnect to rear disconnect, approximately 20 feet (according to Google the ext cab is 16ft, 10.9in bumper to bumper). Negative for front & rear disconnect, primary battery to frame, and aux battery to frame, 12 feet (3ft each). For the battery to engine, alternator, and starter should 4 foot each do it? That would be 44 feet all together. Then if I want 25ft jumpers I will need another 50 feet of cable. Holy crap that's a lot of cable! May as well plan on buying 100 feet!
Reply With Quote
  #17
Old 11-13-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,765
Wow, 100 feet of “0” ga welding cable, wondering $$$ ?

The 25 foot cables work for me not saying you need that length just don’t get caught SHORT ! lol

If you are going to do it, Do It Right The First Time, the only way.

Think about a connector on one end, about 2 feet in, so you can change the ends from Bumper Connector to Clamps when needed.
So far I have used the Clamps more than the Connector but I have it if either I need a jump or a vehicle is close enough to use the Bumper Connector.



There is a handle for this type of connector, I am thinking on getting it, helps when trying to pull apart the connectors.


Luck on the project, you will have a good grounding system, a good winch setup and a great and easy jumper system.


Oh ya, one more thing… soldering on jumper cables may or may not be the best thing, either buy or borrow a crimper that is designed for the lugs used in that connector. It is better to have a good mechanical bond first then think solder but if the crimping is done correctly you shouldn’t need the solder.
Now all other connections you should solder after getting a good mechanical bond.

Also, never pull the cables apart using the Welding Cables themselves, only the connectors; quickest way to pull the cable out of the connectors.

Sorry to get carried away, I will get off the soap box now.

Last edited by Scrambler82; 11-14-2012 at 04:50 AM.
Reply With Quote
  #18
Old 11-14-2012
biketheozarks's Avatar
biketheozarks
Thread Starter

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
Quote:
Wow, 100 feet of “)” ga welding cable, wondering $$$ ?
Well when I first started researching prices at weldingsupply.com, there was a discount offered if you ordered 50 feet or more, but now that option seems to have disappeared. Current price is $3.45/ft, plus shipping for ultraflex orange. I'm thinking I may just get 50 feet for now, and order another 50 feet for the jumpers later down the road. With the toolbox & POR-15, this is going to be a pretty expensive project.


Quote:
Sorry to get carried away, I will get off the soap box now.
My need for advise is exactly why I joined RF! Thanks for the input!
Attached Thumbnails
My POR-15 & dual battery project-304-1270uf.gif

Last edited by biketheozarks; 11-14-2012 at 03:09 AM.
Reply With Quote
  #19
Old 11-14-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,765
Quote:
Originally Posted by biketheozarks View Post
Well when I first started researching prices at weldingsupply.com, there was a discount offered if you ordered 50 feet or more, but now that option seems to have disappeared. Current price is $3.45/ft, plus shipping for ultraflex orange. I'm thinking I may just get 50 feet for now, and order another 50 feet for the jumpers later down the road. With the toolbox & POR-15, this is going to be a pretty expensive project.


My need for advise is exactly why I joined RF! Thanks for the input!
Good idea to keep the project smaller and affordable.

Good luck on the project.
Reply With Quote
  #20
Old 11-15-2012
biketheozarks's Avatar
biketheozarks
Thread Starter

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
Found this switch at O'Reiley auto parts for $12.99. The first one I found was @ Amazon and was only $1.98, but I really do like the indicator lights.
Attached Thumbnails
My POR-15 & dual battery project-58327-06.jpg
Reply With Quote
  #21
Old 11-15-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,765
I’m with you on the indicator lights… but for $13 you can buy a nice switch without an indicator light, buy one or two LEDs in any color you want with mounting, and put the indicators anywhere you want AND you might have a little left over for a relay so the switch can be a super low current setup and cost even less.

Unless you want this look then go for it.
I purchased a toggle switch and a Red Flip Cap, separately for $6, the Web want $13 for the set.
Always watch your prices on this stuff, there is someone on the web selling cheaper.

The switch itself is interesting, two indicator lights can be nice, easier to locate at night.
What is the specifications on the switch ?

One more thing, the cabling you are going to use, is the black cable any cheaper in cost ?
Reply With Quote
  #22
Old 11-16-2012
biketheozarks's Avatar
biketheozarks
Thread Starter

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
This switch is a Cole Hersee brand. The specifications are 25A @ 12V DC. It has silver contacts and is also supposed to be weather resistant. Black 1/0 cable is $2.71/ft and red is $2.63/ft. But they are less flexible. They claim the orange cable has four times as many copper strands as standard cable. I see now that a discount is still offered for the red or black if you order 50 feet of more. $2.50 for the black and $2.44 for the red. I just sent them an email to ask about a discount for the orange.

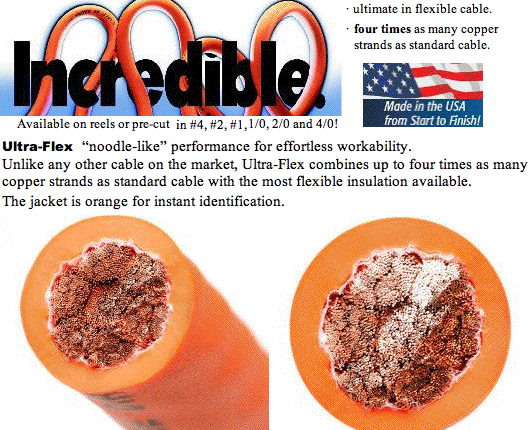

I'm really not sure how stiff the standard cable would be. I'm only concerned about flexibility where the cable connects to the batteries. I may consider buying enough of the orange just to do from the battery positives to the fuses and from the battery negatives to the frame. It might be worth it to stick to standard cable for the rest of the truck wiring, and use the ultra flex for the jumper cables.
Attached Thumbnails
My POR-15 & dual battery project-304-1220uf.gif

Last edited by biketheozarks; 11-16-2012 at 06:32 AM.
Reply With Quote
  #23
Old 11-16-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,765
Flexibility is a plus plus type of thing and you don’t know you needed it until you have use the flexible cable.

The orange cable is nice stuff and the more strand the more current it will handle and the more flexible, also it appears to have a liner around the strands, nice touch.

Have you checked out Northwest Power Products on Cabling, they are a little high but they have what they call superflex red and black cable in up to 4/0, heavy stuff.

Also, in keep ing with electrical code red is 12 volt hot, black is 12 volt ground, if the next guy to get your truck tries to mod the wiring he might be in for a surprise.

ltr
Reply With Quote
  #24
Old 11-16-2012
biketheozarks's Avatar
biketheozarks
Thread Starter

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
If I use red & black cables I'll do it like it should be, red positive, black negative. But if I use orange I will wrap the ends with red & black electrical tape for identification. Plus I am going to use red and black shrink wrap.

I just found out today that I get to go home for Thanksgiving for a week. I guess I will be getting started on this project sooner than I thought. Problem now is that I haven't ordered any of the parts yet so I'm not sure if I can get the parts in time.

Does anyone know what Explorer alternator (year/engine) I would need for my '06 4.0L Ranger?
Reply With Quote
  #25
Old 11-17-2012
biketheozarks's Avatar
biketheozarks
Thread Starter

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
Quote:
Remember POR-15 needs a cover paint.
Which would be best to use for the frame, the POR-15 paint or the chassis coat? Here is a quote from the POR-15 website: "POR-15® is sensitive to UV light (sun) and must be top coated for prolonged exposure to sunlight. Top coating is not required for areas not exposed to sunlight." Given this do you still think I need a top coat for the frame beneath the bed?

Ok, sorry I think I just found the answer about paint vs. chassis coat. The POR-15 website says the chassis coat is a topcoat. If I have enough paint left over after doing the frame I would like to do my drive shaft and whatever else I can get done. Does anyone know if POR-15 will withstand high heat? If so, I will do the exhaust with it (again, if I have enough left, I only ordered a quart).
Attached Thumbnails
My POR-15 & dual battery project-poi-1qb.jpg   My POR-15 & dual battery project-poi-chg_w.jpg

Last edited by biketheozarks; 11-17-2012 at 04:13 AM.
Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Por-15 Ftw! 05Edge-04GT Exterior Semi-Tech 7 10-04-2008 06:52 PM
Hitch fixed. POR-15 05Edge-04GT General Ford Ranger Discussion 6 05-22-2008 08:27 PM
Por 15 & Exposed Surface outdoorsman Exterior Semi-Tech 9 04-24-2008 07:18 PM
running battery down, battery discharge from playing an amp'd system onebluemcm Audio & Video Tech 12 04-13-2007 04:48 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -6. The time now is 05:39 AM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
