my truck's mods (pics)

this thread i intend to update as i work on the truck, and as it evolves...

today (day 4 with the truck) i managed to get my CB in and changed the headlights to the super white 4350k blubs, that took 2 tries, i found out that my truck does not take the 9004 bulbs like my mustang and other trucks do...

now pics

antenna (magnet mount)
Name:  IMG_0407.jpg
Views: 9
Size:  92.8 KB

radio mounted in cab
Name:  IMG_0408.jpg
Views: 6
Size:  118.5 KB

and headlights, the lights, left is stock, right is new


the difference (stock sylvania on right)


and just for fun, fun flexy pic or 2
Name:  photo2-1.jpg
Views: 6
Size:  115.5 KB

Name:  photo3-1.jpg
Views: 7
Size:  34.4 KB

up next for mods, toggle switch ABS and toggle hi-beam cancel foglights (if i can figure out how)
Reply With Quote
  #2
Old 09-17-2009
flyboy's Avatar
Member

Join Date: May 2005
Location: Tacoma, WA
Posts: 108
Nice lookin truck, but seriously....get a firestik. That magnet mount antenna looks terrible. lol
Reply With Quote
  #3
Old 09-17-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
those are the pilot bulbs from pepboys arent they?

aka trash. lol

get some sylvania silverstars
Reply With Quote
  #4
Old 09-17-2009
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
I wish mine was blue

very nice!
Reply With Quote
  #5
Old 09-18-2009
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
they no name i think, from princess auto, were on sale yesterday for 7$ a pair :D now their 10... they actually do make a difference, and i am happy with them, i'll get a shot of the packaging when i get up tomorrow (i'm at work right now)

blk 02, i was lookin at a few red ones, and they were really growing on me, but then the blue one popped up and was a good price, and the salesman was even better (good from his stance).

flyboy, the antenna is temporary. I bought it to use on my dad's truck when i was in bonnieville (wendover) utah for speedweek, i want to mount one to the hole that the wire goes through in the box, but i am going to wait till after the spray in liner gets put in...

I was down in utah with this car



seen here (me) 3rd from right with the dark glasses on, standing next to Andy Green (pilot of the JCB Deisel Max car[fastest deisel powered car in the world] and holder of the overall landspeed record)



(yes i know, i ramble way too much, and often get off topic)
Reply With Quote
  #6
Old 09-18-2009
BSGRanger's Avatar
Member
iTrader: (2)

Join Date: Feb 2008
Location: Louisville, KY
Posts: 126
Nice truck, I love the FX4s with that shifter, not to mention the blue paint!
Reply With Quote
  #7
Old 09-18-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Looks good man...what other things do you have planned for it? It's not that often people post shifter pics of 04+ manual Fx4's.



If you intend on continually updating this thread with new mods and such, this should be in the Project Logs section of the site. And under a different title...something like "-weezl-'s truck log" or something like that. Just givin ya a tip.
Reply With Quote
  #8
Old 09-18-2009
dixie_boysles's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
nice truck man, but may i suggest something?

https://www.ranger-forums.com/forum2/f6/f43/91239-how-install-roll-bedliner.html

or a spray -in, it would make ur truck look ten times better!
Reply With Quote
  #9
Old 09-18-2009
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
i think i mentioned imbedded somewhere, that i am going to be getting a spray in liner done, and i'm going to see if i can get the guy to spray in the ford symbol at the front (seen it done a few times) after that, the new antenna will go in

hopefully this week for it though, ABS, fog light mod (2 position 3 pole switch on it, so one position will be stock working, the other fog with hb's) remove rear mud flaps, torsion bars, if i can find someone who will do a cheap alignment after that, lift the rear, thinking shackles only, maybe blocks... i have to see what i am allowed to do (the dealership is being very sticky with the pt warranty) front skid plate is a maybe. winch... a chip is a definite, but that has to wait till after the warranty for sure, other than that' i'll have to see what comes up or i see on sale. i will probably end up putting some big lights on the front, i miss my old IPF lights i had on my f-250

oh, and for the ricer in me (what little there is, look at my vehicle history) i will be putting strobes in the lights, and possibly red led strobes in the rear window, (like police lights, but no blue, blue is too expensive of a ticket, red i believe is legal)

*edit*
where do you guys put the switches for everything you run? being i've got the double tall stock deck and all... i'm going to need a fairly large area by the time I am done, i want to put in the small, flatish, black rockers, possibly like these... my biggest thing at this point is keeping the truck looking professional done, not hokey some guy who just bought a new truck and wants to mod it (as is the case)


or like this, but i would want red led in it, and the problem is square holes are difficultish to cut

Last edited by --weezl--; 09-18-2009 at 09:39 AM.
Reply With Quote
  #10
Old 09-18-2009
dixie_boysles's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
i thaink you should just send me ur wheels! lol
Reply With Quote
  #11
Old 09-18-2009
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
**** that! why do you think i went with the lvl II? lol!

they sure are perdy though eh? i was so happy that i found a truck with the dark ones, rather than the chrome
Reply With Quote
  #12
Old 09-18-2009
dixie_boysles's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
i dk its a tossup between the two! i think ine wouldlook better with the polished ones....i tried to buy some form another member, but he decided to keep them. (he nver intedted to sell them, i just offered him money for them!)...man i want some, but decided to spend the money on a jon boat!

what makes me mad is i wanted a white level II. couldnt find one. well 2 months after i bought mine, guess what, an 05 white level II shows up w/ ALL the stuff on my checklist i wanted ie...leather seats, bedliner, 4 doors, etc...
Reply With Quote
  #13
Old 09-18-2009
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
there is one for sale at the first dealership i was at... white 07, cloth interior though, the guy tried to sell it to me, and i was like nah, white's not my style...

my rempest was red, mustang, blue, bronco II, grey, torino green, f-250 blue, f-150 brown/cream (ugly *** truck) and my bike is red) never owned a white vehicle...

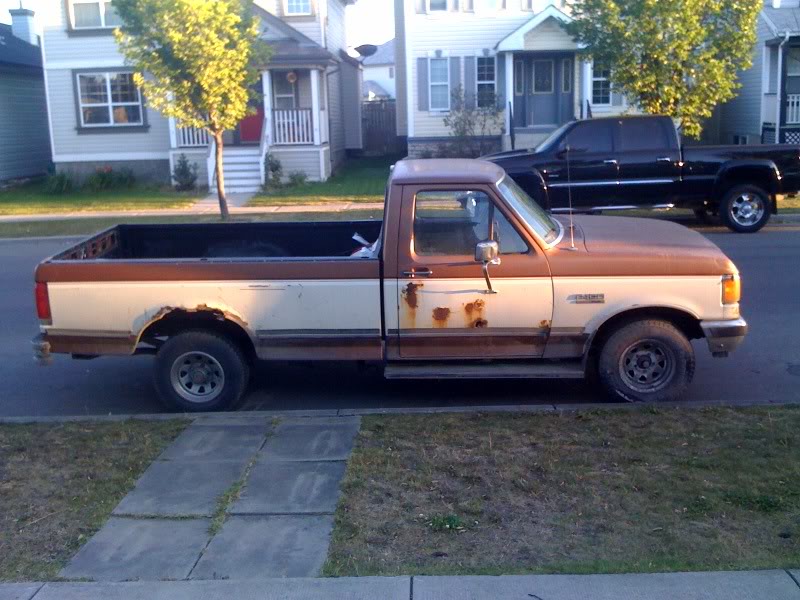

here's my f-250 and my f-150
Name:  photo2.jpg
Views: 7
Size:  98.4 KB

Name:  n661645713_1075276_3947.jpg
Views: 5
Size:  57.1 KB

and i think there is pics of my bike with my ranger in my photo album
Reply With Quote
  #14
Old 09-21-2009
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139

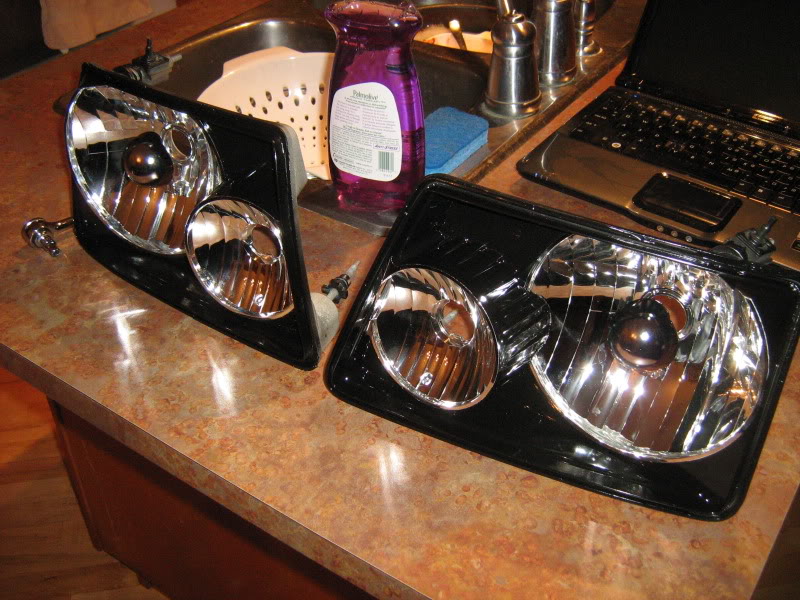

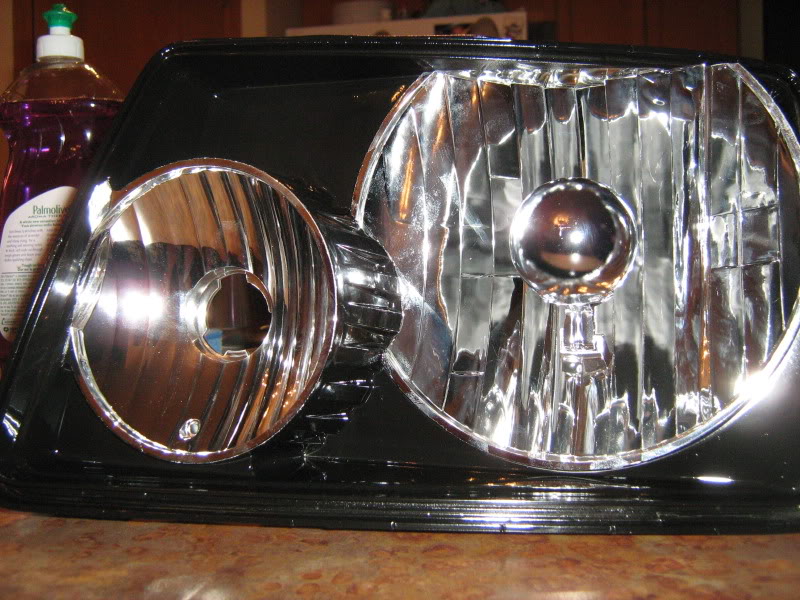

here's pics of the headlight painting i did today, the one headlight i heated and tried a thousand times is totally warped, and took me like half an hour to get back in, you can't see it, but the mounts will not line up anymore...

and if one of the mods would be so helpful as to move this thread to the right section, i would be forever grateful and love you long time! (as fx4 mentioned)

Name:  IMG_0416.jpg
Views: 6
Size:  86.5 KB

Name:  IMG_0417.jpg
Views: 5
Size:  131.6 KB

Name:  IMG_0418.jpg
Views: 5
Size:  130.4 KB

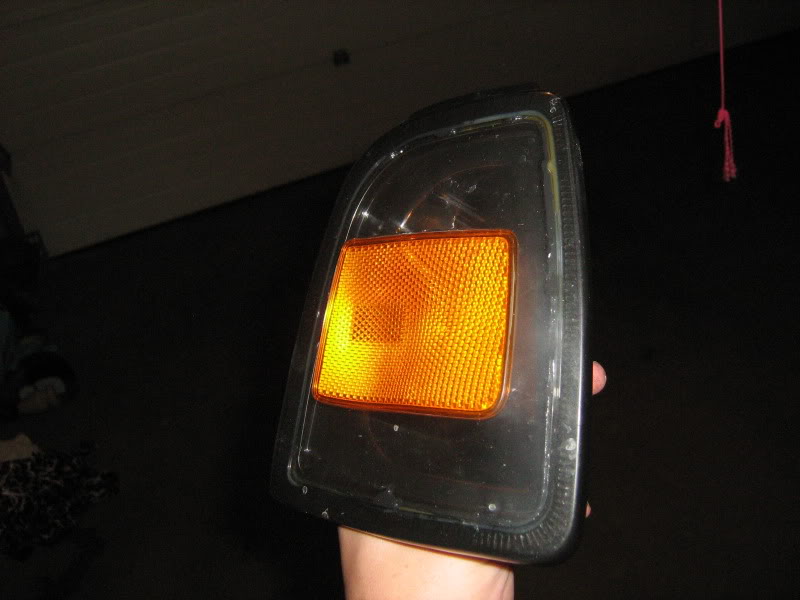

corners were in a little too hot, a little too long...
Name:  IMG_0421.jpg
Views: 6
Size:  60.1 KB

Name:  IMG_0422.jpg
Views: 6
Size:  44.8 KB

Name:  IMG_0424.jpg
Views: 5
Size:  79.6 KB

Name:  IMG_0425.jpg
Views: 6
Size:  154.0 KB

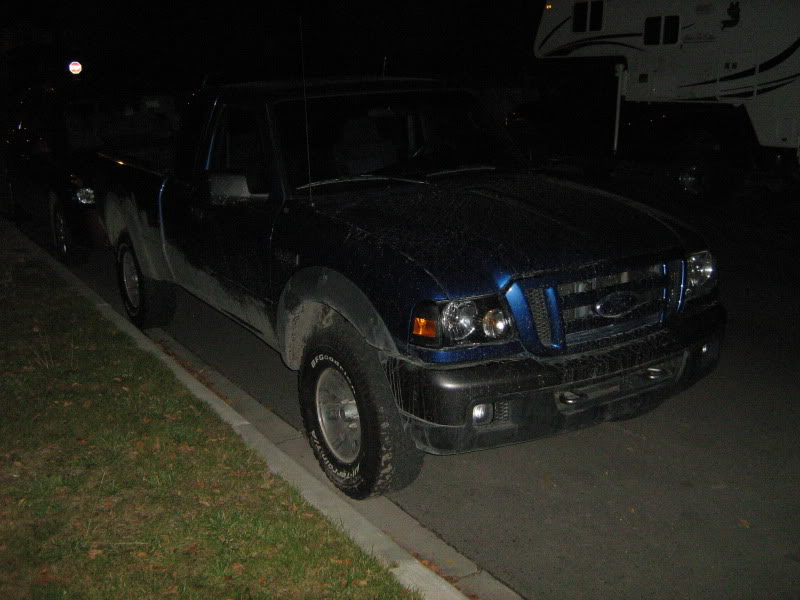

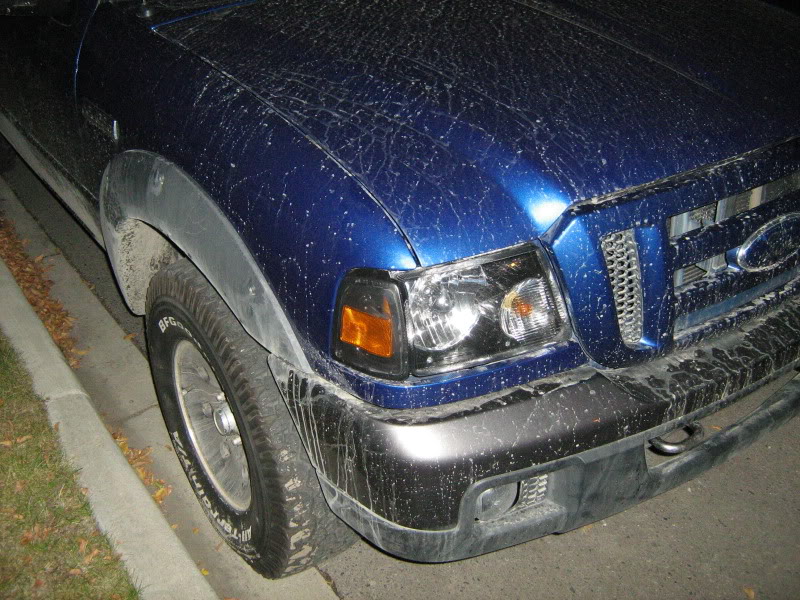

i'll post more pictures of it in the daytime, of what they look like ON the truck, tomorrow.
Reply With Quote
  #15
Old 09-21-2009
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Sucks that the clear corners messed up. One important word of advice I learned from installing my Superlift, always follow sort of closely the directions that other members give you. If you had followed the temp guides on the clear corners you may have had better luck. The reason I say this is because I spent about 30 hours installing my superlift, and the reason it took so long was because I'd struggle for 2 hours on a part, get frustrated and call FX4Wannabe01 or Zabeard or Daniel (from Michigan) and they would tell me how to remove a part. Very very helpful and almost always i was doing it wrong or using too much force in the wrong way.

that was too much typing, i like how you're knockin out mods fast. I usually work slow.
Reply With Quote
  #16
Old 09-21-2009
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
lol i hear ya, i just didn't think the corners would be any different in the oven than the headlights... oh well...
Reply With Quote
  #17
Old 12-25-2009
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139

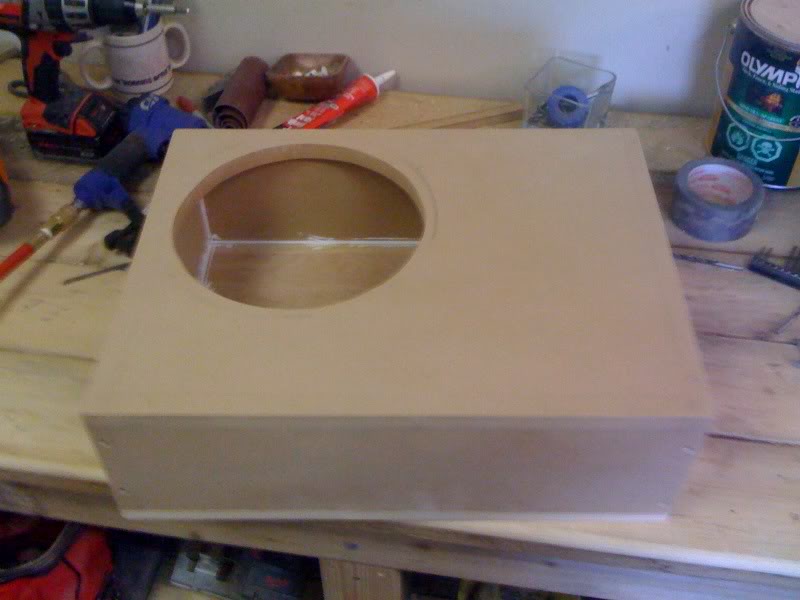

so updates to the truck, i've gotten a new deck installed, but have no pics of it yet... i will grab them as soon as i can, i have also installed a 10 inch MTX sub pics:

Name:  photo-29.jpg
Views: 7
Size:  63.3 KB

Name:  photo2-21.jpg
Views: 6
Size:  66.6 KB

Name:  photo-28.jpg
Views: 6
Size:  59.7 KB

Name:  photo2-18.jpg
Views: 7
Size:  47.7 KB

i also hate BMW's so i did this to one of them...

Name:  photo-22.jpg
Views: 7
Size:  41.9 KB

Name:  photo2-16.jpg
Views: 5
Size:  67.9 KB

unfortunately he did this to me...

Name:  photo2-15.jpg
Views: 5
Size:  70.5 KB

Name:  photo3-12.jpg
Views: 6
Size:  102.8 KB

Name:  photo2-14.jpg
Views: 5
Size:  78.0 KB



waiting to get it fixed, insurance is covering it, of course, if all goes to plan, will be getting an STX grill and 05 bumper, which will allow for more moding, and it took out 1 of my warped corners, so it will be replaced, i think i'm going to end up getting all the lights across the front replaced to match...

still have not put in the ABS cancel switch yet, or the fog light switch, although with my new hu, i have a nice spot for the switches...
Reply With Quote
  #18
Old 12-25-2009
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
can someone take a look at these switches, and tell me if this would work for what i want... i'm looking for something that can be used for 1 power wire in, and 2 possible outputs, (one for each switch position) with no off section, and an LED indicator for one position

i would also be able to use that switch as a standard on off switch right? just leave one of the circuits un wired... this has 8 posts on the back, why? they sure look sweet though! going to see if i can find blue

1,Stainless DPST OFF/ON Yellow Light Switch 12V. Y22ZE on eBay.ca (item 120508882308 end time 27-Dec-09 21:26:09 EST)

Reply With Quote
  #19
Old 12-25-2009
Member

Join Date: Dec 2009
Location: Delanson, NY
Posts: 51
Sorry about the accident...

As far as the switches go, look into the aux switches that are optional on the F250 and 350s. OEM parts are probably your best shot at keeping an OEM look.

Reply With Quote
  #20
Old 02-05-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
almost got my truck back today, but there is bumper mounting issues, so i am waiting for bumper mounts that will work, to come in, here's a pic of the 2-tone hood though

Reply With Quote
  #21
Old 02-05-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I'm really liking the Vista and DSG combo. STX/Sport grille looks ballin'!
Reply With Quote
  #22
Old 02-05-2010
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Thats a great combo.
Reply With Quote
  #23
Old 02-05-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i love the color combo
Reply With Quote
  #24
Old 02-06-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
i have an 05 edge DSG upper and lower bumper going on it too, to top it off! :D

and for those who haven't seen my other pics, DSG alcoas as well

what do you think of my super blacked out headlights? it looks almost like there is no light there at all, imo
Reply With Quote
  #25
Old 02-06-2010
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
I agree with Jake. That looks great. James what did you ground your amp to?
Reply With Quote
