new gauges?

Hey guys im trying to find a more modern looking set of gauges for my dash........I really just want them to be white with blue lights ...........any ideas?
Reply With Quote
  #2
Old 08-26-2008
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Get a set of white gauges from a Sport Trac and swap out the lights for blue and cut the green film out. Or look at http://usspeedo.com/home.html.
Reply With Quote
  #3
Old 08-26-2008
almosta4x4ranger's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: ytown,va
Posts: 145
thanks

does it matter if my gauges are or arent digital?
Reply With Quote
  #4
Old 08-26-2008
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
The first gen Sport Trac gauges are just like the Ranger gauges. Do you have a tach? Do you want one? Then something like this is what you want. If you just want to throw on a gauge face kit then look at http://usspeedo.com/home.html.
Reply With Quote
  #5
Old 08-26-2008
almosta4x4ranger's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: ytown,va
Posts: 145
thanks again

cool website i think ima jsut buy new faces ............if i eventually ad a tac how hard is it?
Reply With Quote
  #6
Old 08-26-2008
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
The gauges are a direct bolt in. There is already wiring for the tach in the dash. You just can't use any of the gauges that have a digital odometer.
Reply With Quote
  #7
Old 08-26-2008
almosta4x4ranger's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: ytown,va
Posts: 145
..........

so even though i dont have a tach if i buy a gauge cluster with a tach, i have a wire that can plug into it laying back there?
Reply With Quote
  #8
Old 08-26-2008
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Well all the wiring is combined. So you would just unplug the connectors from the old cluster and plug them into the new cluster and the tach will work. You don't need extra wiring or anything.
Reply With Quote
  #9
Old 08-27-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
hmmmm......


https://www.ranger-forums.com/forum2...ad.php?t=62796

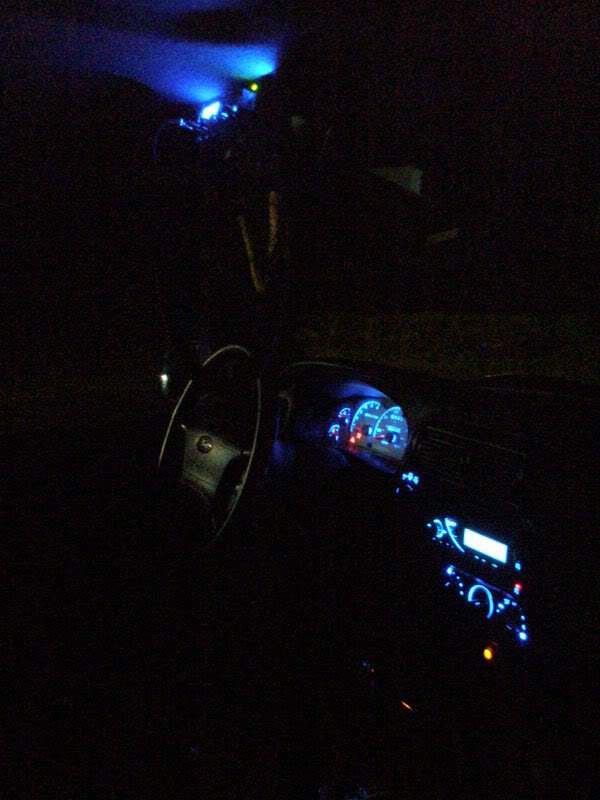

Name:  After6.jpg
Views: 18
Size:  62.2 KB

Name:  After2.jpg
Views: 96
Size:  48.2 KB

Pictured above and linked above is the build of my Explorer Sport white faced cluster...with 36 5mm blue LEDs soldered on.

If your truck is a 95-03 ranger, you can swap one of these things in. They are white faced, have a tach, have orange needles, and is a direct swap even if you don't have a tach, it's a direct swap and everything will work. You can swap your current odometer to your new gauge cluster...it's really simple really. Here's a link to what I used to roll the new odo or for swapping your old one into the new cluster...

http://www.rangerpowersports.com/tech/?p=131
Reply With Quote
  #10
Old 08-27-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
I just bought needles from usspeedo and they dont fit. I am trying to get ahold of them now. I would wait until we know for sure if thier producs can/will work before you do anything.

And oh, if you truck is a 2004 or newer it is a different method for removing the needles. Check my vid on the subject for help.
Reply With Quote
  #11
Old 08-27-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by Fx4wannabe01 View Post
hmmmm......


https://www.ranger-forums.com/forum2...ad.php?t=62796




Pictured above and linked above is the build of my Explorer Sport white faced cluster...with 36 5mm blue LEDs soldered on.

If your truck is a 95-03 ranger, you can swap one of these things in. They are white faced, have a tach, have orange needles, and is a direct swap even if you don't have a tach, it's a direct swap and everything will work. You can swap your current odometer to your new gauge cluster...it's really simple really. Here's a link to what I used to roll the new odo or for swapping your old one into the new cluster...

http://www.rangerpowersports.com/tech/?p=131
I f'ing love your dash!!!!!

Air bag control light FTW
Reply With Quote
  #12
Old 08-27-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
yea...still can't get that damn thing to shut off. i've tried everything i've searched. Fx4 Level 2 seats went in, light came on, tried all to cure it, no luck...only thing i havnt done is get a brand new air bag switch.


Since original poster does not have a tach, he definately does not have a 04+.


Jp7, take a caliper to your pins that the needles slide onto, i'll take a caliper to mine to compare the stud sizes....sizes could be different...never know.
Reply With Quote
  #13
Old 08-27-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by Fx4wannabe01 View Post
yea...still can't get that damn thing to shut off. i've tried everything i've searched. Fx4 Level 2 seats went in, light came on, tried all to cure it, no luck...only thing i havnt done is get a brand new air bag switch.



Jp7, take a caliper to your pins that the needles slide onto, i'll take a caliper to mine to compare the stud sizes....sizes could be different...never know.
I will when I get home....

A little side note on the usspeedo.com needles - they look fantastic with the blue LED's The quality of the needles is really good, basically they are similar to stock in design, but instead of using the transparent orange plastic, they use clear. Then to get color on them they paint the bottom edge. the blue ones are going to work perfect for my cluster but there is the fitting issue. The problem is the holes in the bottom of the needles is just a tiny, tiny bit too big and there isnt enough friction to hold them tight. You can put them on and turn the cluster upside down and they just fall off. I'm also sure its loose enough that when the motors spin the shafts the needles will just slide because the hole is too big. When I called them yesterday they said that there are smaller ones and the tech thinks I need those. I'll let you guys know when I get it figured out.
Reply With Quote
  #14
Old 09-09-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
No need for words.....

Reply With Quote
