Pic Request: 01-03 Fog Light Assembly

Does anyone have pictures of the back of their foglights? i want to see how it bolts up and the brackets i need to put them in.

And does it just bolt up to the valence or what?
And i found foglights online but can only find "Right side" ones.....will that even matter what side goes where?


Thanks.

Last edited by 99offroadrngr; 12-22-2009 at 12:09 PM.
Reply With Quote
  #2
Old 12-22-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
My 03 fogs screw directly to the back of the valance. There are lots of pictures at eBay or Google image search.
Reply With Quote
  #3
Old 12-22-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Shouldn't matter on what side they go. I'll get you a picture here soon once my mom gets back with my truck.
Reply With Quote
  #4
Old 12-22-2009
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
cool thanks guys.
Reply With Quote
  #5
Old 12-22-2009
powerranger262's Avatar
Member
iTrader: (1)

Join Date: Feb 2009
Location: Hartford, WI
Posts: 1,222
Here ya' go.
Valance left side:
Name:  DSCF1085.jpg
Views: 1
Size:  71.7 KB

Both fogs together: (these are the halo fogs, but they have the same housings as stock)
Name:  DSCF1087.jpg
Views: 1
Size:  107.2 KB

Right side fog:
Name:  DSCF1093.jpg
Views: 1
Size:  103.5 KB

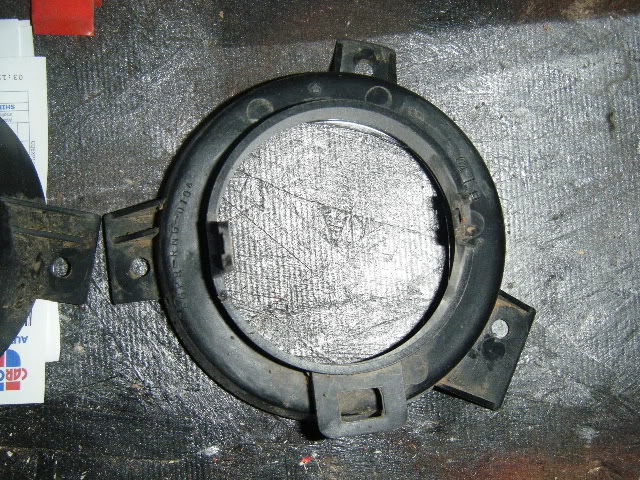

Left side fog:
Name:  DSCF1091.jpg
Views: 1
Size:  131.3 KB

Hope it helps.
Reply With Quote
  #6
Old 12-22-2009
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
yeah thanks. So by looking at it it does matter if i put a RH fog on the left side of the truck
Reply With Quote
  #7
Old 12-22-2009
powerranger262's Avatar
Member
iTrader: (1)

Join Date: Feb 2009
Location: Hartford, WI
Posts: 1,222
I just went out and stuck the right hand side on the left, and the holes line up. There is a little post on one of the tabs on the front of the plastic housing that doesn't go into a hole where it would if they were on the right side, but it really doesn't matter. They are just twisted a small amount(like a quarter inch), but it's not noticeable. So yes, they do work.
Reply With Quote
  #8
Old 12-22-2009
flyboy's Avatar
Member

Join Date: May 2005
Location: Tacoma, WA
Posts: 108
Sorry to jack your thread, but where did you find replacement fog housings? I took a rock to my right side fog and lost the whole thing. Thanks.
Reply With Quote
  #9
Old 12-22-2009
powerranger262's Avatar
Member
iTrader: (1)

Join Date: Feb 2009
Location: Hartford, WI
Posts: 1,222
Quote:
Sorry to jack your thread, but where did you find replacement fog housings? I took a rock to my right side fog and lost the whole thing. Thanks.
The ones that I have are the halo fogs off of Ebay. The one in the pic that looks like just the housing is one of them that I broke. I have searched all over for just the housing, no luck. You are better off just buying the whole thing, check junk yards for the cheapest.
Reply With Quote
  #10
Old 12-22-2009
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by flyboy View Post
Sorry to jack your thread, but where did you find replacement fog housings? I took a rock to my right side fog and lost the whole thing. Thanks.
Ebay. they have right hand side fogs for 28 bucks shipped right now.
Reply With Quote
  #11
Old 12-22-2009
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by powerranger262 View Post
I just went out and stuck the right hand side on the left, and the holes line up. There is a little post on one of the tabs on the front of the plastic housing that doesn't go into a hole where it would if they were on the right side, but it really doesn't matter. They are just twisted a small amount(like a quarter inch), but it's not noticeable. So yes, they do work.
cool good to know haha now i can just order two right side ones.
