Pic request of hitch brackets with BL rear bumper bracket

Hey everyone. Just wondering if someone has a pic or could take a pic of the hitch mount and the rear body lift bumper relocation mount from a PA 3" body lift. I have a 2002 Edge 4x4 and after putting the kit on and the rear bumper relocation brackets the stock hitch won't fit (too narrow). I'd appreciate any pics you have. Thanks.
Reply With Quote
  #2
Old 10-24-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
it will work just involves a very large hammer and some time to bend the PA brackets to where they should be... personally i ditched that crap hitch that looks like *** on a body lift and re-installed my FAV style the Draw tit hidden hitch... i can snap a pic of it if you like. it mounts on the lower part of the frame doesnt bother the PA brackets
Reply With Quote
  #3
Old 10-25-2008
03Shadowbob's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Palm Beach, FL
Posts: 193
That'd be great if you could do that for me. I am open to all suggestions.
So the PA brackets should go outside the hitch brackets then?
Reply With Quote
  #4
Old 10-25-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
yep...involves beat hammer bend...

the person that designed those missed the mark on that bend in it by oh about 1/2" lol none of them ever work from the get go usually
Reply With Quote
  #5
Old 10-25-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
OR...you could add washers between the bumper and the PA bumper brackets that would be 1/4" thick.....so the width of the bumper brackest would be increased by 1/2".

OR...you could add a 1/4" thick spacer plate between the bumper and the PA bumper brackets. (what I did)

OR...heat and bend them PA brackets outward.





And a hitch doesn't look like *** with a bodylift if you mod the hitch....
Reply With Quote
  #6
Old 10-25-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
key word is mod... straight up its bad
Reply With Quote
  #7
Old 10-25-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
yeah yeah....true true.
Reply With Quote
  #8
Old 10-25-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Does the PA kit come with a spacer? I thought I remembered seeing something about it.
Reply With Quote
  #9
Old 10-25-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Instructions say the spacer included in the kit is for a Non-Hitch Equipped truck. Although....when i didn't have the hitch on, the bumper mounted to the frame like a glove w/o the use of the spacer in the kit. The spacer is supposed to go between the frame and the PA bumper brackets to fill the empty spot where the hitch would be(which doesn't work too well...because both pieces(bumper brackets and hitch sides) measure the same width.
Reply With Quote
  #10
Old 10-25-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Yeah I didn't use a spacer on mine either, mine didn't come with one.
Reply With Quote
  #11
Old 10-25-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
b/c yours was used. /end hackish dealie. lol.
Reply With Quote
  #12
Old 10-25-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Oh I know, never do that again.
Reply With Quote
  #13
Old 10-29-2008
Jmhm17's Avatar
Member

Join Date: Oct 2007
Location: Worcester, MA
Posts: 534
so what about them pics of the hitches that fit with a bl.. i been search for months trying to find a way to make my stock hitch work with my bl. if i need to mod it how do you recomdent doing it, anyone have pics?
Reply With Quote
  #14
Old 10-29-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
crap sorry need to take some pics of some tail lights i'll get them in a min
Reply With Quote
  #15
Old 10-29-2008
03Shadowbob's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Palm Beach, FL
Posts: 193
Thanks Redneckstone. I look forward to seeing them as I am going to work on it Friday with a welding buddy of mine. Don't think I am going to cut any off so it fits closer to the bumper. More likely going to put a couple driving lights in that 3" space for use at night and early in the morning.
It sounds like the guy who put my lift on should have kept the hitch brackets on and put the BL bumper brackets on over those. He said he tried but it was such a tight fit without the hitch brackets he couldn't make it work. He didn't need the spacers either.
Reply With Quote
  #16
Old 10-29-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I suppose i forgot about taking a pic....hang on...
Reply With Quote
  #17
Old 10-29-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721

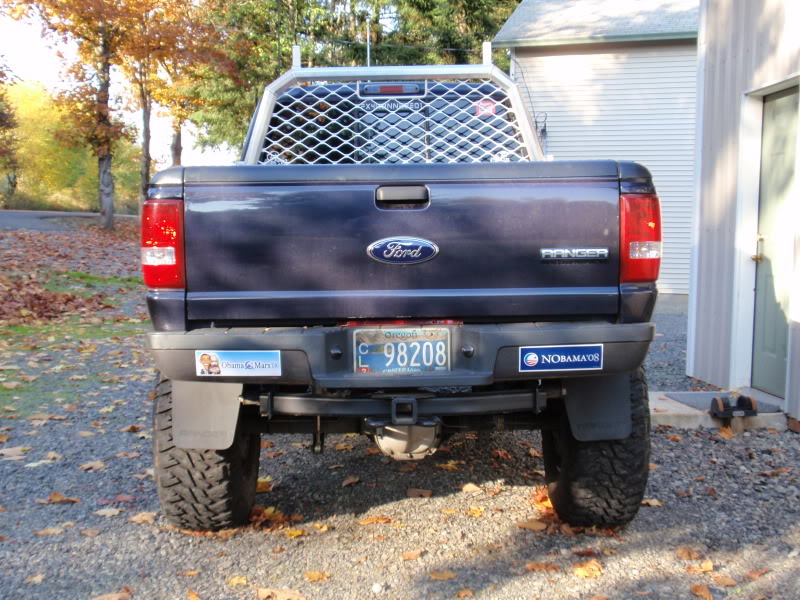

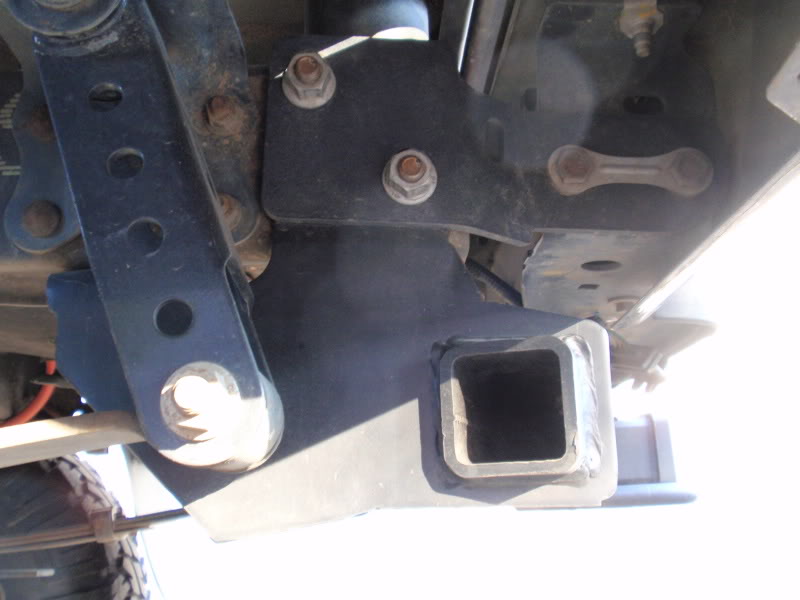

**keep in mind...my hitch is lifted 2.5"**


Name:  PA290077.jpg
Views: 8
Size:  141.6 KB

Name:  PA290080.jpg
Views: 16
Size:  54.5 KB
Reply With Quote
  #18
Old 10-29-2008
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
We just chopped off 3 inches off of my hitch and used C channel. Then welded it to the frame. I would go for a bolt on idea just so you can take it off if you wanted, but just throwing it out there. Also my buddy is a certified welder so I wouldn't want someone to do some hack welding job on something like a hitch

best pic I have where you can see what I'm saying

Name:  DSC01768.jpg
Views: 8
Size:  43.8 KB
Reply With Quote
  #19
Old 10-29-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Those flaps are cute Shane lol
Reply With Quote
  #20
Old 10-29-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
here is my Draw tite Hidden hitch.. i know its was for 83-97. it worked with my new truck you will see a small bit on the frame that was folded down where the tire is on the back bolt i had to fold back up. just an adjustable wrench and bent it straight.. drilled the 2 back holes. the 2 front use the bumper holes... thats it....

that hitch is NON modded unlike the 2 posted above me...

i know its been installed on newer also grants 2004 level II had the exact same hitch...



Name:  Hitchforsale001.jpg
Views: 6
Size:  82.4 KB
Name:  Hitchforsale002.jpg
Views: 7
Size:  109.2 KB
Name:  Hitchforsale003.jpg
Views: 6
Size:  105.4 KB
Name:  Hitchforsale004.jpg
Views: 7
Size:  84.1 KB
Name:  Hitchforsale005.jpg
Views: 6
Size:  89.1 KB

excuse the rusty frame
Reply With Quote
  #21
Old 10-29-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Oh shiz I have that same hitch, maybe I won't have to mod it after all.
Reply With Quote
  #22
Old 10-29-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Yea....i've noticed that some hitches mount to the side of the frame and below. Others just mount below. I have no clue as to whether it's a class2 and class3 thing or not...but i suspect it? I honestly have no clue.


Heads up....If you've got one that mounts to the side, like mine, AND you have a BL that mounts to the same holes....it can be a royal pain even with two people.
Reply With Quote
  #23
Old 10-29-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by Fx4wannabe01 View Post
Yea....i've noticed that some hitches mount to the side of the frame and below. Others just mount below. I have no clue as to whether it's a class2 and class3 thing or not...but i suspect it? I honestly have no clue.


Heads up....If you've got one that mounts to the side, like mine, AND you have a BL that mounts to the same holes....it can be a royal pain even with two people.
that hitch on my truck is a class III when i got it.. sticker has been sand blasted of about 4 years ago..

that hitch you have the stock style. i have installed 2 with a body lift. my truck came with one and its sitting in my shed as you can see!! lol
Reply With Quote
  #24
Old 10-29-2008
04 EDGE
Unregistered User

Posts: n/a

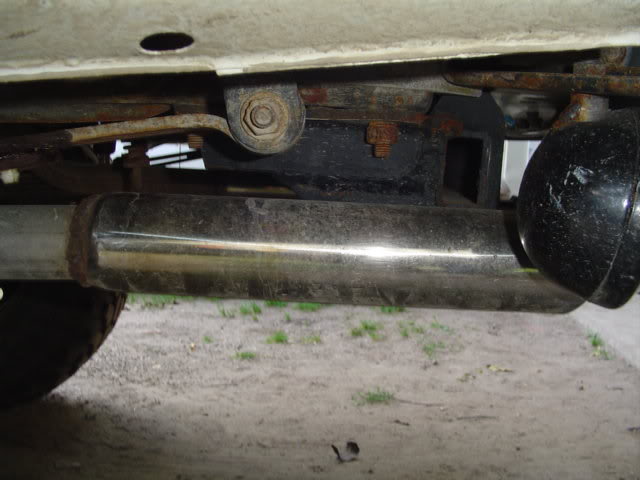

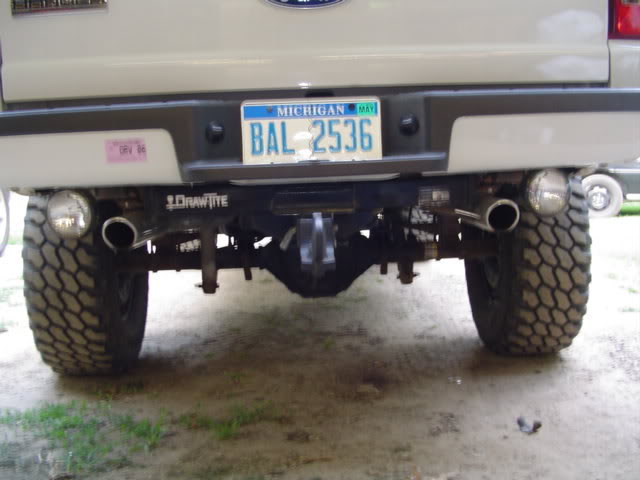

heres my drawtite that has been cut and welded, its the newer style that contours around the spare tire

Name:  DSC01898.jpg
Views: 8
Size:  39.4 KB

Name:  DSC01901.jpg
Views: 7
Size:  42.5 KB
Reply With Quote
  #25
Old 10-29-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Mark, Can you PM me with how you mounted your back up lights? I'm interested.
Reply With Quote
