Rear end of my frame is a little bent. How to fix?

So the very ends of my frame at the rear are a little bent right where my bumper is supposed to go with the BL brackets on. Its not terrible but its enough that the brackets don't fit. What would be the best and easiest way to fix it? I'll try to get a pic of it asap but I wanted to know if I could possibly hammer it enough or if I need to torch it first. Thanks for any help.

Name:  IMG00015-20090324-1620.jpg
Views: 26
Size:  81.9 KB

Name:  IMG00016-20090324-1621.jpg
Views: 23
Size:  78.4 KB

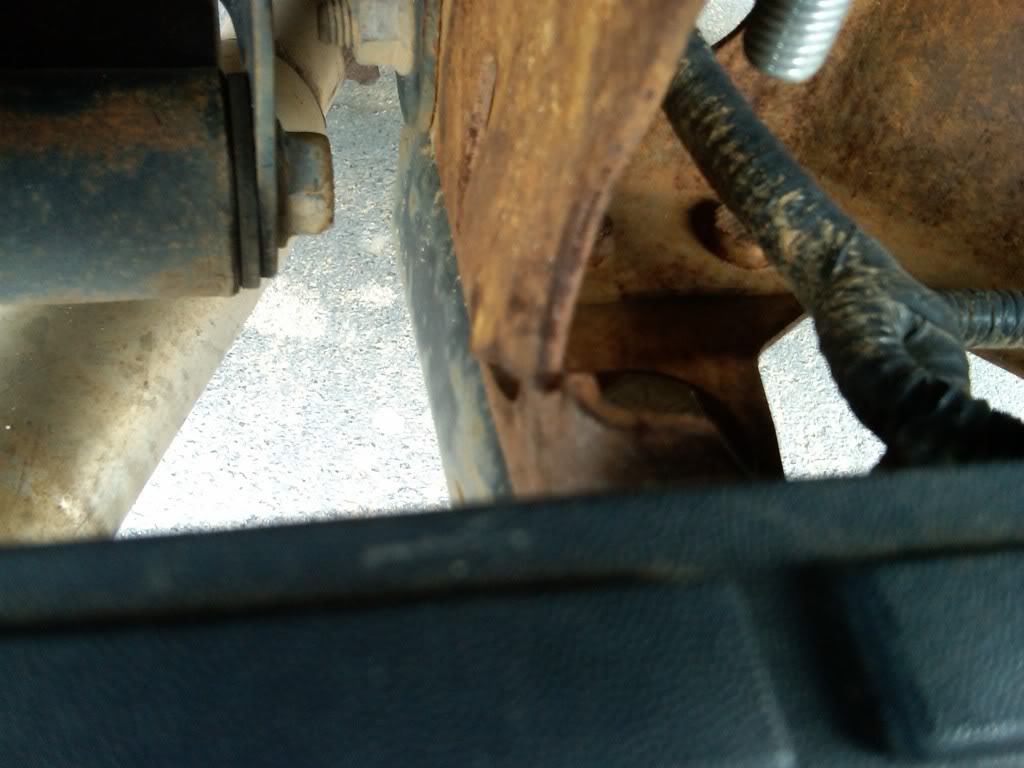

Added pictures. In the first pic, you see the corner of the frame near the center of the photo, that is what is bent, it pokes outward to the right a little, as well as on the other side, but on the left its actually cracked and bent.

Last edited by Xplo; 03-25-2009 at 03:59 PM.
Reply With Quote
  #2
Old 03-24-2009
hozII's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
Well as you hopefully know the good ole southern way is to hook a chain to it and have another vehicle goin the opposite way of the bend and yank it out. or tie off a come-a-long to a tree and yank it out that way. the vehicle one is quicker and more fun!!

OR you can heat it and beat it out with a small slegde.
Reply With Quote
  #3
Old 03-24-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i say the chain and another truck way or tree and chain thats how i fixed me rear bumper after i backed into a tree
Reply With Quote
  #4
Old 03-24-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584

Last edited by seed60; 03-24-2009 at 05:32 PM.
Reply With Quote
  #5
Old 03-25-2009
Xplo's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Norcross, GA
Posts: 83
Bump. Added pictures.
Reply With Quote
  #6
Old 03-25-2009
4x4RangerOffroad's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Barrington, NH
Posts: 434
that frame is broken......
Reply With Quote
  #7
Old 03-25-2009
Xplo's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Norcross, GA
Posts: 83
Yeah...I know that. I just need it out of the way.
Reply With Quote
  #8
Old 03-25-2009
Member

Join Date: Jul 2007
Location: BC
Posts: 94
If you have a torch, hammer and heat just enough until you can get the brackets bolted on then arcweld the frame crack.
Reply With Quote
  #9
Old 03-25-2009
Xplo's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Norcross, GA
Posts: 83
I don't have access to a torch or welding equipment. Do you think somewhere would rent a torch out? Or is there a cheap one I could buy? I don't know what else I would need one for after this.
Reply With Quote
  #10
Old 03-25-2009
hozII's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
the best and SAFEST fix for that since you dont have acces to any torches or welders is to take it somewhere and have it heated and bent back into place and that part of the frame welded. most shop's like that shouldn't charge more than $75 or so. Its really that all that bad. just a pain because you cant get your bracket back on..lol!
Reply With Quote
  #11
Old 03-25-2009
Xplo's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Norcross, GA
Posts: 83
Okay, I'll give a shop I know a call and see what he will charge me for it. It's pretty irritating since its bent just enough to not work. Oh, and the fact that I didn't know it was like that when I bought the truck..
