replacing Leaf Spring Shackle ?

anybody have any experience w/ this? read a little about it thru a google search, sounds pretty involved.
Reply With Quote
  #2
Old 09-25-2012
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
Pretty simple. You can use a sawzall or cut off wheel, I like the torch since we get a lot of rust up here.
Reply With Quote
  #3
Old 09-25-2012
Member
Thread Starter

Join Date: Sep 2010
Location: Elmwood, CT
Posts: 184
Quote:
Originally Posted by rolsmojave3 View Post
Pretty simple. You can use a sawzall or cut off wheel, I like the torch since we get a lot of rust up here.
cut off the wheel?
Reply With Quote
  #4
Old 09-25-2012
dixie_boysles's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
not too bad, just use a angle grinder to grind off old rivets, put on new shackle bracket, then pry up the leaf springs and bolt in place
Reply With Quote
  #5
Old 09-25-2012
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
No...dont' cut off the wheel. Using a cut off wheel.
Reply With Quote
  #6
Old 09-25-2012
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Quote:
Originally Posted by Liquidswords32 View Post
cut off the wheel?
haha no he means for a grinder...
Attached Thumbnails

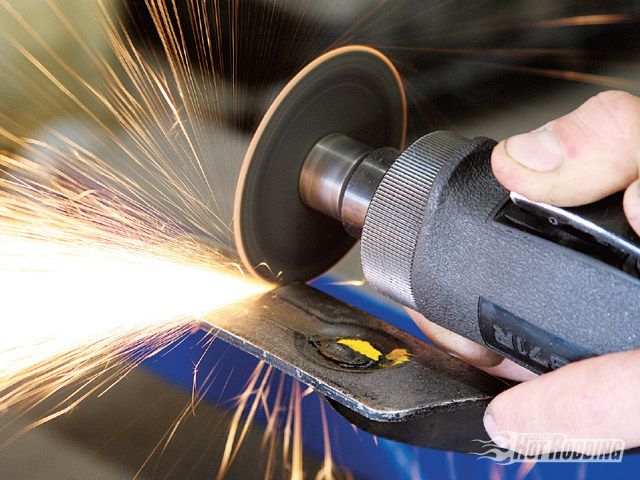

replacing Leaf Spring Shackle ?-0910phr_19_z-1966_ford_mustang-cut-off_wheel.jpg
Reply With Quote
  #7
Old 09-25-2012
Capriman86's Avatar
Member
iTrader: (1)

Join Date: Sep 2012
Location: SOLD
Posts: 96
Quote:
Originally Posted by Liquidswords32 View Post
cut off the wheel?
Quote:
Originally Posted by rolsmojave3 View Post
No...dont' cut off the wheel. Using a cut off wheel.


This made me LOL for real
Reply With Quote
  #8
Old 09-25-2012
Member
Thread Starter

Join Date: Sep 2010
Location: Elmwood, CT
Posts: 184
Quote:
Originally Posted by rolsmojave3 View Post
No...dont' cut off the wheel. Using a cut off wheel.
i didn't think the actual wheel, anyways once you cut it off how do you tighten the top bolt? there is no way to get in there
Reply With Quote
  #9
Old 09-25-2012
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Quote:
Originally Posted by Liquidswords32 View Post
i didn't think the actual wheel, anyways once you cut it off how do you tighten the top bolt? there is no way to get in there
on the current setup the bolt has a stop nut so try and save them. You just get it started then it locks itself into place.
Attached Thumbnails
replacing Leaf Spring Shackle ?-722-018-007.jpg

Last edited by Mcleary316; 09-25-2012 at 01:28 PM.
Reply With Quote
  #10
Old 09-25-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Quote:
Originally Posted by Liquidswords32 View Post
cut off the wheel?
Quote:
Originally Posted by rolsmojave3 View Post
No...dont' cut off the wheel. Using a cut off wheel.
Quote:
Originally Posted by Capriman86 View Post
This made me LOL for real
haha me too!
Reply With Quote
  #11
Old 09-25-2012
87xlt's Avatar
Member

Join Date: Jun 2008
Location: In my truck!
Posts: 875
I tried to sig that but......Your signature contains too many lines and must be shortened. You may only have up to 4 line(s). Long text may have been implicitly wrapped, causing it to be counted as multiple lines. WTF....
