Shackles or BL?

I have been thinking about lifting my truck. I want to put 32x11.50s on comfortably. I know I can put those on at stock height but I dont want that jammed in look. What should I do Shackles or 3in body lift?
Does anyone have any pics of 32x11.50s with shackles? I cant seem to find any. Thanks for your help.
Reply With Quote
  #2
Old 05-03-2009
FullThrottle02's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: McHenry,IL
Posts: 586
I just put a 1" BL on my truck. That is what I think you should do. It would look perfect with 32's. It is also easier than a 3" BL because there is a lot less things you have to move.
Reply With Quote
  #3
Old 05-03-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
Well, shackles will be easy and much less work, and then all you have to do is max out your torsion bars for it to sit even.

The shackles you want are Belltech 6400. They're about $40 from Summit.

BL would be better if you don't want to play with your suspension, but it's more work and a little more expensive.

My avatar is with maxed t-bars and Belltech shackles with 31x10.5x15 tires.
Reply With Quote
  #4
Old 05-03-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
If you want to keep your stock ride go with BL. If you want a harsh ride go with shackles and max the bars.
Reply With Quote
  #5
Old 05-03-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
i normally wouldnt say BL, but a 3" BL would be the way to go, maxed out t bars are bad news bears. if you do a 1" BL youll just wish later on that you had gone with the 3" i vote BL!!
Reply With Quote
  #6
Old 05-03-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788

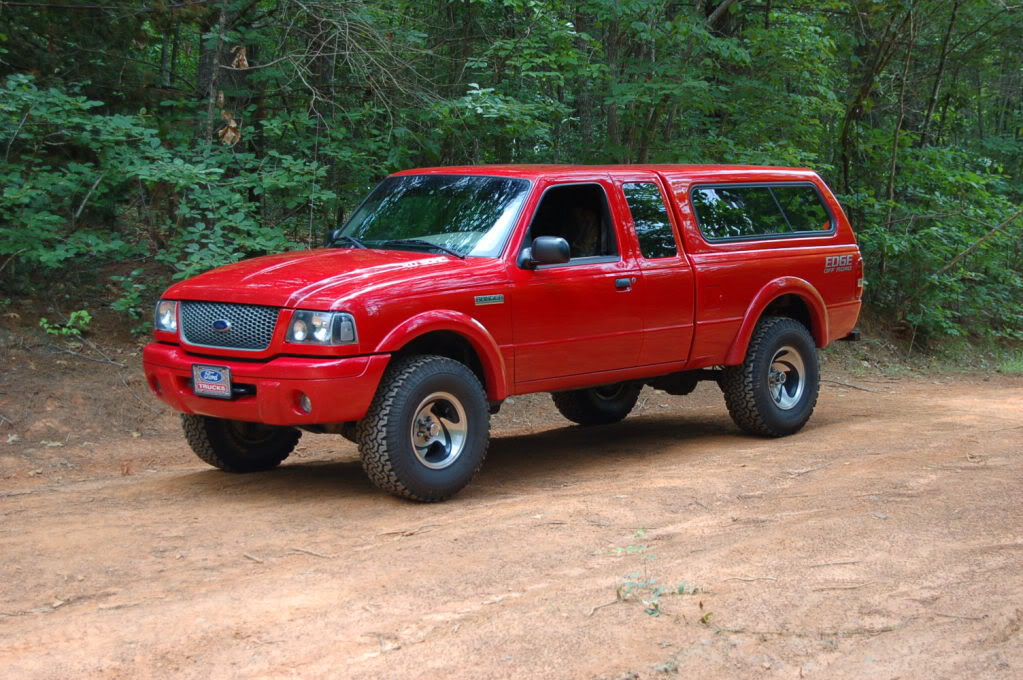

Here I have maxed t-bars, AAL's and shackles on 32's. If I didn't have the cap it would sit a lot higher with both the AAL and the shackle, but it makes it equal out about the same.
Name:  DSC_0043.jpg
Views: 0
Size:  182.7 KB
Reply With Quote
  #7
Old 05-03-2009
silverstreak4x4's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: Brighton, Michigan
Posts: 979
Quote:
Originally Posted by Trigger01 View Post
OOOO I love that ride height but I dont want the worn out bj's so maybe i will just go with a 3in bl and 33s.
Reply With Quote
  #8
Old 05-03-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
With every bump in the road I feel my balljoints failing me lol. I think I might have to back them off slightly
Reply With Quote
  #9
Old 05-03-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
I actually really miss the look of the truck back then, but... I like it now too. As for the ball joints, I have been running with maxed t-bars since the end of 2007 and I don't think I have replaced them yet... I really can't remember for sure.
Reply With Quote
  #10
Old 05-03-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
My lowers were replaced in '06 or '07. I've only had maxed bars for about a week or 2 now, but it rides so harsh now. Gotta take it easy over alot of bumps I used to be able to go over with no problems.
Reply With Quote
  #11
Old 05-03-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
You know what, I take it back, I've replaced both sets within the last year, the uppers about 6 months ago and the lowers in March when my lift went on.
Reply With Quote
  #12
Old 05-03-2009
silverstreak4x4's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: Brighton, Michigan
Posts: 979
Ya i would prefer a smoother ride over a rock with bad ball joints lol
Reply With Quote
  #13
Old 05-03-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
BL FTW then.

You'll save money on balljoints in the long run.

Hmm,got me thinking. Maybe I'll go and do a 1" BL eventually.
Reply With Quote
  #14
Old 05-03-2009
silverstreak4x4's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: Brighton, Michigan
Posts: 979
Quote:
Originally Posted by crazymikey View Post
BL FTW then.

You'll save money on balljoints in the long run.

Hmm,got me thinking. Maybe I'll go and do a 1" BL eventually.
Hell maybe we could meet and bust em' both out at once.
Reply With Quote
  #15
Old 05-03-2009
TrucknGolf's Avatar
Member

Join Date: Nov 2008
Location: Colorado
Posts: 1,829
Yea bl with 32 or 33s they both look good.
Reply With Quote
  #16
Old 05-03-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
Quote:
Originally Posted by silverstreak4x4 View Post
Hell maybe we could meet and bust em' both out at once.

Problem is, it would have to happen by May 26 because I'm leaving for Alberta on the 27, and I don't have the funds for a BL, but I have lots of time lol.
Reply With Quote
  #17
Old 05-03-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by TrucknGolf View Post
Yea bl with 32 or 33s they both look good.
33's would look a lot better. Look at my truck the way it is now with 32's. I know 33's would look so much better on mine.
Reply With Quote
  #18
Old 05-03-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
If you changed from an AT to an MT, the 32s would look much more aggressive. Hence why many people ask me if my 31s are 32s or 33s.
Reply With Quote
  #19
Old 05-03-2009
FullThrottle02's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: McHenry,IL
Posts: 586
I did my 1" BL on Friday and it only took me 4 hours doing it by myself. It was a lot of physical labor, but it wasn't a lot of work.
Reply With Quote
  #20
Old 05-03-2009
davidw's Avatar
Member

Join Date: Aug 2008
Location: Bow,WA
Posts: 207
so how do you install a BL? you got to lift the body off the frame with jacks and under all the spacers?
Reply With Quote
  #21
Old 05-03-2009
TheBearJeweler's Avatar
Member
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Icon2

3 inch body lift!
Reply With Quote
  #22
Old 05-03-2009
SHOman86's Avatar
Member

Join Date: Sep 2005
Location: Lakeland, Fl
Posts: 2,469
3"bl and 33s
Reply With Quote
  #23
Old 05-03-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by davidw View Post
so how do you install a BL? you got to lift the body off the frame with jacks and under all the spacers?
One side at a time, jack that side up and stick the spacers in. Put the bolts back in on that side about 1/2 way. Then do the other side
Reply With Quote
  #24
Old 05-03-2009
davidw's Avatar
Member

Join Date: Aug 2008
Location: Bow,WA
Posts: 207
Quote:
Originally Posted by 04blackedge View Post
One side at a time, jack that side up and stick the spacers in. Put the bolts back in on that side about 1/2 way. Then do the other side


do you really have to pretty much disonnect everything to do it? a freind said you have to remove radiator and all that crap. i understand getting to the spacers, but to remove bumpers and radiators seems like a pain in the ***.
Reply With Quote
  #25
Old 05-04-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
You have to un bolt the radiator and move it out of its mounts. Not remove it from the truck just push it out a little bit. Its not hard to do
Reply With Quote
