Show me your modded OHC

So tomorrow starts my 6 day vacation from school and work and I need to do something to my truck. It's been awhile and I can tell it's getting pissed at me per the CEL I got 2 weekends ago lol. She's got an attitude I tell you. And all my friends laugh when I tell them I don't need a girlfriend when I have to deal with my Ranger everyday HAHA. If they only knew. But I digress.

I have a grey OHC that I have started to work on and I should probably install. All I need for it is the hardware (2 screws for mounting the plate and a hobby screw for the garage door button as one is missing). I don't want or need the electrical junk. So I took the whole computer out and blacked out the glass. I left all the lighting stuff. I want that. I still need a sunglasses holder but besides that it's good. I am thinking of moving my foglight switches up there. I have 3. Stocks fogs, off road fogs, and reverse lights. Has anyone done any electrical modding to their Expo OHCs with switches and stuff? Pics plez!!
Reply With Quote
  #2
Old 11-23-2010
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
yeah I found a couple of sungalss holders in the salvage yard. So you are sure you are not going to wire the temp. sensor and everything? I guess it would be pretty cool for switches and stuff.

Off topic: Im welding up a bridge thats coming your way.
Reply With Quote
  #3
Old 11-23-2010
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Cool. Well if you go to yard again anytime soon grab one. I will do like $15 shipped for it.

Welding a bridge? What? I don't remember talking about that.
Reply With Quote
  #4
Old 11-23-2010
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
here is mine....probably not modded the way you want though...LOL

sunroof switch. it'll get cleaned up once i wrap the console.
Name:  p_00206.jpg
Views: 2
Size:  25.1 KB

before:
Name:  Image09062010145434.jpg
Views: 2
Size:  42.0 KB

after:
Name:  Image09062010161338.jpg
Views: 3
Size:  42.2 KB
Reply With Quote
  #5
Old 11-23-2010
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by Masteratarms93 View Post
Cool. Well if you go to yard again anytime soon grab one. I will do like $15 shipped for it.
Sounds like a deal. Im going tomorrow actually. Ill grab a couple.


Quote:
Welding a bridge? What? I don't remember talking about that.

Yeah sorry I saw your state and I was thinking about work.
Reply With Quote
  #6
Old 11-23-2010
TurdFX4's Avatar
Member

Join Date: Dec 2008
Location: My house
Posts: 933
Here's mine, no electrical mods though

Name:  IMG_1620.jpg
Views: 2
Size:  53.2 KB
Reply With Quote
  #7
Old 11-23-2010
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
I want your interior...
Reply With Quote
  #8
Old 11-23-2010
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by TurdFX4 View Post
Here's mine, no electrical mods though

love it, nice job. Ive always thought about painting my OHC.
Reply With Quote
  #9
Old 11-24-2010
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Quote:
Originally Posted by Taylor View Post
Sounds like a deal. Im going tomorrow actually. Ill grab a couple.
Great. Thanks a bunch.

Quote:
Originally Posted by Taylor View Post
Yeah sorry I saw your state and I was thinking about work.
So basically. Meant for someone else?




Looks like no one has routed switches up there. Interesting. Might be on my own with this one.
Reply With Quote
  #10
Old 11-24-2010
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
Reply With Quote
  #11
Old 11-24-2010
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Quote:
Originally Posted by vista4.0 View Post
VERY cool. Thanks!!
Reply With Quote
  #12
Old 11-24-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181

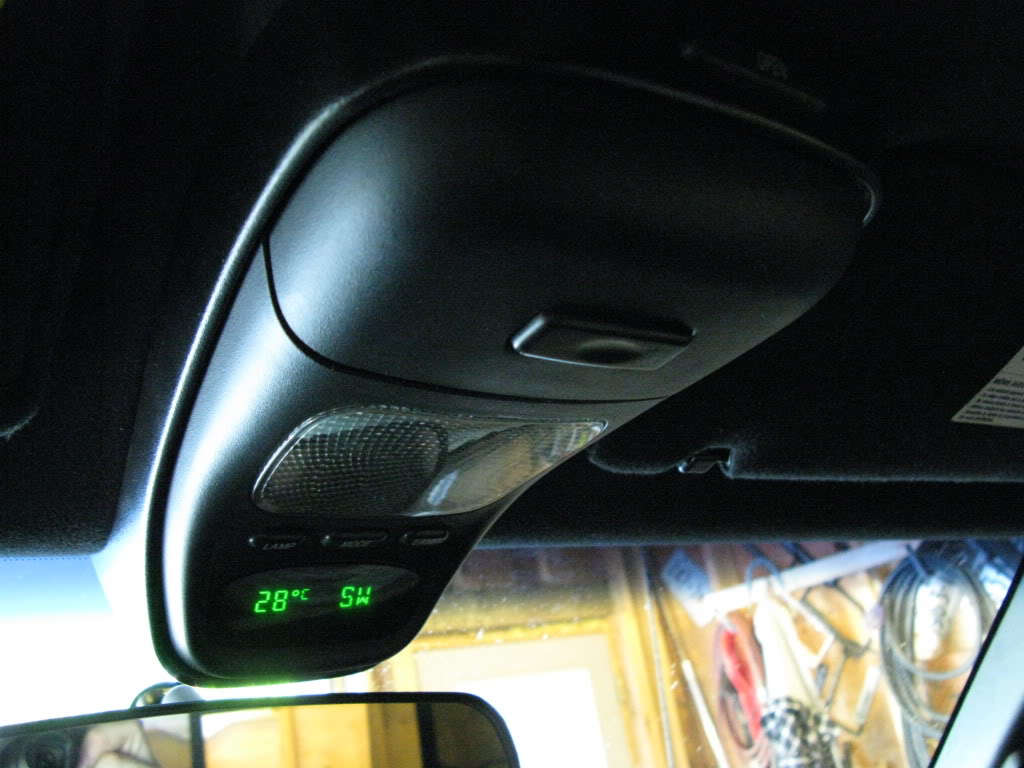

Here's mine.... just painted it satin black to match the interior and then put my Sirius receiver in it.

Name:  IMG_3474.jpg
Views: 2
Size:  116.4 KB

Name:  IMG_3475.jpg
Views: 2
Size:  106.5 KB
Reply With Quote
  #13
Old 11-24-2010
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
^^love it
Reply With Quote
  #14
Old 11-25-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
https://www.ranger-forums.com/f40/oh...compass-96110/

This what I did, switches replaced the digital readout (no need for it), replaced the bulbs with LED setup for Map lights and the rear compartment will house the Head of my HAM Radio.

It is installed but no pics of install.
Reply With Quote
  #15
Old 11-25-2010
Jelly's Ford's Avatar
Member
iTrader: (3)

Join Date: Mar 2010
Location: KnoxVegas, TN
Posts: 874
Quote:
Originally Posted by FULLSCALE View Post
Here's mine.... just painted it satin black to match the interior and then put my Sirius receiver in it.



That is freaking sweet. Sirius radio in the OHC, very original man. I dig it.
Reply With Quote
  #16
Old 06-06-2011
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
BIG BUMP, Finally starting to do this lol

A little teaser....more to come
Reply With Quote
  #17
Old 06-06-2011
Member

Join Date: Nov 2009
Location: Chilliwack, B.C.
Posts: 46
Quote:
Originally Posted by TurdFX4 View Post
Here's mine, no electrical mods though


Mach 1 inspired?
Reply With Quote
  #18
Old 06-06-2011
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
looks pretty interesting, i've been thinking about ways to make my OHC more useful other than just temp read out and more light...
Reply With Quote
  #19
Old 06-06-2011
Member
iTrader: (3)

Join Date: Mar 2009
Location: 559, CA
Posts: 1,174
no electrical mods to mine but I did put a piece of blue film inside to make the readout alittle darker/bluer. And some satin black paint and silver paint on the buttons
Reply With Quote
  #20
Old 06-06-2011
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
where'd you get the blue film/what is it? I used some blue transparent paint and it hardly changed color...
Reply With Quote
  #21
Old 06-06-2011
Member

Join Date: Jun 2011
Location: OHIO
Posts: 18
what information does the OHC give you...
Temp and direction I see from photos.

I installed one in my Jeep Liberty, and I get mpg, avg & instant, service interval, odometer, hours traveled, and some other options i can select, door locks, auto dim stuff like that.

Just curious what the ranger OHC displays.
Reply With Quote
  #22
Old 06-06-2011
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
temp and direction...

its out of the 90s explorers i dont know the years for sure but i think its 94-98 expos?
Reply With Quote
  #23
Old 06-06-2011
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
95-01 explorers
Reply With Quote
  #24
Old 06-06-2011
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Right now I'm just trying to decide what type of switches and where/how I want to mount them. And I also need to hardwire the map light to come on with the dome light.
Reply With Quote
  #25
Old 06-07-2011
Member
iTrader: (3)

Join Date: Mar 2009
Location: 559, CA
Posts: 1,174
Quote:
Originally Posted by ShadowRanger08 View Post
where'd you get the blue film/what is it? I used some blue transparent paint and it hardly changed color...
try ebay and search for 'lighting gels'. I had some blue ones already laying around.
Mine made a small differnece but that's all I wanted. I didnt want to go overboard and make the readout too dark.

Last edited by gts007; 06-07-2011 at 12:08 PM.
