Switching from 3.73 to 4.10 - Ranger-Forums - The Ultimate Ford Ranger Resource


General Ford Ranger Discussion General discussion of the Ford Ranger that does not fit in any other sub-forum.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 11-27-2008
rizoss16's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: CT
Posts: 808
Switching from 3.73 to 4.10

How would you go about switching to 4.10's from 3.73? Some of the trucks I am looking at have the 3.73 and I want the 4.10 since I plan on getting 33's. Is it a big job/cost/pain?
Reply With Quote
  #2
Old 11-27-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
I was quoted $1,000 + dollars to do mine.

I just bought a FX4 level II axle from a junk yard and paid around 500.00 after everything was bought fluid and hardware
Reply With Quote
  #3
Old 11-27-2008
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
I bought an 8.8 and it cost me $120. But I think the average cost is about $500 for gears and install.
Reply With Quote
  #4
Old 11-27-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Its cheaper just to find a Ranger axle at a junkyard that already has 4.10s. Then bolt it right in
Reply With Quote
  #5
Old 11-27-2008
JRanger's Avatar
Member

Join Date: Dec 2006
Location: benton,IL
Posts: 116
i bought a 4x4 axle for 400 at the junk yard. and thats all it cost me cuz i put mine in myself.
Reply With Quote
  #6
Old 11-27-2008
JRanger's Avatar
Member

Join Date: Dec 2006
Location: benton,IL
Posts: 116
yeah thats what i did
Reply With Quote
  #7
Old 11-27-2008
timpat92855's Avatar
Member
iTrader: (1)

Join Date: Nov 2006
Location: Lousiville, MS
Posts: 1,067
If your 2wd just get a axle. If your 4x4 look for $400-$1000 depending on shop for a gear change front and rear. Yes its a big job, it can take a long time, its a pain if you dont know what your doing.
Reply With Quote
  #8
Old 11-27-2008
JRanger's Avatar
Member

Join Date: Dec 2006
Location: benton,IL
Posts: 116
i have a 2wd and i switched from 3.73 to 4.10 in like 3 hours but i also had 3 other guys helpin out to. it wasnt to bad
Reply With Quote
  #9
Old 11-27-2008
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
I'll be nice and won't say anything to a 3 hour axle job with 3 people in 3 hours.
Reply With Quote
  #10
Old 11-27-2008
JRanger's Avatar
Member

Join Date: Dec 2006
Location: benton,IL
Posts: 116
yeah it wasnt bad at all. umm the only reason why it got done in like 3 hours was because i was at school and i decided to do this as a project and it had to be out of the shop before a certain time. so we had to bust our butts to get it done
Reply With Quote
  #11
Old 11-27-2008
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
I did my axle swap, new rear lift shocks, rear lift, and was out the door in like 20-25 minutes.
Reply With Quote
  #12
Old 11-27-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Awesome dude, I have been looking for a while now for my 4.10. I actually went to the junkyard yesterday looking for one. I have been there so many time that I have lost track. I probably saw a dozen 3.73 7.5 axles and one 8.8 3.27.
Reply With Quote
  #13
Old 11-27-2008
D.
Unregistered User

Posts: n/a
Rear axle is a 1-2hr job with the right tools/equipment. The front is a PITA.
Reply With Quote
  #14
Old 11-27-2008
rizoss16's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: CT
Posts: 808
Do you have to change front and rear axle? and what is 8.8?
Reply With Quote
  #15
Old 11-27-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
8.8 is just another axle that the some of the Rangers came with.
Reply With Quote
  #16
Old 11-27-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
yes if you have a 4wd, and want to use the 4wd you MUST change BOTH axles to matching gear ratios or only be off by a tiny amount like 5.14 and 5.13...
Reply With Quote
  #17
Old 11-27-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by JRanger View Post
i bought a 4x4 axle for 400 at the junk yard. and thats all it cost me cuz i put mine in myself.
I put mine in myself. The fluid is what was the shocker 12.99 for a bottle of fluid.

My buddy and my dad helped. My dad watched mostly as me and my buddy put it in. about 2hrs I think
Reply With Quote
  #18
Old 11-27-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
its like $4-5 at wally world, unless you demand to use the Mobile 1 or Lucas.. then it gets expensive
Reply With Quote
  #19
Old 11-27-2008
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
for the 31 spline Torsen, you must use synthetic fluid, i think thats what he was talking about.

i did both of my axles myself, for $140.

i went from 3.73 to a 8.8 31 spline torsen 4.10 and a front with an aussie locker and 4.10
Reply With Quote
  #20
Old 11-28-2008
Gallo75's Avatar
Member

Join Date: Sep 2008
Location: Mexicali Baja California,
Posts: 456
so once i get my 32's all i need to do is swap a 4x4 rear axle to have 4.10's and i'm done?? (mine is 4x2)
Reply With Quote
  #21
Old 11-28-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by 99ranger4x4 View Post
its like $4-5 at wally world, unless you demand to use the Mobile 1 or Lucas.. then it gets expensive
The axle I got was the 31 spline torsen so I had to use the synthetic


Quote:
Originally Posted by Baja1000_Edge View Post
so once i get my 32's all i need to do is swap a 4x4 rear axle to have 4.10's and i'm done?? (mine is 4x2)
U dont have to go to a 4wd axle they have 2wd axles with 4.10's in them
Reply With Quote
  #22
Old 11-28-2008
Gallo75's Avatar
Member

Join Date: Sep 2008
Location: Mexicali Baja California,
Posts: 456
Quote:
Originally Posted by STL515273 View Post
The axle I got was the 31 spline torsen so I had to use the synthetic



U dont have to go to a 4wd axle they have 2wd axles with 4.10's in them
how can i tell which axle has 4.10? mine does by any chance? lol that would be beautiful

2001 Edge plus 4.0 2WD stepside
Reply With Quote
  #23
Old 11-28-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
You can look on the sticker on your door panel and it will give you a code, just look that up here and you'll find out what you have.

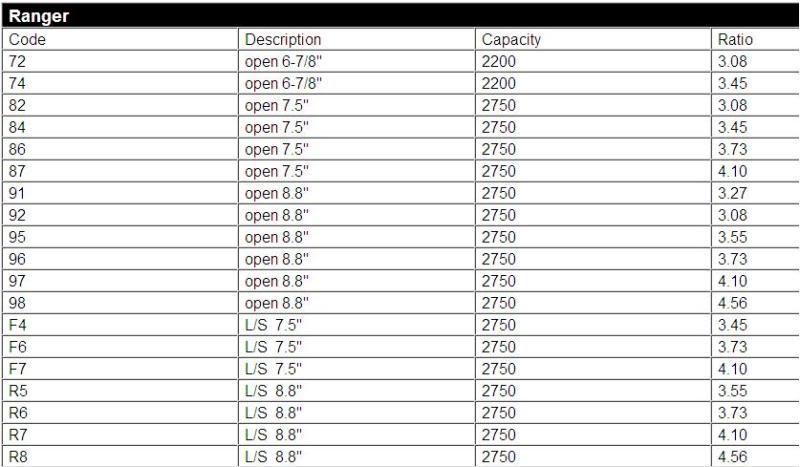

Match the number up on this chart

Name:  chart.jpg
Views: 5
Size:  54.2 KB


Or

Little tag on the diff. cover it will say like

4 L 10 88




More info
http://www.therangerstation.com/tech_library/Axles.html

Last edited by Mykhael; 11-28-2008 at 11:14 AM.
Reply With Quote
  #24
Old 11-28-2008
Gallo75's Avatar
Member

Join Date: Sep 2008
Location: Mexicali Baja California,
Posts: 456
diff cover
S338W
3 55 88 1024

ok cool thx !!!
Reply With Quote
  #25
Old 11-28-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by Baja1000_Edge View Post
diff cover
S338W
3 55 88 1024
Yup you got 3.55 gears same as what I use to have.

Just find a explorer axle with 4.10 then you can have rear disk brakes
they are easy to find

Finding a ranger axle with 4.10 may be more trouble than it is worth unless your lucky like I was. I had 2 different ones to choose from.
Reply With Quote
