toggle switch placement

hey guys an gals, well i finally got a chance to do the wiring for my foglights. When I started taking the dash apart to mount the toggle i found there really isnmuch room to mount it with all the plating in the way, I had planned on mounting the toggle near the steering column, now im not sure if I like that idea. If anyone has suggestions on the placement of the switch fire away. pics would be greatly appreciated. btw this is on an 01 egde
Reply With Quote
  #2
Old 05-30-2008
TrailRateThisFx4's Avatar
Member

Join Date: Nov 2005
Location: Royal Oak, Michigan
Posts: 1,022
i put mine on the the floor console the little one with the cup holders.
Reply With Quote
  #3
Old 05-30-2008
Machine090767's Avatar
RF Veteran

Join Date: May 2006
Location: Minnesota
Posts: 6,410
i also have an '01 edge. i put my switches (3) in the flat panel just below the headlight switch, about 5 inches. just take the panel off and there is plenty of room and easy access to the switches when driving.
Reply With Quote
  #4
Old 05-30-2008
FullThrottle02's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: McHenry,IL
Posts: 586
I put mine in the DS A-pillar, there is not a lot of room depth wise, but they fit. To get the pillar off just pull on it.
Reply With Quote
  #5
Old 06-01-2008
jdcrush's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Winnipeg, Manitoba
Posts: 378
placed the toggle

decided to put it on the floor console, once i pick up some new male connectors it will light up

thanks for the idea!
Reply With Quote
  #6
Old 06-02-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I've got mine on the a pilar... I love it

Name:  IMG_2211.jpg
Views: 52
Size:  76.2 KB
Name:  IMG_2212.jpg
Views: 65
Size:  49.5 KB
Name:  IMG_2213.jpg
Views: 48
Size:  67.8 KB
Reply With Quote
  #7
Old 06-02-2008
FordX4Ranger's Avatar
Member
iTrader: (1)

Join Date: Aug 2007
Location: Golden, CO
Posts: 487
was tricky running the wires but i put mine right next to the radio and they almost look stock
Reply With Quote
  #8
Old 06-02-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Not bad man..

Wanna see stock?! lol

Name:  IMG_2318.jpg
Views: 42
Size:  88.4 KB
Name:  IMG_2323.jpg
Views: 89
Size:  83.7 KB


Name:  IMG_1902.jpg
Views: 51
Size:  59.7 KB

I'm a pic ***** lol
Reply With Quote
  #9
Old 06-02-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Thats what mine look like too! Gotta love it.
Reply With Quote
  #10
Old 06-02-2008
dakota772's Avatar
Member

Join Date: May 2008
Location: Tucson
Posts: 230
I don't smoke, so I replace the ash tray with a metal plate and mounted my switch there. I figure I can mount at least 2 more switches there when the time comes.
Reply With Quote
  #11
Old 06-02-2008
FMD's Avatar
FMD FMD is offline
Member
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811
Alright, on mine...

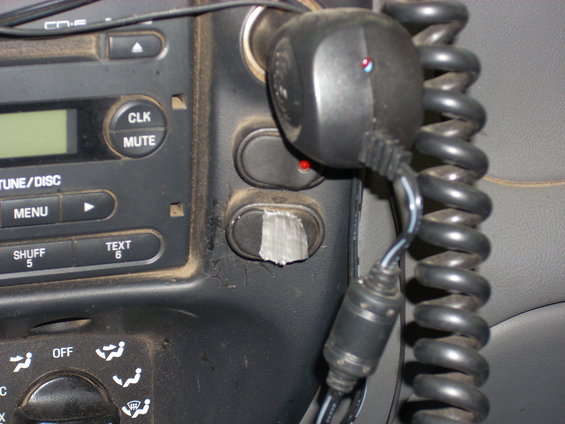

the two switches directly under the radio (old pic, I moved the KC switch) First from left to right, Fog light switch, KC Switch, and then, on the bottom where the ash tray used to be, is my AC switch. Now I moved the KC switch to the other side of the steering wheel next to my head light switch. And replaced the switch for the KC's under the radio with a red light which comes on if my tail gate is down. The switch in the middle of the radio bezel for the KC's was too hard to get too...



AC Switch



Here is where my KC switch is now



here is my current set up under the radio, my tail gate is down in this pic

Reply With Quote
  #12
Old 06-13-2008
lownrangr's Avatar
Member

Join Date: Jul 2006
Location: Wayne, MI
Posts: 175
I'm glad there is no shortage of these threads so I can see where the best place to mount my new switch for my KC's :)
