Ubolt around axle question

I know they are supposed to fit snug, but I have about 1/8th inch gap on either side of my axle. Will the ubolts tighten up when I torque the nuts down? I have no idea as it's my first time working with a rear end.

Here's some pics

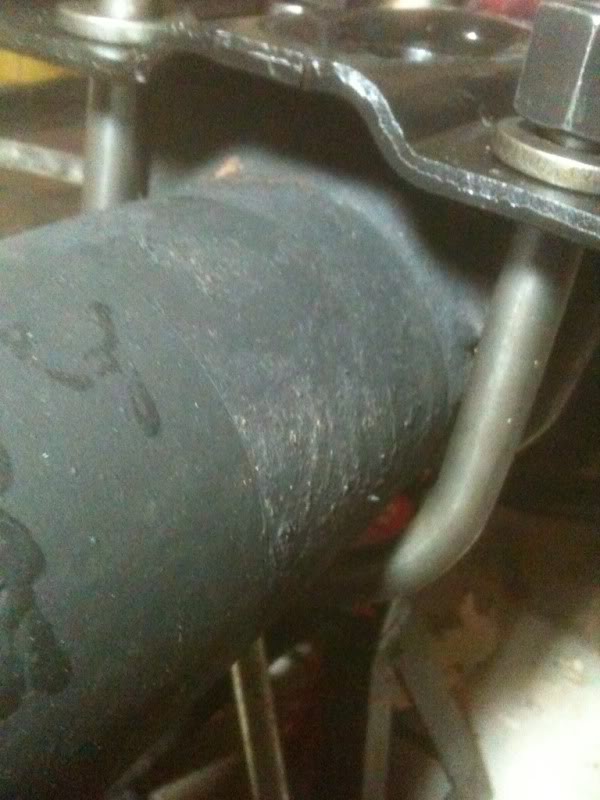

Name:  436c6bca.jpg
Views: 3
Size:  63.0 KB

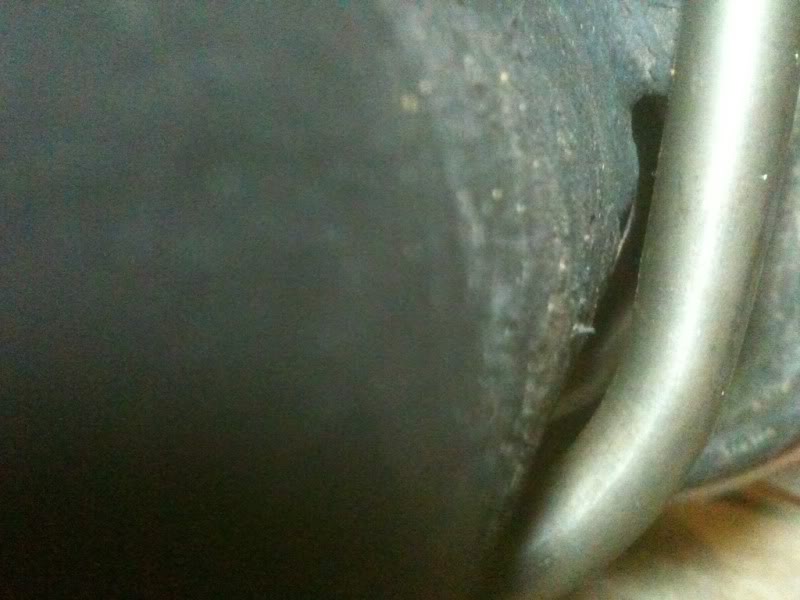

Name:  8ea51ac4.jpg
Views: 3
Size:  54.9 KB
Reply With Quote
  #2
Old 05-02-2011
Masteratarms93's Avatar
Member
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
The backing plates are too large and it's spreading the u-bolts apart. You would need smaller plates or the u-bolts that goes with those plates.

Mine have a bit of a gap, no issues yet, 6 months running.
Reply With Quote
  #3
Old 05-02-2011
bonez's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Toronto, Ontario
Posts: 433
those plates are for the 8.8 im pretty sure though? so how can the plate be spreading the ubolt apart? i guess i should mention that its not tight in the picture, just sitting there with finger tight on the threads. axle is still on jack stands in my garage. the ubolts were bent up today and the guy did them on the width of the holes on the backing plates...if that makes any sense
Reply With Quote
  #4
Old 05-02-2011
BILTRITE BULLIES's Avatar
Member
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
they are fine, just snug them up good

are the threads long enough thoe I dont see any...lol
Reply With Quote
  #5
Old 05-02-2011
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by BILTRITE BULLIES View Post
they are fine, just snug them up good

are the threads long enough thoe I dont see any...lol
It doesn't look like there is the leaf spring in there so that'll help off set it
Reply With Quote
  #6
Old 05-02-2011
bonez's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Toronto, Ontario
Posts: 433
yeah man they're plenty long, just the picture. i spun the nuts on the threads all the way down so i could take the picture without holding the ubolts. like i said, its just sittin on my jackstands in the garage, so no leafs under the plate yet
Reply With Quote
  #7
Old 05-03-2011
Masteratarms93's Avatar
Member
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Just bolt it up and crank her down nice and tight. I torqued the hell out of mine and never had to tighten them and I had used u-bolts.
Reply With Quote
  #8
Old 05-03-2011
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Quote:
Originally Posted by bonez View Post
those plates are for the 8.8 im pretty sure though? so how can the plate be spreading the ubolt apart? i guess i should mention that its not tight in the picture, just sitting there with finger tight on the threads. axle is still on jack stands in my garage. the ubolts were bent up today and the guy did them on the witdth of the holes on the backing plaites..w.if that makes any sense
you said the plates are for an 8.8. i'm assuming with the 4 banger you have 7.5. they are two different diameters. if he bent them to the 8.8 plates, they would be slightly larger.

i had some made and he held them up to the axle then bent them.
Reply With Quote
  #9
Old 05-03-2011
bonez's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Toronto, Ontario
Posts: 433
im swapping an 8.8 in
