2 batteries in same space

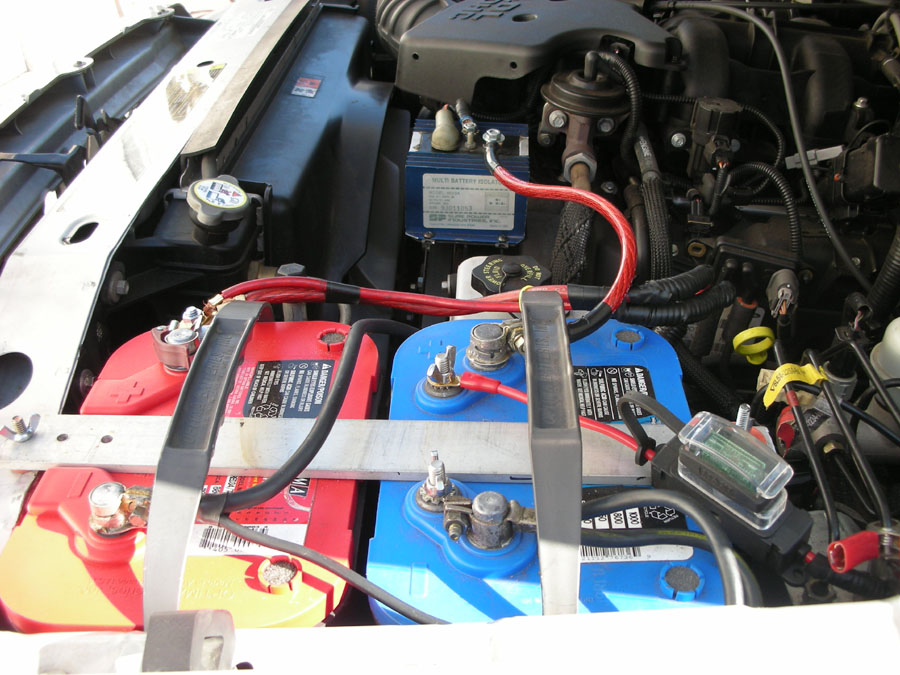

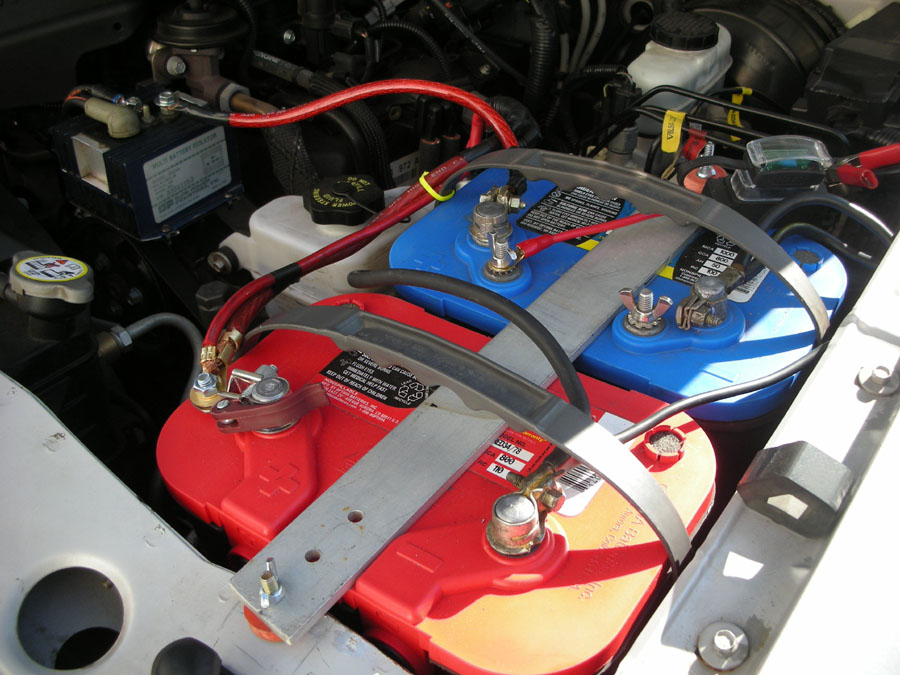

I installed 2 batteries in my 2006. I have a Flip-Pac-camper and a12v refrig plus lites.
Attached Thumbnails
2 batteries in same space-duel-batt2-jpg.jpg   2 batteries in same space-battery-box2.jpg   2 batteries in same space-battery-isolater-2.jpg   2 batteries in same space-battery-box1.jpg
Reply With Quote
  #2
Old 12-16-2011
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Wirelessly posted

Looks good! You should submit a how to on this. I think a lot of members will be interested.

Last edited by 98liftedranger; 12-16-2011 at 12:25 PM.
Reply With Quote
  #3
Old 12-16-2011
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
that is awesome. I am wanting to do this too, whats the amp rating on that isolator?

we put these isolators in at work but they are like a foot long and are 240 Amp isolators. look just like that though.

is the marine battery a deep cycle?
Reply With Quote
  #4
Old 12-16-2011
Vonhanson's Avatar
Member
iTrader: (5)

Join Date: Sep 2009
Location: Glencoe, Minnesota
Posts: 1,609
Quote:
Originally Posted by SteelDirigible View Post
that is awesome. I am wanting to do this too, whats the amp rating on that isolator?

we put these isolators in at work but they are like a foot long and are 240 Amp isolators. look just like that though.

is the marine battery a deep cycle?
he has a optima redtop and blue top so yeah the blue is a deep cycle.
Reply With Quote
  #5
Old 12-16-2011
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
i have a blue top that is not a deep cycle. is why I asked. I'm sure since he has a red top he would get the deep cycle for the other, but still.
Reply With Quote
  #6
Old 12-16-2011
brian90744's Avatar
Member
Thread Starter

Join Date: May 2011
Location: LA. Calif
Posts: 75

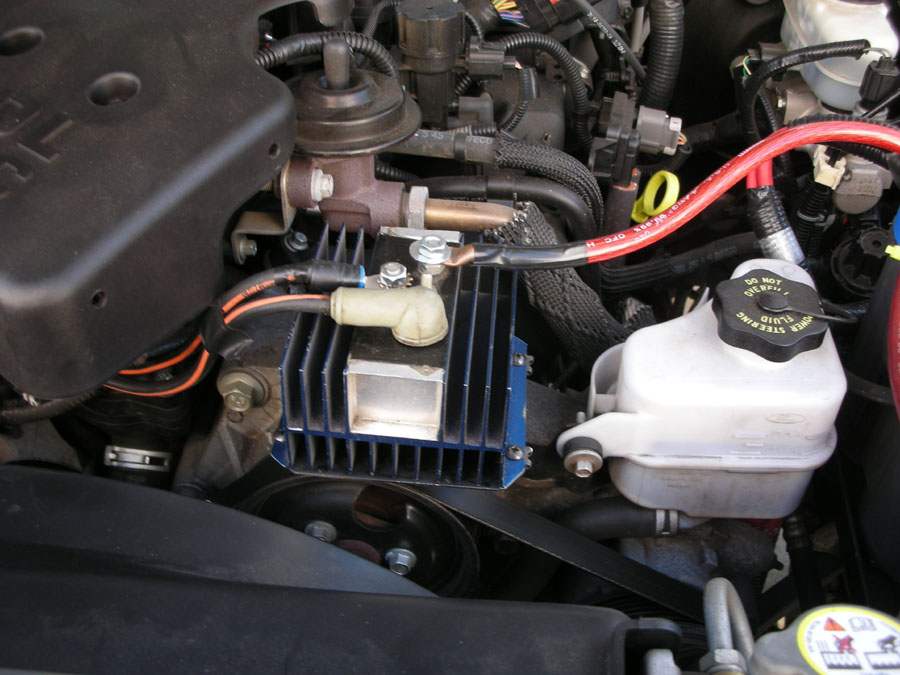

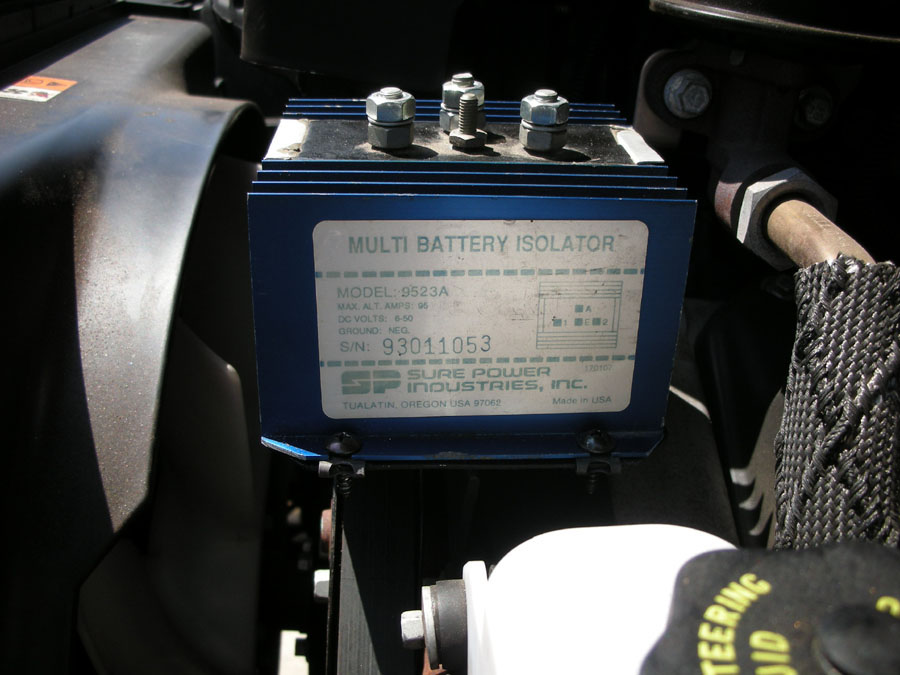

It's a 95 amp isolater . made by Sure power inc. The hardest part of this Mod is drilling out the spot welds of the battery tray. thanks=brian
Reply With Quote
  #7
Old 12-16-2011
brian90744's Avatar
Member
Thread Starter

Join Date: May 2011
Location: LA. Calif
Posts: 75

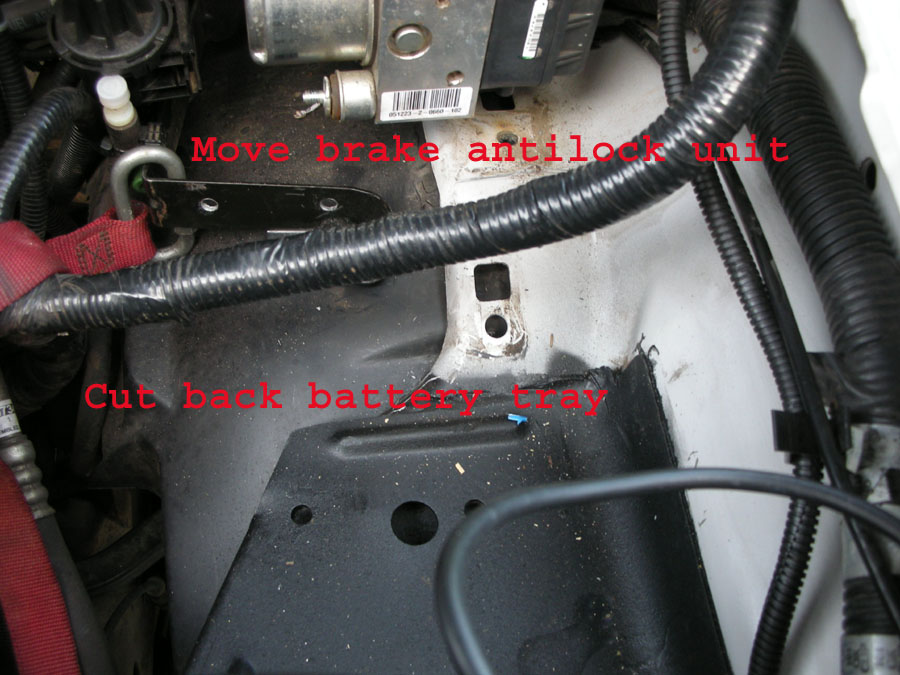

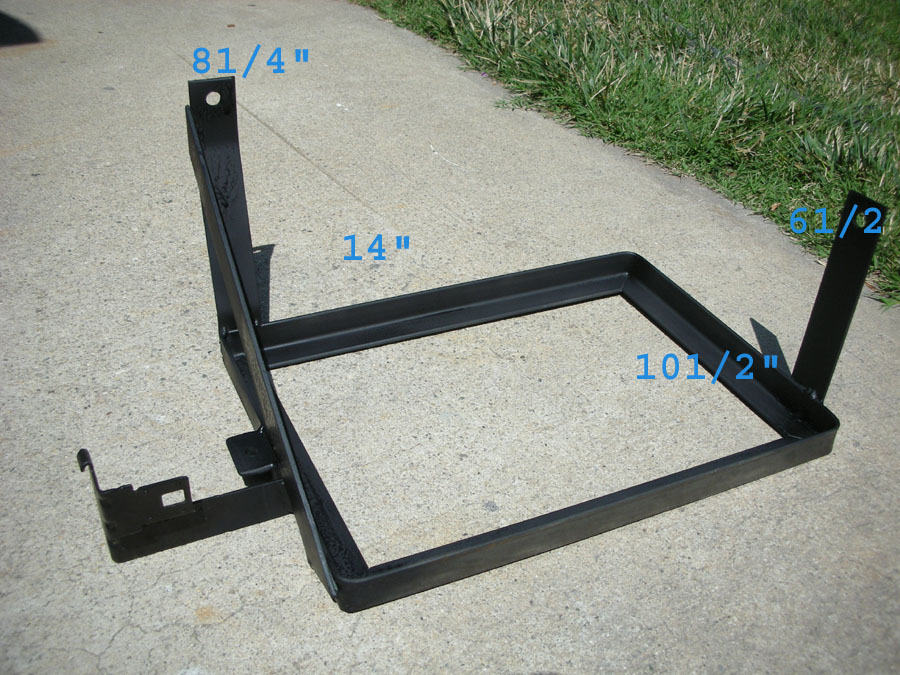

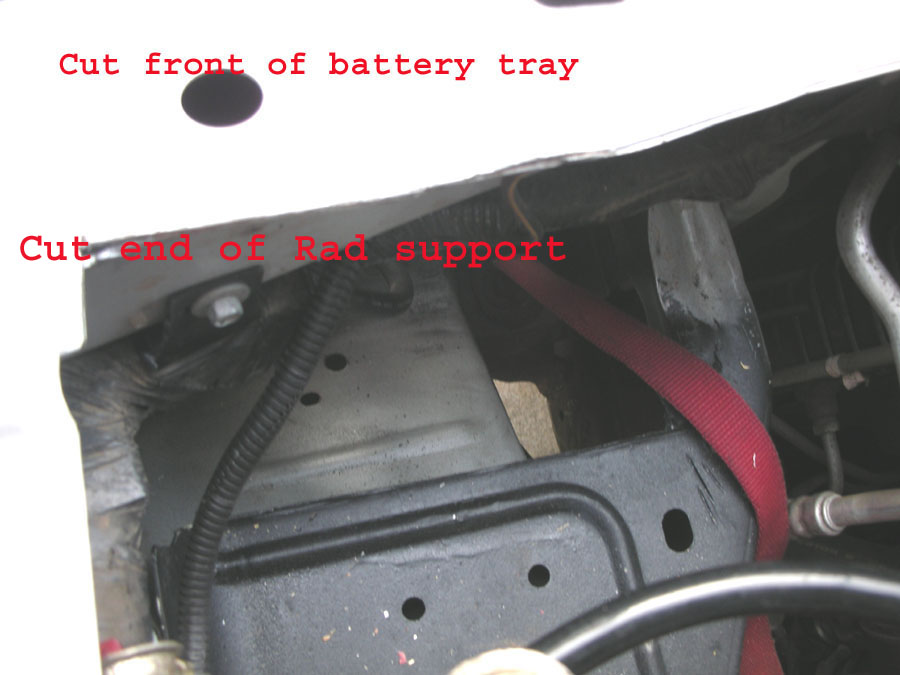

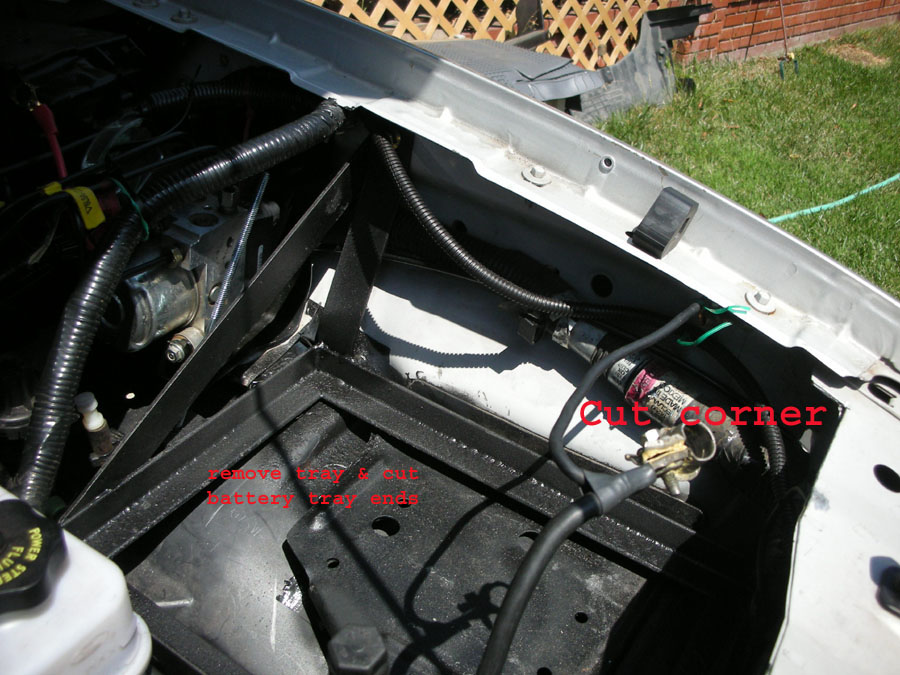

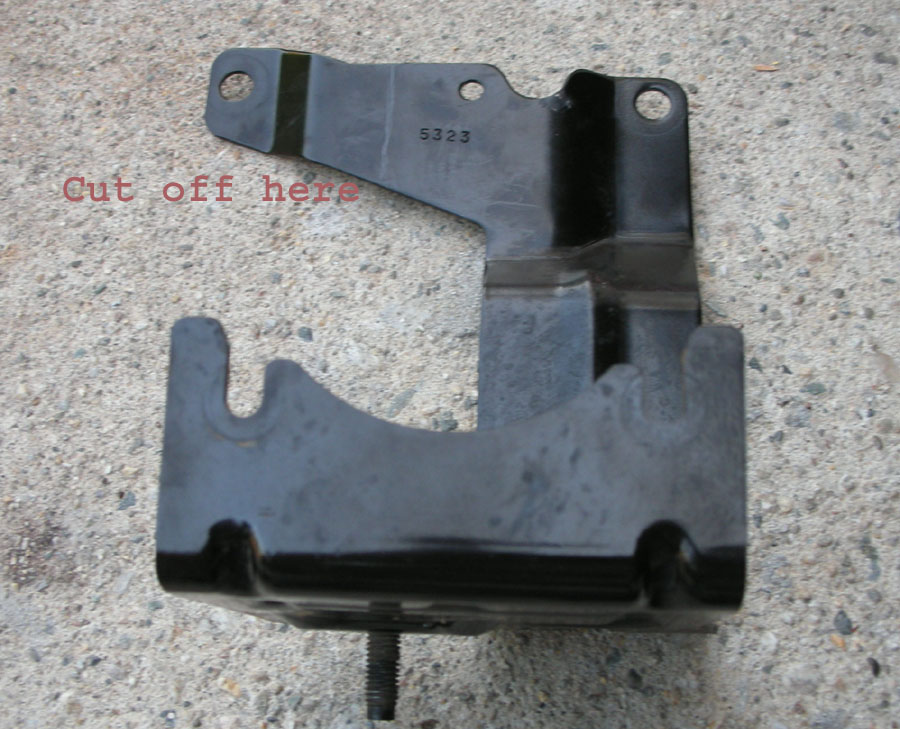

New battery tray is 14x101/2". you must cut the corner rad support a little. Hardest part is drilling out battery tray spot welds. Move the ABS assembly easy , the brake line move easy. Cut and remount ABS bracket in new hole.See pictures=.
Attached Thumbnails
2 batteries in same space-4battery-3.jpg   2 batteries in same space-6abs-brake-brk-move.jpg   2 batteries in same space-5battery-2.jpg   2 batteries in same space-2battery-box3.jpg   2 batteries in same space-3battery-4.jpg

Reply With Quote
  #8
Old 01-04-2012
dlazo's Avatar
Member

Join Date: Nov 2011
Location: miami lakes
Posts: 51
any pics? sounds like something id like to do.
Reply With Quote
  #9
Old 01-04-2012
Kris03's Avatar
Member

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
yea i cant see any of the attachments?
Reply With Quote
  #10
Old 01-04-2012
Rooks's Avatar
Member
iTrader: (7)

Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
Quote:
Originally Posted by dlazo View Post
any pics? sounds like something id like to do.
Quote:
Originally Posted by Kris03 View Post
yea i cant see any of the attachments?
It was part of the server crash yesterday. Most of the attachments were lost. I'd PM the guy and see if can re-post them if you are really interested.
Reply With Quote
  #11
Old 01-04-2012
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Hey Brian! Repost those atatchments! I wanna see this!
Reply With Quote
  #12
Old 01-04-2012
dlazo's Avatar
Member

Join Date: Nov 2011
Location: miami lakes
Posts: 51
Quote:
Originally Posted by Rooks View Post
It was part of the server crash yesterday. Most of the attachments were lost. I'd PM the guy and see if can re-post them if you are really interested.
Damn server crash! lol i know... it happens... redundancy is key in a server situation. i got my hands on a red top and i can get more so this definately interests me. Pm away!
Reply With Quote
  #13
Old 01-04-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
I'm sure he will repost pics when he gets back on. He posted them a few times earlier in the week.
Reply With Quote
  #14
Old 01-11-2012
brian90744's Avatar
Member
Thread Starter

Join Date: May 2011
Location: LA. Calif
Posts: 75
pictures of 2 batteries.

attached are missing pics of battery MOD=
Attached Thumbnails
2 batteries in same space-duel-batt2-jpg.jpg   2 batteries in same space-battery-isolater-2.jpg   2 batteries in same space-4battery-3.jpg   2 batteries in same space-2battery-box3.jpg   2 batteries in same space-5battery-2-copy.jpg

Reply With Quote
  #15
Old 01-12-2012
brian90744's Avatar
Member
Thread Starter

Join Date: May 2011
Location: LA. Calif
Posts: 75
2 batteries in same space, missing pix

attached missing pics. hope these help.


Quote:
Originally Posted by brian90744 View Post
I installed 2 batteries in my 2006. I have a Flip-Pac-camper and a12v refrig plus lites.
Attached Thumbnails
2 batteries in same space-duel-batt2-jpg.jpg   2 batteries in same space-duel-batt1.jpg   2 batteries in same space-4battery-3.jpg   2 batteries in same space-2battery-box3.jpg   2 batteries in same space-5battery-2-copy.jpg

Reply With Quote
  #16
Old 01-13-2012
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Quote:
Originally Posted by brian90744 View Post
attached missing pics. hope these help.
Thanks! Always nice to put pictures with the words.
Reply With Quote
  #17
Old 01-14-2012
brian90744's Avatar
Member
Thread Starter

Join Date: May 2011
Location: LA. Calif
Posts: 75
duel batteries pics

More pictures on 2 batteries same place. Thanks for the feed back.=brian
Attached Thumbnails
2 batteries in same space-7battery-box1-copy.jpg   2 batteries in same space-6abs-brake-brk-move.jpg   2 batteries in same space-battery-isolater3.jpg
Reply With Quote
  #18
Old 01-15-2012
Member

Join Date: Jan 2012
Location: Willow Grove
Posts: 9
Yes I'm bring a dead post alive lol but are you allowed to cut the battery box for a bigger battery without voiding warranty thanks
Reply With Quote
  #19
Old 01-15-2012
brian90744's Avatar
Member
Thread Starter

Join Date: May 2011
Location: LA. Calif
Posts: 75
battery box

Quote:
Originally Posted by Fourx4Mudrider View Post
Yes I'm bring a dead post alive lol but are you allowed to cut the battery box for a bigger battery without voiding warranty thanks
My truck is 2006, if your truck is out of warranty , it's yours to mod.
Reply With Quote
  #20
Old 01-15-2012
Member

Join Date: Jan 2012
Location: Willow Grove
Posts: 9
You definitely got a sweet mod going on, kudo's for sharing photo's. Nah i just bought the vehicle used with a extended warranty but for some reason, i can't find a batter larger then 540 cca that will fit in the stock battery box, without modifying it, that's where the question came in if i was allowed to modify such an area without voiding my warranty . Thanks
Reply With Quote
  #21
Old 01-15-2012
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Nice mod thanks for the pics and specs.
Reply With Quote
  #22
Old 01-15-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Why do this on a ranger? What are you needing that extra power for?
Reply With Quote
  #23
Old 01-15-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
Quote:
Originally Posted by brian90744 View Post
I have a Flip-Pac-camper and a12v refrig plus lites.
Quote:
Originally Posted by morris View Post
Why do this on a ranger? What are you needing that extra power for?


I'd like to do this to have my second battery running my audio, because right now I have some dimming issues, and also I do think I will be getting more accessories eventually.
Reply With Quote
  #24
Old 01-15-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Didn't read that... Thanks.
Reply With Quote
  #25
Old 03-18-2012
brian90744's Avatar
Member
Thread Starter

Join Date: May 2011
Location: LA. Calif
Posts: 75
Duel batteries

Bump


Quote:
Originally Posted by brian90744 View Post
attached missing pics. hope these help.
Reply With Quote
