3 BURNED FUSES! MIRROR SIGNALS :irked:

I was wiring up my Mirror LED signal/running lights and I burned 3 Fuses. The running(park) lights one twice (15a) and the one inside the cab for signal lights or something. As well I have no dash lights for some reason ( hoping its the same fuse).

I have the signal mod infront so my corners flash alertnatly of the signals. I also have All LED lights in front ( signals and corner) with the EP 27 flasher.

Everytime I'd try to hook up the wire to wire's going to the corner light to the new LED ones on the mirrors I'd loose everything and fuses would burn. WHY??? Posible short in the new wire? or something else wont let me? What if i wired it backwards? would that allow the negative and positive to short out?

P.S. My Ground goes back to the negative wire, not to a ground.
Reply With Quote
  #2
Old 02-24-2009
FireRanger's Avatar
Join Date: May 2004
Location: CT
Posts: 0
I think you have something backwards.
Reply With Quote
  #3
Old 02-24-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Well everything worked. Even the drivers side worked when i tested it. Then The passenger side, I hooked it up directly to the same wires going to the corner so they flash and run normaly and when I'd hook it up the fuse would blow. And I loose all the signals/park lights
Reply With Quote
  #4
Old 02-24-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
You must have something hooked up wrong.
Reply With Quote
  #5
Old 02-24-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Would the intial Hook up if the lights are on cause it to burn out?
Reply With Quote
  #6
Old 02-24-2009
FireRanger's Avatar
Join Date: May 2004
Location: CT
Posts: 0
Sure.... if you have hooked up wrong.
Reply With Quote
  #7
Old 02-24-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
So if you hook up LED's backwards it could burn out your fuse?
Reply With Quote
  #8
Old 02-24-2009
FireRanger's Avatar
Join Date: May 2004
Location: CT
Posts: 0
No. You have some other related wiring wrong. I couldn't tell you what since I'm not looking at it.
Reply With Quote
  #9
Old 02-24-2009
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
if you hooked the LED up backwards you can probably internally short it out, causing a whole new set of problems.
Reply With Quote
  #10
Old 02-24-2009
FireRanger's Avatar
Join Date: May 2004
Location: CT
Posts: 0
Hooking up and LED backwards will usually result in nothing happening. Its a diode. Current will only flow one direction. Usually if an LED fails or burns up, they fail open and no current will flow. However, if the LED failed and by your bad luck failed to a shorted condition, that could be your problem.
Reply With Quote
  #11
Old 02-24-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Like the neg could go to the positive wire through my LED's and burn the trucks's fuses?
Reply With Quote
  #12
Old 02-24-2009
FireRanger's Avatar
Join Date: May 2004
Location: CT
Posts: 0
Yes, IF the LED is blown and your bad luck is such that both connections inside the LED are touching each other. Take the LED out and see if it blows the fuse.
Reply With Quote
  #13
Old 02-24-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
So the LED stip could have a short in it? how can a tell If it does for sure?
Reply With Quote
  #14
Old 02-24-2009
FireRanger's Avatar
Join Date: May 2004
Location: CT
Posts: 0
Whatever it is you are hooking up. If you are connecting the mirror and the fuse blows, then the problem is in the mirror.
Reply With Quote
  #15
Old 02-25-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Yeah the problem was wherre the wire went trough the mirror to the insdie of the door it was getting pinched against a nut and grounding. But it works now
Reply With Quote
  #16
Old 02-25-2009
FireRanger's Avatar
Join Date: May 2004
Location: CT
Posts: 0
That would do it!
Reply With Quote
  #17
Old 02-25-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Here's the vid of the finished product. Tell me if the link works

http://s435.photobucket.com/albums/q...t=MOV04147.flv
Reply With Quote
  #18
Old 02-26-2009
FullThrottle02's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: McHenry,IL
Posts: 586
Looks good!
Reply With Quote
  #19
Old 02-26-2009
Silver's Avatar
Member

Join Date: Jun 2006
Location: edenton,nc
Posts: 2,708
nice mod
Reply With Quote
  #20
Old 02-27-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914

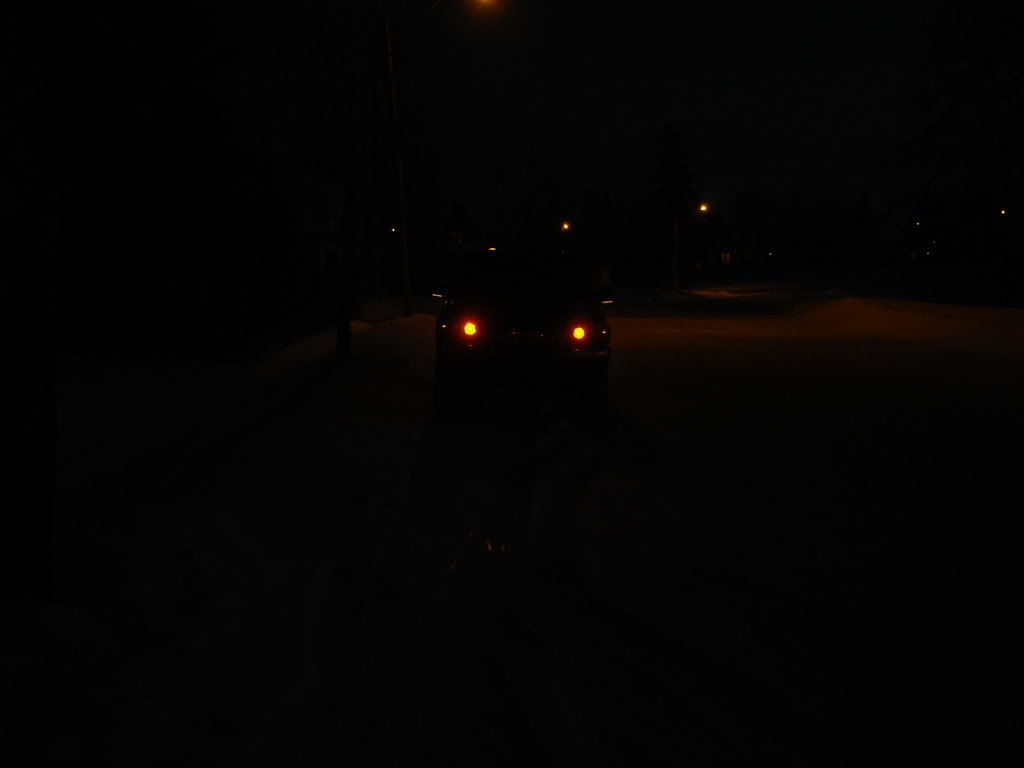

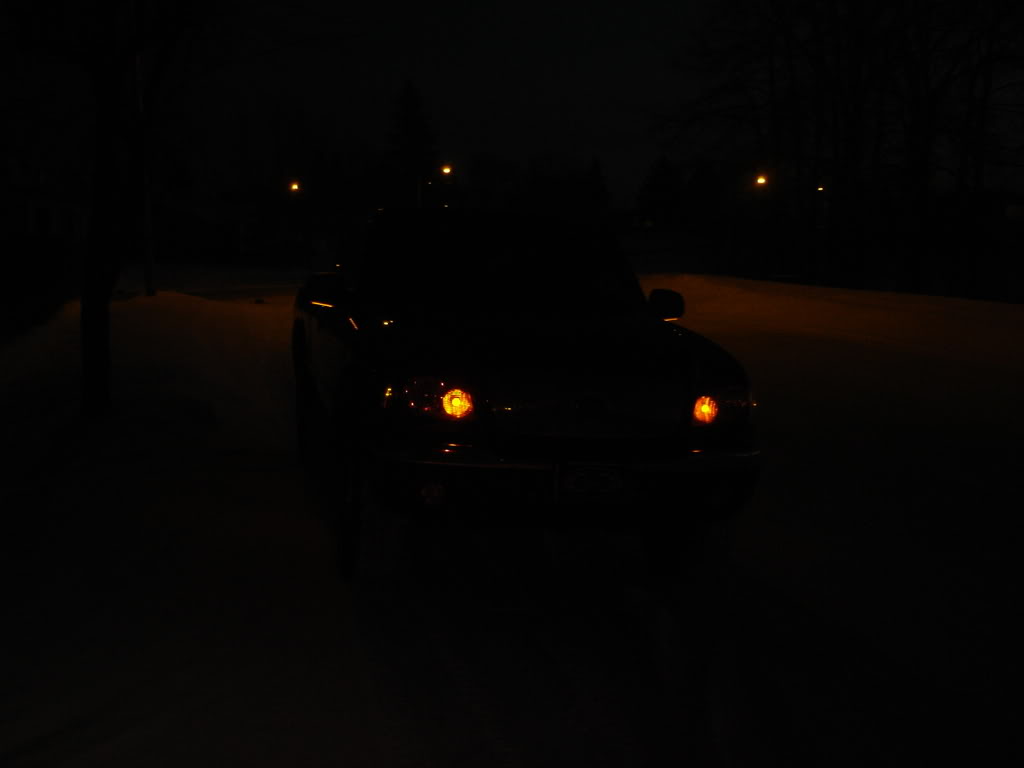

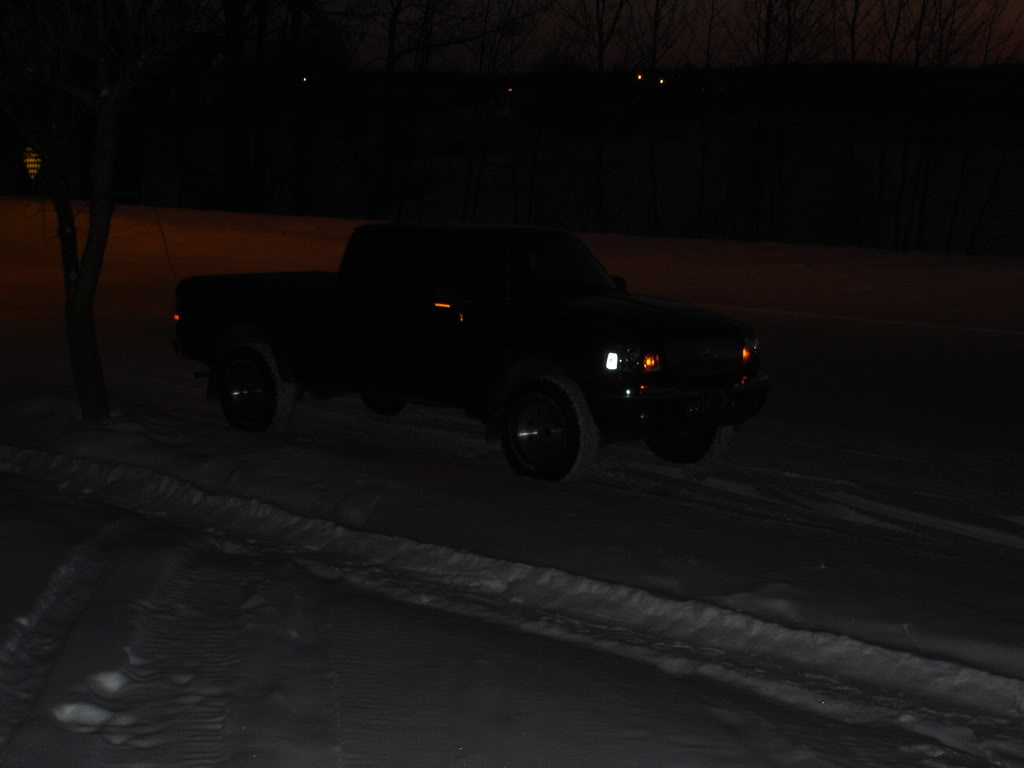

Here's 3 Night Pictures No headlights

Name:  DSC04169.jpg
Views: 1
Size:  16.8 KB

Name:  DSC04170.jpg
Views: 1
Size:  19.8 KB

Name:  DSC04165.jpg
Views: 1
Size:  34.9 KB
Reply With Quote
