6 inch off road lights; where to put, pic request

Hey guys. I just picked up two 6 inch off road lights and I'm wondering where to put them? I'm thinking with behind the grill (02' FX4) because I don't have a Waag bar or anything similar. I was also wonder how you guys have yours wired up. If you have any pics please post, it's just another way to ***** your truck out anyways, lol.
Reply With Quote
  #2
Old 11-16-2007
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
behind grill or get some light tabs for right in front of the grill...behind the grill looks sleeker...what kind did you get, not sure if all lights fit behind the grille...
Reply With Quote
  #3
Old 11-16-2007
rolsmojave3's Avatar
Level III Supporter
Thread Starter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
They are just no name 100 watters, and you can't beat extra lights. They are all stainless with a stainless wire loom, and they will fit behind the grill, so I'm open to opinions.
Reply With Quote
  #4
Old 11-16-2007
ChrisR1S's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
With no bar, behind the grill sounds great. Id say wire em into the low beams and mayb have a bypass switch so you can turn them on even when low beams are off
Reply With Quote
  #5
Old 11-16-2007
red_fx2's Avatar
Member

Join Date: Apr 2005
Location: lakeland, fl
Posts: 32
thats how i've had all of my lights where behinde the grill.. i just used the switch that came with the lights.. drilled a hole through the fire wall.. ran the wire's through and mounted the switch to the dash
Reply With Quote
  #6
Old 11-16-2007
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Mounting behind the grille youll need a slimmer style light. I really doubt a daylighter style light will fit, due to it's thickness.

Here's Mine: 2- KC Slimlites on homemade light tabs. Light tabs are a very popular option. They mount to your bumper bolts. I'll be putting on a crossbar between the two tabs and mouning a total of 4 lights here probably next week. I route all my wire through the firewall through a hole cut in the steering shaft boot......just be careful on the routeing,,,,make sure no contact with the shaft is made.







I havn't done it yet, but my switch setup for the 4 lights will incorporate 2 stock foglite switches mounted to my modded radio bezel...itll look like this(but black bezel):
Reply With Quote
  #7
Old 11-16-2007
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Quote:
Originally Posted by Fx4wannabe01
I havn't done it yet, but my switch setup for the 4 lights will incorporate 2 stock foglite switches mounted to my modded radio bezel...itll look like this(but black bezel):
Have you cut out the bezel for the switch yet? If so, how hard was it?
Reply With Quote
  #8
Old 11-16-2007
rolsmojave3's Avatar
Level III Supporter
Thread Starter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
I like the second foglight switch. How are you guys wiring them up? Do you run them through the trucks fuse/relay box? Thanks
Reply With Quote
  #9
Old 11-16-2007
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
9-22-07011.jpg?t=1195246760
i thought outside the box and like them here
Reply With Quote
  #10
Old 11-16-2007
nbro3232's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: Nokomis, FL / Tallahassee
Posts: 784

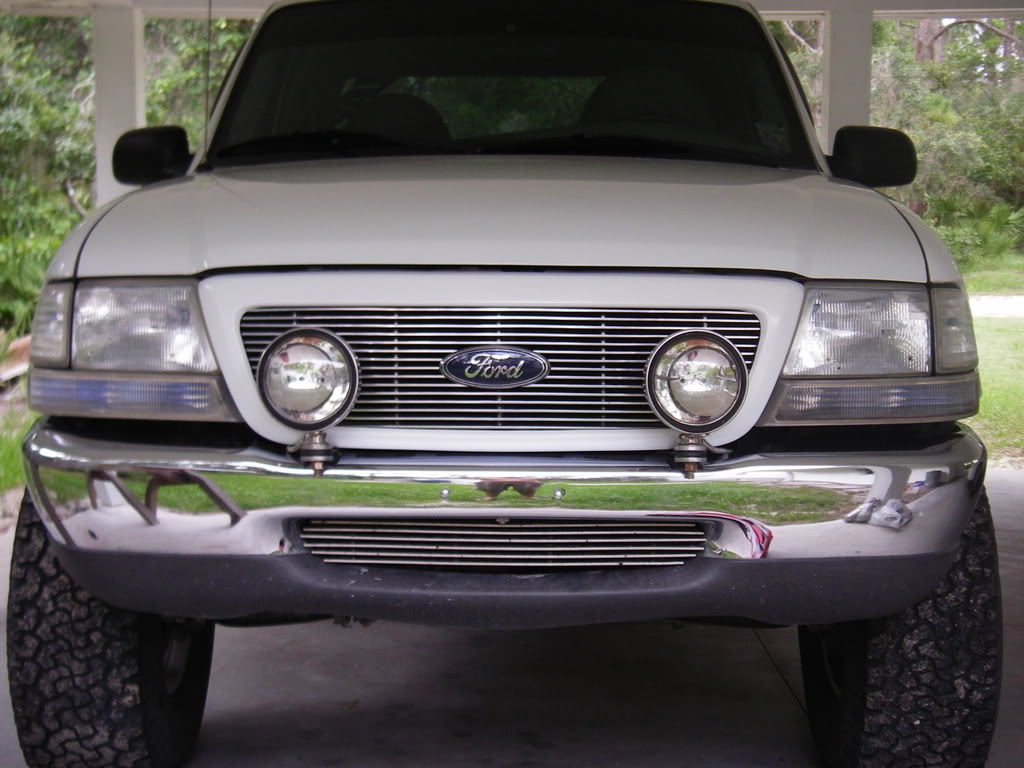

Name:  IMGP1979.jpg
Views: 2
Size:  112.1 KB
Reply With Quote
  #11
Old 11-16-2007
SHOman86's Avatar
Member

Join Date: Sep 2005
Location: Lakeland, Fl
Posts: 2,469
just becareful mountin them behind the grill with them gettin hot n melting the grill
Reply With Quote
  #12
Old 11-17-2007
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by RangerJustin
Have you cut out the bezel for the switch yet? If so, how hard was it?
Not yet, I still havn't got my extra switches in the mail yet. I do have a crap bezel i'm going to play with before I do it to a nice one.



Quote:
Originally Posted by rolsmojave3
I like the second foglight switch. How are you guys wiring them up? Do you run them through the trucks fuse/relay box? Thanks
I go a different route. I add an inline fuse that takes a spade type fuse. Always use a relay, and a fuse. Whenever I get around to it....I'm going to rewire all my accesories(lights, dixie horns, etc) and have the fuses on it's own fuse block, as well as hiding the wiring and relays...like this:


wiring links involving stock switches:

https://www.ranger-forums.com/forum2...ad.php?t=51189

https://www.ranger-forums.com/forum2...ad.php?t=15375

There's plenty more...but those are ones i started.
Reply With Quote
  #13
Old 11-17-2007
sem1845's Avatar
Member

Join Date: Jun 2004
Location: Prattville, AL
Posts: 265
lights bars for sure.. i have mine on my bumper now with them wired into the headlights...whenever the parking lights or low beams are on they can be turned on
Reply With Quote
  #14
Old 11-17-2007
rolsmojave3's Avatar
Level III Supporter
Thread Starter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
I think I'm going to make a tab for them when I get a chance and mount them like nbro3232 has his. Thanks for the help guys.
Reply With Quote
  #15
Old 11-17-2007
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by jtslmn720

i thought outside the box and like them here
Do you have any pics of your brackets?? I might try your location out....ilike it.
Reply With Quote
  #16
Old 11-17-2007
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
I think the way Jeff has his would be the only option for those with a Mazda. FYI.
Reply With Quote
  #17
Old 11-17-2007
badkarma's Avatar
Member

Join Date: Nov 2004
Location: Austin Texas
Posts: 171

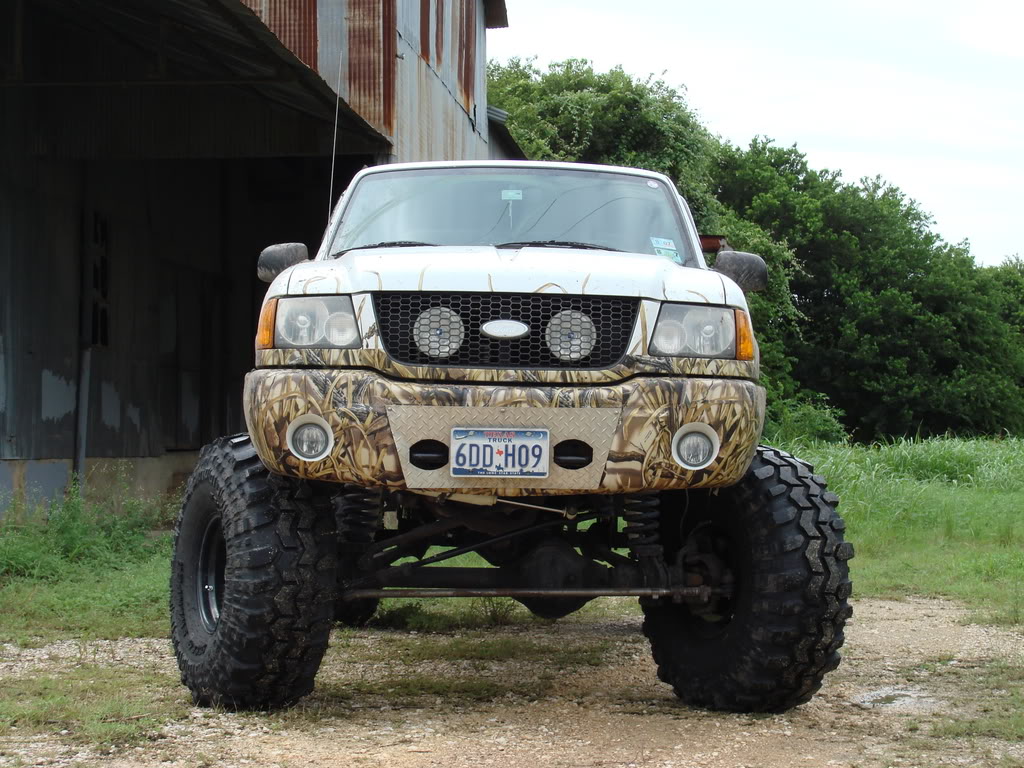

mine behind grill. Yeah 100 watts behind grill started to melt my grill.


Name:  mytruck113.jpg
Views: 1
Size:  185.2 KB
Reply With Quote
  #18
Old 11-17-2007
GR8COM's Avatar
Member

Join Date: Nov 2007
Location: SE Wisconsin
Posts: 423
Quote:
Originally Posted by badkarma
mine behind grill. Yeah 100 watts behind grill started to melt my grill.



Do you have more pictures of your truck posted somewhere I want to see more the front is amazing!!!!!
Reply With Quote
  #19
Old 11-17-2007
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by GR8COM
Do you have more pictures of your truck posted somewhere I want to see more the front is amazing!!!!!

click on his screen name, go to public profile, then on the left hand side, click all threads started by badkarma. he's got a bunch of pics up.
Reply With Quote
  #20
Old 11-17-2007
r0ng5's Avatar
Member
iTrader: (1)

Join Date: Jun 2004
Location: LA, CA
Posts: 2,575
behind grill!

Reply With Quote
  #21
Old 11-17-2007
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
Quote:
Originally Posted by GR8COM
Do you have more pictures of your truck posted somewhere I want to see more the front is amazing!!!!!
It'd look better if he'd wash all that mud off.
Reply With Quote
  #22
Old 11-18-2007
Member

Join Date: Jan 2006
Location: Richmond, Va
Posts: 295
Quote:
Originally Posted by Fx4wannabe01
I havn't done it yet, but my switch setup for the 4 lights will incorporate 2 stock foglite switches mounted to my modded radio bezel...itll look like this(but black bezel):

Hey, that looks familar
Reply With Quote
  #23
Old 11-18-2007
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
Quote:
Originally Posted by Fx4wannabe01
Do you have any pics of your brackets?? I might try your location out....ilike it.
just an L bracket that drops from those two holes on the backside of the bumper... not the most stable set up but they work... i think it has a 7 inch drop and 5 inch horizontal stretch
Reply With Quote
  #24
Old 11-18-2007
Instadeath's Avatar
Member
iTrader: (1)

Join Date: Sep 2005
Location: Cordova, TN
Posts: 116
Quote:
Originally Posted by Fx4wannabe01
Where can I get a radio bezel like that without the 4WD switch?
Reply With Quote
  #25
Old 11-18-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Name:  wyomingweek1117.jpg
Views: 1
Size:  192.0 KB
Name:  NYcomp07474-1.jpg
Views: 2
Size:  168.9 KB

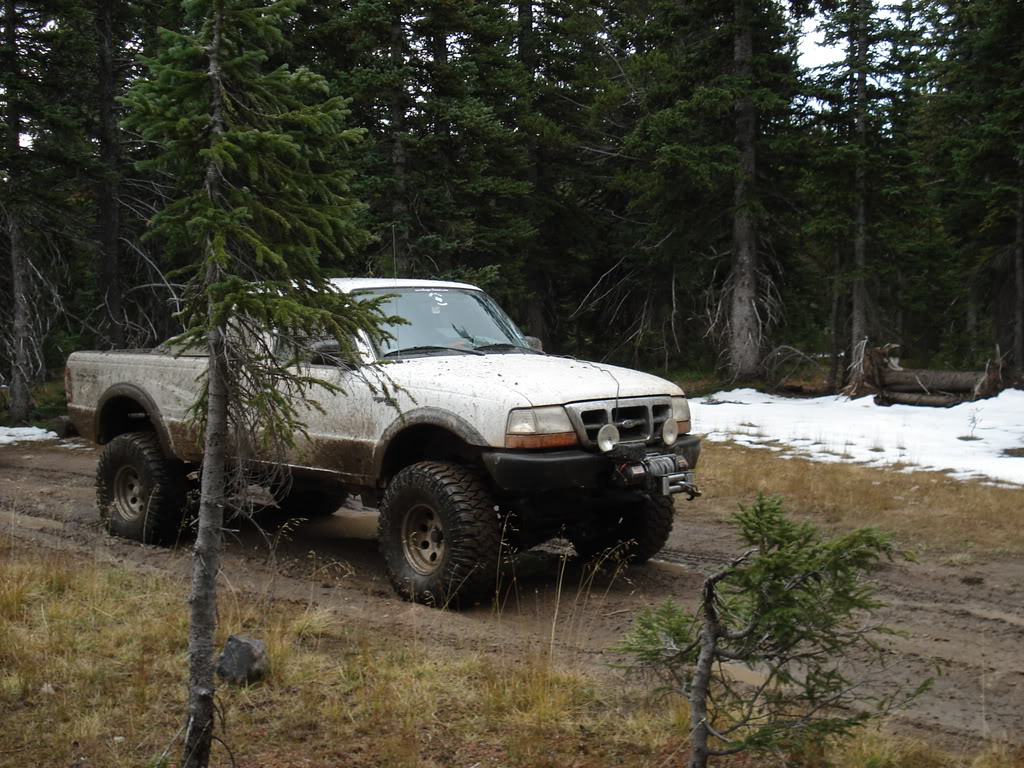

i just drilled 2 holes in my bumper
Reply With Quote
