Abnormal brake pad wear question...

I replaced my rotors and pads over the weekend. When I pulled everything off, the driver's side looked fine. Even(very light) wear on the rotor and about half the pad left. The passenger side is a completely different story. The outer pad had about 1/16" on one end and about 1/8" on the other. The inner pad had 1/16" on side and was scraping the backing plater on the other end of the pad. Needless to say, the pass side (inner) rotor was trashed. They were both replaced, I don't know what to do with the old ones.

My question is, what would cause the pads to wear this way? The only possibilities I could come up with is air in the line(need bled), need new slides, or other part.

I can get pics if they'd help. Thanks guys.
Reply With Quote
  #2
Old 07-19-2006
Member

Join Date: Dec 2005
Location: Ft Hood, TX
Posts: 1,779
thats exactly how mine were travis. i dunno if its a problem or how the ranger brakes.
Reply With Quote
  #3
Old 07-19-2006
67cobain94's Avatar
Member

Join Date: Jul 2005
Location: Vero Beach, Florida
Posts: 708
Right front caliper is sticking it sounds like to me. I'd say go for a reman rf caliper and bleed the system good. It could be other things like a master cylinder but that's not normal at all and it runs a 95% chance that it's the caliper.
Reply With Quote
  #4
Old 07-19-2006
Joerangerfx4's Avatar
Member

Join Date: Dec 2005
Location: Alta, Wyoming
Posts: 60
could the rotor be warped?
Reply With Quote
  #5
Old 07-19-2006
67cobain94's Avatar
Member

Join Date: Jul 2005
Location: Vero Beach, Florida
Posts: 708
Quote:
Originally Posted by Joerangerfx4
could the rotor be warped?
A warped rotor will just make a god awful shake and the pads will still wear evenly on both sides only possibly will the pads have an angle to them on the warped rotor.
Reply With Quote
  #6
Old 07-19-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521

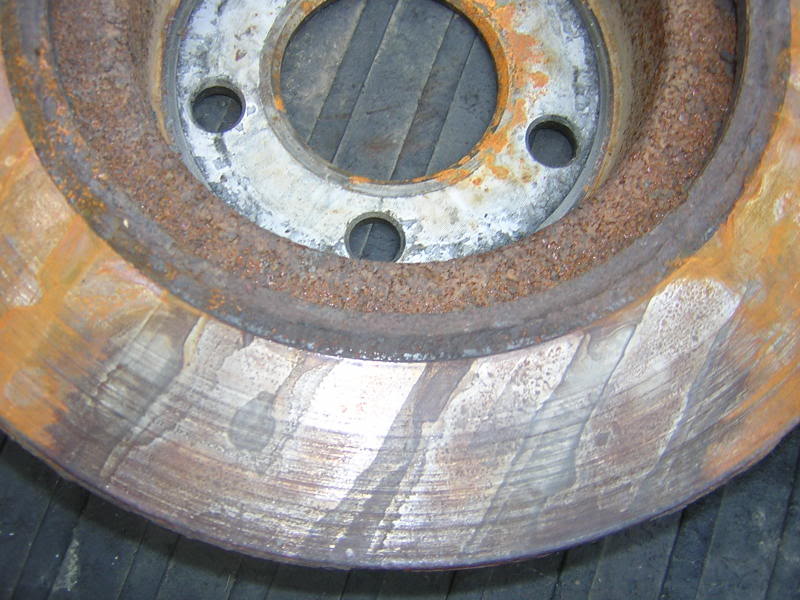

here's the inside of the old pass side rotor, I tryed to wd the rust off. The stripes are from my bed mat, don't worry about those lol.

Name:  DSCN1620.jpg
Views: 8
Size:  84.6 KB

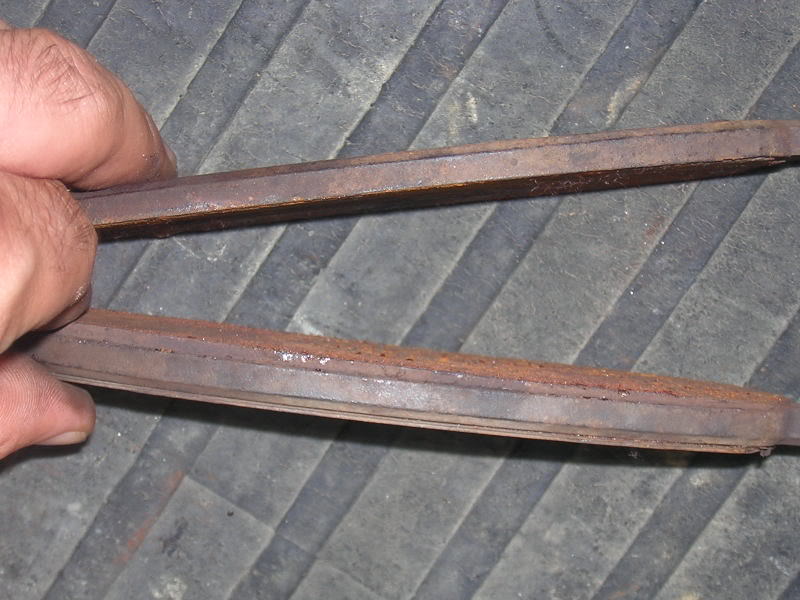

Here's the pass side pads. Inner pad on top, outer pad on bottom.

Name:  DSCN1624.jpg
Views: 9
Size:  75.2 KB

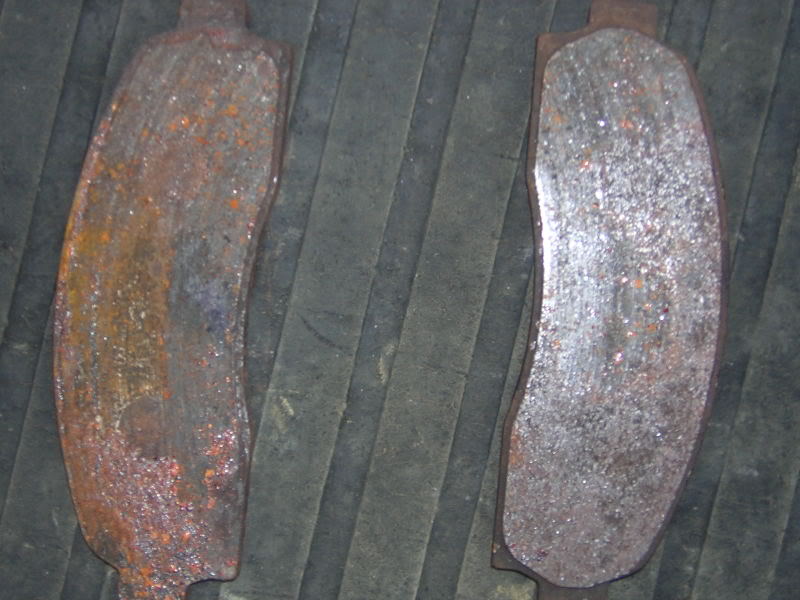

Pad view of the pass side. Inner on left, outer on right.

Name:  DSCN1621.jpg
Views: 7
Size:  72.2 KB

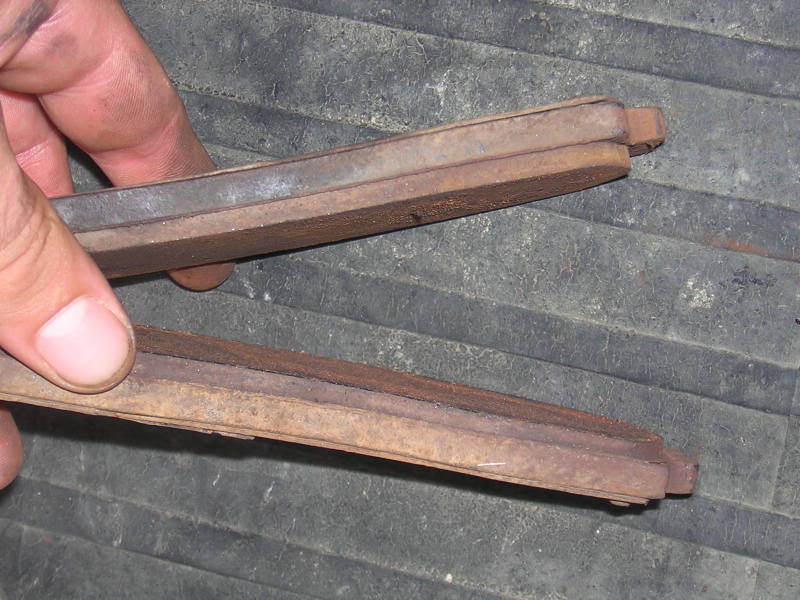

Here's the driver's side pads.

Name:  DSCN1623.jpg
Views: 6
Size:  77.7 KB

The passenger side did wear more on the rear of the inner pad and front of the outer pad. Might have been a warped rotor.
Reply With Quote
  #7
Old 07-19-2006
heed316's Avatar
Member

Join Date: Jun 2006
Location: Brooklyn, MI
Posts: 193
Quote:
Originally Posted by 67cobain94
Right front caliper is sticking it sounds like to me. I'd say go for a reman rf caliper and bleed the system good. It could be other things like a master cylinder but that's not normal at all and it runs a 95% chance that it's the caliper.

That's exactly what happened to me. Passenger side was barely worn down and the drivers side was totally gone. Passenger caliper was sticking so make sure you check that out.
Reply With Quote
  #8
Old 07-19-2006
67cobain94's Avatar
Member

Join Date: Jul 2005
Location: Vero Beach, Florida
Posts: 708
It looks like you just got the good out of them really. It's not bad enough to put much more thought into it. Check your brakes in 10k and make sure they are the same. Once pads get down to the last 2 or 3 mm they tend to wear funny because the pistons being forced out that far move side to side a lot more than they do when they are pushed all the way in the caliper with a new pad. Nothing will ever be as bad as the pictures I had once posted on here with the Jeep Wrangler pads worn down into the metal and the rotor worn down into the fins from work.
Reply With Quote
  #9
Old 07-19-2006
Rand's Avatar
Member

Join Date: Jun 2004
Location: Barberton,Ohio
Posts: 1,189
are the front brakes 1 piston or 2.. if they are 1 piston that can happen if the slides full of crap and no sliding occurs.
Reply With Quote
  #10
Old 07-19-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
it could be worn out slides too. im replacing mine this weekend. hoping it will fix my issues.

i really just think the brake system on rangers are junk.
Reply With Quote
  #11
Old 07-19-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Yeah, haven't been a big fan either.

I wish I knew exactly what the problem was so I can take care of it asap. I just don't wanna go out and buy new slides/take the time to put them on and it doesn't do a thing. It never really pulled(at least not enough for me to notice). Front end was recently aligned. She drives straight accelerating and braking. *sigh*
Reply With Quote
  #12
Old 08-12-2006
FireRanger's Avatar
Join Date: May 2004
Location: CT
Posts: 0
Just thought I bring this one back to life. After driving a 1000 miles last week, I pretty much fried what I had left of my front brakes. 65,000 miles on them so I guess it is time. Ironiclly enough, my brakes are the way. The inside of the passeneger rotor is chewed to hell and all the rest are only a little bit uneven.
Reply With Quote
  #13
Old 08-12-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
That's odd. Mine were changed at ~28k miles, but I had an auto tranny and I beat the snot out of it.

I wonder if Ford is aware of this?
Reply With Quote
  #14
Old 08-12-2006
Member

Join Date: Jul 2006
Location: West Seneca, NY
Posts: 9
the sliders aren't sliding, my f150 did this.

You have to get new slides and lube them up good with dielectric grease.
Reply With Quote
  #15
Old 08-14-2006
04 EDGE
Unregistered User

Posts: n/a
actuley the pads were probley siezed to the bracket, thus locking them against the rotor.

rust builds up under the clips and does this sort of stuff
Reply With Quote
  #16
Old 08-14-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
I just swapped my new pads and rotors for the stockers. Truck don't need brakes anyhow lol. Well the upper most bolt on the slide bracket on the passenger side was pretty sticky. The lower one and niether of the other side bolts were sticky.

This happened when I was tightening them down. The new ones and old ones have quite the difference in thickness. Thus needing to push the slide in further than it was with the new ones. I tightened til it was snug then was like wait, the bottom one went in further. So I torque'd on it for fun(who cares it's totalled =]), low and behold, it gave then tightened for another five or six turns. Almost as if it get's stuck once the pads wear down so far.

My hypothesis =]

Anyone else need any experiments done? haha
