? about adding lights

hey whats up i have the factory fogs with the switch on the radio bezel. id like to get come hella lights or something like that. my question is can i run the lights off the factory switch along with factory fogs??? will the factory wiring be ok if i was to just tap into it? can i just buy a bigger relay ect? or do i need to wire them up totally separate. thnaks in advance!!!

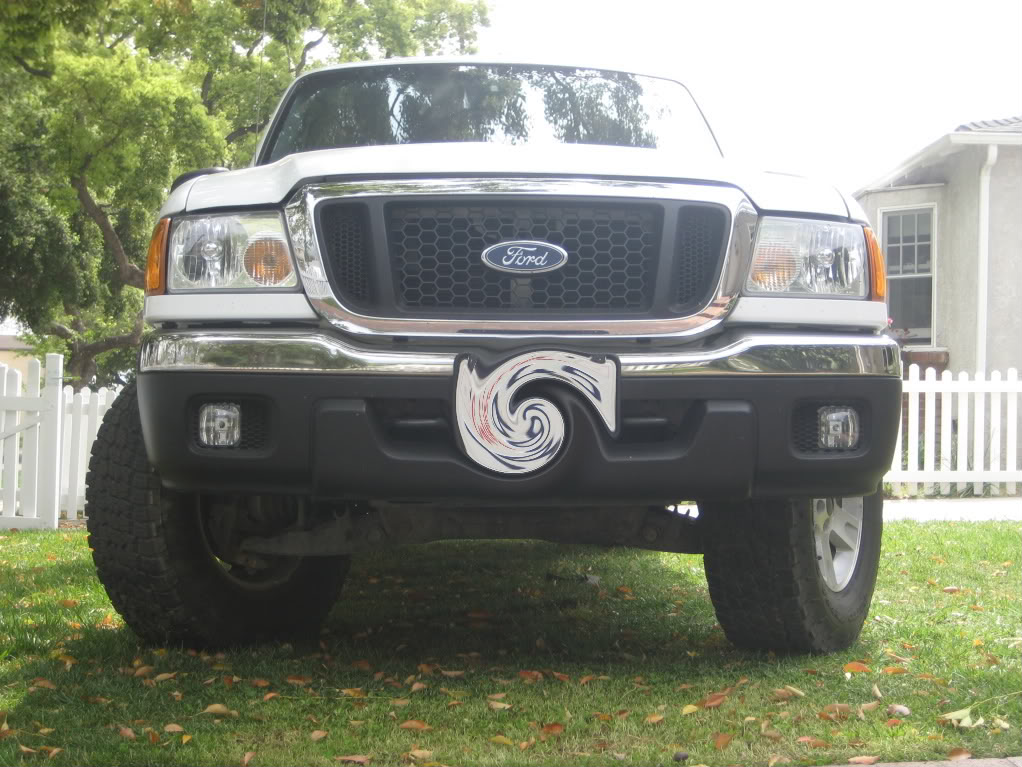

here are the factory fogs im talking about that i would just tap into. to run them off the factory switch. obviously in the lower valance
Name:  newfogs3-1.jpg
Views: 2
Size:  158.6 KB
Reply With Quote
  #2
Old 10-15-2009
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Ive got hella 500s on mine... The relay trigger wire that would normally attach to the high beams would be hooked to the fog light circuit the if you just want it switched to the fog light switch instead of hooking up the hella switch connect those two wires together so it will come on when the fogs are turned on.
Reply With Quote
  #3
Old 10-15-2009
Machine090767's Avatar
RF Veteran

Join Date: May 2006
Location: Minnesota
Posts: 6,410
keep the hella's on a seperate switch. besides, hella kits come with the wiring and switch/ relay.
Reply With Quote
  #4
Old 10-15-2009
kenny_216's Avatar
Member

Join Date: Aug 2008
Location: Phoenix, AZ
Posts: 879
I have 2 sirius 7.5 halogens that I wired up to my factory harness after my stock bumper was removed. i havent had any problems, but then again i dont have anything else wired to them.
Reply With Quote
  #5
Old 10-15-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
I'd get a explorer bezel and run both facotry switches for both sets of lights, looks cleaner and no holes in the dash when you get rid of the hellas...
Reply With Quote
  #6
Old 10-15-2009
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
thing to keep in mind, never just add a bigger relay to a certain circuit... the wire size is what limits how many amps you can use, not fuses or circuit breakers. You go to a bigger fuse/CB if you have upgraded the wire size
Reply With Quote
  #7
Old 10-15-2009
Woods-Rider's Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: Hillsboro, OR
Posts: 1,108
I would wire them up with a separate relay if you are gonna use the same switch. I have 4 55W lights wired up to my fog switch on their own relay and have yet to have any problems.
Reply With Quote
  #8
Old 10-15-2009
04_xlt_4.0_4x4's Avatar
Member
Thread Starter

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
oh ok so i can jus wire them up to the switch as long as i have a separate relay??? cuz mu goal is to keep real clean and look stock.
