Converting my 2004 Edge to work with 93-2000 tail lights

Does anyone know how to convert my 2004 edge to work with 1993-2000 style tail lights. I have read that the the older style lights will fit, but they bulbs are different because there is a separate turn signal bulb for the old ones. Is there an easy way to wire this in? Has anyone done this? The reason I ask is because I don't like any of the new tail lights they sell on ebay for 2001-2007 I want to go with an older pair.

These are 93-2000 ones I want in my 2004



Please dont post saying things like "gee those are ugly" - I am just looking for technical help, not subjective opinions. Thanks ahead of time...
Reply With Quote
  #2
Old 12-02-2007
Urandaman's Avatar
Member

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
should be able to get the rear section of the wiring harness that has the tail lights and licsense plate lights on it..

i havent looked under my ranger, but on my f150, i could un plug that section of the harness from the main harness on the frame which made swappin the bed easier
Reply With Quote
  #3
Old 12-02-2007
rangeredge_03's Avatar
Member

Join Date: Oct 2007
Location: lubbock,tx
Posts: 594
i put the three bulb set in my 2003 if i had the truck i would take some pics but it in the shop so

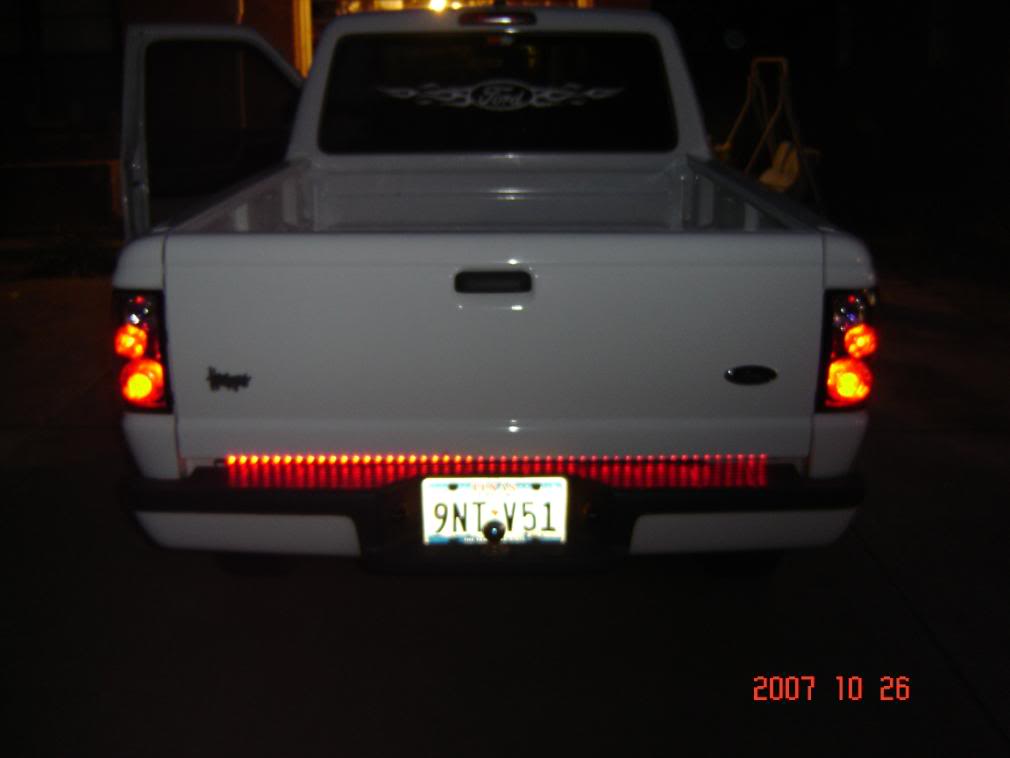

Name:  Picture008.jpg
Views: 5
Size:  33.5 KB

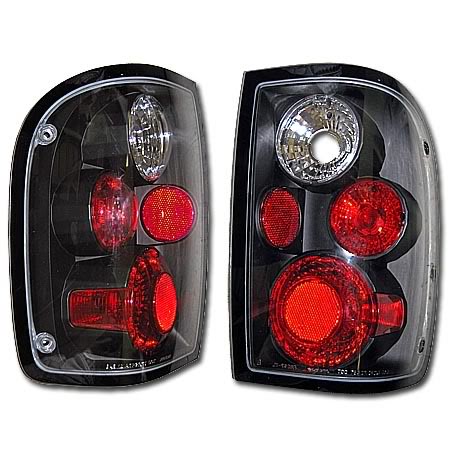

Name:  3923.jpg
Views: 5
Size:  49.1 KB

Last edited by rangeredge_03; 12-02-2007 at 11:37 PM.
Reply With Quote
  #4
Old 12-03-2007
bricesedge03's Avatar
Member

Join Date: Apr 2007
Location: columbia sc
Posts: 388
Quote:
Originally Posted by Urandaman
should be able to get the rear section of the wiring harness that has the tail lights and licsense plate lights on it..

i havent looked under my ranger, but on my f150, i could un plug that section of the harness from the main harness on the frame which made swappin the bed easier
x2 plug and play.
Reply With Quote
  #5
Old 12-04-2007
Jp7's Avatar
Jp7 Jp7 is offline
Member
Thread Starter
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Is it possible to set this up so that one bulb works only with the turn signal, another works with the tail lights and break lights and the white one is the reverse light? How have people wired them?
Reply With Quote
  #6
Old 12-04-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by Jp7
Is it possible to set this up so that one bulb works only with the turn signal, another works with the tail lights and break lights and the white one is the reverse light? How have people wired them?
[Some Rangers, like my 03, are wired from the factory for both types of turn signal lights - at least as far back as the 8-pin connector near the end of the DS frame rail. Check to see if you have 8 wires or 5 wires on the forward side of the connector. If you have 8 on the front side and 5 on the back, I can tell you how to tap the turn only wires right there. If you have 5 wires on the front side and 5 wires on the back of that connector, you will need to run 2 new wires from the front of the truck as described below.]

You would probably need to bring 2 new wires back to power the turn signal only bulbs in the tails. These could be tapped from the front turnsignals or the steering column harness. Everything else could be reused from the existing wiring for the stock tails.

L turn only = LG/WH (new)
R turn only = WH/LB (new)

L turn/brake = LG/OR
R turn/brake = OR/LB
L&R Running = BN
L&R Reverse = BK/PK
Ground = BK
Reply With Quote
  #7
Old 12-04-2007
Jp7's Avatar
Jp7 Jp7 is offline
Member
Thread Starter
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
OK, Maybe I have a better, and easier idea....

I will have 3 spots for bulbs.

One will be the white reverse light, this is easy.

One will be for a dual filament bulb, this is exactly what my stock 2004 truck has. I will connect this as usual.

The extra spot (with a red lense) will be for a single filament bulb. This is the one that is originally designed for the turn signal on a 1993-2000 truck. For this single filament bulb I can connect the positive to the positive on the turn signal bulb below, and the ground to the same ground.

If I am correct, the lights will function the same, except my bottom light will be a dual filament and it will be the only tail light, where as they will both blink for turnsignals and both work for brake lights?

Does this sound right?
Reply With Quote
  #8
Old 12-06-2007
Jp7's Avatar
Jp7 Jp7 is offline
Member
Thread Starter
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
I bought those tail lights last night, I also bought the black reflector headlights....
Reply With Quote
  #9
Old 12-06-2007
rangeredge_03's Avatar
Member

Join Date: Oct 2007
Location: lubbock,tx
Posts: 594
as soon as i get my truck back i will take pics should be this weekend or Monday
Reply With Quote
  #10
Old 12-18-2007
Jp7's Avatar
Jp7 Jp7 is offline
Member
Thread Starter
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
(Burp!).....Any updates?
