cruise control

hi i got an 2003 ranger, and when i bought it the cruise control didnt work, and the CC lights dont even come on.... anyone got any ideas of what could be wrong? thanks
Reply With Quote
  #2
Old 07-20-2009
DisturbedESV's Avatar
Member

Join Date: Apr 2008
Location: Seattle, WA
Posts: 3,115
My work has an F150 w/o cruise control but the steering wheel still has the buttons... you sure you have the feature??
Reply With Quote
  #3
Old 07-20-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I know during the recall some dealerships just unplugged the unit instead of fixing it. Maybe thats what happened to yours?
Reply With Quote
  #4
Old 07-20-2009
Member
Thread Starter

Join Date: Jul 2009
Location: oglesby tx
Posts: 41
how do i know if i got that feature? and how do i know if its unplugged? thanks
Reply With Quote
  #5
Old 07-20-2009
LancerRevo's Avatar
Member

Join Date: Jun 2009
Location: El Paso, TX
Posts: 262
mines doesnt have lights either, but it was working....till a couple days ago. now it just shows the speed control light real quick and shuts off. i dont know why it just all the sudden stoped working. bro was saying maybe a blow fuse
Reply With Quote
  #6
Old 07-20-2009
VW TANK's Avatar
Member
iTrader: (1)

Join Date: Feb 2008
Location: Ridgewood,NJ
Posts: 162
for the recall all they did is splice a fuse in right near the master cylinder....go check it out, its easy to spot

and if that fuse did blow, check it there
Reply With Quote
  #7
Old 07-20-2009
Member
Thread Starter

Join Date: Jul 2009
Location: oglesby tx
Posts: 41
all fuses are good
Reply With Quote
  #8
Old 07-20-2009
LancerRevo's Avatar
Member

Join Date: Jun 2009
Location: El Paso, TX
Posts: 262
well i just happend to call for a recall an hour ago, bro brought up the idea and i have 3 :o! 1 is for the cruise control, which i am scheduled for on wednesday. the other 2 they arent sure if they were fully processed and completed
Reply With Quote
  #9
Old 07-20-2009
Member
Thread Starter

Join Date: Jul 2009
Location: oglesby tx
Posts: 41
what year model is yours?
Reply With Quote
  #10
Old 07-20-2009
LancerRevo's Avatar
Member

Join Date: Jun 2009
Location: El Paso, TX
Posts: 262
99 ford ranger xlt 3.0 v6
Reply With Quote
  #11
Old 07-20-2009
Member
Thread Starter

Join Date: Jul 2009
Location: oglesby tx
Posts: 41
my CC wasnt in the recall, 2002 was but 2003 wasnt so idk whats wrong with it
Reply With Quote
  #12
Old 07-20-2009
98rangerxlt's Avatar
Member

Join Date: Mar 2009
Location: Bakersfield, CA
Posts: 725
Quote:
Originally Posted by kb4422 View Post
how do i know if i got that feature? and how do i know if its unplugged? thanks
Open the hood and on the front of the master cylinder there will be a switch with a plug on it. Then somewhere under the hood there will be a box with a cable running from it to the throttle body.
Reply With Quote
  #13
Old 07-20-2009
Member
Thread Starter

Join Date: Jul 2009
Location: oglesby tx
Posts: 41
the lil red thing on the master cylinder and everything seems to be plugged in
Reply With Quote
  #14
Old 07-21-2009
Member
Thread Starter

Join Date: Jul 2009
Location: oglesby tx
Posts: 41
..........
Reply With Quote
  #15
Old 07-22-2009
Member
Thread Starter

Join Date: Jul 2009
Location: oglesby tx
Posts: 41
ok well i replaced the lil thing on the master cylinder and it still isnt working!!
Reply With Quote
  #16
Old 07-22-2009
LancerRevo's Avatar
Member

Join Date: Jun 2009
Location: El Paso, TX
Posts: 262
well, went for my recall this morning and my cruise control works again :D. bad wiring would cause the fuse to always short out
Reply With Quote
  #17
Old 07-26-2009
Zs02Edge's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Ocala, Fl & Woodland, WA
Posts: 253
To the original poster: If you've got big feet and wear boots you may want to look at the BPP switch and coonector. It's located on the brake pedal.
Reply With Quote
  #18
Old 07-27-2009
Member
Thread Starter

Join Date: Jul 2009
Location: oglesby tx
Posts: 41
Enter self-test diagnostics by depressing the speed control OFF switch while turning the ignition key ON, making sure the engine does not start and is not running. The speed control indicator on the instrument panel
will flash once to indicate that speed control module entered the diagnostic mode. Five additional flashes at this point indicate a defective speed control servo. Release the OFF switch.
Press the remaining switches in this sequence: ON, RESUME, COAST and SET/ACCEL.
If the ON switch is not depressed within five seconds after entering the diagnostics mode, the module times out and the procedure must be started over.
The speed control indicator lamp will flash as each switch is depressed. Press each switch in the sequence immediately after the indicator light goes out for the previous switch.
NOTE: There will be a slight delay when the last button is pressed and the lamp flashes.

A lamp flash with the last button (SET/ACCEL) indicates that the static test passed. If the lamp does not flash with the last button and there are no additional flashes of the lamp, the switch is defective.
If the lamp does not flash with the last button, and additional flashes occur, follow the chart below for trouble codes:
2 flashes - BPP defective, circuit is defective, brake applied, CPP switch or jumper (if equipped).
3 flashes - deactivator switch is open or circuit defective.
4 flashes - vehicle speed signal is out of range or circuit is defective
Immediately (.25 second delay) after the static test, the speed control servo does a dynamic test by automatically actuating the throttle lever from 8 mm (0.315 in) to 12 mm (0.472 in) of travel from the idle position. During the dynamic throttle pull, observe throttle movement to witness any binding or sticking of the speed control cable and correct connection of speed control cable to throttle lever. Make sure the throttle returns to the idle position.


ok so i did that test and got 2 flashes, where should i go from here? thanks
Reply With Quote
  #19
Old 07-27-2009
ccernst's Avatar
Member

Join Date: May 2009
Location: Kansas City, MO
Posts: 380
basically, they are saying to check the brake petal position switch, the clutch petal position switch, look for frayed/cut switch wires. Or if you do not have a manual, make sure the jumper is in place for the clutch petal position switch harness.

I doubt your brake is applied or else your tail lights would be on all the time.


good diagnostic info
Reply With Quote
  #20
Old 07-27-2009
Member
Thread Starter

Join Date: Jul 2009
Location: oglesby tx
Posts: 41
well my brake lights aint on all the time and my truck is automatic, so idk....
Reply With Quote
  #21
Old 07-27-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197

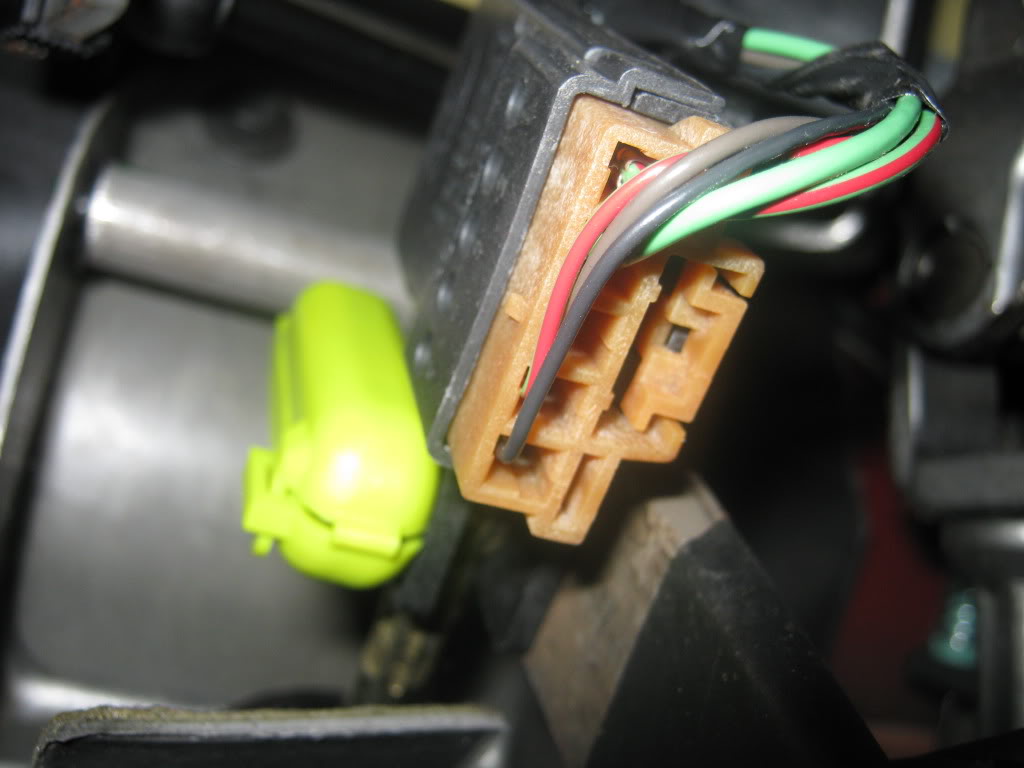

Double check the stuff attached at the brake pedal that something has not come disconnected

Name:  IMG_0269.jpg
Views: 2
Size:  77.4 KB
Reply With Quote
  #22
Old 07-27-2009
Zs02Edge's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Ocala, Fl & Woodland, WA
Posts: 253
Pay close attention to the green/red wires.
