Electronic Signal Flasher Module works for LED conversion - details inside.

I recently installed an EP27 electric based turn signal flasher that is compatible with LED's. This allows normal operation of your turnsignals in a ranger without using those stupid LED resistors. The flash rate is the same as stock.

The flasher can be purchased at V-leds.com for 16$.

I think this is a really good option if anyone is doing a complete LED conversion like I am.

Load resistors suck.

If you don't know, the stock thermal flasher is located under the dash on the drivers side. In my 2004 it was a little blue shaped module right above my clutch pedal.

This mod takes about 10 minutes to do. The hardest part for me was maneuvering around my alarm wiring. It also makes a nicer sound in my opinion compared to the stock clicking. The sound is softer.
Reply With Quote
  #2
Old 04-13-2008
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
FWIW, autozone has the EP27 on the shelf for about 10 bucks. At least the last time i was there.
Reply With Quote
  #3
Old 04-13-2008
FireRanger's Avatar
Join Date: May 2004
Location: CT
Posts: 0
I thought it was controlled by the GEM module? exactly is this flasher?
Reply With Quote
  #4
Old 05-03-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
Thread Starter
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
The EP27 is a little guy that connects to the wiring and makes your turnsignals work with LED's or the stock bulbs. You can mix and match, everything works fine.

I have recently completed modding my aftermarket ranger tails with 4 L1224R leds (2 each) These are brighter and more vivid than any stock bulb or LED replacement, It required me converting the keyhole shape to the L1224R style. I epoxied everything together. Epoxy should be dry today, I will post photos as this is the tail light mod to end all tail light mods.
Reply With Quote
  #5
Old 10-25-2010
Jp7's Avatar
Jp7 Jp7 is offline
Member
Thread Starter
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by Blhde View Post
FWIW, autozone has the EP27 on the shelf for about 10 bucks. At least the last time i was there.
I have confirmed today (and before) that the EP27 on VLEDs is MUCH better with LEDs than the autozone one.
Reply With Quote
  #6
Old 07-25-2012
Sean04Ranger's Avatar
Member

Join Date: Dec 2011
Location: Tampa, Florida
Posts: 143
I went and got the Tridon EP-27 flasher from Advanced Auto Parts (http://shop.advanceautoparts.com/buy...flashers.html#) and I went to install it today and right when I plugged it in a clicking noise came from the flasher. When I turned on my Ranger and hazards the lights flashed but the clicking noise from the flasher was still there.

Is this normal or did I do something wrong? Or do I have a faulty flasher?

Thanks.

Last edited by Sean04Ranger; 07-25-2012 at 09:15 AM. Reason: Add the link.
Reply With Quote
  #7
Old 07-25-2012
brinker88's Avatar
Member

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
I'd also like to add that that flasher will NOT work with 1997 and down rangers. The proper flasher you need is an EL12L2. You need to add extensions and switch the leads going into it. This is a mute flasher (no sound) and is only available through NAPA from what I've found.
Reply With Quote
  #8
Old 07-25-2012
Sean04Ranger's Avatar
Member

Join Date: Dec 2011
Location: Tampa, Florida
Posts: 143
Quote:
Originally Posted by brinker88 View Post
I'd also like to add that that flasher will NOT work with 1997 and down rangers. The proper flasher you need is an EL12L2. You need to add extensions and switch the leads going into it. This is a mute flasher (no sound) and is only available through NAPA from what I've found.
I have an 04, Buggman told me that I would need the EP-27. I went to Advanced Auto Parts to see if that one was just faulty and got a new one. After plugging in the new one in it made no clicking, but after leaving my hazards on for a few to see if all lights were flashing, the clicking didn't go away. I turned off my truck and there was still clicking. The guy told me I need another flasher and I am about to go to a store that might have them. He doesn't know which one I need just he knows I need an upgraded one.

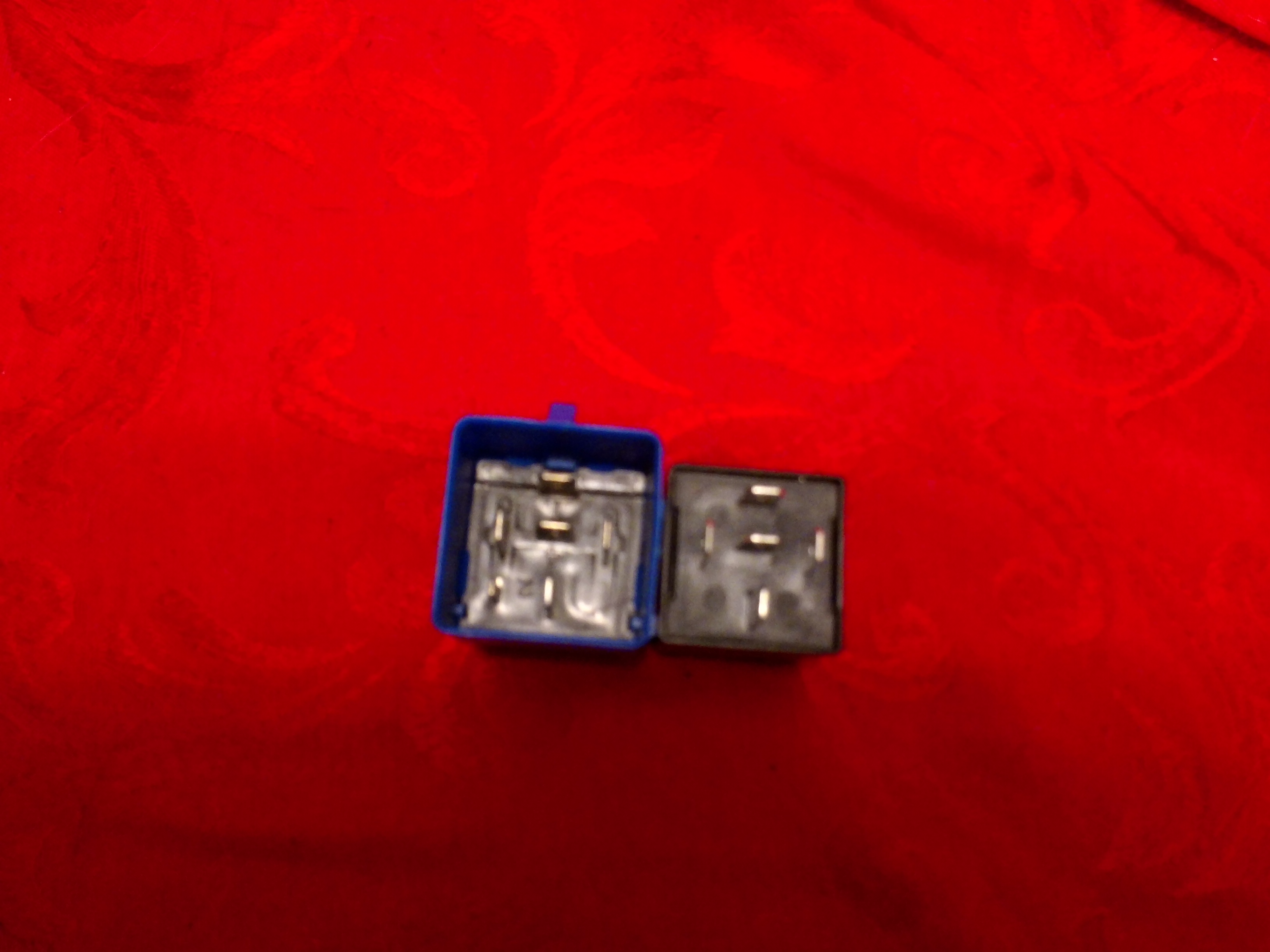

The one on the left is my original one, the right is the EP-27. Original has 6-pins and the EP-27 has 5-pins that is the only difference I see.

Attached Thumbnails
Electronic Signal Flasher Module works for LED conversion - details inside.-2012-07-25-10.06.26.jpg

Last edited by Sean04Ranger; 07-25-2012 at 10:39 AM. Reason: Adding picture
Reply With Quote
  #9
Old 07-25-2012
brinker88's Avatar
Member

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
I understand that, I just wanted to make sure everyone knew that this will not work for all years. 94 and down have a 2 pin flasher.

Last edited by brinker88; 07-26-2012 at 06:22 AM.
Reply With Quote
  #10
Old 07-26-2012
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
My 96 used the EP-27 flasher.
The 95 may as well??... not sure about the 94 & older trucks, pretty sure they use the ELxxx flasher.
Reply With Quote
  #11
Old 07-26-2012
brinker88's Avatar
Member

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Thanks bugg. Yea, it's 94 and down.
Reply With Quote
  #12
Old 07-26-2012
Sean04Ranger's Avatar
Member

Join Date: Dec 2011
Location: Tampa, Florida
Posts: 143
I got mine to work by install all the LEDs, maybe the bulbs were just too much power for it and it had a clicking fit. But now that I run all LEDs it works great.
Reply With Quote
  #13
Old 07-26-2012
brinker88's Avatar
Member

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Quote:
Originally Posted by Sean04Ranger View Post
I got mine to work by install all the LEDs, maybe the bulbs were just too much power for it and it had a clicking fit. But now that I run all LEDs it works great.
That's exactly what your problem was.
