Gauge Dilemma

So, I was checking out Grigg's thread on gauges and it got me thinking about the ones I'm going to be buying here. I'm looking to add three gauges. Herein lies my problem......which ones?? lol

There's soooooo many it makes my head spin. What would be the best three to cover my butt? I know one gauge is def going to be a vac/boost gauge to keep my fuel economy in check and for a future mod =]

So that leaves two gauges. I'm thinking that one of these would be best: Oil Temp, Oil Pressure, Tranny Temp, Rear Diff Temp, T-Case Temp


Some specs to give you an idea of what I'm working with....
4.0 SOHC, Manual Transmission, Manual Transfercase, 31 Spline 8.8, Torsen L/S
Reply With Quote
  #2
Old 03-24-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
I would say oil presure and trans temp. Thats what I am putting in right now. I have the autometer NV series gauges electrical full sweep
Reply With Quote
  #3
Old 03-24-2007
pastfinder's Avatar
Member

Join Date: Mar 2006
Location: Washington, DC
Posts: 1,252
I'm pseudo planning to install oil pressure and trans temp as well....go with them, because two of us said so
Reply With Quote
  #4
Old 03-24-2007
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
I have a manual tranny, I thought *in my feeble mind* that it wouldn't be worthwhile unless you had an auto.
Reply With Quote
  #5
Old 03-25-2007
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
bump for the slackers.............
Reply With Quote
  #6
Old 03-25-2007
LILBLUE04FX4L2's Avatar
Member

Join Date: Jun 2004
Location: Exit 105 New Jersey
Posts: 2,409
A transmission temperature gauge would not make my top three if it were on a manual transmission vehicle
After your stated vacuum pressure I guess my next choice would be oil pressure
Then if 2003 does not have an 'actual' gauge (not an idiot light disguised as a gauge) it would be engine or coolant temp
Reply With Quote
  #7
Old 03-25-2007
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
I'm pretty sure the factory dash temp gauge is real. I'm glad someone else thought the same thing about the tranny temp gauge.

So a vacuum gauge, oil pressure, and............?

I was thinking about a rear diff temp sensor but it seems like it'd be about a b1tch to install and run the wiring somewhere safe, treating my truck the way I tend to do. =]
Reply With Quote
  #8
Old 03-25-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Travis I TOLD YOU WHAT TO GET DONT MAKE ME DRIVE UP THERE AND WHOOP YOU TO THE WEST COAST!!!!!
Reply With Quote
  #9
Old 03-25-2007
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
I don't want no dang tranny temp gauge! I'd rather have a t-case temp or rear diff temp gauge.
Reply With Quote
  #10
Old 03-25-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
How about a how far my foot is up your *** gauge??? lol

Do you have an e-fan? I dont know if you would put one on your truck after the last time though. I would say Water temp if you were.

But um... oil pressure and vacuum then or I know get an EE kit and get a BOOST GAUGE!!!
Reply With Quote
  #11
Old 03-25-2007
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Quote:
Originally Posted by Roach2004
How about a how far my foot is up your *** gauge??? lol

Do you have an e-fan? I dont know if you would put one on your truck after the last time though. I would say Water temp if you were.

But um... oil pressure and vacuum then or I know get an EE kit and get a BOOST GAUGE!!!
The vac gauge I'm looking at has boost dummy

It's (EE S/C) a possible future investment since I have a low mileage motor that has yet to be broken in =]

Air/Fuel would kick butt but I'd have to tap in another o2 sensor.

Reply With Quote
  #12
Old 03-25-2007
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
narrow or wide band a/f?

narrow band doesnt need a sperate o2
Reply With Quote
  #13
Old 03-25-2007
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Quote:
Originally Posted by gumby
narrow or wide band a/f?

narrow band doesnt need a sperate o2


I'm new to the whole gauge scene. I won't be worried about the air/fuel until(if) I get the EE S/C.
Reply With Quote
  #14
Old 03-25-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Who you calling dummy you stupid head! That guage looks mighty nice!
Reply With Quote
  #15
Old 03-25-2007
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
I dunno if it's backlit though, doesn't say anything in the product description on summitracing. I need illumination!

I'm really diggin these gauges, I just need to know if they light up.
Reply With Quote
  #16
Old 03-25-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320

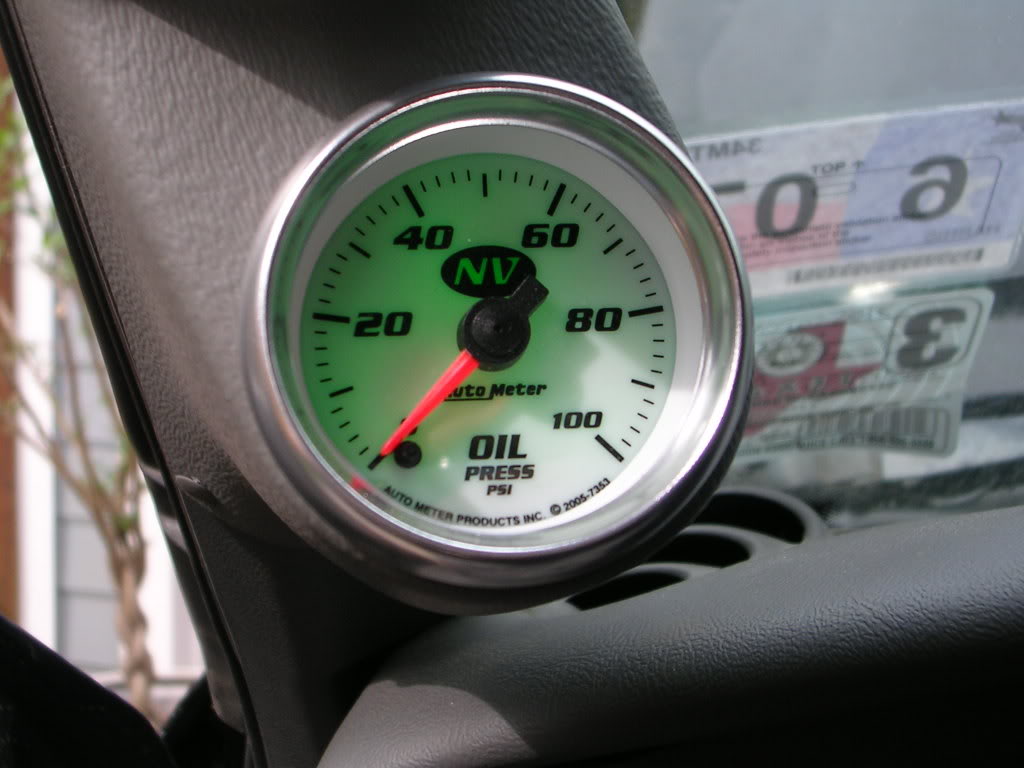

Here is mine you really cant see it lit up cause its bright outside

Name:  DSCN1998.jpg
Views: 4
Size:  81.1 KB
Reply With Quote
  #17
Old 03-25-2007
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Does that have a green bulb cover on or something?
Reply With Quote
  #18
Old 03-25-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
I dont know I didnt remove the light. I think it is a green bulb.
Reply With Quote
  #19
Old 03-25-2007
D.
Unregistered User

Posts: n/a
Its a green Bulb. I would go with Oil pressure and if your plann9ing boost in the future, its a good thought in the present.

I presently have Air/Fuel , Volts, Water from the lower radiator hose ( so I can compare it to the normal temp gauge and see if things are cooling, I cant hear my electric fan over my exhaust ) and soon a boost gauge ( waiting on it to arrive ).

I PLAN on buying a few door shrouds and making 4 gauge pillars out of them with Epoxy/Resin. They will be staggard 2x2 on the pillar by the windshield.
Reply With Quote
  #20
Old 03-28-2007
htvfd460stx's Avatar
Member

Join Date: Dec 2006
Location: Newton nj
Posts: 249
I am going to go with Trans, Vac/Boost, and Fuel mix ratio. I hav a manual trans and know that certain rpms consistantly increase the temp of the fluid.
Reply With Quote
  #21
Old 03-28-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
since you have a manual tranny Travis, go with a combo of how many gauges you want from the following list: (listed most important to least)
- oil pressure
- vaccum
- water temp
- voltmeter
- diff temp
- a/f ratio
- fuel level

you don't need a tranny temp gauge with a manual....

i am running all of those except for the a/f ratio gauge...
Reply With Quote
  #22
Old 03-28-2007
Member

Join Date: Aug 2004
Location: Wesley Chapel, FL
Posts: 1,072
Reply With Quote
  #23
Old 03-28-2007
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by Roach2004
I would say oil presure and trans temp. Thats what I am putting in right now. I have the autometer NV series gauges electrical full sweep
Ditto.

Edit: Whoops! Just noticed you have a manual. Nevermind. How about a real voltage gauge to monitor your charging system, especially if you plan on big lights.
