Hella 500s

A couple of questions about the Hella 500s. I want to get my son some lights for his truck (and yes, he will be MUCH more appreciative than that other db!) for Christmas.

1. Are the Hella 500s any good? They are almost half the cost of KC daylighters and other Hella lights.

2. What is the difference between the 500s and the 500FF? I looked at the Hella websight but can't seem to find and difference.

3. Does anyone have a detail, drawing, or cad file of their light tabs? I would like to try and fab some as it looks pretty straight forward, but all the pics I find only show the tab above the bumber. I can't see any of the bends in it.

Thanks, Sam
Reply With Quote
  #2
Old 12-16-2010
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Hella has good lights, if i hadn't found my Dick Cepek's ($115 for four) on ebay, they would have been my second choice.
Whatever this freeform technology is, thats the difference.
What are you going to mount the lights on? rollbar? Bullbar? i have a great detail of my brackets for my rollbar, could probably snap a picture if you want.
Reply With Quote
  #3
Old 12-16-2010
HillPrideRanger's Avatar
Member

Join Date: Mar 2009
Location: Aurora, Colorado
Posts: 442
500 are more like pencil beams and 500ffs are more like fogs if i remember correctly. the only difference i see is 500ff has a clear lens and the 500s have reflector looking things that bend the light (the reason i think these are the pencil beams)..
i have 3 hella 500 ffs and 2 500s on my roof rack and i love them, money well spent.
as far as tabs and mounting where do you think he will want to mount them?
Reply With Quote
  #4
Old 12-16-2010
Clinton's Avatar
Member
iTrader: (19)

Join Date: Dec 2010
Location: PA.
Posts: 1,417
I just did Hellas, they are bright enough for me. When I was buying them, i compared them to the FF's and all the specs were the same so I just got the regular Hellas.
Reply With Quote
  #5
Old 12-16-2010
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
55w wasn't enough for me. 130 FTW.
Reply With Quote
  #6
Old 12-16-2010
Bird76Mojo's Avatar
Member
iTrader: (2)

Join Date: Dec 2009
Location: Central, IL.
Posts: 1,264
Quote:
Originally Posted by HillPrideRanger View Post
500 are more like pencil beams and 500ffs are more like fogs if i remember correctly. the only difference i see is 500ff has a clear lens and the 500s have reflector looking things that bend the light (the reason i think these are the pencil beams)..
i have 3 hella 500 ffs and 2 500s on my roof rack and i love them, money well spent.
as far as tabs and mounting where do you think he will want to mount them?

You've got that backwards. The standard lenses that are more clear, throw the light straight ahead in more of a spot type of beam. The lenses with the ridges in them scatter the light into more of a fog type of beam. I've got the 700FF models and they're a straight (spot/driving) beam. I had the rippled 500 series and the beam was much wider and didn't project near the same distance because the light was spread out.

Hella Headlight and Auxiliary Lamp Beam Patterns


GB :)
Reply With Quote
  #7
Old 12-16-2010
dadof2's Avatar
Member
Thread Starter

Join Date: Sep 2010
Location: Olathe, KS
Posts: 43
He wants to mount them above the bumber. I know underdog sells the bar and everything, but I can't get it before Christams. It really doesn't look all that difficult to do. My biggest issue is time. Maybe the tabs-light bar won't happen for Christmas.

What about this - four lights across the front like 500-500FF-500FF-500?

Sam
Reply With Quote
  #8
Old 12-16-2010
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390

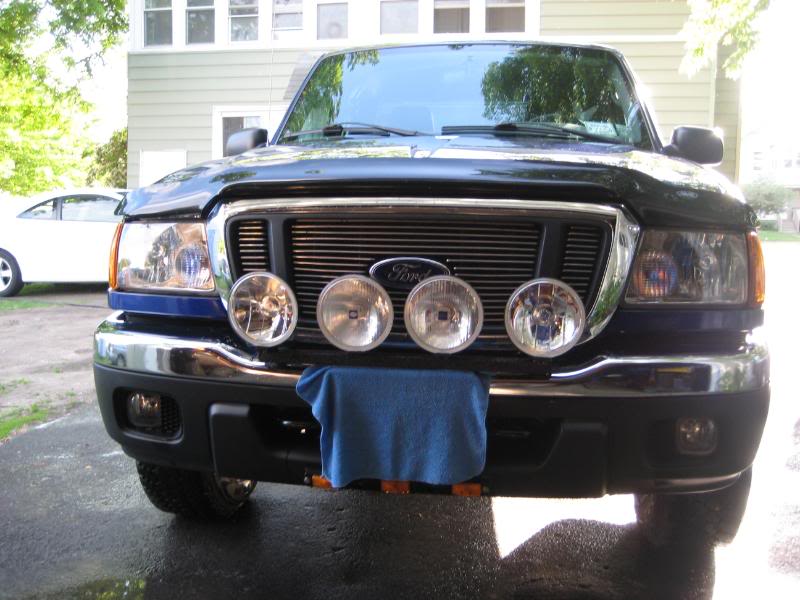

Heres my set up,

500FF,500,500,500FF

Name:  IMG_0745.jpg
Views: 6
Size:  74.0 KB

Full 180 coverage up front lol
Reply With Quote
  #9
Old 12-16-2010
dadof2's Avatar
Member
Thread Starter

Join Date: Sep 2010
Location: Olathe, KS
Posts: 43
That's the setup he's after. I showed him a picture of your truck and he really liked it.

Are the 500FFs angled out and the 500s tipped down?
Reply With Quote
  #10
Old 12-16-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
I've got the 500 Black Magics and they seem to work great so far. I'd like a higher wattage bulb, though.
Reply With Quote
  #11
Old 12-16-2010
dadof2's Avatar
Member
Thread Starter

Join Date: Sep 2010
Location: Olathe, KS
Posts: 43
Headslap!

I just found the How to make light tabs! The only thing I can't see is just what exactly the tabs are bolted to? Are they bolted to the bumber bracket?
Reply With Quote
  #12
Old 12-16-2010
Bird76Mojo's Avatar
Member
iTrader: (2)

Join Date: Dec 2009
Location: Central, IL.
Posts: 1,264
If you look closely at the pic posted in this thread, you'll see the ends of his bar meet up with the ends of the dip in the bumper. Look straight down behind that and it becomes apparent which bolts you'll use.

In my old setup I had four mounted the exact same way.




GB :)
Reply With Quote
  #13
Old 12-16-2010
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Quote:
Originally Posted by dadof2 View Post
I just found the How to make light tabs! The only thing I can't see is just what exactly the tabs are bolted to? Are they bolted to the bumber bracket?
yeah up until 05 the rangers had a 2 bolts on the bumper (right where the bumpers dips to a valley in the front) that didnt really do anything except make it easy do but on driving lamps
Reply With Quote
  #14
Old 12-16-2010
dadof2's Avatar
Member
Thread Starter

Join Date: Sep 2010
Location: Olathe, KS
Posts: 43
Well it looks simple enough. Hopefully I can get it done this weekend.

Thanks for all of the help.
Reply With Quote
  #15
Old 12-16-2010
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Quote:
Originally Posted by dadof2 View Post
Are the 500FFs angled out and the 500s tipped down?

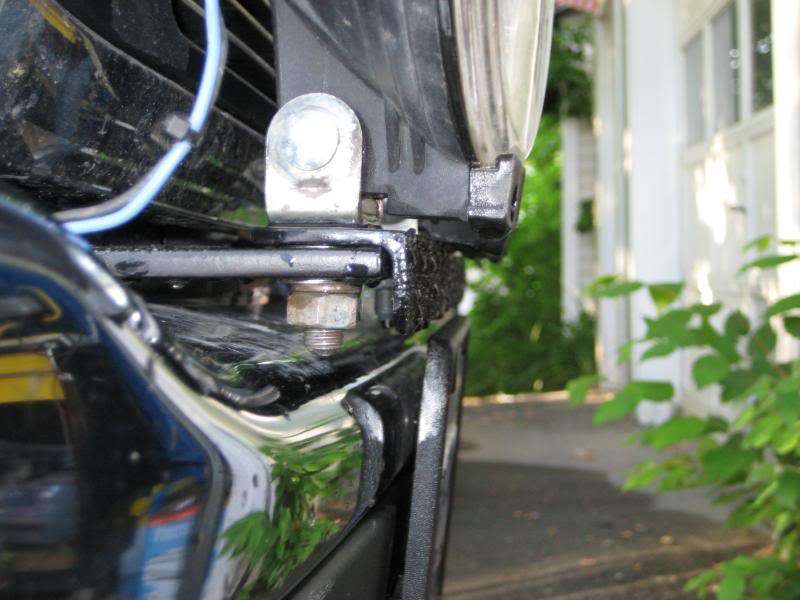

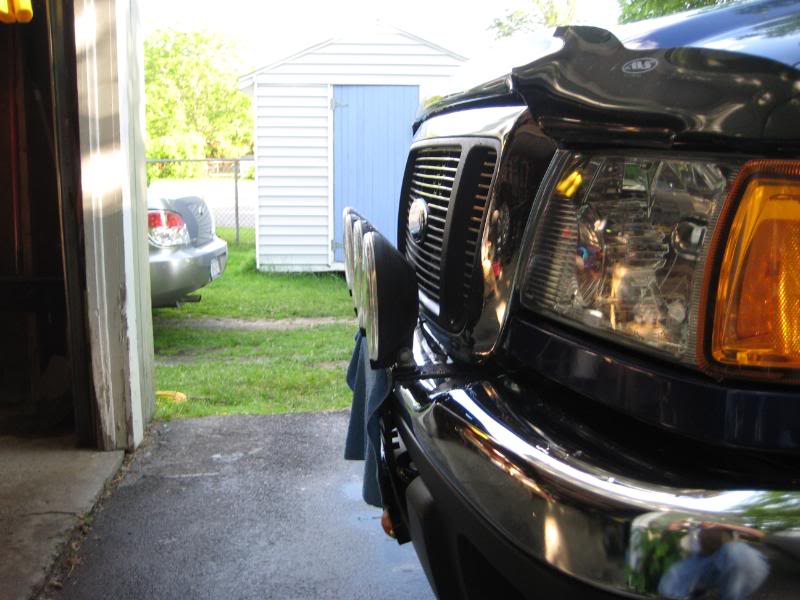

No they are both angled straight but the 500's have a slight pitch to both sides.

Name:  IMG_0746.jpg
Views: 6
Size:  70.1 KB

Name:  IMG_0744.jpg
Views: 5
Size:  60.7 KB

Hope that helps
Reply With Quote
  #16
Old 12-17-2010
dadof2's Avatar
Member
Thread Starter

Join Date: Sep 2010
Location: Olathe, KS
Posts: 43
Thanks for the info. We'll be lit up for Christmas!
Reply With Quote
