help with extended vent tubes

I'm going to install these on both diffs, trans, and transfer case. Before I start could anyone help with a parts list, such as how much tubing I should buy? Also, where did you run them and did you use a filter? Thanks
Reply With Quote
  #2
Old 03-09-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030

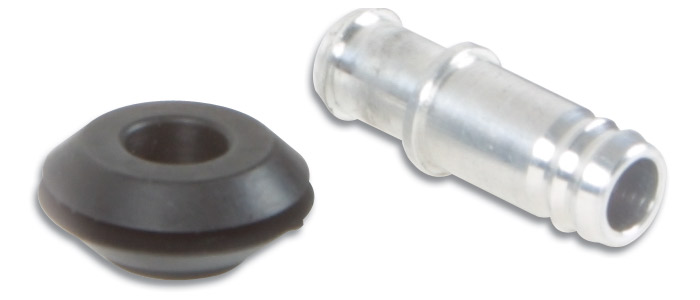

my front diff i just used a hose adapter and ran it up next to the BJB and used the stock valve. the rear i have it in the bed side same thing as front.

minus the grommet
Attached Thumbnails
help with extended vent tubes-20i7up3.jpg
Reply With Quote
  #3
Old 03-09-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
You shouldn’t need a filter type breather just a venting breather.
Summit has a few different ones.

As far as a parts list, don’t have one but if you think on it.
Where will you mount the Breathers… measure from there in a straight line towards the axle/TC/component or what ever you are venting.
Add on 3’ for height and some as a safety measure; don’t ant to run out.
Do that for any and all of the breathers you want to install.

Order the number of breathers you want to install and either mounts or fittings needed for them.
Now all you need to do is figure what are the connectors on the component you are venting, that may require you crawling under the truck and looking.

There you have it and if you do this, make a list of what you used and how you did it and write up a How-To for the Site and for the next guy.

Not being an @ss just thinking out loud.
Reply With Quote
  #4
Old 03-09-2012
Ranger Smith's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Phoenix
Posts: 366
Quote:
Originally Posted by 04RangerDave View Post
my front diff i just used a hose adapter and ran it up next to the BJB and used the stock valve. the rear i have it in the bed side same thing as front.
Cool, thanks. Did you extend the stock hose or replace it?
Reply With Quote
  #5
Old 03-09-2012
Ranger Smith's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Phoenix
Posts: 366
Quote:
Originally Posted by Scrambler82 View Post
You shouldn’t need a filter type breather just a venting breather.
Summit has a few different ones.

As far as a parts list, don’t have one but if you think on it.
Where will you mount the Breathers… measure from there in a straight line towards the axle/TC/component or what ever you are venting.
Add on 3’ for height and some as a safety measure; don’t ant to run out.
Do that for any and all of the breathers you want to install.

Order the number of breathers you want to install and either mounts or fittings needed for them.
Now all you need to do is figure what are the connectors on the component you are venting, that may require you crawling under the truck and looking.

There you have it and if you do this, make a list of what you used and how you did it and write up a How-To for the Site and for the next guy.

Not being an @ss just thinking out loud.
Well thanks for all that, but part of the question was where you ran them to. The length depends on the location.

Also, I've been told not to use a breather. It will let air out but not in, so it goes in through the axle seals (a bad thing when in the water). Thats the theory at least.
Reply With Quote
  #6
Old 03-22-2012
Ranger Smith's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Phoenix
Posts: 366
bump! anyone have any tips before I start? Like what size is the factory tubing?

Scrambler 82, I found a new avatar for you

Attached Thumbnails
help with extended vent tubes-5ea814f3-117d-8b62-1019122.jpg
Reply With Quote
  #7
Old 03-22-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Ranger Smith View Post
bump! anyone have any tips before I start? Like what size is the factory tubing?

Scrambler 82, I found a new avatar for you

Interesting, maybe now some of you guys will start to think about what you are doing and stop asking questions… NOT ! LoL

What I meant is think about where YOU want the VENTS, where you have room for them, then you have the lengths, logically just get them up as high as practical in your application...
Reply With Quote
