Icon4 Horn & wipers went crazy!

So I was driving today. It was raining fairly hard and was really humid out (prolly close to 100%) anyways all of a sudden my horn started going off without me touching the button and my wipers started spraying fluid all by themselves and wouldn't quit. I pulled over and turned the truck off which made the wipers quit but the horn would not shut off so I just cut the power wire to it. Turned the truck back on and everything seemed back to normal... Any idea what happened? Was kinda scary considering it was already raining and the wiper fluid made it nearly impossible to see when I was going 45+...
Reply With Quote
  #2
Old 09-07-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Check fuses, then look for shorts. horn and wipers are keyed together in several places.
Reply With Quote
  #3
Old 09-07-2012
Mcleary316's Avatar
Member

Thread Starter

Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
All fuses are ok. Any places in particular that you would suggest to check for a short?
Reply With Quote
  #4
Old 09-07-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
nothing comes to mind, let me go get a diagram and check that out.
Reply With Quote
  #5
Old 09-07-2012
Mcleary316's Avatar
Member

Thread Starter

Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Sarcasm?
Reply With Quote
  #6
Old 09-07-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
No, he probably has a wiring diagram. He works (or worked?) at a dealer
Reply With Quote
  #7
Old 09-07-2012
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by Mcleary316 View Post
Any idea what happened?
Check for evidence of water leakage into the Smart Junction Box under the passenger side kick panel. This seems to be a fairly common problem with the SJB trucks, 2004 and 2005 in particular.
Reply With Quote
  #8
Old 09-07-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by 01RangerEdge View Post
No, he probably has a wiring diagram. He works (or worked?) at a dealer
Moved to a new place now. Tenneco Industries.


Diagram says they meet at SJB, like Bob says. there's a TSB for water leakage i believe.
Reply With Quote
  #9
Old 09-07-2012
Mcleary316's Avatar
Member

Thread Starter

Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
You were right Bob and Alex. It's damp in there.
Reply With Quote
  #10
Old 09-07-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Use a hair dryer. Check wires for any corrosion. I can't think of a simple fix besides taking the windshield out and fixing it from the outside.
Reply With Quote
  #11
Old 09-07-2012
Mcleary316's Avatar
Member

Thread Starter

Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
This was the first time it's happened and it's rained Way harder before. Might just have been a random thing. If it does it again I'll try and find the leak. Didn't see any corrosion though.
Reply With Quote
  #12
Old 09-14-2012
OleRed04's Avatar
Member

Join Date: Aug 2012
Location: TX
Posts: 12

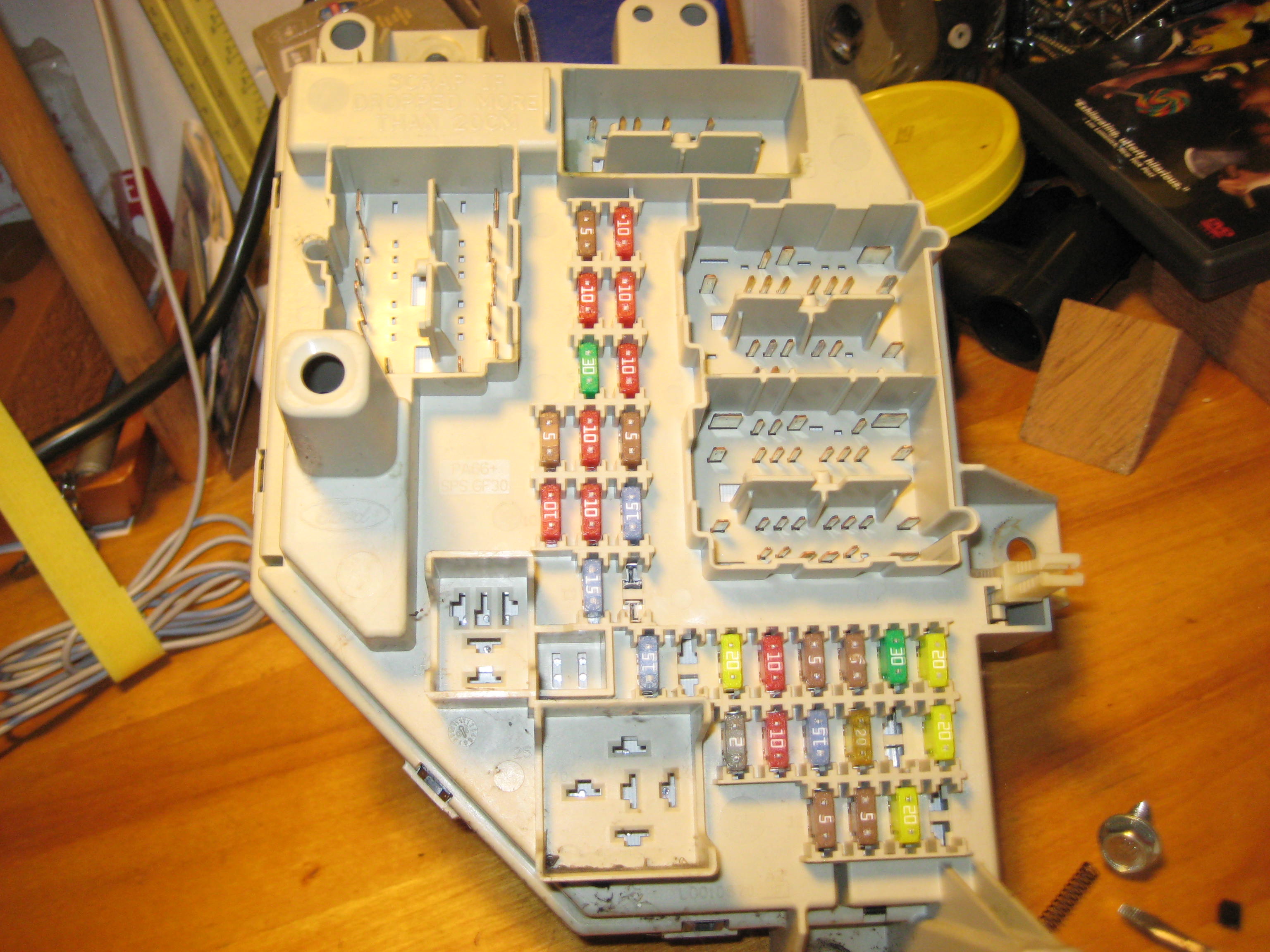

I had the same problem on my 05. I finally tracked it to the SJB and took the thing out of the pickup and took it apart.
There were 'salts' from water condensation all over the circuit board so I took a toothbrush to it after it had dried and cleaned it really well, then reinstalled everything under a plastic wrap for store bought water. If the salts get wet they will conduct electricity. That plastic is pretty tough and is very flexible.
I didn`t want to make it water tight because any condensation would not escape if it found its way into the SJB container say just after the A/C had been running. Anyway, I had no more problems. There is no way to take apart the circuit boards so you have to get a skinny bottle brush and gently go after the insides of the boards with that. Take the plastic and lay it on the back with enough left over to drape down the front. Looks like the SJB is pretty tough but I'm sure there is a limit on water.
Attached Thumbnails
Horn & wipers went crazy!-inertia-switch-woes-2012_13.jpg   Horn & wipers went crazy!-picture-049.jpg
