idiot lights sblinking on and off

My 1991 Ranger does not have ABS, yet my "rear antilock" idiot light keeps turning on and then off, it does this several times when im driving around, sometimes staying on for mintues. Also, my "e-brake" light does the exact same thing, sometimes at the same times as the "rear antilock" light. I disconnected the one wire harness that plugs into the pivot point of the e-brake arm in hopes to just turn off the "e-brake" light but it still does this.

Any ideas? Thx
Reply With Quote
  #2
Old 10-23-2009
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
mine used to do that in my 90 ranger. i just put a piece of black tape over it.
Reply With Quote
  #3
Old 10-23-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by vista4.0 View Post
mine used to do that in my 90 ranger. i just put a piece of black tape over it.
ditto, my 93 had an ABS light on all the time. it didnt have abs and i could never figure out why it was on. black electrical tape fixed it for me. lol
Reply With Quote
  #4
Old 10-23-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by CUBoulderRanger View Post
My 1991 Ranger does not have ABS.....
All 1989 And newer Rangers have ABS.
  • 1989~1994: RABS (1-channel, 2-wheel, rear-only ABS) was standard factory equipment on all U.S. production Rangers.
  • 1995~2000: 4WABS (3-channel, 4-wheel ABS) became available depending on option content. RABS continued to be standard.
  • 2001~present: 4WABS + EBFD (Electronic Brake Force Distribution) has been standard factory equipment. RABS discontinued.
Reply With Quote
  #5
Old 10-23-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by rwenzing View Post
All 1989 And newer Rangers have ABS.
  • 1989~1994: RABS (1-channel, 2-wheel, rear-only ABS) was standard factory equipment on all U.S. production Rangers.
  • 1995~2000: 4WABS (3-channel, 4-wheel ABS) became available depending on option content. RABS continued to be standard.
  • 2001~present: 4WABS + EBFD (Electronic Brake Force Distribution) has been standard factory equipment. RABS discontinued.
how does the RWABS work on the 93? it was a solid line from the master cylinder all the way back to the rear axle. only reason i know that is because i had to replace the entire brake line. as far as i could tell it was the stock brake line too
Reply With Quote
  #6
Old 10-23-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by 01_ranger_4x4 View Post
how does the RWABS work on the 93? it was a solid line from the master cylinder all the way back to the rear axle. only reason i know that is because i had to replace the entire brake line. as far as i could tell it was the stock brake line too
There is a RABS proportioning/dump valve on the frame rail near the master cylinder.
Reply With Quote
  #7
Old 10-23-2009
CUBoulderRanger's Avatar
Member
Thread Starter

Join Date: Oct 2009
Location: Boulder, CO
Posts: 28
Quote:
Originally Posted by rwenzing View Post
There is a RABS proportioning/dump valve on the frame rail near the master cylinder.
i was wondering about that cause i couldnt find any evidence of ABS near the master cylinder.

i still have a hard time believing a truck this old and this basic would have ABS, as my 96 XJ didnt have any ABS at all. where did you find that data?

and yeah, i was thinking tape would be my fix
Reply With Quote
  #8
Old 10-23-2009
CUBoulderRanger's Avatar
Member
Thread Starter

Join Date: Oct 2009
Location: Boulder, CO
Posts: 28
im thinking its just a faulty sensor and ill just disconnect the battery for ten minutes or so to reset the onboard computer
Reply With Quote
  #9
Old 10-23-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Quote:
Originally Posted by CUBoulderRanger View Post
i was wondering about that cause i couldnt find any evidence of ABS near the master cylinder.

i still have a hard time believing a truck this old and this basic would have ABS, as my 96 XJ didnt have any ABS at all. where did you find that data?

and yeah, i was thinking tape would be my fix
Weird. My 92 has ABS...

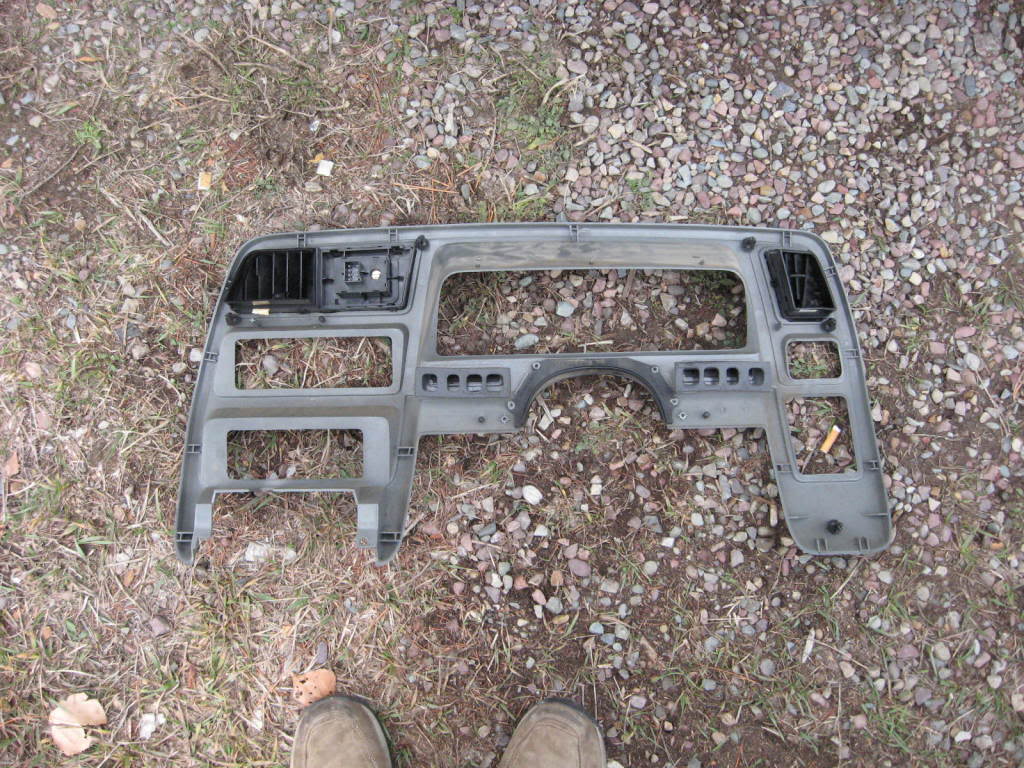

If you don't actually want to see the black tape, take that cover piece off the dash and put the tape on the back side.

Name:  Picture739.jpg
Views: 1
Size:  199.5 KB
Reply With Quote
  #10
Old 10-23-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Reply With Quote
  #11
Old 10-24-2009
evilclown312's Avatar
Member
iTrader: (3)

Join Date: Dec 2008
Location: Logan ohio
Posts: 2,772
Yeh mine's like that on my 92. They have ABS just the rear. Have you checked you rear brakes maybe they need changed? Maybe you should look into the problem before it gets bigger.
Reply With Quote
