Installing E-Fan Tonight

Going out to install the E-Fan tonight.

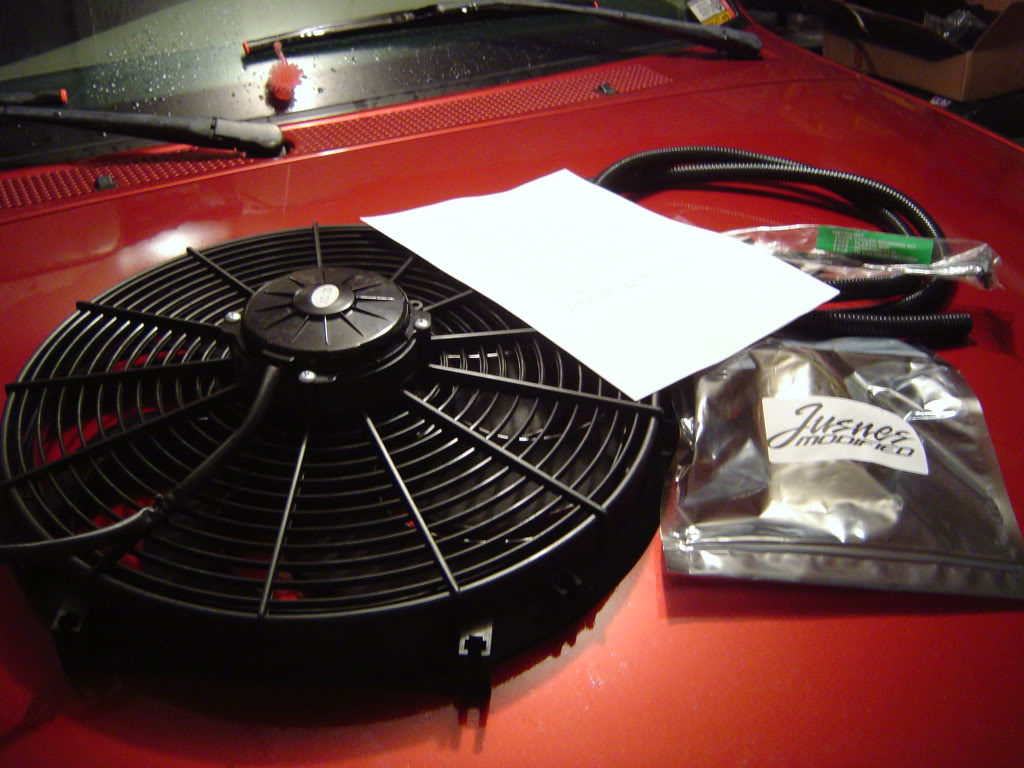

Name:  please526.jpg
Views: 2
Size:  108.7 KB

Last edited by Marcaronio; 12-17-2008 at 11:18 AM.
Reply With Quote
  #2
Old 12-20-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
sweet, good luck!

little cold there isnt it?
Reply With Quote
  #3
Old 12-20-2006
Marcaronio's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Spring Hill, FL
Posts: 560
Quote:
Originally Posted by zabeard
sweet, good luck!

little cold there isnt it?
It's 35 and raining, but it's T-Shirt weather in the garage.
Reply With Quote
  #4
Old 12-20-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
nice, not everyone gets a heated garage!
Reply With Quote
  #5
Old 12-20-2006
Marcaronio's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Spring Hill, FL
Posts: 560
Uhhh, is there a writeup for this install. The directions given are not exactly detailed.
Reply With Quote
  #6
Old 12-20-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
there should be buzzair wrote them
Reply With Quote
  #7
Old 12-20-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
Reply With Quote
  #8
Old 12-20-2006
Member

Join Date: Jun 2005
Location: Fuquay-Varina, NC
Posts: 506
Quote:
Originally Posted by Marcaronio
Uhhh, is there a writeup for this install. The directions given are not exactly detailed.
What questions do you have about the install, Marc?
Reply With Quote
  #9
Old 12-20-2006
buzzair's Avatar
Member

Join Date: Dec 2005
Location: White Plains, NY
Posts: 2,341
If I had to do it again...I would wire it to a switch or the purple wire behind the HVAC. Yes, I have seen the light!

Some info here about wiring to a on-off-on switch.

https://www.ranger-forums.com/forum2...7&page=2&pp=25

John Griggs, one of the guru's on this site drew up this diagram.

Reply With Quote
  #10
Old 12-20-2006
buzzair's Avatar
Member

Join Date: Dec 2005
Location: White Plains, NY
Posts: 2,341
Quote:
Originally Posted by zabeard
nice, not everyone gets a heated garage!
yea but you do! lol
Reply With Quote
  #11
Old 12-20-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by buzzair
yea but you do! lol

lol maybe...
Reply With Quote
  #12
Old 12-20-2006
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
yes he does and it is nice
Reply With Quote
  #13
Old 12-20-2006
buzzair's Avatar
Member

Join Date: Dec 2005
Location: White Plains, NY
Posts: 2,341
Quote:
Originally Posted by zabeard
lol maybe...
What's that in your avatar pic!?!?!
Reply With Quote
  #14
Old 12-20-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
lol that isnt the heated one, that is just storage...
Reply With Quote
  #15
Old 12-20-2006
buzzair's Avatar
Member

Join Date: Dec 2005
Location: White Plains, NY
Posts: 2,341
Quote:
Originally Posted by zabeard
lol that isnt the heated one, that is just storage...
aha, so you admit you have a heated one.
Reply With Quote
  #16
Old 12-21-2006
Marcaronio's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Spring Hill, FL
Posts: 560
I have a switch I would like to wire it to. However, it is only a 2 position switch. Should I wire it to the a/c clutch or the purple wire? Where is the purple wire?
Reply With Quote
  #17
Old 12-21-2006
Marcaronio's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Spring Hill, FL
Posts: 560
Well, I'm finally finished. It took me a while as I am a stupid perfectionist and I work slow. It's not completely finished as I would like to mount the fan in the stock fan shroud eventually, however, it is working. I ended up connecting the 12v switch to the radio and the green wire to the purple wire both behind the radio. The difference in noise level is drastic to say the least. The only noise I can hear is my exhaust now. I'll post more pictures after I mount the fan in the shroud.

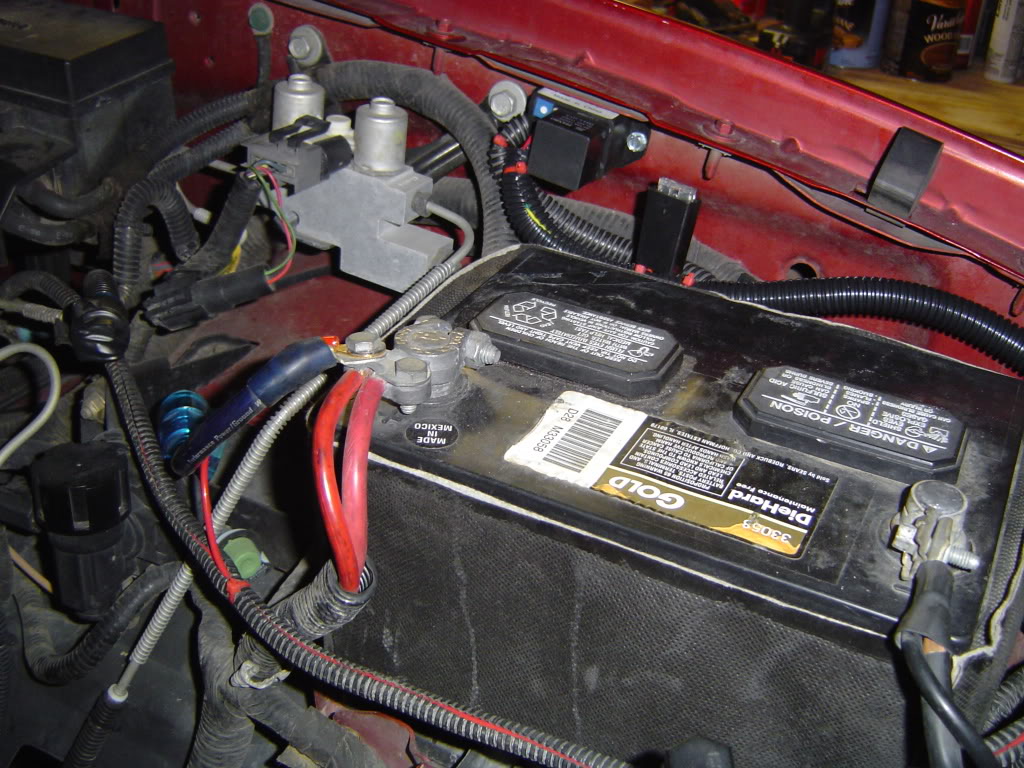

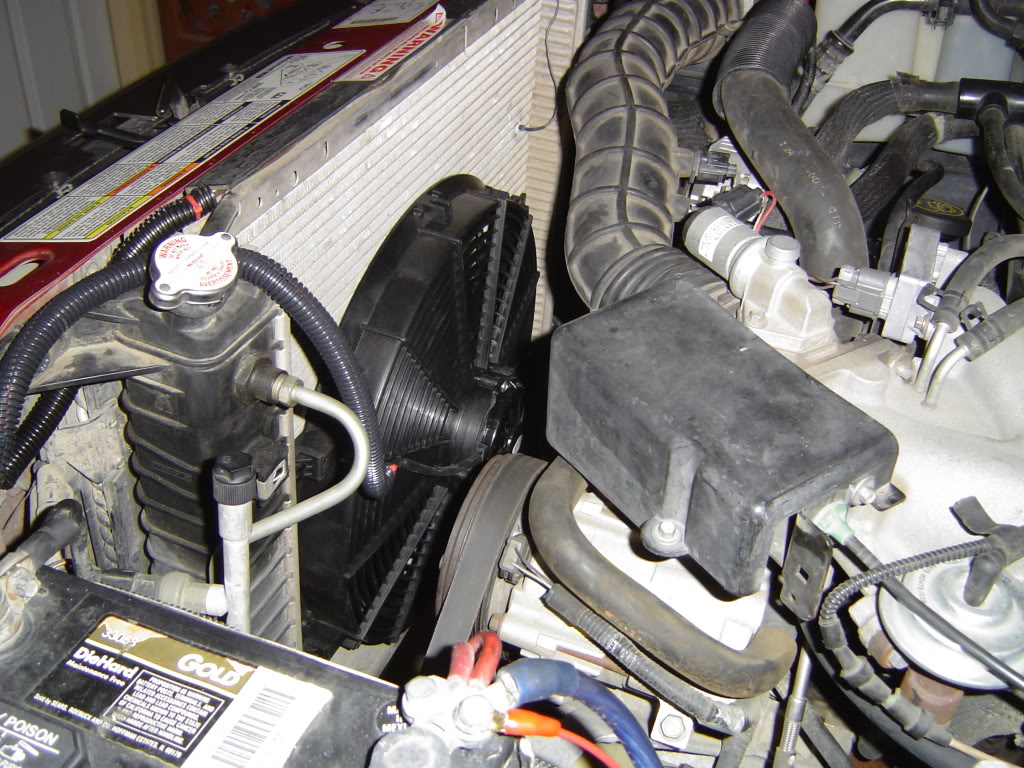

Name:  DSC03897.jpg
Views: 2
Size:  186.7 KB
Name:  DSC03899.jpg
Views: 2
Size:  172.6 KB

Last edited by Marcaronio; 12-17-2008 at 11:28 AM.
Reply With Quote
  #18
Old 12-21-2006
buzzair's Avatar
Member

Join Date: Dec 2005
Location: White Plains, NY
Posts: 2,341
Good job!
Reply With Quote
  #19
Old 12-21-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
very nice install my friend... youll get a good bit of power back.. i miss mine...
Reply With Quote
  #20
Old 12-21-2006
Marcaronio's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Spring Hill, FL
Posts: 560
Thank you! I can't get over how much quieter my truck is now. I haven't adjusted the temperature potentiometer yet, however, my truck stayed a little below halfway across the temperature gauge on my way to work today. I don't think the fan even came on, although I can't be sure until I wire up a led. Speaking of which, does anyone know which wire to put the led on so that I know when the fan is in operation. I just had my differential rebuilt so I don't want to get on it to find out if it has more power. It does, however, run really smooth. The only thing I'm worried about is the plastic clips that are holding the fan to the radiator. I will be mounting it to the stock fan shroud soon enough. One more thing. I couldn't get the temperature probe to stick in the fins of the radiator so after it was insterted I applied some silicone caulking around the base of the probe to make it stick. I only put a very small amount on. Do you think that will hurt anything?
Reply With Quote
  #21
Old 12-21-2006
RHuckster's Avatar
Member

Join Date: Apr 2006
Location: Lake Elsinore, Ca.
Posts: 643
Good job, I would think you would run the LED off of the power wire going from the controller to the + wire going to the EFan.

Rick
Reply With Quote
  #22
Old 12-21-2006
Marcaronio's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Spring Hill, FL
Posts: 560
I'm just wondering if it would be a good idea to put an LED in line with the powersupply to the fan or if there is something on the controller I can tap into.
Reply With Quote
  #23
Old 12-21-2006
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
run an LED into the orange wire......that is the wire that puts power to the fan motor....that is the only way to tell if there is power to the fan motor......i have my LED attached to the orange wire......
Reply With Quote
  #24
Old 12-21-2006
whiteo5xlt's Avatar
Member

Join Date: Nov 2006
Location: wilmington ma
Posts: 279
i just recieved my fan last night im putting mine in this weekend. Now does anyone ever had a problem with the ties they give you that go throught the radiator? I asked my buddy he had one on his vette and Those black tied wrap things they give you wore through the radiator from rubbing? Im just curious before i install it and have a problem thanks
Reply With Quote
