KC lights

Can you guys post some pics of were you put your relay switch for your KC lights. I want to move mine but dont know were to.

Also what order to the wires go in the back of the switch. I have green, white, and brown wires. I took them off to move the switch and cant seem to get them back on right.

Thanks
Reply With Quote
  #2
Old 08-03-2007
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
I used a different switch for mine.
Reply With Quote
  #3
Old 08-03-2007
Lord Of War's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Here is were I have mine. I want to cahnge it.


Reply With Quote
  #4
Old 08-03-2007
bricesedge03's Avatar
Member

Join Date: Apr 2007
Location: columbia sc
Posts: 388

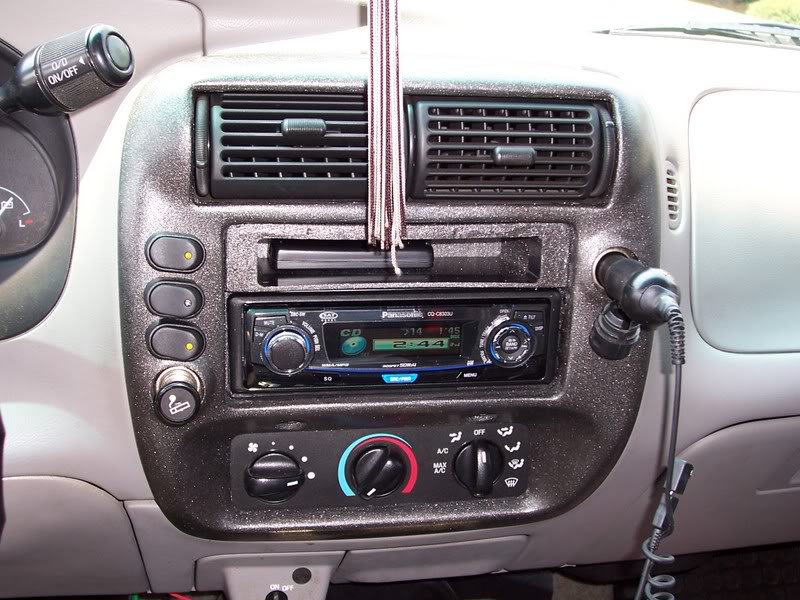

top is for the kc's bottom is for backup lights, middle is an extra....
Name:  100_0500.jpg
Views: 48
Size:  105.4 KB
Reply With Quote
  #5
Old 08-03-2007
nbro3232's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: Nokomis, FL / Tallahassee
Posts: 784

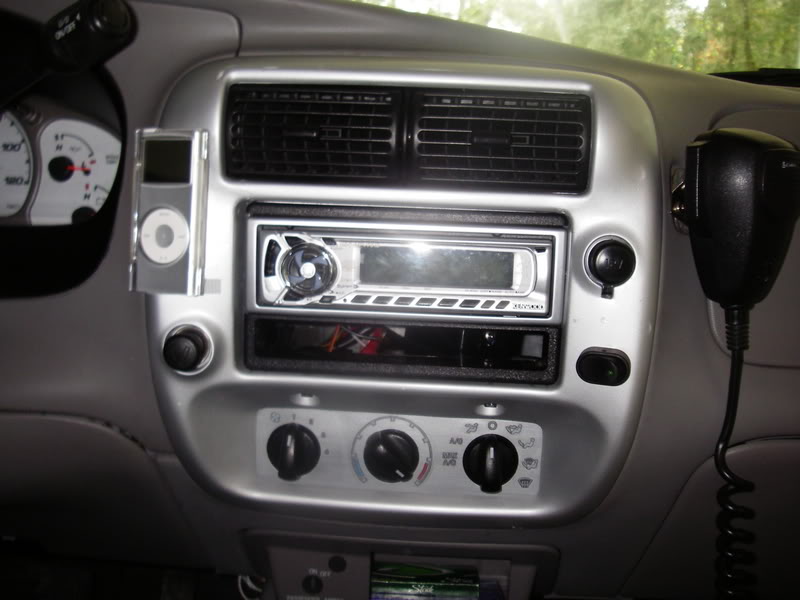

Name:  IMGP0992.jpg
Views: 8
Size:  58.7 KB
right lower side of radio bezel (where the stock switch would be)
Reply With Quote
  #6
Old 08-03-2007
Lord Of War's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Damn.. guys I like your set up.

How do I get the radio bezel off. I am gonna do that.

Bump: Also what order to the wires go in the back of the switch. I have green, white, and brown wires. I took them off to move the switch and cant seem to get them back on right.

EDIT: do you have to unscrew the two bolts above the HVAC to get the bezel off?
Reply With Quote
  #7
Old 08-03-2007
bricesedge03's Avatar
Member

Join Date: Apr 2007
Location: columbia sc
Posts: 388
the middle is the lead mire, the post right be hind the led is negative, and the otherside is positive.

Remove bezel. two bolts but the hvac controls and pulls right off.
Reply With Quote
  #8
Old 08-03-2007
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
Quote:
Originally Posted by Lord Of War
Here is were I have mine. I want to cahnge it.


I run my switch on the center console on the floor you can see it in the right hand corner of your pics, then I run the front two on the factory fog light switch but I would choose those other guys set ups, haha they are nicer.
Reply With Quote
  #9
Old 08-03-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
i don't have KC's so i don't count here, haha jk.

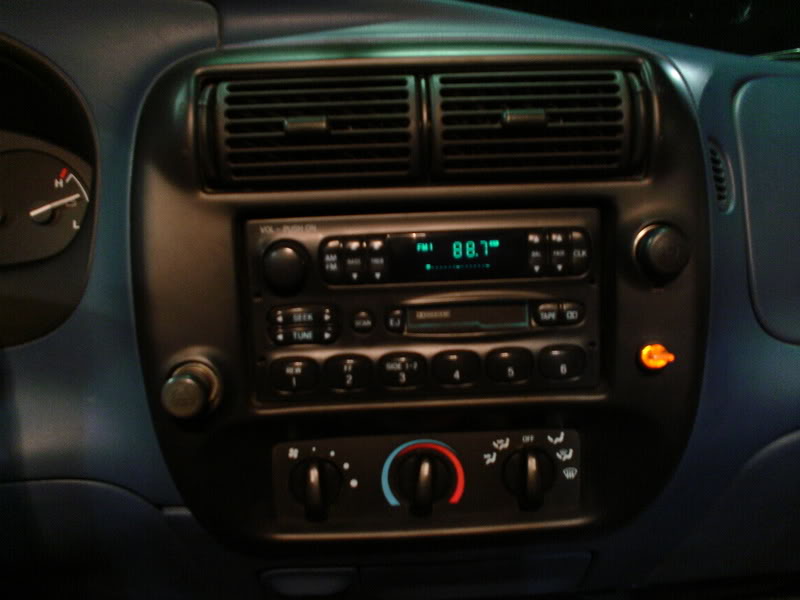

heres the switch for my piaa's, very old picture, may of 05 haha, stupid stock radio RIP.

Name:  DSC02428.jpg
Views: 7
Size:  46.7 KB
Reply With Quote
  #10
Old 08-03-2007
04 EDGE
Unregistered User

Posts: n/a
heres my switch, i actuly have 2 of these mounted right next to each other as of now, and a simmilar one next to them

Reply With Quote
  #11
Old 08-03-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
^ lazyass, you have one just like the other two somewhere lol.
Reply With Quote
  #12
Old 08-04-2007
M50B06's Avatar
Member

Join Date: May 2007
Location: Ravenna ohio
Posts: 315
sorry no pics, but i have a switch from auto zone that has sticky tape and stuck it to the dash directly next the the steering wheel on the left side
Reply With Quote
  #13
Old 08-05-2007
Member

Join Date: Jan 2006
Location: Richmond, Va
Posts: 295
How about just using a stock switch.

Reply With Quote
  #14
Old 08-05-2007
Lord Of War's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
I dont have one of those bezels. Is it just plug and go, or is there any work that has to be done to get the lights to work?
Reply With Quote
  #15
Old 08-05-2007
bricesedge03's Avatar
Member

Join Date: Apr 2007
Location: columbia sc
Posts: 388
to use that switch you'd need to fine what color wires on the switch do what
Reply With Quote
  #16
Old 08-06-2007
Member

Join Date: Jan 2006
Location: Richmond, Va
Posts: 295
The "mount" for the extra switch is already on the back of the bezel. It's just a matter of CAREFULLY cutting out the hole to slide the switch into. As for the wiring, somewhere around here I have the diagram Bob gave me. It's not bad once you know what wire is what.
Reply With Quote
