Light Switch Panel- which one

So I am wiring up 4 sets of foglights to a toggle or rocker switch panel. I can't decide which one to get. I am putting it in the little ash tray cubby next to the airbag switch. I measured 4 inches wide by 2 inches tall by 3 inches deep. The depth will be extended though when I cut out the back though.

Here is some pics of the assembly:
https://www.ranger-forums.com/f40/ai...y-cubby-23183/
https://www.ranger-forums.com/member...5-mazda-b4000/

I am looking at Summit Racing mostly but other sites are cool to.
Reply With Quote
  #2
Old 07-29-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Why not use a piece of acrylic and do it yourself?
Reply With Quote
  #3
Old 07-29-2010
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
I could. I like plug and play though. Fabbing is not one of my strong suits.
Reply With Quote
  #4
Old 07-29-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Gotcha. Check out this guy for switch plates then

12voltguy.com - Home
Reply With Quote
  #5
Old 07-29-2010
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
I got an extra one of these:

Name:  010-5.jpg
Views: 230
Size:  131.0 KB
Reply With Quote
  #6
Old 08-02-2010
blueranger789's Avatar
Member

Join Date: Mar 2009
Location: Boiling Springs, SC
Posts: 619

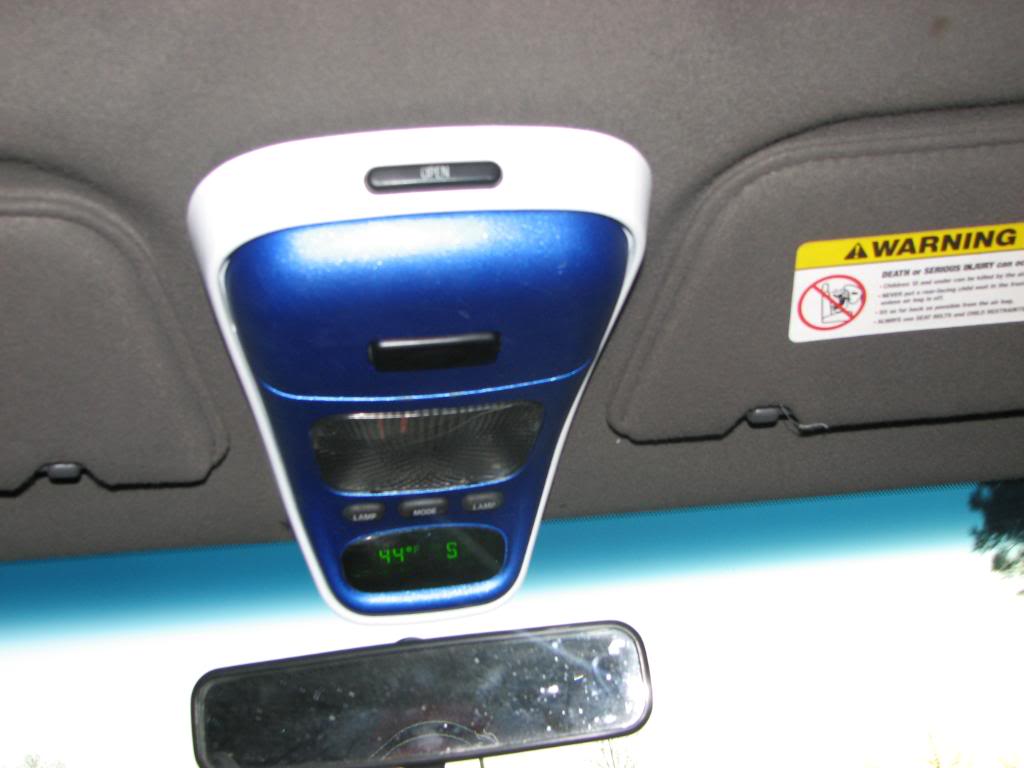

started with this
Name:  IMG_3091.jpg
Views: 42
Size:  62.0 KB
ended with this, peice of plexiglass, 5 led swithes, blue led strip and the cubby from the ohc
Name:  IMG_3155.jpg
Views: 43
Size:  33.8 KB
Name:  IMG_3153.jpg
Views: 42
Size:  64.1 KB
Reply With Quote
  #7
Old 08-27-2010
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
hey does anyone know where to get acrylic or Plexiglass in small pieces?
Reply With Quote
  #8
Old 08-27-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
i dig you want lights, but putting the switches that far outta the way, i personally do one switch with a fused junction box or somthing similar.
Reply With Quote
  #9
Old 08-28-2010
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Quote:
Originally Posted by Masteratarms93 View Post
hey does anyone know where to get acrylic or Plexiglass in small pieces?
How about some textured black ABS??
I've got a couple sheets of it in the garage.

Do you have an aftermarket radio?
If you have something like mine:

You could always put the switches in a panel covering the cubby hole around the radio.

I have a few blank panels (like mine but no holes) made up ready to go. All you need to do is drill holes for your switches & apply some double sided foam tape to attach it to the dash kit.

I can cut the textured ABS to pretty much any size up to 12" x 24".
It's about 1/8" thick, good quality stuff.
Reply With Quote
  #10
Old 08-28-2010
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Quote:
Originally Posted by fourliter dan View Post
i dig you want lights, but putting the switches that far outta the way, i personally do one switch with a fused junction box or somthing similar.
What do you mean "that far out of the way"? The switches are right there lol. I have them hooked up and everything. I bought rectangular, colored indicator light switches in blue, yellow, red. Everything is up and running I just don't have anything to mount the lights to. I plan on adding one more setup for reverse light under the rear bumper.

How do you setup three or four sets of lights with one switch on a fused junction box? I will admit I should setup a circuit break or a junction box for my three separate fuses that I have running to my DC 12v for my three switches. All the wiring has made for a bit of a mess behind my HVAC controls. But I still don't see how you can control 3 sets with one switch.
Reply With Quote
