Look what I got today - Ranger-Forums - The Ultimate Ford Ranger Resource


General Technical & Electrical General technical and electrical discussion for the Ford Ranger that does not fit in any other sub-forum.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 02-02-2009
Yellow_edge_4x4's Avatar
Member
Thread Starter

Join Date: Oct 2008
Location: Bryan, OH
Posts: 723
Icon10 Look what I got today

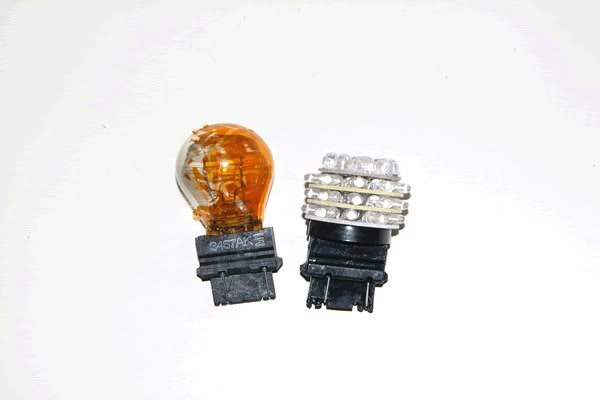

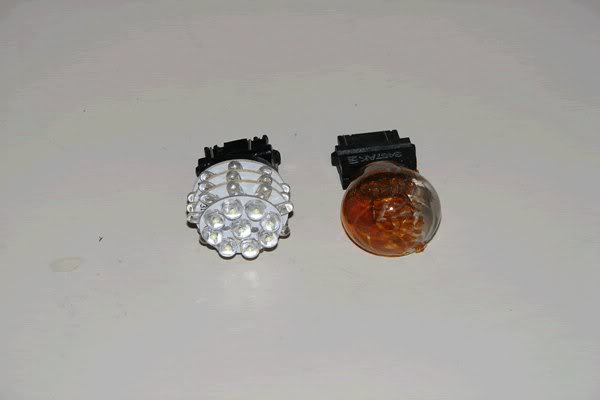

this will replace the trun signal in bulb the head light

Name:  Untitled-2-1.jpg
Views: 8
Size:  15.0 KB

Name:  Untitled-3-1.jpg
Views: 5
Size:  13.1 KB
Reply With Quote
  #2
Old 02-02-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
need some installed pics for sure
Reply With Quote
  #3
Old 02-02-2009
Yellow_edge_4x4's Avatar
Member
Thread Starter

Join Date: Oct 2008
Location: Bryan, OH
Posts: 723
yeah i will once i get a battery. been sitting for about a month now.
Reply With Quote
  #4
Old 02-02-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Those are cool.

I'm assuming they glow orange? Where'd you get them?
Reply With Quote
  #5
Old 02-02-2009
Yellow_edge_4x4's Avatar
Member
Thread Starter

Join Date: Oct 2008
Location: Bryan, OH
Posts: 723
they will glow white ebay $23 for both shipped

http://stores.ebay.com/I-LEDS
Reply With Quote
  #6
Old 02-02-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Cool, I might get some amber ones.
Reply With Quote
  #7
Old 02-02-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Read up in my L1224R install thread. You'll need to get a new flasher that's rated for LED's and it'll also get rid of the gross 'hyperflash' you'll have once those are installed.
Reply With Quote
  #8
Old 02-02-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I still have hyper flash. Comp thinks my bulbs are out due to no current draw from the LED's.

Napa flasher EP-27 fixes the hyper flash if you only have 2 sets of LED's not all 4 corners done. I think I picked my 63 LED 3157's up on eBay for $25 a bulb shipped... 2 white for the front markers and 2 red for the rear tails. I have hyper flash bad though, but it doesn't bother me. I'm used to it.
Reply With Quote
  #9
Old 02-02-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
I couldn't take it. I hate hyper flash!!!
Reply With Quote
  #10
Old 02-02-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
JP7 had to add a regular bulb to get rid of that, even with the LED flasher relay
Reply With Quote
  #11
Old 02-02-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Yeah I'm going to do it... I've gone into UBER lazy mode the past few months. If it isn't broke I ain't fixin it right now haha
Reply With Quote
  #12
Old 02-02-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
Those look like they're gonna be pretty sweet.

I have orange flakes all over the bottom of my lenses from the colour peeling off the bulbs. My corner lights are almost white now lol.
Reply With Quote
  #13
Old 02-02-2009
Yellow_edge_4x4's Avatar
Member
Thread Starter

Join Date: Oct 2008
Location: Bryan, OH
Posts: 723
Quote:
Originally Posted by Fx4wannabe01 View Post
Read up in my L1224R install thread. You'll need to get a new flasher that's rated for LED's and it'll also get rid of the gross 'hyperflash' you'll have once those are installed.
Ok i read the L1224R thread. Still confused, so i will need to get a relay for the fuse box under the stearing wheel?? right?? And is hyperflash where it blinks really fast???
Reply With Quote
  #14
Old 02-02-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Yeah it looks exactly like a relay, correct on hyper flash as well.
Reply With Quote
  #15
Old 02-02-2009
Blackonblackfx4's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
I ordered one almost exsact last week. I exspect them in this week
Reply With Quote
  #16
Old 02-02-2009
Blackonblackfx4's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
So i'm going to have hyper flash when i put mine in this week? Isn't there a fuse or something you can pull
Reply With Quote
  #17
Old 02-02-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
No, get on your back and look up under the dash almost behind the steering wheel. There might be a cover on it but theres a sort of fuse box up there with a couple different relays. You'll need to go to the local AP store and pick up a EP 27 electronic flasher to replace the stock blue flasher under your dash. Just swap them out and you'll be good to go.
Reply With Quote
  #18
Old 02-02-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
they look expensive
Reply With Quote
  #19
Old 02-02-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
I love the look of my LED's but they really don't seem to be as bright as my stock bulbs where. I used to be able to see the reflection on the street and signs when my turn signals were on, no I can't, kinda disappointing. It's harder to see when I am backing up too, no where near as bright.
Reply With Quote
  #20
Old 02-02-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
edit: never mind, trent gave a better answer... lol
Reply With Quote
  #21
Old 02-02-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Quote:
Originally Posted by TrePaul86 View Post
I still have hyper flash. Comp thinks my bulbs are out due to no current draw from the LED's.

Napa flasher EP-27 fixes the hyper flash if you only have 2 sets of LED's not all 4 corners done. I think I picked my 63 LED 3157's up on eBay for $25 a bulb shipped... 2 white for the front markers and 2 red for the rear tails. I have hyper flash bad though, but it doesn't bother me. I'm used to it.

I have LED all around. Tails, corners, and turn signals. I have an EP27 flasher from Autozone and I don't get the hyperflash. Maybe you got a bad flasher?
Reply With Quote
  #22
Old 02-02-2009
Blackonblackfx4's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Does the DP 27 work if you have LED's in front but still stock Bulbs in your tails? or will i even need it then?

also mine look more like this

Reply With Quote
  #23
Old 02-05-2009
Blackonblackfx4's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Has putting LED signals in front made anyone else's corner lights screw up too? like real dim on running but blinks full brightness?? or is it becuase my EP-27 isnt in yet?
Reply With Quote
  #24
Old 02-05-2009
Yellow_edge_4x4's Avatar
Member
Thread Starter

Join Date: Oct 2008
Location: Bryan, OH
Posts: 723
I would try getting the flasher and see what that dose first. I got mine a napa for $19 with tx. It took me 2sec to find the flasher under the steering wheel. Its in a black box about an inch wide by like 4 or 5 inches long. It will be the top blue one. If you cant find it pm and ill snap a pic for ya.
Reply With Quote
  #25
Old 02-05-2009
Blackonblackfx4's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Yeah i went to Napa today and ordered it should be in tommorow, but did you do the corner/signal mod?
Reply With Quote
