Need some major help with horn troubles, all help greatly appreciated!!!

Ok, I have a 2001 xlt 3.0 v6 it has the factory installed remote locking system, my horn had been sounding sickly for a while, but I hadn't bothered looking into it, untill it finally stopped honking all together.....you can hear the relay clicking when I press on the horn, when I hit the keyless lock button, and when the alarm is triggered, but no beep, just a very muffled "hu hu" sound, I've checked the fuze/ relay box, I've checked the auxiliary relay under the dash. I have also checked the horn itself by connecting it directly to the battery, and all were fine.....however when I tested the leads on the horn connection plug, I was only receiving about 6.5V, can anyone tell me what to check/ where to look from here??? I need to get this fixed asap, again, all help is greatly appreciated! Thanks!
Reply With Quote
  #2
Old 08-12-2012
Clinton's Avatar
Member
iTrader: (19)

Join Date: Dec 2010
Location: PA.
Posts: 1,417
Try swapping the old leads with new ones. Its possible they are corroded
Reply With Quote
  #3
Old 08-12-2012
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
the horn grounds through the mounting bolt. i've had a lot of issues with mine not grounding well. try cleaning the metal.
Reply With Quote
  #4
Old 08-12-2012
Cowboy713's Avatar
Member
Thread Starter

Join Date: Mar 2012
Location: San Antonio, Texas
Posts: 26
The mounting bolt is the ground? There are two wires attached to the hookup, one blue and one black, I thought the black was the ground...
Reply With Quote
  #5
Old 08-12-2012
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
Quote:
Originally Posted by Cowboy713 View Post
The mounting bolt is the ground? There are two wires attached to the hookup, one blue and one black, I thought the black was the ground...
If your truck has the factory entry/alarm system the horn receives power from the central security module to the horns connector terminal 1 via a dark blue wire. Terminal 2 is the ground for the horns via a black wire to G105 located on the right inner finder panel.

You should have battery voltage (12V) on terminal 1 (the blue wire) when measured to chassis ground with the horn button pushed. Using an Ohm meter you should have .2 ohms between terminal 2 (the black wire) and chassis ground at all times.
Reply With Quote
  #6
Old 08-13-2012
Cowboy713's Avatar
Member
Thread Starter

Join Date: Mar 2012
Location: San Antonio, Texas
Posts: 26
So JJ what would you suggest I try? Check the leads at the CSM? Re-check the ground? What do you think?
Reply With Quote
  #7
Old 08-13-2012
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
on my 95 ground is the mount. sounds like newer years/other options change things a little.
Reply With Quote
  #8
Old 08-13-2012
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
Quote:
Originally Posted by Cowboy713 View Post
So JJ what would you suggest I try? Check the leads at the CSM? Re-check the ground? What do you think?
Using a Volt Ohm Meter set to 12V disconnect the horn wiring connector and back probe the Dark Blue wire with the red probe. Connect the Black probe to the battery negative post. Press the horn button and watch the volt meter. If its within .5 volts of battery voltage I'd say the power supply side is good. If not, you'll need to located the Central Security Module and check the voltage output at the corresponding terminal there. If its still off, check fuse 11 (CJB dash) and fuse 8 & 33 (BJB under hood) for loose or bad connections. If there good you may have to replace the Central Security Module.

Next set your meter to Ohms and connect the red probe to the Black wire at the horn wiring connector and the black probe to the alternator housing or another known good ground point. If the meter reads greater than .2 ohm check G105 located on the right inner finder panel.

Last edited by Rev; 08-14-2012 at 12:41 AM.
Reply With Quote
  #9
Old 06-06-2013
Member

Join Date: May 2013
Location: ny,NY
Posts: 6
i think there must an issue with the alarm wiring or installation or some time its happen when the door lock sensor will not properly work so try to check that or take it in workshop if there is any problem with that sensor.
Reply With Quote
  #10
Old 02-28-2016
NewShockerGuy's Avatar
Member

Join Date: Sep 2011
Location: NOVA
Posts: 599
Glad I found this thread, seems to be perfect.. I am installing aftermarket horns and need to tap into the signal wire of the stock horns. From the harness above mine is the same, blue wire and a black wire.

If the blue is the 12v and the black is the ground, which one can I use to trigger another relay to make the new horns honk? IE: I just need the signal wire of the horn harness.

Would I be tapping into the blue wire then?

Thanks,
-Nigel
Reply With Quote
  #11
Old 02-29-2016
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
Yes, tap the blue wire and run it to terminal 85 of the relay and connect terminal 86 to ground. When you push the horn, the relay contacts will close connecting terminal 30 to terminal 87.
Reply With Quote
  #12
Old 02-29-2016
NewShockerGuy's Avatar
Member

Join Date: Sep 2011
Location: NOVA
Posts: 599
Perfect!! That worked exactly as it should. Now I have the two hella supertones behind the grill and the two factory horns by the passenger side!

I'll snap a pic shortly :-)

Thanks,
-Nigel
Reply With Quote
  #13
Old 02-29-2016
NewShockerGuy's Avatar
Member

Join Date: Sep 2011
Location: NOVA
Posts: 599
Icon2

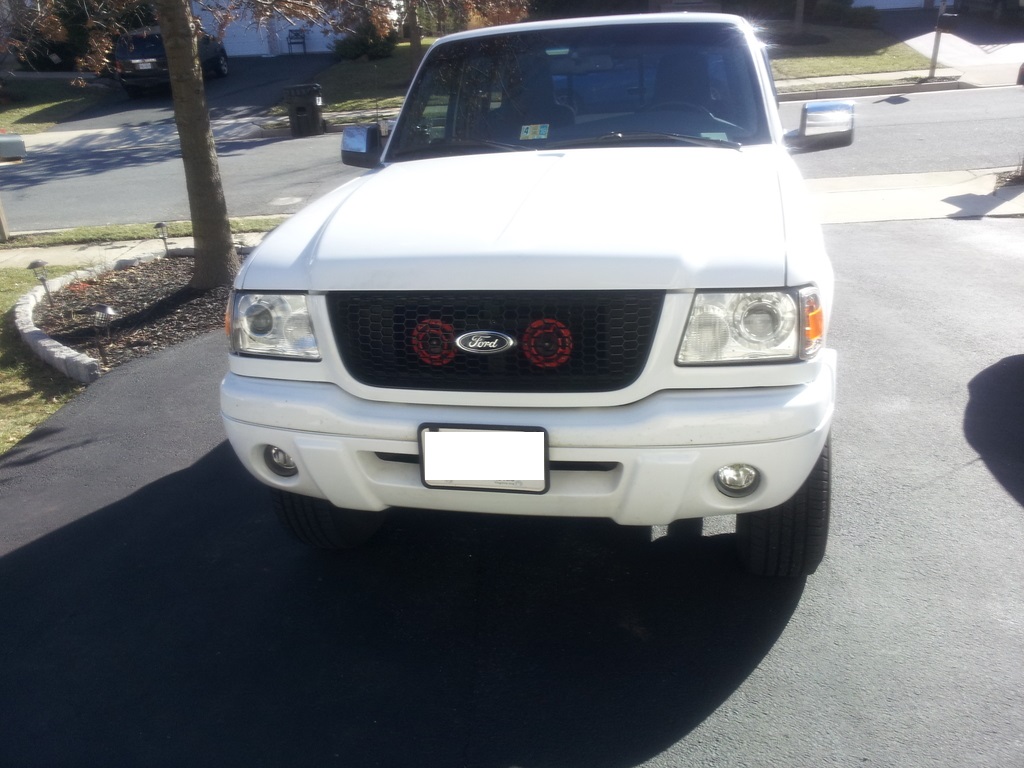

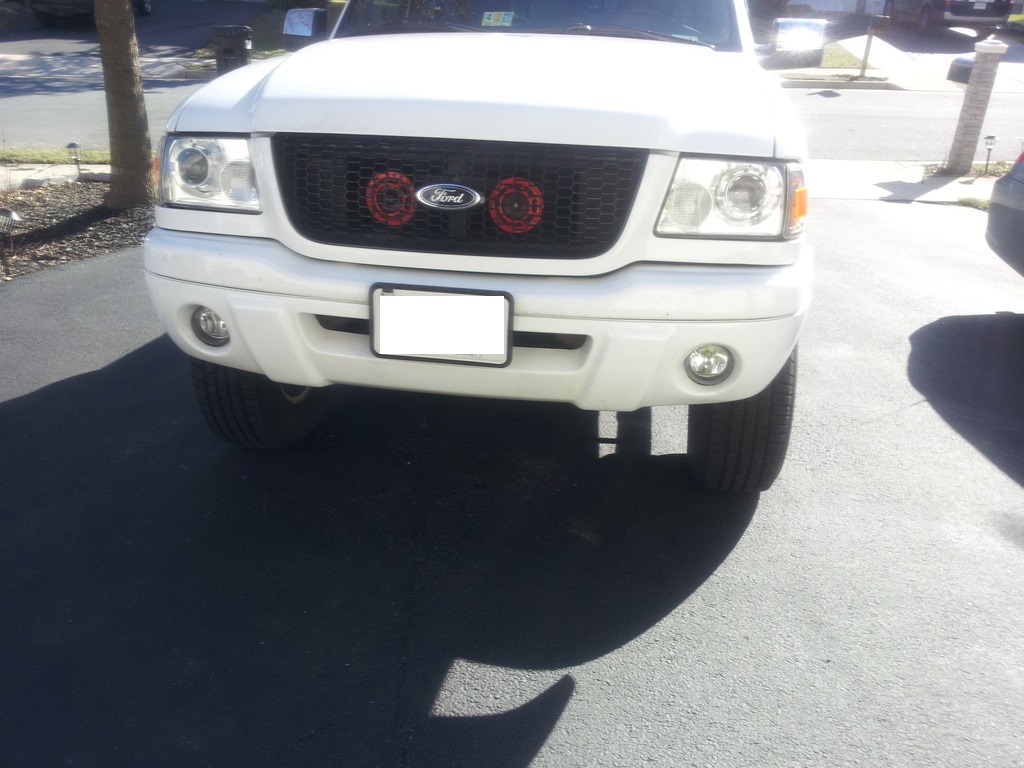

Installed... and Loud AF!

-Nigel
Attached Thumbnails
Need some major help with horn troubles, all help greatly appreciated!!!-1.jpg   Need some major help with horn troubles, all help greatly appreciated!!!-2.jpg   Need some major help with horn troubles, all help greatly appreciated!!!-3.jpg   Need some major help with horn troubles, all help greatly appreciated!!!-4.jpg
