New Nokya Fogs!

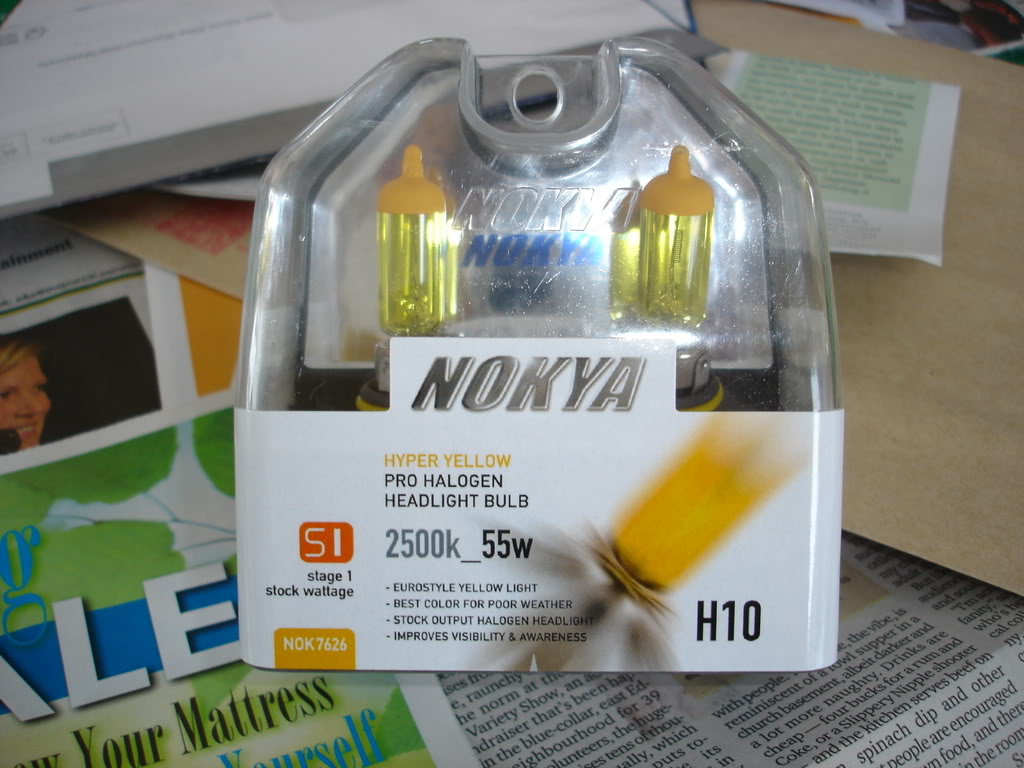

My new Nokya Fog lights came in today

Name:  DSC04204.jpg
Views: 2
Size:  108.8 KB

Name:  DSC04205.jpg
Views: 2
Size:  110.9 KB

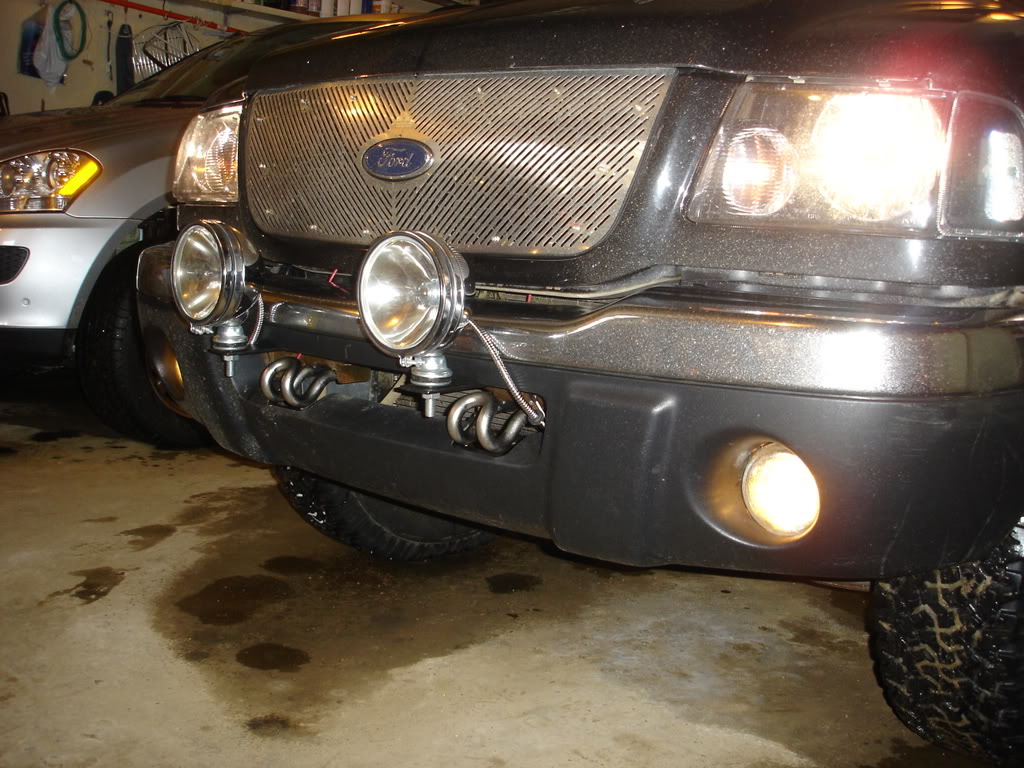

Here's the stock 42w bulbs v.s. the new 45 w= 55w hyper yellow bulbs

Name:  DSC04207.jpg
Views: 2
Size:  153.1 KB


still stock bulb
Name:  DSC04208.jpg
Views: 2
Size:  115.9 KB

and the new bulbs



one yellow one stock

Name:  DSC04215.jpg
Views: 2
Size:  149.2 KB

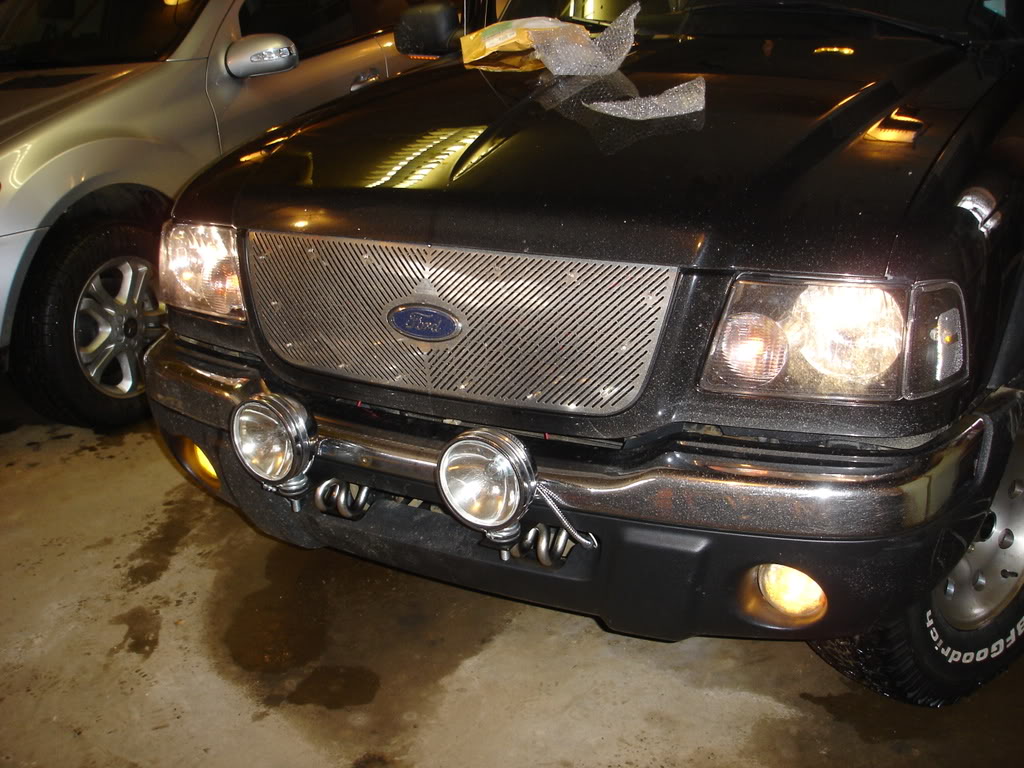

Both lights done!
Name:  DSC04217.jpg
Views: 2
Size:  140.1 KB

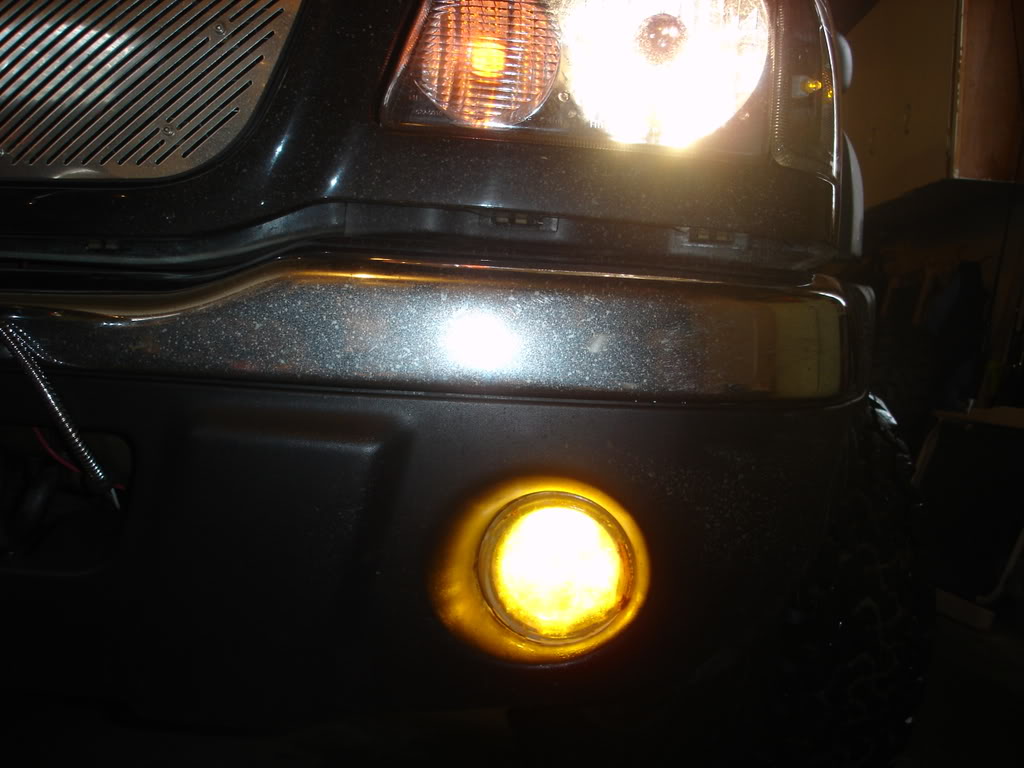

Name:  DSC04219.jpg
Views: 3
Size:  93.4 KB

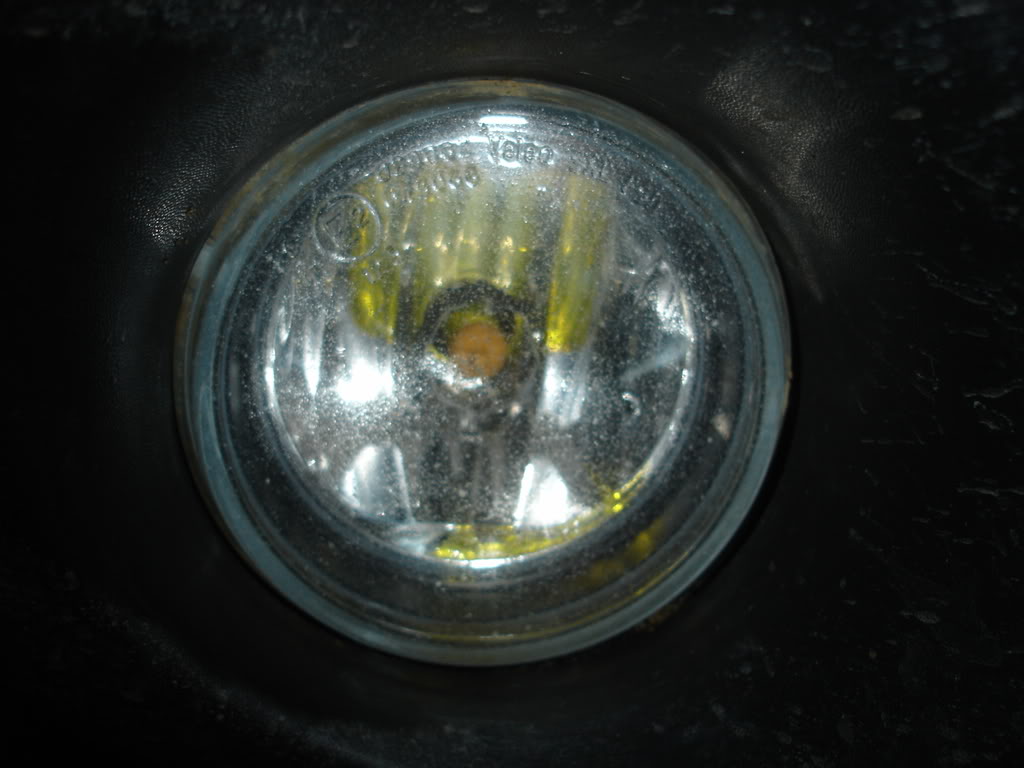

and light off

Name:  DSC04221.jpg
Views: 2
Size:  78.1 KB

How do you get the outter lense nice again insted of all pitted up like it is?

.



.
Reply With Quote
  #2
Old 03-05-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
nice fogs, best bet is gonna be some rubbing compound
Reply With Quote
  #3
Old 03-05-2009
Rolldogg's Avatar
Member

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
That look is really starting to grow on me. I like the yellow fogs.
Reply With Quote
  #4
Old 03-05-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
Looks good brotha! I have the 80w 9005 bulbs in mine right now. They're really bright.

However, yours look better than mine in your clear lenses.

Wetsand the lenses and polish them. However, your efforts will end up being in vain because the fog lights take a lot of hits from crap on the road.
Reply With Quote
  #5
Old 03-05-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Quote:
Originally Posted by crazymikey View Post
Looks good brotha! I have the 80w 9005 bulbs in mine right now. They're really bright.

However, yours look better than mine in your clear lenses.

Wetsand the lenses and polish them. However, your efforts will end up being in vain because the fog lights take a lot of hits from crap on the road.


like what grit of paper? any specifics? and how should i polish them?
Reply With Quote
  #6
Old 03-05-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
I don't see that much difference.
Reply With Quote
  #7
Old 03-05-2009
Spirochets's Avatar
Member

Join Date: Jun 2008
Location: Lafayette, La
Posts: 291
get the 3m head light restore kit. it works wonders.
Reply With Quote
  #8
Old 03-05-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
Quote:
Originally Posted by Jimmeh View Post
I don't see that much difference.
you and me both
Reply With Quote
  #9
Old 03-05-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Yeah I don't either. Output pics?
Reply With Quote
  #10
Old 03-05-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
As long as you like it that's all that matters

I don't see the difference either.

I have always found it annoying when people are coming at me with 2 different colored lights.
Reply With Quote
  #11
Old 03-05-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Here's a couple better pictures, gave it a light wash.

Name:  DSC04223.jpg
Views: 2
Size:  63.5 KB

Name:  DSC04225.jpg
Views: 1
Size:  86.9 KB

This last picture makes it look like every lights pointed wrong! lol. I do have an appointment at ford tommorow 3:15 for a good headlight aiming

Name:  DSC04229.jpg
Views: 2
Size:  44.1 KB
Reply With Quote
  #12
Old 03-05-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Wow those aren't very bright at all, very yellow though.
Reply With Quote
  #13
Old 03-05-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
They seam to be a bit brighter than stock. Im going to take them out soon as its dark and try them out
Reply With Quote
  #14
Old 03-05-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by Blackonblackfx4 View Post

This last picture makes it look like every lights pointed wrong! lol. I do have an appointment at ford tommorow 3:15 for a good headlight aiming


You are going to ford to have them aim your lights?

They are not that hard to do



1. Park your vehicle on a level surface 25 feet away from a vertical plain surface

Check your headlamp alignment at night or in a dark area so that you can see the headlamp beam pattern.

• (1) Eight feet
• (2) Center height of lamp to ground
• (3) Twenty-five feet
• (4) Horizontal reference line
Name:  0000.jpg
Views: 2
Size:  13.8 KB


2. The center of the headlamp has a 3.0 mm circle on the lens. Measure the height from the center of your headlamp to the ground (2) and mark 8 foot long horizontal line on the plain surface (1) at this
height (masking tape works well).

3. Turn on the low beam headlamps. The brightest part of the light should be below the horizontal line (4). If it is above the line the headlamp will need to be adjusted.
Name:  000000.jpg
Views: 2
Size:  7.0 KB

4. Open the hood.

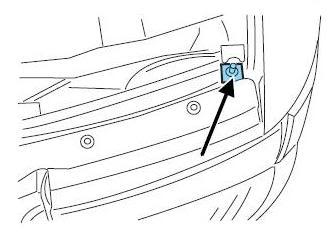

5. Locate the vertical adjuster for each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust down) or counterclockwise (to adjust up). Note: Use a 4 mm socket or box wrench to turn the vertical adjuster control.
Name:  00000-1.jpg
Views: 1
Size:  14.4 KB

6. Horizontal aiming is not required for this vehicle and is non-adjustable.

Last edited by Mykhael; 03-05-2009 at 08:08 PM.
Reply With Quote
  #15
Old 03-05-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
GREAT POST STL! I'm gonna have to do that sometime
Reply With Quote
  #16
Old 03-05-2009
Sixt9coug's Avatar
Member
iTrader: (7)

Join Date: May 2006
Location: Norwalk, CA
Posts: 1,034
yeah no kidding, aiming lights is easy and all you really need is a wall and the aforementioned 4mm socket on a nut driver. park back, turn screws until they are evened out and not so high they blind everyone.

if it takes more than 5 minutes it means you had to do it twice and took lunch.
Reply With Quote
  #17
Old 03-05-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by 04blackedge View Post
GREAT POST STL! I'm gonna have to do that sometime
HOW TO?
Reply With Quote
  #18
Old 03-05-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
Ford screwed up the lights on my old truck, have fun with that...
Reply With Quote
  #19
Old 03-05-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by STL View Post
HOW TO?
https://www.ranger-forums.com/forum2...76#post1239576
Reply With Quote
  #20
Old 03-05-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
those fogs look great IMO
Reply With Quote
  #21
Old 03-05-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Yellow fogs lights FTL!
Reply With Quote
  #22
Old 03-05-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
function over form
Reply With Quote
  #23
Old 03-05-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914

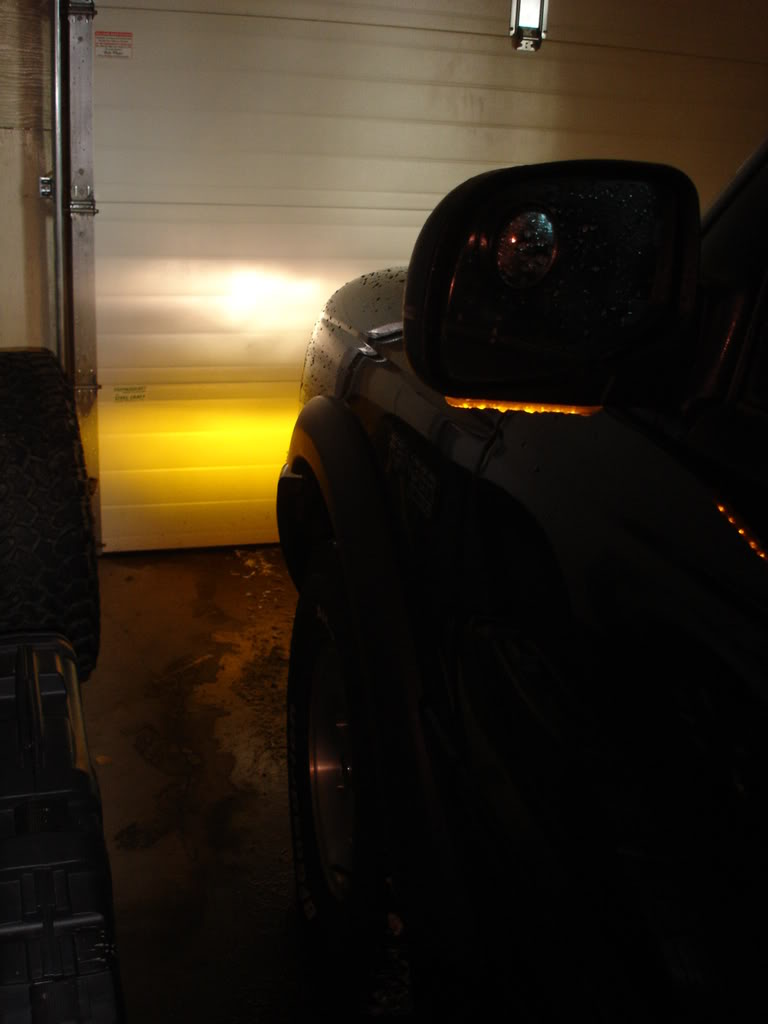

Name:  DSC04232.jpg
Views: 2
Size:  48.4 KB


Im good friends with the owner of the dealership here, So I usually get good deals. I adjsuted the lights on my old truck, its tricker to get the left and right alignment so I'll just let them take a crack at it. If im not happy I'll just do it myself!


.


.
Reply With Quote
  #24
Old 03-05-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
nastiest thing i have seen in a long while never understood the fascination with blue or yellow head/fog lights
Reply With Quote
  #25
Old 03-05-2009
Machine090767's Avatar
RF Veteran

Join Date: May 2006
Location: Minnesota
Posts: 6,410
hey, leave the guy alone. he likes his amber fogs. I have a set of amber hella foglights with 100 watt hella yellowstar bulbs. on a foggy, snowy night, those lights helped a lot with seeing the road. also, during the day, if the weather is bad, they help others to see you.
Reply With Quote
