off road lights

are these pretty easy to hook up? im going to get some spot lights for up on my bumper and some rear back up lights, and also fog lights. but ive never installed a set, and its just a fuse and relay right? and the switch..
can i just run an inline fuse for each set of lights, or should i get a seperate fuse box? and run all the leads into that fuse box?
and what gauge wire should i use? 12ga?
i figure it will be cheaper to buy a spool of wire, fuses, and relays instead of buying a Painless/KC/Any pre made wire harness...


and also. what are some good lights?
spot lights(or driving lamps)
fog lights(that will fit into the factory location on an 07 xlt bumper)
and rear facing lights?
Reply With Quote
  #2
Old 05-12-2007
RanJerEDGE's Avatar
Member

Join Date: Jun 2004
Location: Austin/Houston, Tx
Posts: 689
lol heres a diagram i made a year or two ago of how i wired mine. i just ran an inline fuse. 12 ga should be fine, i either ran 12 or 14 ga for 2 100w lights (cant remeber).



edit: but i dont think i actually added the 2 amp fuse, i would have to go and check to see if i did haha.
Reply With Quote
  #3
Old 05-12-2007
Urandaman's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
we will check once u get back to good ol cypress haha
Reply With Quote
  #4
Old 05-13-2007
bricesedge03's Avatar
Member

Join Date: Apr 2007
Location: columbia sc
Posts: 388
diagram looks good, but the power and lead wire are switched
Reply With Quote
  #5
Old 05-13-2007
htvfd460stx's Avatar
Member

Join Date: Dec 2006
Location: Newton nj
Posts: 249
that is a great diagram for fogs. In my Centurion i just ran the power to the fuse then to the switch. From the switch to the fogs then grounded to the bumper. And they were 100 watts each housed in a CATERPILLAR light assembly. Never had a problem. But for safety i would suggest going with a Relay.
Reply With Quote
  #6
Old 05-13-2007
RanJerEDGE's Avatar
Member

Join Date: Jun 2004
Location: Austin/Houston, Tx
Posts: 689
Quote:
Originally Posted by bricesedge03
diagram looks good, but the power and lead wire are switched
dang, is it?

haha, i'm pretty sure thats how i have it actually wired.. oops haha
Reply With Quote
  #7
Old 05-13-2007
bricesedge03's Avatar
Member

Join Date: Apr 2007
Location: columbia sc
Posts: 388
Quote:
Originally Posted by RanJerEDGE
dang, is it?

haha, i'm pretty sure thats how i have it actually wired.. oops haha
dp you have a led or lighted switch?
Reply With Quote
  #8
Old 05-14-2007
RanJerEDGE's Avatar
Member

Join Date: Jun 2004
Location: Austin/Houston, Tx
Posts: 689
yes, a lighted switch was used.
Reply With Quote
  #9
Old 05-14-2007
bricesedge03's Avatar
Member

Join Date: Apr 2007
Location: columbia sc
Posts: 388

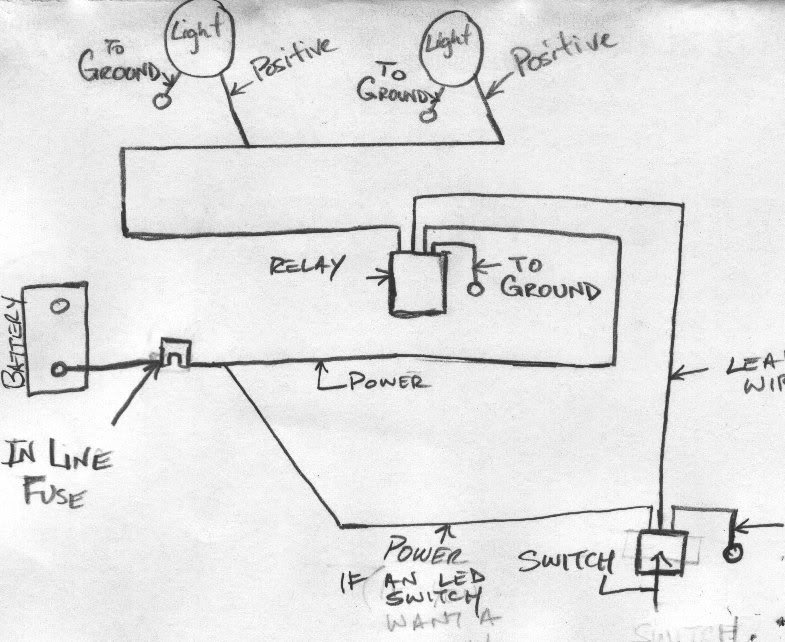

yeah the power and lead are switched. this is one i drew for a guy on rps.
Name:  IMG.jpg
Views: 2
Size:  81.9 KB
Reply With Quote
  #10
Old 05-14-2007
bricesedge03's Avatar
Member

Join Date: Apr 2007
Location: columbia sc
Posts: 388
but yours is prettier
