OHC Temp Sensor?

ok so i went to the junkyard today got me an ohc. My only questions is well for right now haha, is i was looking at the explorers,and couldnt seem to find the temp sensor. maybe im looking for the worng part. if anyone could post a pic of what they look like so i can go back and pull it that would be awesome. thanks.
Reply With Quote
  #2
Old 07-15-2009
OVERtheEDGE's Avatar
Member

Join Date: Mar 2008
Location: locust grove georgia
Posts: 1,441
Quote:
Originally Posted by RangerJacoby99 View Post
ok so i went to the junkyard today got me an ohc. My only questions is well for right now haha, is i was looking at the explorers,and couldnt seem to find the temp sensor. maybe im looking for the worng part. if anyone could post a pic of what they look like so i can go back and pull it that would be awesome. thanks.
same here i looked a few days ago and can find it!
Reply With Quote
  #3
Old 07-15-2009
yetti96's Avatar
Member

Join Date: Mar 2008
Location: Fort Myers, FL
Posts: 371
Did either of you look at the "How-To"? https://www.ranger-forums.com/forum2...c-install.html

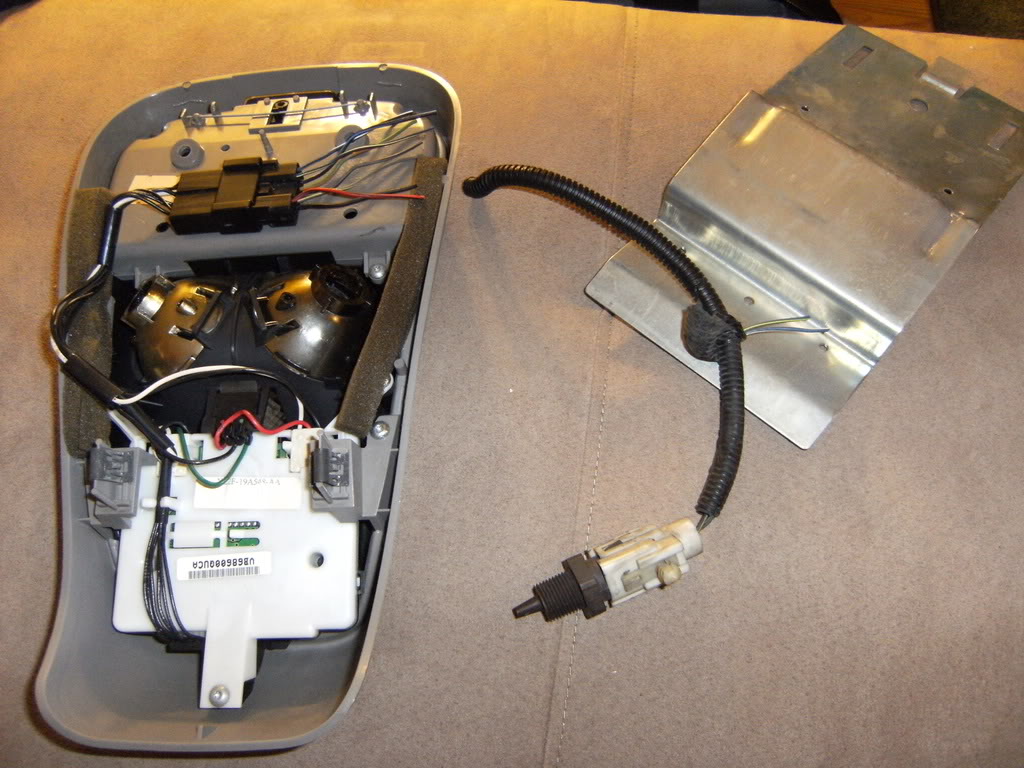

There is a picture of where he put his temp sensor. I kept mine down the driver's side and put it near where they were on an exploder. Look down and behind the headlight. I never mounted mine though, just positioned it with the wire so it hung perfectly.

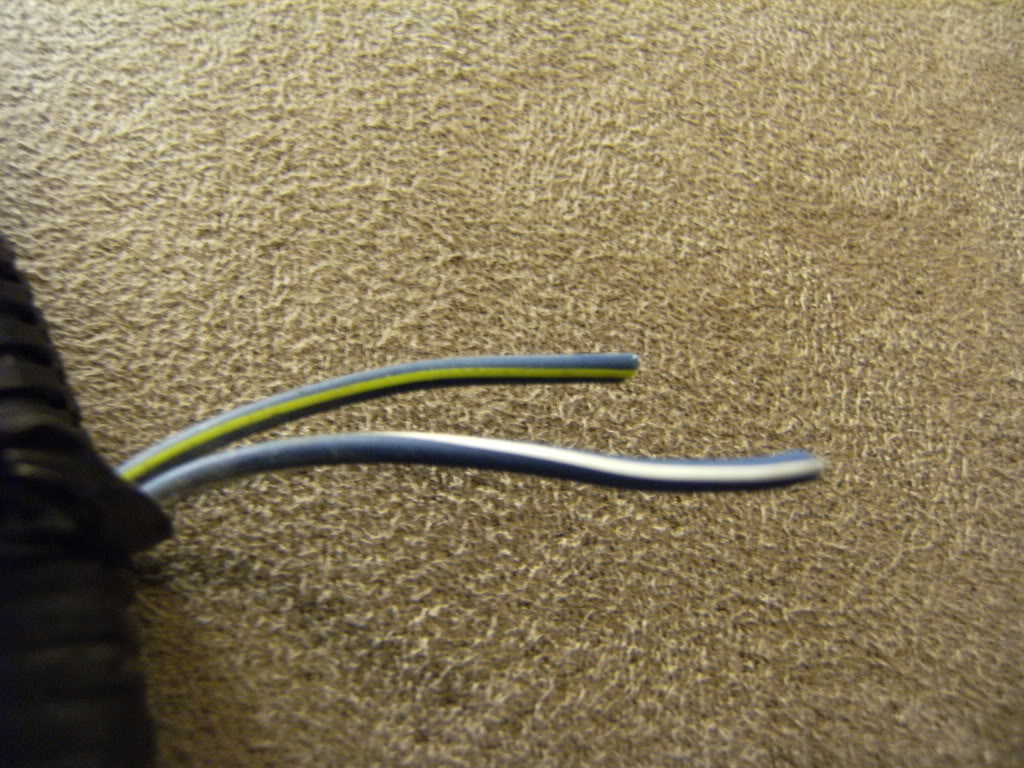

Temp sensor wires are blue/white and blue/yellow.

Name:  DSCF2455.jpg
Views: 6
Size:  141.1 KB
Name:  DSCF2459.jpg
Views: 6
Size:  163.4 KB
Reply With Quote
  #4
Old 07-15-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
the temp sensor is usually on the driver side right by the front bumper close to where the bumper mounts at. it is pictured above and there are two kinds but no difference in either.
Reply With Quote
  #5
Old 07-15-2009
Member

Join Date: Mar 2008
Location: Shediac
Posts: 93
That's correct, when I got mine it was on the driver's side close to the bumper.
Reply With Quote
  #6
Old 07-15-2009
RangerJacoby99's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2009
Location: Thornton,CO
Posts: 374
ok thank you i actually went back and got it but thanks for the picks i thought that was it but the sensor itself has a little boot on the one i have
Reply With Quote
