For people with the "shorty" console.....where did you place you switches in/on it?

I am know this has been asked before....

I need to install 2 switches (one for efan control & one for blue lights). I want to install them in my shorty console and I want it to look some what factory. They are going to be flush mounted. So if you installed switches on/in your shorty console, where did you put them? Please post up some pictures of them!
Reply With Quote
  #2
Old 12-17-2007
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
If I were you, I'd put them inside the compartment on the right side, so you can see if they are on or off. That way no one sees them but you. If you want them on the outside, I'd place them on the lower left side towards the front so you can see them again.
Reply With Quote
  #3
Old 12-17-2007
Member

Join Date: Jul 2007
Location: NH
Posts: 292
I know this probably dosen't help but I have thought of possible using the superduty "up fitter"(or whatever they are called) switches. I just don't know where they could be installed. The superduties have a nice little area designated for them on the lower left of center dash.
Reply With Quote
  #4
Old 12-17-2007
lifted97ranger's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
i would like to do the Super Duty switch panel, I just don't know where to install it....
Reply With Quote
  #5
Old 12-30-2007
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
anybody mount switches to their shorty console???? we need pics.
Reply With Quote
  #6
Old 12-30-2007
lifted97ranger's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Reply With Quote
  #7
Old 12-30-2007
KARPE's Avatar
Member

Join Date: Apr 2005
Location: Valrico, Fl 33594
Posts: 4,748
Hey Mo, edit your original post man..." I AM KNOW..." yikes!!!
Reply With Quote
  #8
Old 12-30-2007
SHOman86's Avatar
Member

Join Date: Sep 2005
Location: Lakeland, Fl
Posts: 2,469
mauirce post pics of ur console maybe i cangive a idea
Reply With Quote
  #9
Old 12-30-2007
rangerdan01's Avatar
Member

Join Date: Jun 2006
Location: Apex, NC
Posts: 359
I dont know if this is wht you are talking about.

Name:  104_1967.jpg
Views: 2
Size:  113.5 KB
Reply With Quote
  #10
Old 12-30-2007
Member

Join Date: Sep 2007
Location: LANSING, MI
Posts: 339

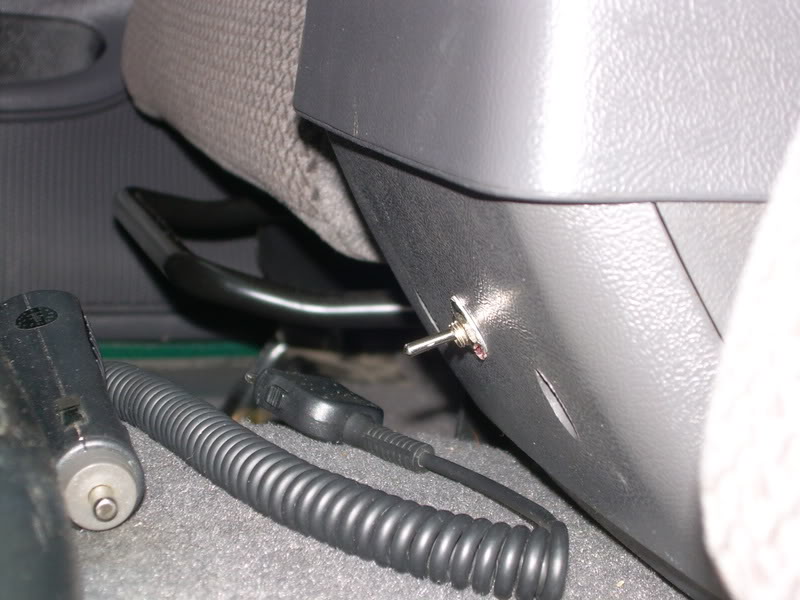

i will go and snap one.Name:  DSCN09350905.jpg
Views: 1
Size:  104.0 KB bam best spot out of the way. that switch is for my subs.

Last edited by nicholoff; 12-30-2007 at 03:35 PM.
Reply With Quote
  #11
Old 12-30-2007
Lefty04LevelII's Avatar
Member

Join Date: Aug 2005
Location: DFW
Posts: 1,447
a push button switch (over rockers) would be neat to mount flush right behind the coin holder. I've thought about mounting additional switches there for the "if/when" projects that don't already have a factory switch. Of course you could always cut into the radio bezel. I need to do the ABS disable, but need to hit up some JYs first for some bezels and switches. The fun switch is going to be figuring out how to wire in my flux capacitor toggle.

Brain fart....coin holder is up front of my center console. When I say behind the coin holder I'm talking the older center consoles where the spring loaded coin holder was located between the cup holders and the lid to enter into the console.
Reply With Quote
  #12
Old 12-30-2007
Member

Join Date: Jul 2004
Location: Mississippi
Posts: 1,671
I will try and post pics tomorrow Maurice, mine for my foglights are mounted in between the cup holders flushed, then the one for my interior neon was flush mounted all the way to the rear of the shorty
Reply With Quote
  #13
Old 12-30-2007
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
aight.....I'm planning on like 5 switches...I'm kinda diggin that low location. but worry about my cd case and accidently turning on my rear floods or my traillights by accident. lol.
Reply With Quote
  #14
Old 12-30-2007
JoshK's Avatar
Member

Join Date: Sep 2006
Location: CC, Indiana
Posts: 3,832
I have my switches on the bottom cup holders on the outside near my feet. I will have to take a pic!
Reply With Quote
