Power Lock System Disaster..Please Help

So let me warn everyone off the bat..Im no electrician. With that said let me explain my situation. So about a year ago or so I bought a used power lock/keyless entry system from a member off of here. he said everything was included, including instructions but unfortunately the only instructions that came were ones that told you how to use the remotes when your done with everything.

So here is my question, what I basically have is 2 actuators, 2 mounting plates, and two rods that I dont know what they do. And I also have the main wire harness with a few plugs in it with 5 wires coming out of each, then two more smaller plugs on the side with two wires coming out of each. Am I screwed or can I make this work? Id really like to have keyless entry and power locks but I dont even wanna mess with this if I cant do it. It just sucks because it did cost me 50 bucks...oh well I guess I was young and stupid lol

All help is greatly appreciated!!!
Reply With Quote
  #2
Old 12-12-2007
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I have a keyless entry with power locks in my garage thats a Christmas present, after Christmas I can post up my wiring diagram for ya.
Reply With Quote
  #3
Old 12-12-2007
vansnxtweek's Avatar
Member
Thread Starter

Join Date: Feb 2005
Location: USA
Posts: 2,666
That would be sweet!! We should meet up and install them together haha
Reply With Quote
  #4
Old 12-12-2007
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I would be up for it if you weren't 3 hours and 22 min away. If your going to the meet in May I'm sure we can get it installed for you. 05rangerxlt has installed the same kit I'm about to install a couple of years ago so I'm sure he could help out.
Reply With Quote
  #5
Old 12-12-2007
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Here its put on a 2000 ranger. http://www.a1electric.com/door_locks2.htm
Reply With Quote
  #6
Old 12-12-2007
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I think hes looking more for how to wire the thing.
Reply With Quote
  #7
Old 12-12-2007
vansnxtweek's Avatar
Member
Thread Starter

Join Date: Feb 2005
Location: USA
Posts: 2,666
Where is that meet gonna be? Thanks Christian for that! Hopefully it will help
Reply With Quote
  #8
Old 12-12-2007
vansnxtweek's Avatar
Member
Thread Starter

Join Date: Feb 2005
Location: USA
Posts: 2,666
Ya that helps me with that part also I wasnt sure of..but ya I still need help on how to wire this freakin puzzle lol
Reply With Quote
  #9
Old 12-12-2007
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
https://www.ranger-forums.com/forum2...ad.php?t=53193

Jordan Lake, NC. Its a good drive from you but there should be a big turn out of guys.
Reply With Quote
  #10
Old 12-13-2007
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Reply With Quote
  #11
Old 12-13-2007
2003stealthedge's Avatar
Member

Join Date: May 2005
Location: The ILL State
Posts: 1,297
give me the model of the unit so i can try and google a schematic if ihave a schematic i can give you wire locations and colors when i get to work
Reply With Quote
  #12
Old 12-13-2007
03XLT's Avatar
Member

Join Date: Dec 2005
Location: Fort Ashby, WV
Posts: 225
I installed the A1 kit in my truck last month. I'm sure I still have the instructions. If that's the kit you have, I can scan the instructions and email them to you.
Reply With Quote
  #13
Old 12-13-2007
vansnxtweek's Avatar
Member
Thread Starter

Join Date: Feb 2005
Location: USA
Posts: 2,666
No I dont have the A1 electric kit...I sure wish I did!! What I got from the guy is a Micro Delux Keyless Entry System. Its #DLR4 I think what I have is a universal power lock kit with an add on Keyless entry, there are no switches though so maybe i could be wrong Im not sure. It is a really sketchy kit...I def. wish I would have never gotten it from the guy. I should have put the money towards an A1 kit.
Either way..lets see if we can find somethin on it...thanks!
Reply With Quote
  #14
Old 12-13-2007
vansnxtweek's Avatar
Member
Thread Starter

Join Date: Feb 2005
Location: USA
Posts: 2,666
Quote:
Originally Posted by 03XLT
I installed the A1 kit in my truck last month. I'm sure I still have the instructions. If that's the kit you have, I can scan the instructions and email them to you.
Since I dont have the A1 kit Im not sure if it will help or not but it just may..they cant be too much different...send it on!!
[email protected]
Reply With Quote
  #15
Old 12-13-2007
03XLT's Avatar
Member

Join Date: Dec 2005
Location: Fort Ashby, WV
Posts: 225
I wouldn't think they would be much different, but there could be some differences. Don't let the amount of wires coming from the module freak you out. You only need a few of those to make the system operate. The majority of those wires are for optional features. If you just want the power locks to work via the remote, there's not many wires that need hooked up. The pigtails coming from the lock actuators are color coded w/ the wires from the harness, right? That makes that part pretty simple. If you can match wire color you can get that right. Other than those, you'll just need constant power & ground. If you want to hook them up to lock/unlock when you turn the key on/off, you'll need switched power as well. I chose not to do that. Unneccesary for me. You'll probably want to tap into the parking light switch to get your flash confirm on lock/unlock. That's not too difficult. You just need to use a test light to confirm which wire is hot when you turn the parking lights on and tap it. I think it's the 3rd wire down on the outside (toward the door/fuse box) of the switch. There is a wire chart pinned to the top of the audio/vdeo section that was correct for my truck. Mounting/timing the actuators and running the wires through the door boots to the actuators is the most time consuming task of it all. I'll look for the instructions in a little bit and email them to you.
Reply With Quote
  #16
Old 12-13-2007
vansnxtweek's Avatar
Member
Thread Starter

Join Date: Feb 2005
Location: USA
Posts: 2,666
Man you said exactly whats freakin me out! All those wires are really whats freakin me out..it just didnt make sense to me because there are only two wires coming off the actuator..i was guessing ground and power..let me sort out the wires and ill put a picture up here of what I have..there are also two small plugs on the side that I dont know whats their function..hold on one sec ill put one up
Thanks for the help!
Reply With Quote
  #17
Old 12-13-2007
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Hey Tony email it to me to if you would, [email protected]
Reply With Quote
  #18
Old 12-13-2007
vansnxtweek's Avatar
Member
Thread Starter

Join Date: Feb 2005
Location: USA
Posts: 2,666
And I also forgot to say Im not worried about the locks going with the ignition either..that seems pointless but I would like to wire them into the parkin lights
Here are the pictures:
Name:  IMG_1298.jpg
Views: 3
Size:  54.2 KB

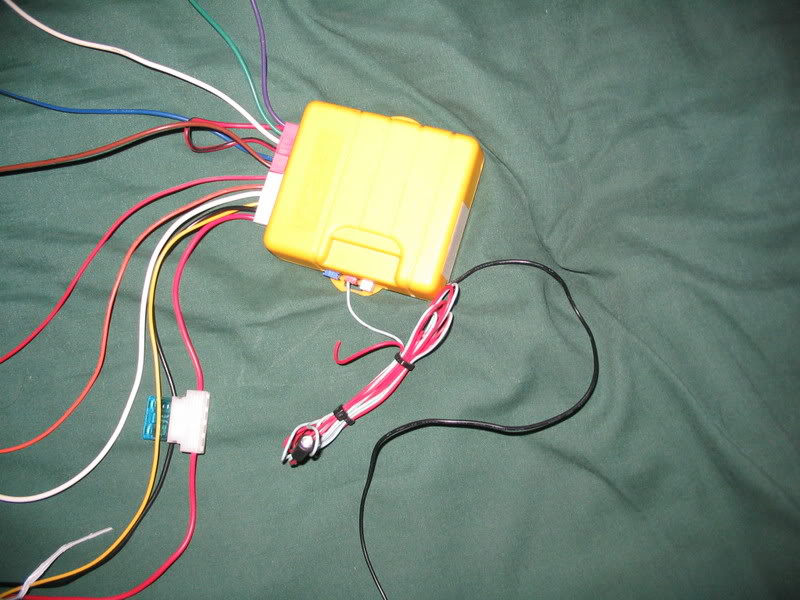

Name:  IMG_1299.jpg
Views: 3
Size:  80.7 KB

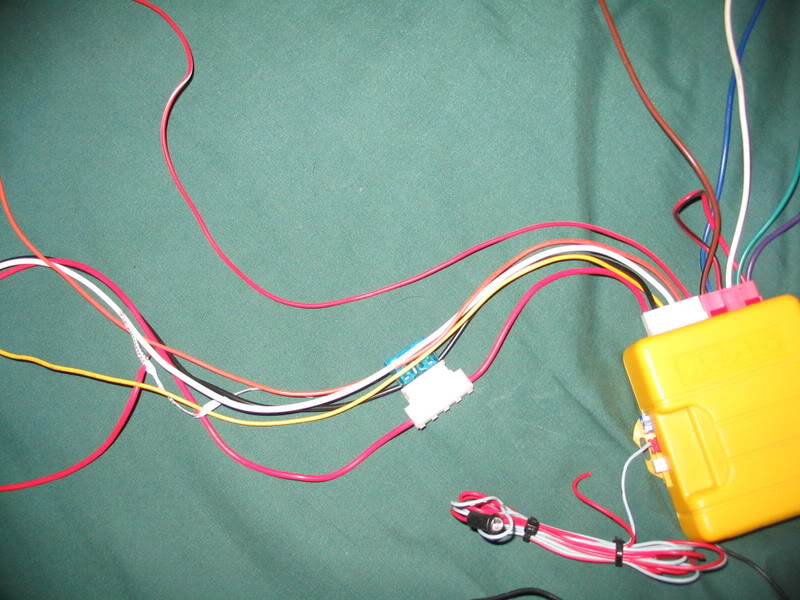

Name:  IMG_1300.jpg
Views: 3
Size:  91.7 KB
Name:  IMG_1301.jpg
Views: 7
Size:  70.5 KB

And then these are the three little plugs that I dont know what they are for. I hope they arent important though because When I got this in the mail there were like three wires broken off of it.
Name:  IMG_1303.jpg
Views: 5
Size:  29.3 KB
Reply With Quote
  #19
Old 12-13-2007
vansnxtweek's Avatar
Member
Thread Starter

Join Date: Feb 2005
Location: USA
Posts: 2,666
I can also put up pictures of the actuators and their wires if that will help figure out which wire goes where
Reply With Quote
  #20
Old 12-13-2007
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
Is this what you looking for?


DLR4 Installation Manual


.
Reply With Quote
  #21
Old 12-13-2007
03XLT's Avatar
Member

Join Date: Dec 2005
Location: Fort Ashby, WV
Posts: 225
I forgot to look for the A1 instructions awhile ago, so I didn't get them scanned. I'll hunt them up this weekend and get them for you, but looking at your system, I don't think they will do you much good. If I were you, i'd almost set that system up on a bench w/ a battery to decipher it, get it figured out and working, rather than trying to figure it out in the truck. It would save you a lot of grief. Are any of the wires coming out of the module marked where they attach? Like writing imprinted on the plastic above or below each wire? The red wire w/the fuse is constant power obviously, and black is most likely ground, but other than that, I dunno.

Sorry I didn't get them to you. I had my truck serviced, and they told me I needed brakes and rotors to the tune of $350. I told them no thanks, bought the parts myself, installed them, and saved $200, but it ate up my evening. If nothing anyone else has posted helps you, let me know and I WILL get you the instructions I have.
Reply With Quote
  #22
Old 12-13-2007
2003stealthedge's Avatar
Member

Join Date: May 2005
Location: The ILL State
Posts: 1,297
id almost thrash that thing and get a whole new unit man you dont want half hacked electronics on your ride messing things up
Reply With Quote
  #23
Old 12-13-2007
03XLT's Avatar
Member

Join Date: Dec 2005
Location: Fort Ashby, WV
Posts: 225
Quote:
Originally Posted by 2003stealthedge
id almost thrash that thing and get a whole new unit man you dont want half hacked electronics on your ride messing things up
That too. The A1 kit is $99, or $109 w/ the upgrade they offer. That won't make a whole lot of difference in the course of your life, and having a system that works consistently as opposed to being a royal pain in the caboose is much less stressful.
Reply With Quote
  #24
Old 12-13-2007
vansnxtweek's Avatar
Member
Thread Starter

Join Date: Feb 2005
Location: USA
Posts: 2,666
Ya I guess you guys are right..thats really what I was thinkin realistically...I just wish I would have never bought the thing..the guy sure made it sound good though. I guess thats why he isnt on here anymore lol Oh well life goes on.
I really appreciate all you guys help..sorry it took me so long to get back on..been a busy day
But Im sure when I do get the A1 Electric kit I will need help with that too lol I sure wish you guys lived close to VA...
Reply With Quote
  #25
Old 12-14-2007
Member

Join Date: May 2006
Location: Altoona, IA
Posts: 91
most electronics use a few basic colors as a standard. The red wire with fuse is your constant power, black is ground of course. Yellow is typically switched power. The led that plugs into the other side must be to tell you when your system was activated. The thin black wire nearest the led wire is probably the antenna if it has a remote. The other wires are going to power your functions. By the way some ends are taped I would guess those would be for more advanced features such as power windows...

Your actuators for the power locks should have wire colors that cordinate with the wires coming out of the yellow box.

Like another said, get yourself a battery and hook it up out of the truck. As long as the power wires are hooked up correctly, mixing up the other wires to the acctuators shouldn't cause any damage.
