trying to install maplight

hey I bought this model to install in my ranger and all I'm confused on is the part where you run the power wire, where does it need to go on the map light?

I bought the round all clear plastic one, not the mustang version, but are they the same?

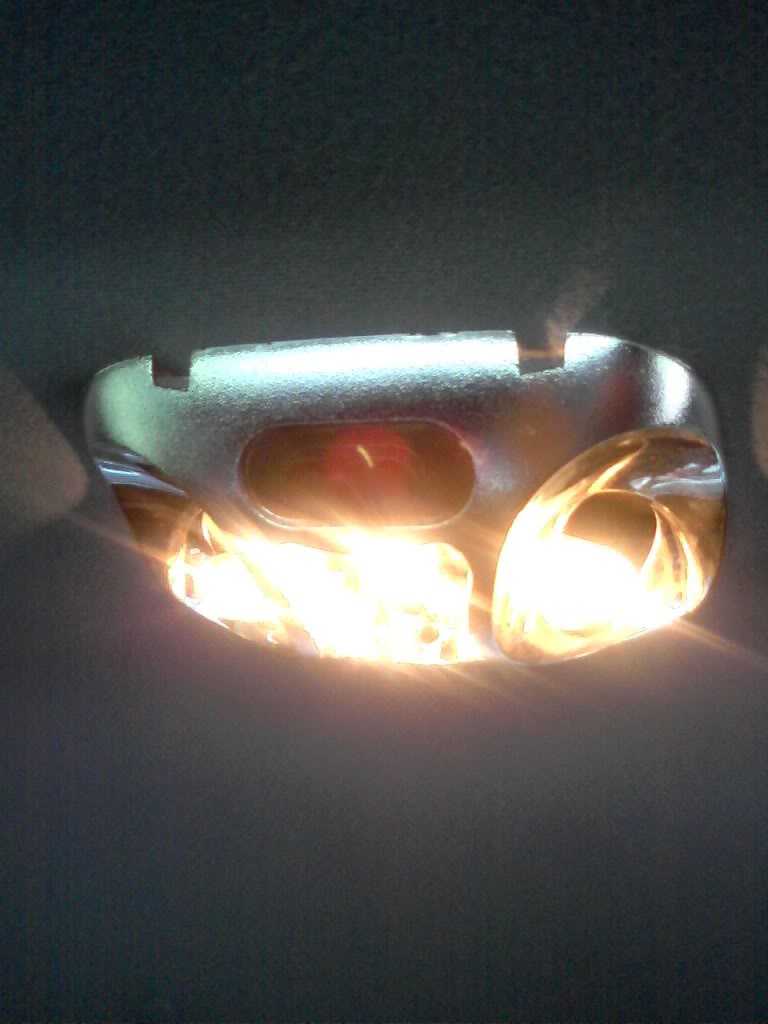

Name:  051209_145200.jpg
Views: 3
Size:  58.9 KB

mines from a stock 98 xlt extended cab...

Last edited by GrafixGuy; 05-12-2009 at 02:57 PM.
Reply With Quote
  #2
Old 05-12-2009
ClemsonRanger03's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Clemson, SC
Posts: 804
Mine just threaded in and work, but I think that after 03 they wernt setup the same to be able to do that. Mine came with like an adapter on the back that I had to take off for mine to work, but you might need that adapter, cuz it had wires coming out of it.If it turns out I think I still have it floating around somewhere let me know and I might be able to ship it to you for cost of shipping.
Reply With Quote
  #3
Old 05-12-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
You probably need another power wire for yours. Now where it goes I have no clue.
Reply With Quote
  #4
Old 05-12-2009
GrafixGuy's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
so any power wire is fine? I'm looking in the manual for the one that goes with the map light cut off
Reply With Quote
  #5
Old 05-12-2009
GrafixGuy's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
got it working but its the one with the switch in the middle...

atm if I switch to left it kills the left side then if I try to turn on the right bulb it kills the right... and if the doors are closed and the truck is off when I goto use the darn thing none of them work... only if the illumination switch is bumped on...
Reply With Quote
  #6
Old 05-12-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
On my 05 I used the wire from here



Use a wire tap to splice into the Green/orange wire


Black = Constant
RED = Switched
Yellow= Ground


Reply With Quote
  #7
Old 05-12-2009
GrafixGuy's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
well I blew a fuse somewhere because my headlight switch won't work and now my lights wont come on, anyone know where the fuse is for the headlight switch?
Reply With Quote
  #8
Old 05-12-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Fuse #1 in passenger side kick panel

Reply With Quote
  #9
Old 05-12-2009
GrafixGuy's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
thanks man I blew #23 and #3 those are small lil fuses, had to go to autozone to buy some... as of now I'm gonna keep my stock one, I should have gone with a stang domelight...
Reply With Quote
  #10
Old 05-13-2009
FordX4Ranger's Avatar
Member
iTrader: (1)

Join Date: Aug 2007
Location: Golden, CO
Posts: 487
i think when i hooked my map lights up and my OHC i ran a wire down and just tapped into one of the cigarette lighter plugs. i thik you just need to run it so it has a hot wire beings that there is a switch to turn it on
Reply With Quote
  #11
Old 05-21-2009
GrafixGuy's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
bump, what wire do i need to tap into for constant power?

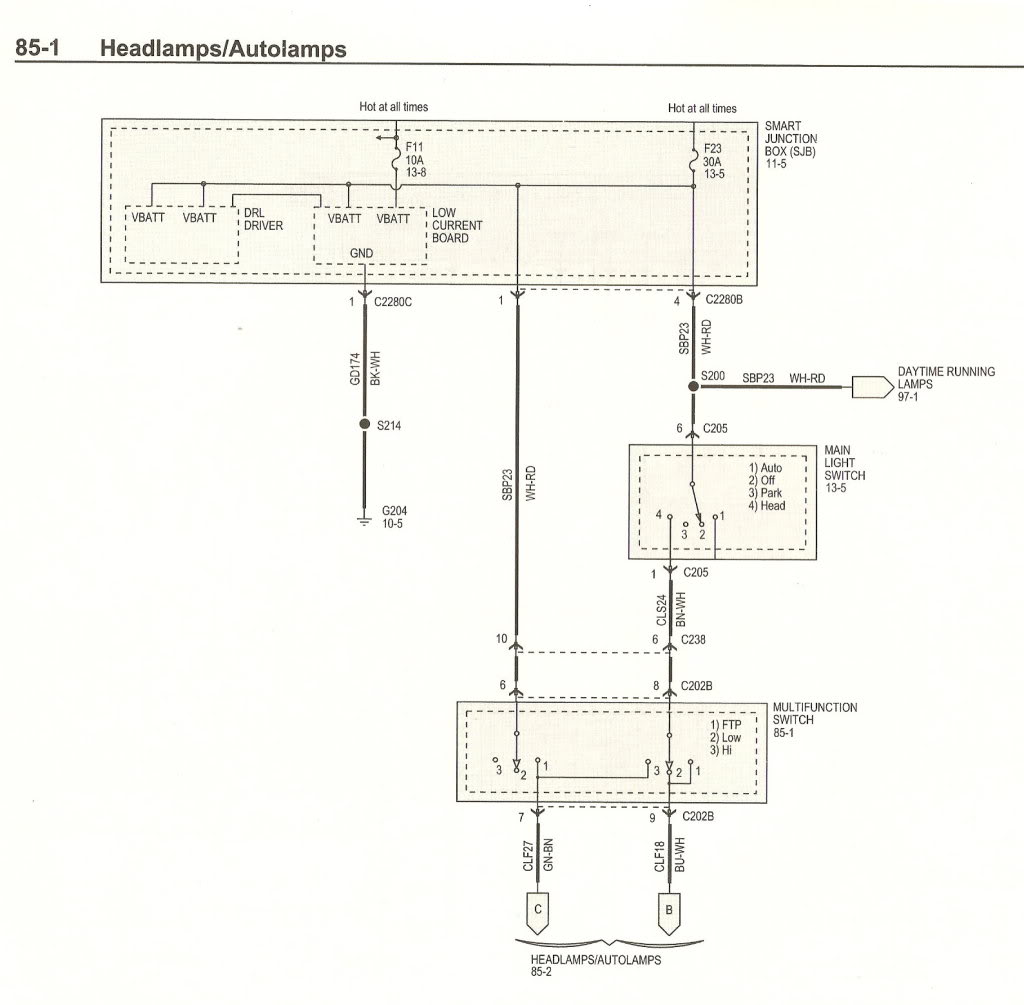

Name:  scan0005.jpg
Views: 0
Size:  118.1 KB

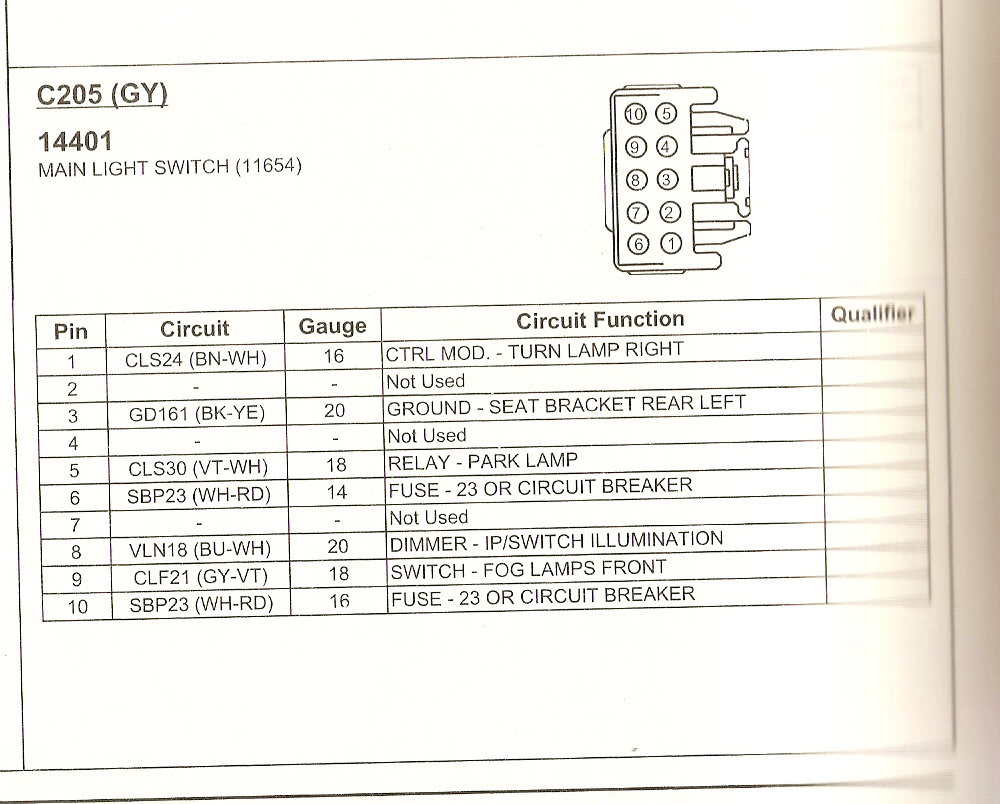

Name:  scan0004.jpg
Views: 0
Size:  79.0 KB
Reply With Quote
  #12
Old 05-21-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
The White/Red
Reply With Quote
  #13
Old 05-21-2009
GrafixGuy's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
* another note to add, the Green/blue wire that is stock on the 07+ is only a switch wire says from the wiring manual

[ Pin1 circut CLN28(GN-BU) 18 gauge SWITCH - DOME LAMP ]
Reply With Quote
  #14
Old 05-21-2009
GrafixGuy's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
here is the pics of my light...

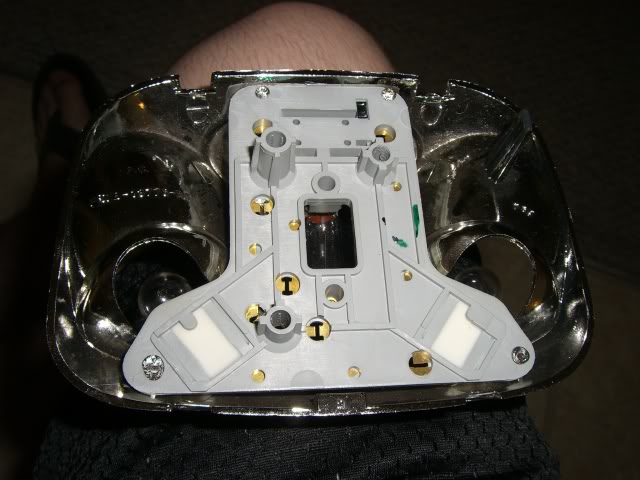

Name:  CIMG4864.jpg
Views: 1
Size:  82.1 KB

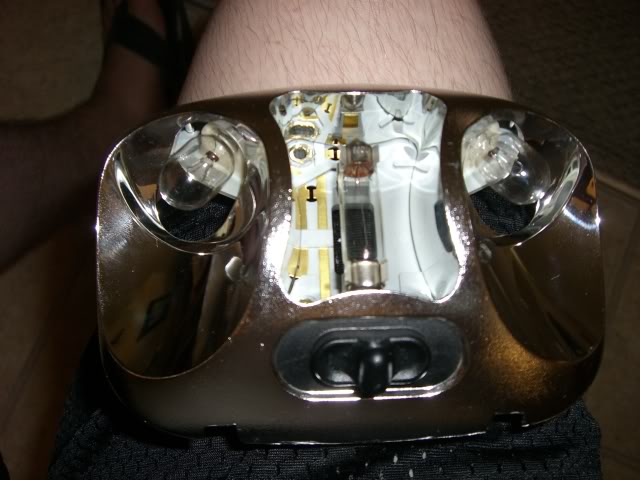

Name:  CIMG4865.jpg
Views: 1
Size:  75.5 KB

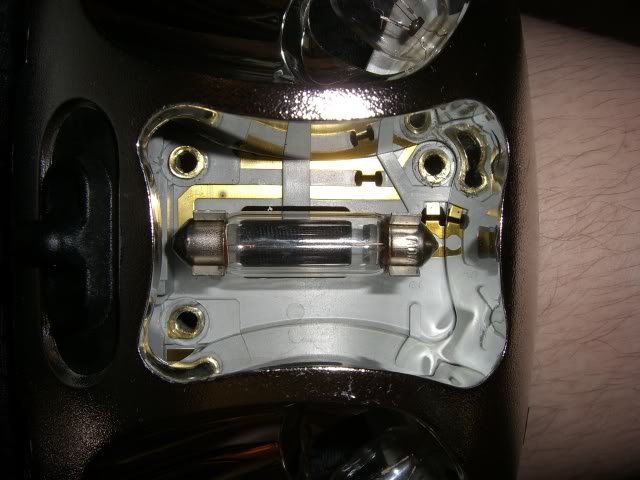

Name:  CIMG4866.jpg
Views: 4
Size:  78.7 KB

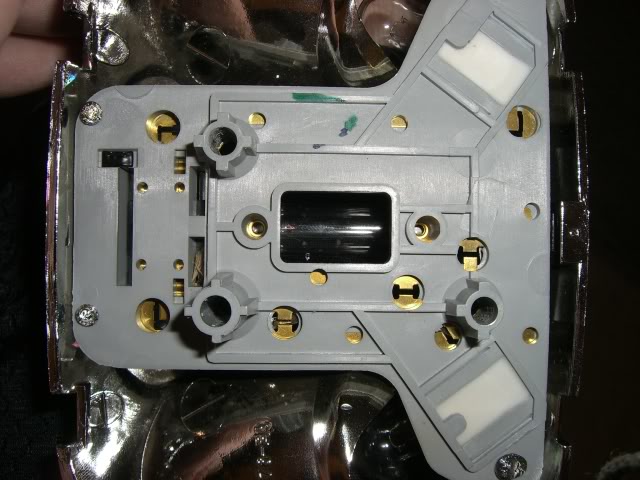

Name:  CIMG4867.jpg
Views: 0
Size:  91.4 KB
Reply With Quote
  #15
Old 05-21-2009
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
i can pick up a mustang light for ten bucks lol
Reply With Quote
  #16
Old 05-21-2009
GrafixGuy's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
I think I've got it, hope all goes well this time around...
Reply With Quote
  #17
Old 05-21-2009
GrafixGuy's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
it works now!!! got it just need a new center bulb, think its a festoon?
Reply With Quote
  #18
Old 05-21-2009
Blackonblackfx4's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Quote:
Originally Posted by GrafixGuy View Post
here is the pics of my light...





you my friend need SMD's

12-LED SMD HID WHITE T10 194 CAR DOME/ DOOR/ MAP LIGHT - (eBay.ca item 280348505041 end time 28-May-09 1600 EDT)
Reply With Quote
  #19
Old 05-21-2009
GrafixGuy's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
indeed thanks for the link!!!
