Were does this wire go?

I'm a dumass I disconnected a wire that I can't for the life of me remember were it connects to. I just got done replacing the starter, battery, starter relay switch and battery cables. After I got everything back in the truck I left the wiring alone for about two weeks cause I left town to go visit my family. When I got back I went to go put the wires back in got everything back together and then realized I had left a wire out not connected to anything and couldn't figure out what it was connected to. So I need some help I'm posting a picture of it I know its probably the most simplest thing but I'm just a dumass who can't get it. So would appreciate the help thanks. Its at this link. http://www.flickr.com/photos/2961270...61462/sizes/l/
Reply With Quote
  #2
Old 08-16-2008
FullThrottle02's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: McHenry,IL
Posts: 586
link bad.
Reply With Quote
  #3
Old 08-16-2008
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187

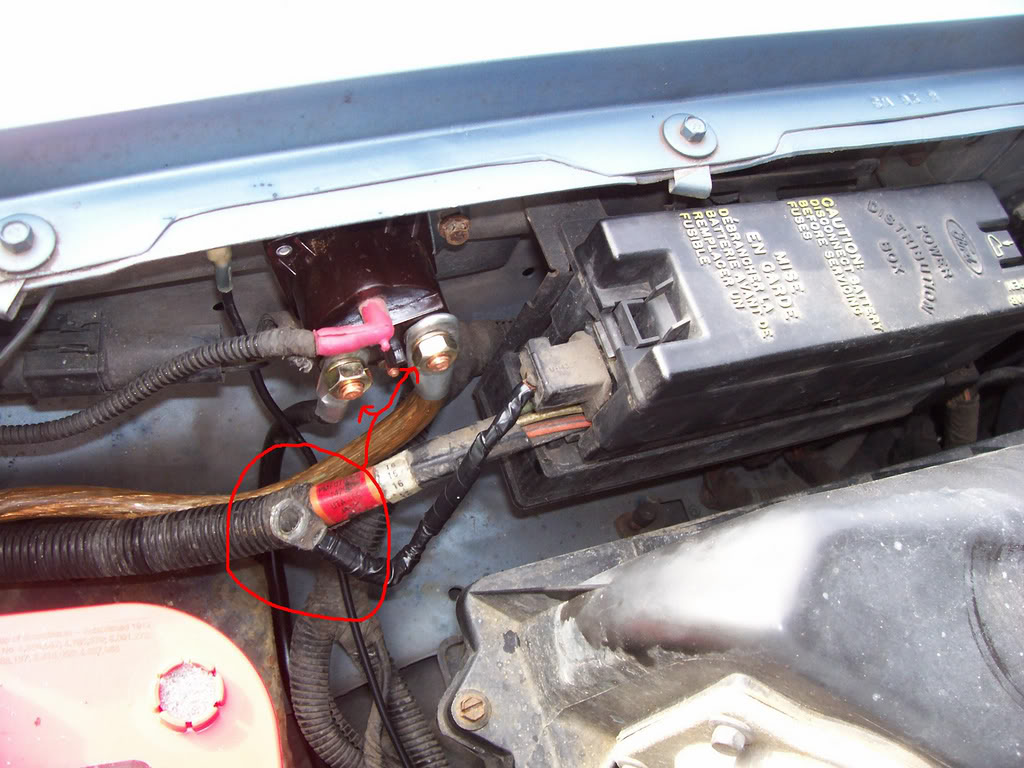

theres the image. idk about where that wire goes though. good luck
Name:  2768061462_f49a7ebe89_b.jpg
Views: 47
Size:  136.3 KB
Reply With Quote
  #4
Old 08-16-2008
chevyslayer925's Avatar
Member
iTrader: (4)

Join Date: Jan 2008
Location: Trexlertown,Pennslyvania
Posts: 1,293
im goin to say its a ground wire. . .my power box isnt in the same location so i cant honestly say
Reply With Quote
  #5
Old 08-16-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
I don't have a 90 manual but this is from 89:

Starter relay:

Front lug: positive battery cable and power distribution box cable
Rear lug: starter cable



Name:  2768061462_f49a7ebe89_b.jpg
Views: 364
Size:  136.3 KB
Reply With Quote
  #6
Old 08-16-2008
Shaklakan's Avatar
Member

Join Date: Jan 2008
Location: La Habra CA
Posts: 1,100
ill go and check right now for you i have the same year truck.
Reply With Quote
  #7
Old 08-16-2008
Shaklakan's Avatar
Member

Join Date: Jan 2008
Location: La Habra CA
Posts: 1,100
the wire coming from the distribution block goes to the positive side on the solenoid. From the looks of your picture you took you have the wires switched around because my positive side is on the left so for you it goes on the right side. Hope it helps.
Reply With Quote
  #8
Old 08-17-2008
BurningRANGERtires's Avatar
Member

Join Date: Jun 2008
Location: North Sin City, NV
Posts: 312
looks like two grounds are hooked up...
Reply With Quote
  #9
Old 08-17-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
just because its black...does not mean it's a ground....
Reply With Quote
  #10
Old 08-17-2008
J Hawks8's Avatar
Member

Join Date: May 2008
Location: WA
Posts: 76
looks like a positive, and goes right where your arrow is pointing
Reply With Quote
  #11
Old 08-30-2008
Member
Thread Starter

Join Date: Jul 2008
Location: Spring Hill, FL
Posts: 5
Thanks got it to work now i'm back up and running
Reply With Quote
  #12
Old 08-30-2008
02oregonedge+'s Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: OR!
Posts: 1,086
Which way did it go then?
Reply With Quote
