Wiring for hella lights.....

well i bought a set of hella 500s off a buddy at work for 20 bucks. only down fall was the lights came on with lights no wiring or nothing.

i have no idea what relay to buy or where to buy the wiring kit right from hella i got on there web sit but i cant find a place to order stuff. i could wire it all myself if i knew what relay to use.

thanks


Cam
Reply With Quote
  #2
Old 01-07-2011
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Just grab a 4 terminal relay from the parts store, just make sure the numbers on it'll match the ones in the Hella instructions. I think you can actually use a 5 pin too but not use the center pin?

Instructions are at the bottom of the page: Drivers | Hella USA and Canada
Reply With Quote
  #3
Old 01-07-2011
Downey's Avatar
RF Veteran
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
relays have different ratings just like fuses......
Reply With Quote
  #4
Old 01-07-2011
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Yes I know they do... but if you'd look at the instructions in the link I sent you'd see that there is a 15A fuse coming off the battery meaning you need a minimum 15A relay. Most are 30 or 40 amps anyways.
Reply With Quote
  #5
Old 01-07-2011
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Hellas come with 40amp relays.
Reply With Quote
  #6
Old 01-08-2011
Bird76Mojo's Avatar
Member
iTrader: (2)

Join Date: Dec 2009
Location: Central, IL.
Posts: 1,264
You can buy the wiring kit seperately. Just Google it. Autozone, Amazon, and other sites have the wiring kits. I've seen them before.

I may have a new kit laying around after buying replacement fog lights. I used my old wiring on the new lights.



GB :)
Reply With Quote
  #7
Old 01-08-2011
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
I have about 7 of those wireing kits with relays. All you need is buy a relay and make your harness. Its not hard.
Reply With Quote
  #8
Old 01-08-2011
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
It an easy wire if you just want to use a switch to activate them, instead of the headlights.

Chk out this thread:

https://www.ranger-forums.com/f59/au...-light-105901/,

I THINK it is self explanatory.

Always fuse for the lowest amperage component.
Always fuse power wires.
Alway run wire size one size larger than the total current of the circuit; (i.e. Main power for 20 amp circuit = 12-ga wire but use 10-ga just to make sure all is well. Power for relay/sw should be 18-ga min and use a fuse on that line too). the reason for larger wire is to make sure the lights get the most current they can handle allowing them to run as bright as possible.
Solder as many joints as possible and use Heat shrink on all connection with adhesive inside of the shrink.
Don’t use household wire from Ace or a hardware store to wire your vehicle, it will work harden and crack, causing you major headaches tracking it down.

Sorry got carried away, good luck on the wiring job…

ltr
Reply With Quote
  #9
Old 01-08-2011
Downey's Avatar
RF Veteran
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by Ford04Ranger4.0 View Post
Hellas come with 40amp relays.
thank you

Quote:
Originally Posted by Bird76Mojo View Post
You can buy the wiring kit seperately. Just Google it. Autozone, Amazon, and other sites have the wiring kits. I've seen them before.

I may have a new kit laying around after buying replacement fog lights. I used my old wiring on the new lights.



GB :)
i have been looking on line i cant find one anywhere link would be great.

Quote:
Originally Posted by Ford04Ranger4.0 View Post
I have about 7 of those wireing kits with relays. All you need is buy a relay and make your harness. Its not hard.
how about you send me one plz. i want matching switches

Quote:
Originally Posted by Scrambler82 View Post
It an easy wire if you just want to use a switch to activate them, instead of the headlights.

Chk out this thread:

https://www.ranger-forums.com/f59/au...-light-105901/,

I THINK it is self explanatory.

Always fuse for the lowest amperage component.
Always fuse power wires.
Alway run wire size one size larger than the total current of the circuit; (i.e. Main power for 20 amp circuit = 12-ga wire but use 10-ga just to make sure all is well. Power for relay/sw should be 18-ga min and use a fuse on that line too). the reason for larger wire is to make sure the lights get the most current they can handle allowing them to run as bright as possible.
Solder as many joints as possible and use Heat shrink on all connection with adhesive inside of the shrink.
Don’t use household wire from Ace or a hardware store to wire your vehicle, it will work harden and crack, causing you major headaches tracking it down.

Sorry got carried away, good luck on the wiring job…

ltr

thank you man
Reply With Quote
  #10
Old 01-08-2011
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Here's the wiring kit, but it'd be cheaper to just walk into Walmart and buy a new set of lights with the harness.

Hella H84994031 - Hella High Performance Lighting Harnesses - Overview - SummitRacing.com
Reply With Quote
  #11
Old 01-08-2011
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Here's a basic diagram for wiring fog lights:

Name:  1relay-diagram.jpg
Views: 6
Size:  33.2 KB

I would beef up the wiring to 16ga minimum & use a 30-40a relay with a 25-30a fuse. Of course, I always use larger diameter wire than necessary.

If you want to get real fancy.... you could use OEM fog switches to control your lights...
Name:  blue.jpg
Views: 7
Size:  107.6 KB

Name:  IMG_1142.jpg
Views: 8
Size:  63.5 KB

I make a wiring kit that converts the OEM fog switches to control basically any 12v light or accessory. I've got relays, OEM fog switches, aftermarket switches, crimp connectors, etc. If you need anything just let me know & I can put together a kit (minus the wire).
Reply With Quote
  #12
Old 01-09-2011
Member

Join Date: Nov 2010
Location: SD
Posts: 191
Very nice install.
Reply With Quote
  #13
Old 01-10-2011
Downey's Avatar
RF Veteran
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
damn dude nice. it would help tho if my truck had that radio bezel thanks for the wiring diagram.
Reply With Quote
  #14
Old 01-10-2011
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
I can mod a bezel for you

Mine started as an explorer bezel with 2 openings & I modded the bezel & bracket for the top switch.

Here's a little update to mine:

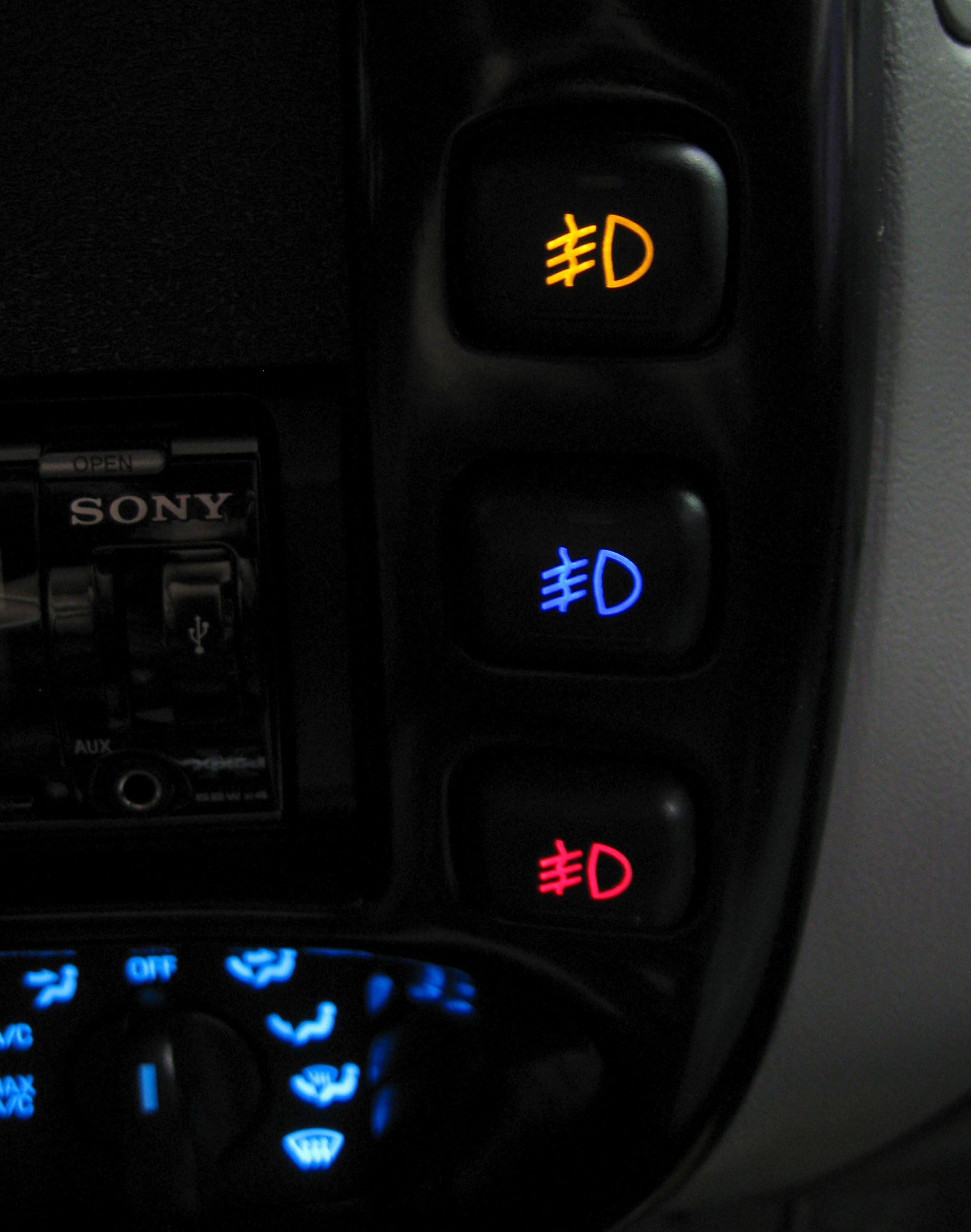

Name:  IMG_1422.jpg
Views: 9
Size:  463.5 KB
Just modded the top switch with yellow led.

The diagram isn't the best, but it's the first one I found. The wiring colors don't matter & may be different for most light kits.
Reply With Quote
  #15
Old 01-11-2011
Downey's Avatar
RF Veteran
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i dont have that kind of bezel i have a 94
Reply With Quote
  #16
Old 01-11-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by Bird76Mojo View Post
You can buy the wiring kit seperately. Just Google it. Autozone, Amazon, and other sites have the wiring kits. I've seen them before.

I may have a new kit laying around after buying replacement fog lights. I used my old wiring on the new lights.



GB :)
Forget wiring kits. i wired my own, just make sure each line has a fuseable link. i run 130W and only have a 10 amp fuse. single wire per light.
Reply With Quote
  #17
Old 01-14-2011
dadof2's Avatar
Member

Join Date: Sep 2010
Location: Olathe, KS
Posts: 43
Question, does the diagram above tie the Hellas to the existing headlights? We don't want the Hellas tied to the headlights, if at all possible. The instructions that came with the lights kind of suck.
Reply With Quote
  #18
Old 01-14-2011
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Quote:
Originally Posted by dadof2 View Post
Question, does the diagram above tie the Hellas to the existing headlights? We don't want the Hellas tied to the headlights, if at all possible. The instructions that came with the lights kind of suck.
No it doesnt.
Reply With Quote
  #19
Old 01-14-2011
skier2880's Avatar
Member
iTrader: (2)

Join Date: Feb 2009
Location: La Grande, OR
Posts: 320
Quote:
Originally Posted by dadof2 View Post
Question, does the diagram above tie the Hellas to the existing headlights? We don't want the Hellas tied to the headlights, if at all possible. The instructions that came with the lights kind of suck.
Then dont hook into the headlights. just use a hot source somewhere. i have four kc daylighters hooked up by switch and by the brights. so i can use them for either. you can do it however you want.
Reply With Quote
  #20
Old 01-14-2011
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
The only difference for wiring them to the headlights is the second 12V source.

Don't know why anyone would want them wired to the headlights anyway

EDIT: Eric beat me to it
Reply With Quote
  #21
Old 01-14-2011
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Quote:
Originally Posted by Downey View Post
i dont have that kind of bezel i have a 94
Crap!
I keep forgetting
Reply With Quote
  #22
Old 01-14-2011
skier2880's Avatar
Member
iTrader: (2)

Join Date: Feb 2009
Location: La Grande, OR
Posts: 320
Quote:
Originally Posted by 01RangerEdge View Post
The only difference for wiring them to the headlights is the second 12V source.

Don't know why anyone would want them wired to the headlights anyway

EDIT: Eric beat me to it
when im in the woods my brights turns them on. when im on the highway only the switch turns them on.
Reply With Quote
  #23
Old 01-14-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by skier2880 View Post
Then dont hook into the headlights. just use a hot source somewhere. i have four kc daylighters hooked up by switch and by the brights. so i can use them for either. you can do it however you want.
how did you run them to come on with brights? i'd be interested in doing that to mine.
Reply With Quote
  #24
Old 01-14-2011
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I just like having them on a separate switch.

OEM switch from Buggman
Reply With Quote
  #25
Old 01-14-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by buggman View Post
Crap!
I keep forgetting
i mounted my switches under the steering column, it was terribly easy and they're pretty convenient, you can even learn how to bump them on in a pinch with your knee! i'll post pics if y'all want.
