How-To: 02-04 Level II Tow hook modification for Body Lift.

How-To author: Redneckstone

Original thread: https://www.ranger-forums.com/f59/ho...y-lift-101681/


Let the modding Begin!!

_________________________







- First. these pictures are from multiple hooks at multiple times never planned on making a how to. I will NOT go threw the basics of welding, grinding and metal working in this how-to. if you do not know them you shouldn't be attempting this mod at all.


******NEVER ATTEMPT this mod unless you are skilled on metal work and welding. *******
- You could cause bodily harm to yourself or someone else if you welded or did any step wrong while using the hooks as designed.


- Credit for the original design goes to my Father Fred Stone for thinking up this design and making it work the first time.




- You will need grinders, cut off wheels, flapper wheels, drill, drill bits, welder. (plasma cutter optional)

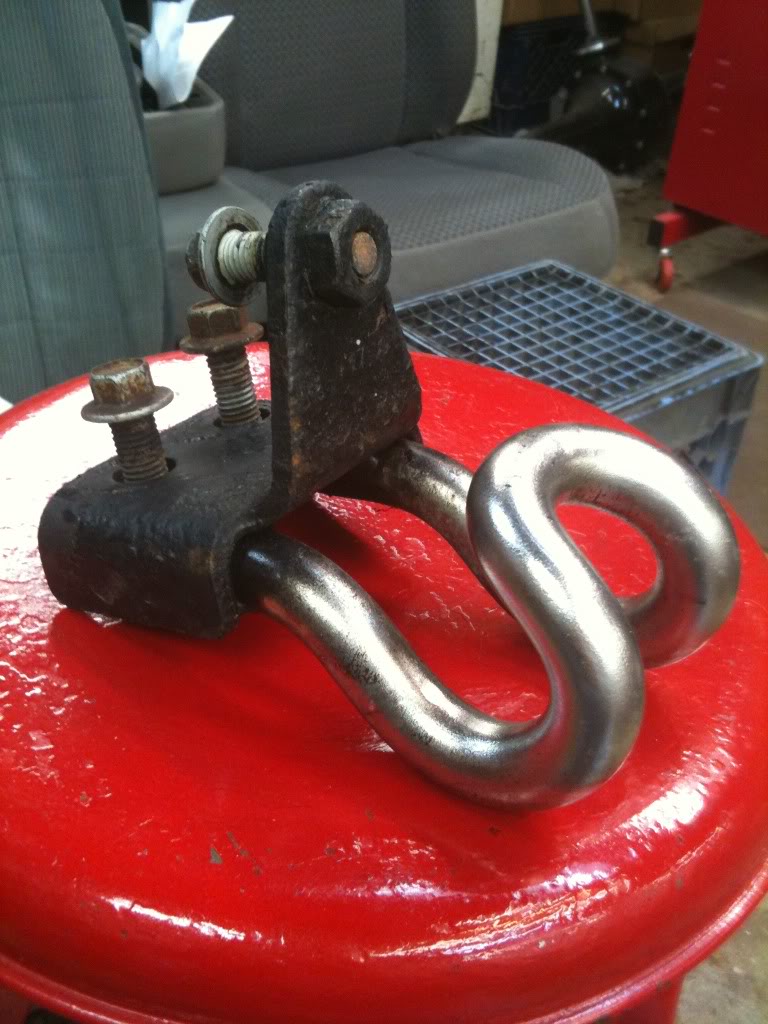

- First we start with a standard 02-04 level II tow hook. as shown











Name:  hookone.jpg
Views: 43
Size:  111.2 KB











- Next secure the hook to a work surface in my case I was working on my hitch at the time so it worked nicely.












Name:  hookseven.jpg
Views: 31
Size:  85.8 KB










- Ok now you will cut off the factory welds, with a cut off wheel or plasma cutter. Either will work FYI for cut off wheels, get a lot of them. Fords welds are horribly strong and take forever to get thru.













Name:  hooksix.jpg
Views: 29
Size:  165.4 KB











- Now you will need to make these pieces. first being the riser plate you will need 2. next is the supports, I match the same thickness of the level II bar. and bend it. you will need 4 of these.

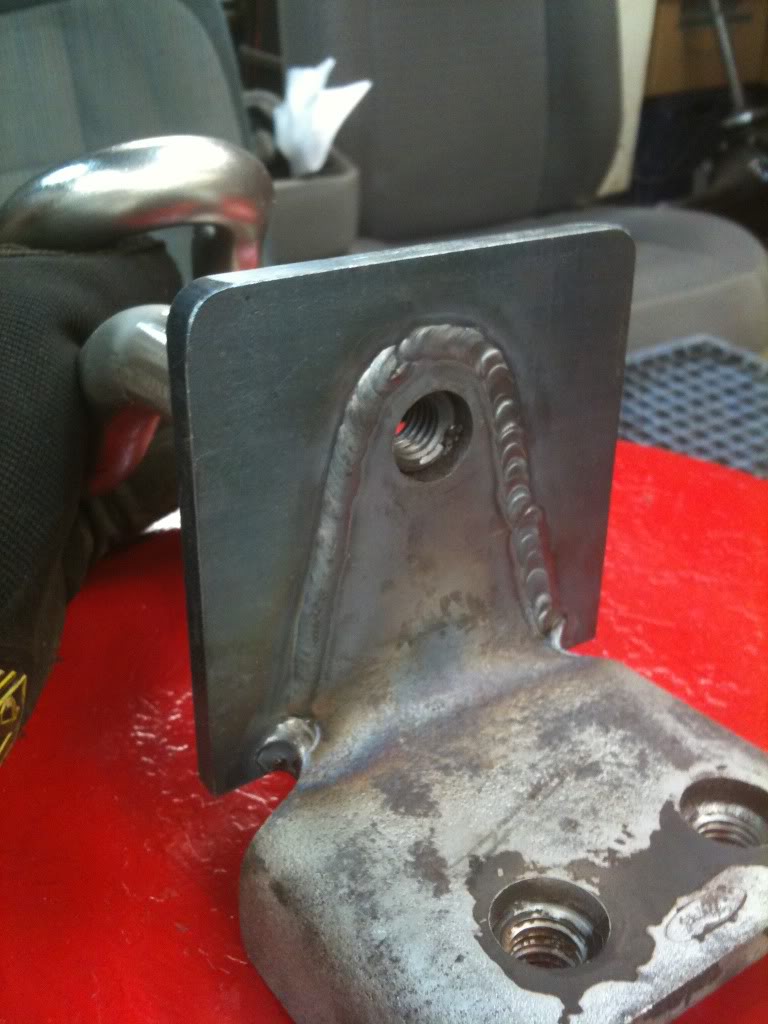

- Now bevel the hook bracket and the riser plate and weld up on both sides. **** Important on the back side surface grind the weld flat. Front doesn't matter.







Name:  hookthree.jpg
Views: 27
Size:  90.6 KB








- Now weld on the hook to the rise I usually do it slightly above the nut. tip drill a hole, recess, weld on both sides. grind back flat (in this picture its just tack welded on.)









Name:  hooktwo.jpg
Views: 27
Size:  92.8 KB

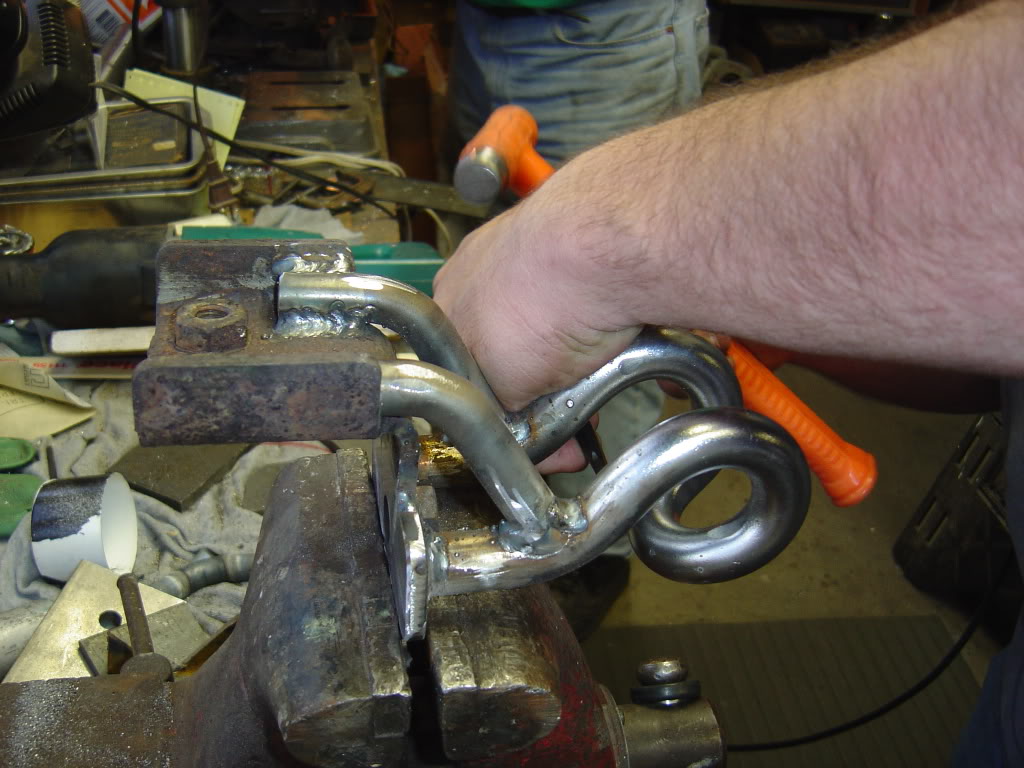

- Next you will need to weld on the supports like so.





Name:  DSC02602.jpg
Views: 28
Size:  123.3 KB

Name:  DSC02603.jpg
Views: 30
Size:  127.0 KB














- Paint.



Name:  DSC02611.jpg
Views: 29
Size:  99.5 KB








- And install. you will need to cut your valance for the supports. but not nearly as bad as hacking the valance if this was never done.





Name:  DSC02614.jpg
Views: 31
Size:  130.3 KB
