1997 Reg Cab Vinyl Bench

I have a 3.0 Reg Cab 1997 xl with Vinyl bench.

There's actually a decent yard near me that seems to have alot of Ranger seats.

What seat will actually bolt RIGHT UP, with NO modifications. I've seen the page that shows topaz, explorer and others and I assume they all need some type of mods.

Are there ANY Ranger seats, like the 60/40 Bench in 1992 to 1997 that will bolt right up, or is the only thing that will bolt right up, another Bench from that 1992 to 1997?

Sorry if I rambled there. I guess the main question is will 1997 (or 1994 etc.) 60/40 split bench, bolt right up to my truck? (I elaborated more above because I want to know if ANYTHING else bolts right up as well)...


PS - Not necessarily looking for an upgrade....this is more of a repair issue....the (i assume BIG) guy who had the truck prior literally collapsed the seat....so I'm riding around like a Midget.
Reply With Quote
  #2
Old 03-17-2011
Member
Thread Starter

Join Date: Dec 2010
Location: clinton, sc
Posts: 10
BUMP....lots of people answering the guy with the 99...... ??
Reply With Quote
  #3
Old 03-17-2011
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
with a solid bench, there are only 4 holes drilled in the floor. to put buckets in, you will have to drill two holes per seat (inner near trans tunnel). but once you have done that, up to 97 reg cab ranger seats will bolt right in. also, once you get 97 older reg cab seat tracks, you can use this list. they are all bolt in using the 97 reg cab seat tracks.

http://www.therangerstation.com/tech_library/Seats.html

I just put bronco II seats in my reg cab.
Name:  Image03062011155438.jpg
Views: 34
Size:  41.4 KB

bolted right up to the reg cab tracks, and right in the truck.

also, depending on what you are looking for, check out my for sale thread. i can recover them in almost any material or design you want.
https://www.ranger-forums.com/interior-exterior-electrical-misc-119/lots-seats-nc-115152/
Reply With Quote
  #4
Old 03-18-2011
Member
Thread Starter

Join Date: Dec 2010
Location: clinton, sc
Posts: 10
Quote:
Originally Posted by drppdyllwrngr View Post
with a solid bench, there are only 4 holes drilled in the floor. to put buckets in, you will have to drill two holes per seat (inner near trans tunnel). but once you have done that, up to 97 reg cab ranger seats will bolt right in. also, once you get 97 older reg cab seat tracks, you can use this list. they are all bolt in using the 97 reg cab seat tracks.

http://www.therangerstation.com/tech_library/Seats.html

I just put bronco II seats in my reg cab.


bolted right up to the reg cab tracks, and right in the truck.

also, depending on what you are looking for, check out my for sale thread. i can recover them in almost any material or design you want.
https://www.ranger-forums.com/showthread.php?t=115152
Great info! Thank you!


My bench seat is collapsed on the drivers side. It look slike it was nthing but the foam itself supporting the weight originally. How hard would it be to fix this?
Reply With Quote
  #5
Old 03-18-2011
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
they aren't bad to fix. i'll see if i can find some pics of a ranger bench i just fixed/sold.

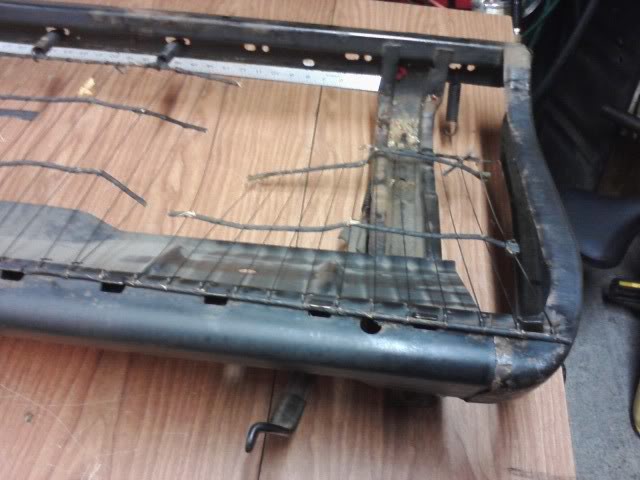

Before:
Name:  Image02102011192821-1.jpg
Views: 25
Size:  45.5 KB

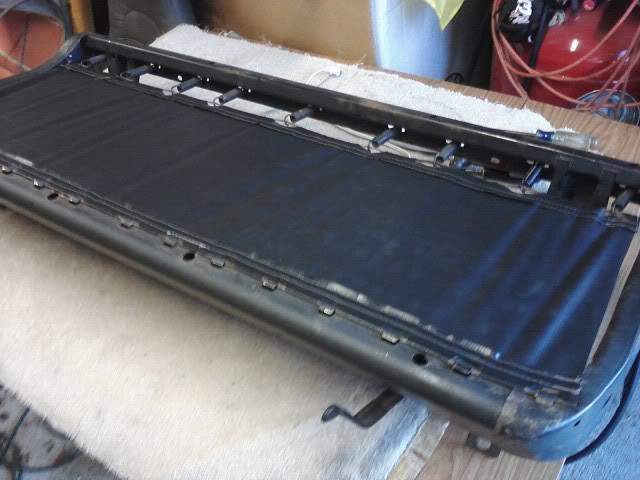

spring/wires replaced with a really heavy vinyl coated canvas. resistant to tearing.
Name:  Image02122011165201.jpg
Views: 25
Size:  47.7 KB

seat before: you can really see how the driver's bottom is sagging.
Name:  P6280557.jpg
Views: 137
Size:  47.8 KB

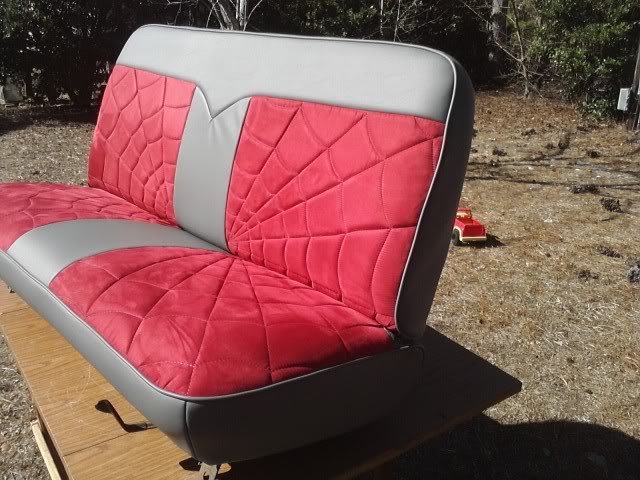

seat after:
Name:  Image02192011111048.jpg
Views: 29
Size:  72.2 KB

here is an s10 bench i did as well

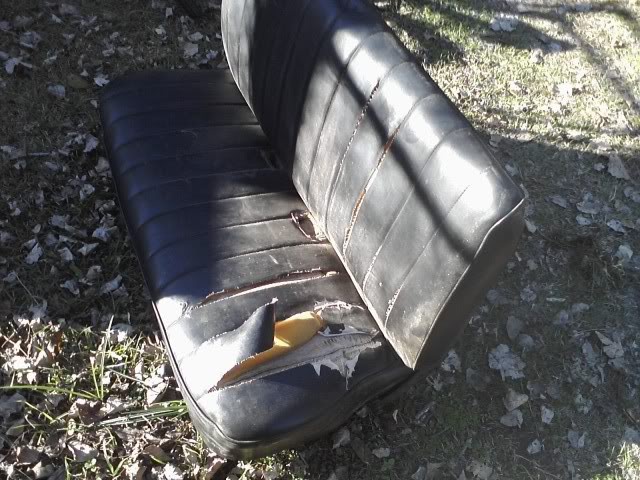

before:
Name:  Image11132010144001.jpg
Views: 26
Size:  83.3 KB

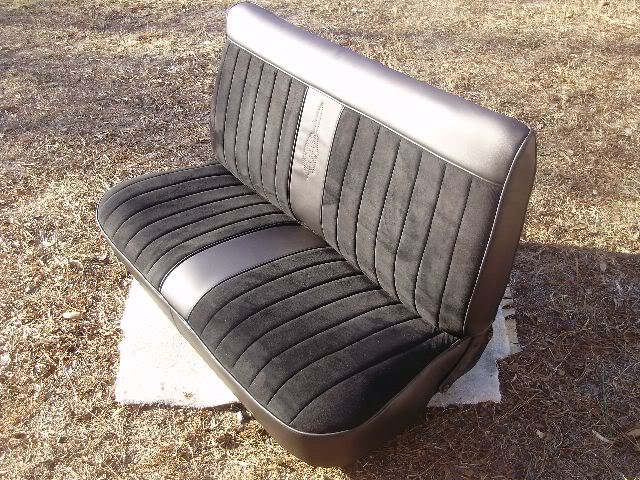

after:
Name:  PB250219.jpg
Views: 27
Size:  110.0 KB

I have fixed them from the point there wasn't any foam left. just the frame/springs.

Last edited by drppdyllwrngr; 03-18-2011 at 03:49 PM.
Reply With Quote
  #6
Old 03-21-2011
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Man I wish you lived closer, I would have you chop mine down and recover. You do good work drppdyllwrngr.
Reply With Quote
  #7
Old 03-22-2011
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Quote:
Originally Posted by <TX>TORKiT View Post
Man I wish you lived closer, I would have you chop mine down and recover. You do good work drppdyllwrngr.
thanks man. could always ship it!
Reply With Quote
  #8
Old 02-27-2013
Member

Join Date: Feb 2013
Location: Morrow oh
Posts: 20
How far will you ship?

How far are you willing to ship a seat and howmuchyou charge for your stuffs looking for a cheap bench seat
Reply With Quote
  #9
Old 02-28-2013
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
i've got seats all across the us. pm me with what you have in mind and i'll work up a price.
