Carbon Fiber Switch panel to Explorer Cargo Pocket Mod

I know this is such a simple questions and I hate to use space and post it but I don't know everyone yet and might as well post it.

I'm going to do the Explorer Full center console in the future and am going to want to cut out the Center storage piece and grab a sheet of carbon fiber and make a panel so I can mount some switches and mount my Rogue SCT Livewire system in the future. So my question for all you guys with the Full Explorer Center Console: What is the size or measurement of the opening for the cubby hole up past the cup holders?

I found a sheet of 11 by 12 inches on ebay and was hoping if that would be enough to slightly trim down. Thanks for the help guys!

Last edited by FRXLT; 05-27-2008 at 10:37 PM.
Reply With Quote
  #2
Old 05-19-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,832
The widest part of the opening on the cubby I have is 6 1/2". The height is also a max of 6 1/2" if you measure straight across the opening. If you were to take the curvature into account, it would probably be more like 7" max.
Reply With Quote
  #3
Old 05-19-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
you dont have to cut it out, it unscrews btw
Reply With Quote
  #4
Old 05-20-2008
Zs02Edge's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Ocala, Fl & Woodland, WA
Posts: 253
Quote:
Originally Posted by Redneckstone View Post
you dont have to cut it out, it unscrews btw
Depends on what style insert you have in the console. There's nothing to unscrew on the style I have, my cup holders and cubby are one piece that pops out.
Reply With Quote
  #5
Old 05-20-2008
Member
Thread Starter
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
Quote:
Originally Posted by Redneckstone View Post
you dont have to cut it out, it unscrews btw
I don't have one yet but from all the pics I see on ebay i think you are reff. to the whole piece. What I plan on doing is cut out the felt piece and piece in a flat panel (carbon fiber sheet) for mounting switches and my rouge livewire.
Reply With Quote
  #6
Old 05-20-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,832
On the cubby assembly that I have, the felt bucket itself unscrews from that part of the console trim.

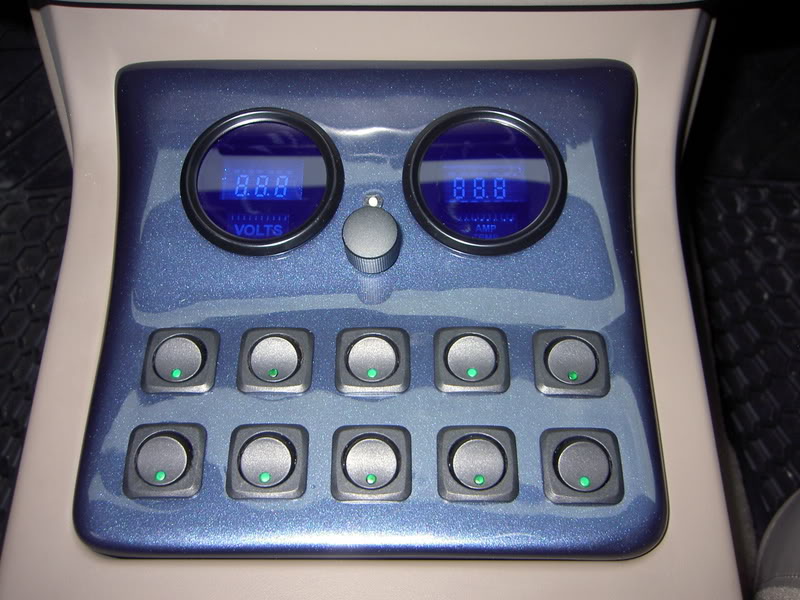

I know this isn't exactly what you had in mind but it might be worth a look anyway:
http://www.explorerforum.com/forums/...d.php?t=199794

Name:  PICT4259.jpg
Views: 4
Size:  93.8 KB
Reply With Quote
  #7
Old 05-20-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Now that is cool!
Reply With Quote
  #8
Old 05-20-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
yes i was talking about the one that has dual felt pockets un screws the newer style that is in like 2003+ sports and sport tracs are a little different..

\
Reply With Quote
  #9
Old 05-20-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,832
Quote:
Originally Posted by FRXLT View Post
I don't have one yet but from all the pics I see on ebay i think you are reff. to the whole piece. What I plan on doing is cut out the felt piece and piece in a flat panel (carbon fiber sheet) for mounting switches and my rouge livewire.

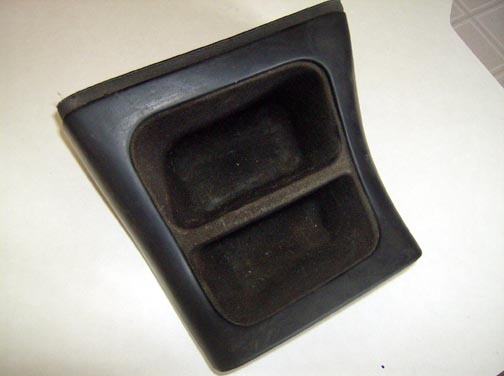

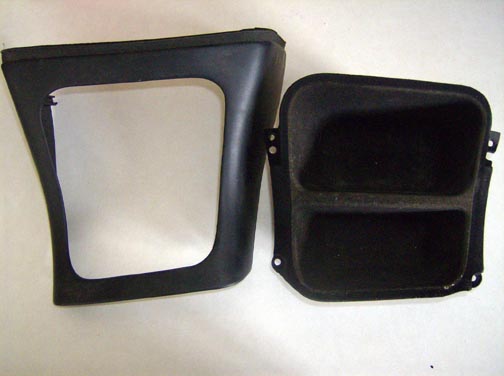

Here's a picture of one from a 2nd gen Explorer console - 1997 in this case. The bucket is held to the trim from underneath with 4 self tappers.
Attached Thumbnails
All Explorer Center Console Owners. Have a question?-cubby-insert-.jpg   All Explorer Center Console Owners. Have a question?-cubby-insert-parts.jpg
Reply With Quote
  #10
Old 05-20-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Yeah that fiberglass switch panel is amazing, I remember seeing that a while ago. That guys entire stereo build is super cool. I would love to build something to hold my CB and some switches.
Reply With Quote
  #11
Old 05-20-2008
Member
Thread Starter
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
Oh wow I never would have never known that the felt would come out that easy. Thought it was all molded in there and what not. Thanks for the help guys now I have some idea's of what to do.
Reply With Quote
  #12
Old 05-20-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
doubt us again and you will receive this >

been around a while sonny... lol
Reply With Quote
  #13
Old 05-21-2008
Member
Thread Starter
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
Quote:
Originally Posted by Redneckstone View Post
doubt us again and you will receive this >

been around a while sonny... lol
Yes Sir!

lol
Reply With Quote
  #14
Old 05-27-2008
Member
Thread Starter
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
Well I got my piece of carbon fiber in and I'm going to get one of the cargo pockets and do some fab work to make this thing work. The carbon fiber dose not have a clear coat on it which is good so after I done with all the cutting I will add the clear coat and sand and clear coat and sand and clear coat to get this thing looking nice. I plan to look for a radio bezel from ford or mazda to match as well. I'm not going to rush this process because I want it to look good. I am also going to get some painless switches to turn on some of my accessories I will put on down the road. Heres a pic of the carbon and what the switches look like. I found the switches in an issue of 4wheelparts. They put it in one of their project vehicles, the Camo tundra to be exact.


smooth side with flash


smooth side without flash


rough side with out flash


rough side with flash


painless switches


will also have this mounted above the switches.
Reply With Quote
  #15
Old 05-27-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Sweet, thats gonna be a cool project. Those Painless switches are gonna be pricy but they'll look great.
Reply With Quote
  #16
Old 05-27-2008
Member
Thread Starter
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
Quote:
Originally Posted by 04blackedge View Post
Sweet, thats gonna be a cool project. Those Painless switches are gonna be pricy but they'll look great.
Yea they are a little pricey but it will make it look pretty clean for what I am going after. If anyone has any suggestions I am open to any opinions and so forth as well.
