Billet Steering wheel installed with pics

I am starting on my interior this summer. To get the interior rolling I ordered a Billet Steering wheel on 5/23/2011. The manufacture is NRC it is the 108 Hawk 14 inch model with a light gray leather half wrap. NRC custom makes each wheel per order. It came in today so I pulled off the factory steering wheel and installed this piece of billet work. It is an easy job, it turned out pretty nice. The Lacerra adapter needs to be trimmed a little bit to let the adapter slide down the steering shaft another inch.

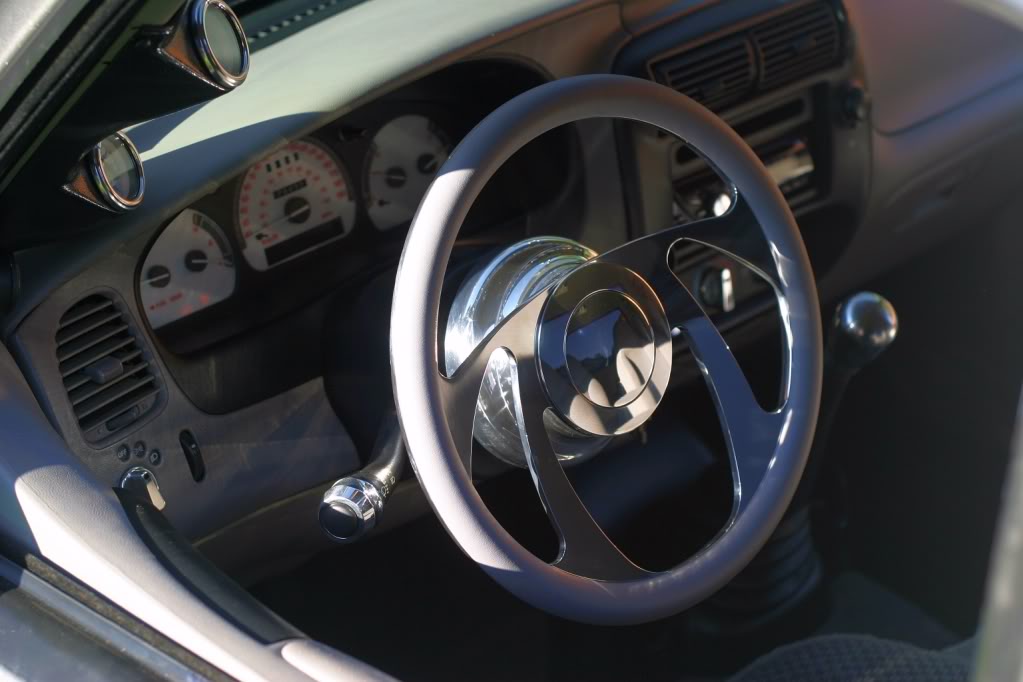

Name:  NRC2.jpg
Views: 113
Size:  68.9 KB

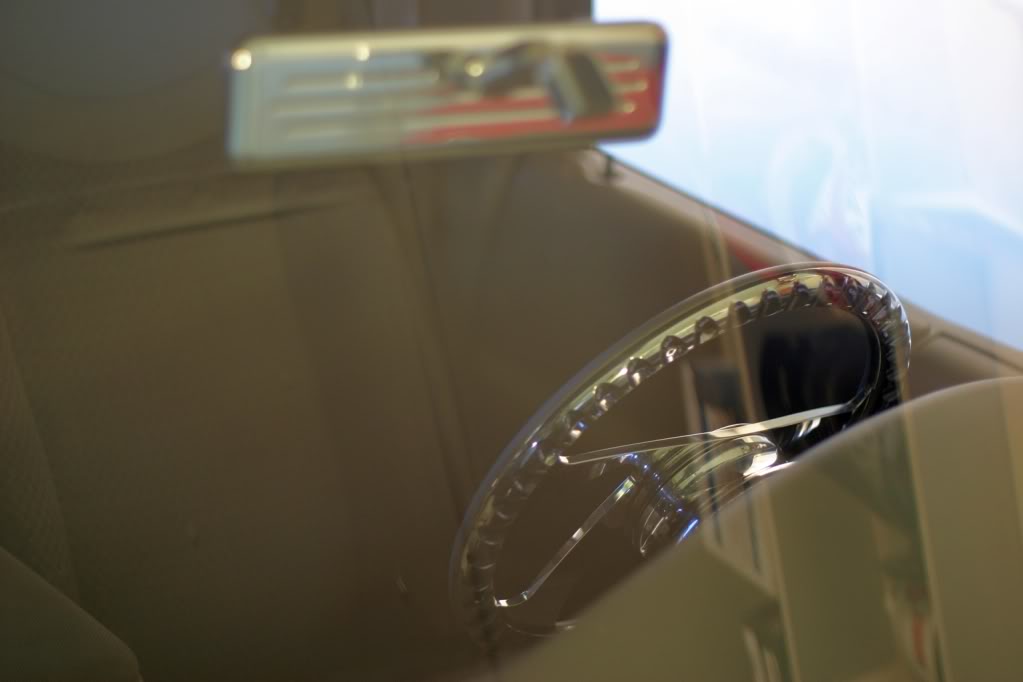

Name:  NRC1.jpg
Views: 31
Size:  35.6 KB

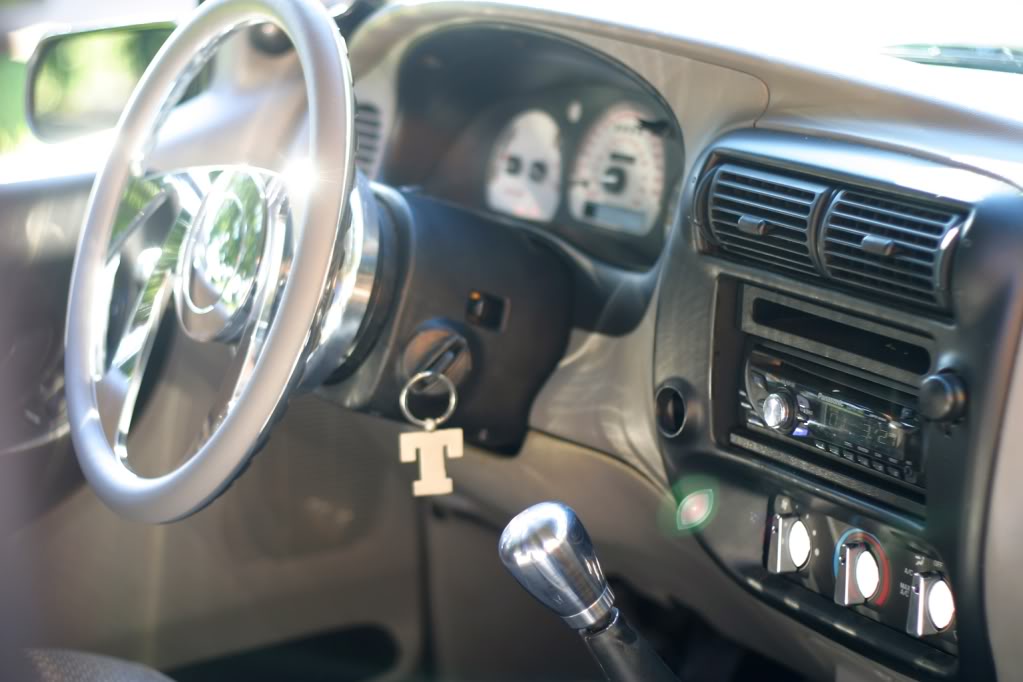

Name:  NRC3.jpg
Views: 54
Size:  74.1 KB

Last edited by <TX>TORKiT; 06-23-2011 at 09:58 PM.
Reply With Quote
  #2
Old 06-23-2011
Masteratarms93's Avatar
Member
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Why you still rocking the no tachometer gauges?
Reply With Quote
  #3
Old 06-23-2011
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
looks good. what did you do about the airbag?
Reply With Quote
  #4
Old 06-23-2011
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
You need a hurst shifter in that truck! It would really add to the look.
Reply With Quote
  #5
Old 06-23-2011
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
Looks really good! how hard was the install?
Reply With Quote
  #6
Old 06-23-2011
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Quote:
Originally Posted by Masteratarms93 View Post
Why you still rocking the no tachometer gauges?
I dont know, these white ones are working pretty good.

Quote:
Originally Posted by morris View Post
looks good. what did you do about the airbag?
Thanks Morris, the airbag is in my garage. Just unplug it, after you disconnect the battery. Peice of cake.

Quote:
Originally Posted by Sonic04Edge View Post
You need a hurst shifter in that truck! It would really add to the look.
I heard those Hurst shifters are noisy or something? Yes I do still want one.
Reply With Quote
  #7
Old 06-23-2011
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Casper all you need is a 8mm socket, and a T50 torx head. A couple hard shakes, pulls, and the stocker it is off. Slide the adapter on then tighten the T50, and bolt the wheel to the adapter with 8 allen head screws. The just push the horn button on. It is perfectly straight driving down the road too.
Reply With Quote
  #8
Old 06-23-2011
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
i meant the light on the dash, sorry.
Reply With Quote
  #9
Old 06-23-2011
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Lights on the dash, I am use to it. This mod adds one more. I heard if you pull the windshield wiper fuse it goes away. But have not tested this out yet.
Reply With Quote
  #10
Old 06-23-2011
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Quote:
Originally Posted by <TX>TORKiT View Post


I heard those Hurst shifters are noisy or something? Yes I do still want one.
They are a little noisy, but not bad and if your like me and listen to your music and a decent volume you wont here it. There is a silencing mod you can do. Its in the how to, but its not loud enough to bother me. I have one in the 04 and have one to go into the 98 soon.
Reply With Quote
  #11
Old 06-24-2011
hurley's Avatar
Member
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
not my cup of tea but it looks good
Reply With Quote
  #12
Old 06-24-2011
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
siiiiick
Reply With Quote
  #13
Old 06-25-2011
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Looks great!

I'd just pull the bulb out instead of sacrificing the wiper fuse
Reply With Quote
  #14
Old 06-25-2011
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
Paint the bulb black and re-install it. If you remove the airbag bulb, the door chime will chime (on most 95+ vehicles, especially Fords)
Reply With Quote
  #15
Old 06-26-2011
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Thanks guys. I was sent the wrong Lacerra adapter, 89-91 Ranger. It worked but it did not fit right. So today I trimmed and worked the dremel to modify the adapter. The results are better, the new steering wheel slides down on the column another inch.

The wiper fuse does not eliminate the light, but I have another plan I am about to go try out.
Reply With Quote
