custom center console


so i did the 60/40 to 40/40 seat conversion.

now my next project will be making a custom center console. what i want is, a place for a 10inch JL sub i bought today, and cup holders.

my questions are:

what else should i have?
how should i design it?
what kinds of center consoles do you guys have?
what do you wish yours had?

pics are a must!!

i will post pictures when its done. should take a few weeks till its done. wont be able to work on it till my friend whoes dad is Mr. wood-making-man is finished restoring his 197X BMW.

nice easy accessible cell phone holder

good call!!!

my stock console holds my phone perfectly right now.

I know this is damn near impossible, but try and find a Tremor center console with the built in sub from the factory (then upgrade the sup of course)

You said a spot for the sub and 2 cupholders, what about a spot for change?

This is what I did in my old truck. Worked great for me. Loud.
Attachment 163462

Personally, I wouldn't have done what he did above. It's to much of a common area. I would put the bass on the backside of the console facing inward or outward (probably outward). I was going to make my own console with an 8", but I never went through with it.

I built my own custom center console. It doesnt have a sub, but what it does have is abig cubby space up front that I love, is very convenient. I have a little slot for my IPOD where the chord can come up from underneath to plug it into my head unit. It also has a huge storage space under the armrest. The biggest flaw is the cup holders are one size, which is too small for a lot of drinks. I need to work out a better design for them. And it is rhino lined which makes it durable and easy to touch up.
Attachment 163445
Attachment 163446
Attachment 163447
Attachment 163448
Started out like this made out of 1/2" MDF
Attachment 163449

Now that is a nice console.

x2

thats pretty kool. mdf then what? just paint?

Bedliner I think.

I actually attempted to fiberglass it, but I couldnt get it smooth, so I just bedlined it. Thats why there are some ins and outs. I learned a lot in the process though. I love it though, very useful and durable, and I was able to make use of the factory armrest, which with the old console was sagging a lot.

well I finished mine at 7pm today, it's really cool and nice lookin. I'll post the pictures when I get home. But let me tell you, it includes bullet proof glass. :))

Jacob: How did you fasten it all together? With a framing stapler, screws, finish nails? I see some screw heads, but I'm just curious if that's how you did it.

I want to make one for my Ranger, but I am not sure how I want to put it together, and what all to include as of yet. Still thinking about it.

yeah, thats bullet proof glass. came right out of a liquor store. everything was made out of scrap, and spare. i will be taking the bullet proof off, and painting it with bedliner, and then puting the glass back on. i ordered LEDs tonight, that will go under the frosted glass. should look really nice. im thinking of wiring it up so the LEDs flash with the music. should look awesome.

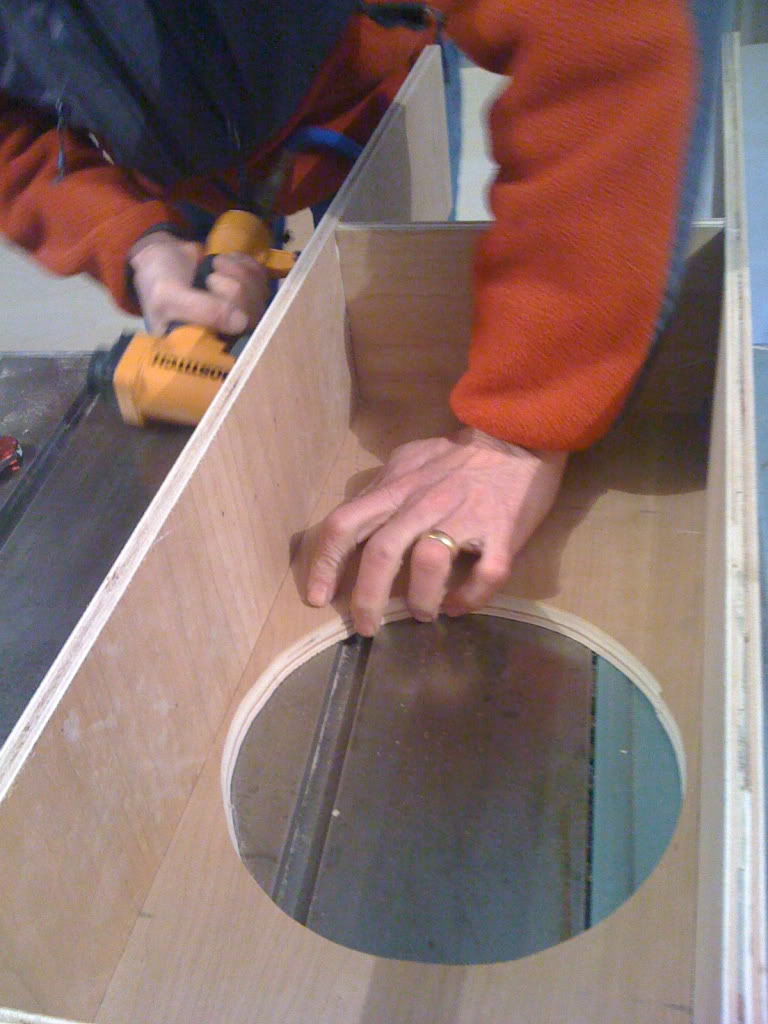

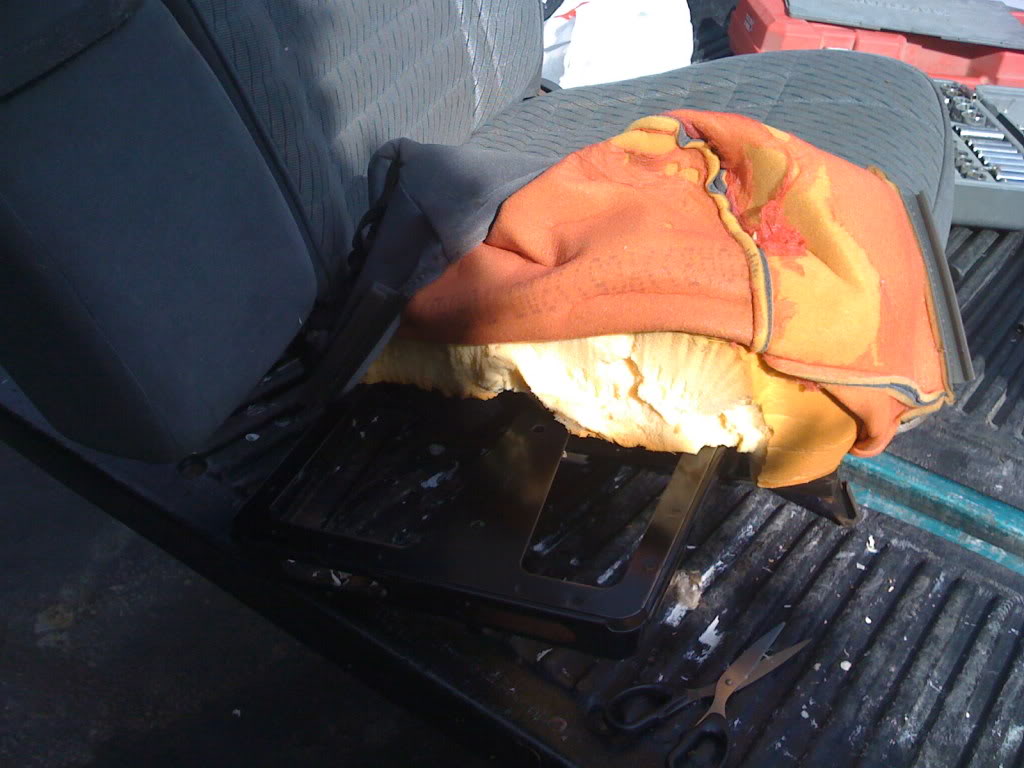

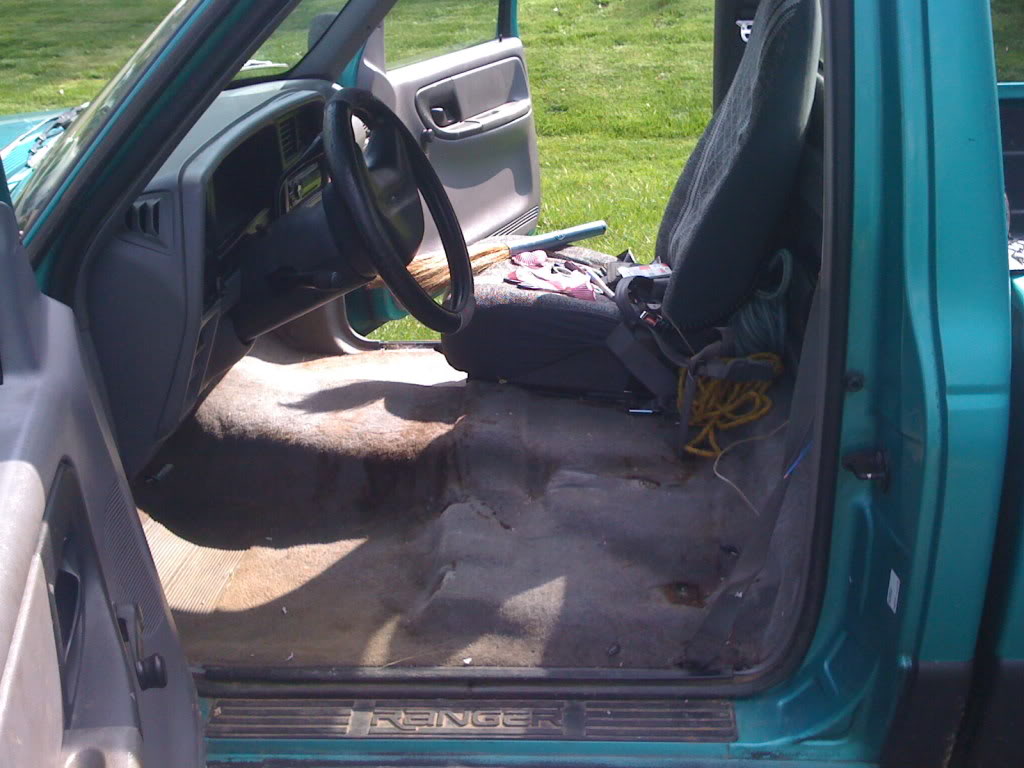

the 60/40 to 40/40 took a hour and 40 some min, shown from the iphone screen shot. and the sub box, took a hell of a lot more time. not sure how long exactly. about 3-4 hours though. the sub slams hard. at 200 rms, its plenty bass for my needs.

the two holes in thr glass, are cup holders. just above the cup holders, is a storage place. it about 4 inches deep, and looks like it can become very helpfull.

TOTAL COST: $00.00
IMG]http://i618.photobucket.com/albums/tt268/ashikxbox/40%2040%20seat%20and%20sub%20box%20making/IMG_0117.jpg[/IMG]
Attachment 163219
Attachment 163220
Attachment 163221
http://i618.photobucket.com/albums/t...g/IMG_0121.jpg
Attachment 163222
Attachment 163223
Attachment 163224
Attachment 163225
Attachment 163226
Attachment 163227
Attachment 163228
Attachment 163229
Attachment 163230
Attachment 163231
Attachment 163232
http://i618.photobucket.com/albums/t...g/IMG_0130.jpg
Attachment 163233
Attachment 163234
Attachment 163235

Attachment 163236
Attachment 163237
Attachment 163238

Not bad, How did you ever cut holes in the glass?

also, Run a router down all the edges to round them off before your done. That will look alot cleaner.

And it might look cool if you finished it off, stained it, and put a good gloss coat on there.

And I think adding a piece to the side, run it against the glass up to the top edge. That would look good I think.

http://i257.photobucket.com/albums/h...10usa/idea.png

i like the frosted look. i frosted everything but where you can see the sub. so you can see the sub really bump.

the glass took a drill press, and one 3.5 inch metal hole saw.

No the frosted looks good, I was saying stain and gloss the wood. I added to my post too.

I used wood glue and drywall screws. The screws arent really necessary in the end, mainly just hold it all together til the glue dries. Make sure to counter sink them though, deep so they are below the surface.

Be careful with those finish nailers, I shot my pinky when I was younger.
it was a long nail, it went through the wood curved and came out where i had my finger.

i let my friends dad do all of the nail gun stuff.

i was planing on spraying the wood with bed liner. the same stuff i have on my bumper, lightbar, and body.

soon im going to do the door panels and also maybe the dash. ( just dont know how to take the dash out)

Thats not classy!
jk bedliner will look good.

What are you talking about bed liner is classy as hell thats why I put bed liner on the dining room table


Console looks good
