custom center console

so i did the 60/40 to 40/40 seat conversion.

now my next project will be making a custom center console. what i want is, a place for a 10inch JL sub i bought today, and cup holders.

my questions are:

what else should i have?
how should i design it?
what kinds of center consoles do you guys have?
what do you wish yours had?

pics are a must!!

i will post pictures when its done. should take a few weeks till its done. wont be able to work on it till my friend whoes dad is Mr. wood-making-man is finished restoring his 197X BMW.
Reply With Quote
  #2
Old 04-10-2009
The_Punisher's Avatar
Member

Join Date: Feb 2009
Location: Chino Hills, CA
Posts: 438
nice easy accessible cell phone holder
Reply With Quote
  #3
Old 04-10-2009
monkeysteeler12's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: vienna va
Posts: 663
good call!!!
Reply With Quote
  #4
Old 04-10-2009
Ace's Avatar
Ace Ace is offline
Member
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
my stock console holds my phone perfectly right now.
Reply With Quote
  #5
Old 04-10-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
I know this is damn near impossible, but try and find a Tremor center console with the built in sub from the factory (then upgrade the sup of course)
Reply With Quote
  #6
Old 04-11-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
You said a spot for the sub and 2 cupholders, what about a spot for change?
Reply With Quote
  #7
Old 04-11-2009
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
This is what I did in my old truck. Worked great for me. Loud.
Name:  IMG_1611.jpg
Views: 368
Size:  114.7 KB
Reply With Quote
  #8
Old 04-11-2009
hougy's Avatar
Member

Join Date: Jul 2005
Location: Cobb, GA
Posts: 206
Personally, I wouldn't have done what he did above. It's to much of a common area. I would put the bass on the backside of the console facing inward or outward (probably outward). I was going to make my own console with an 8", but I never went through with it.
Reply With Quote
  #9
Old 04-11-2009
ClemsonRanger03's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Clemson, SC
Posts: 804
I built my own custom center console. It doesnt have a sub, but what it does have is abig cubby space up front that I love, is very convenient. I have a little slot for my IPOD where the chord can come up from underneath to plug it into my head unit. It also has a huge storage space under the armrest. The biggest flaw is the cup holders are one size, which is too small for a lot of drinks. I need to work out a better design for them. And it is rhino lined which makes it durable and easy to touch up.
Name:  DSCF0659.jpg
Views: 43
Size:  136.1 KB
Name:  DSCF0662.jpg
Views: 44
Size:  82.7 KB
Name:  DSCF0661.jpg
Views: 82
Size:  114.9 KB
Name:  DSCF0664.jpg
Views: 42
Size:  153.2 KB
Started out like this made out of 1/2" MDF
Name:  DSCF0184.jpg
Views: 43
Size:  92.6 KB
Reply With Quote
  #10
Old 04-11-2009
Ray_Welder's Avatar
Member

Join Date: Jan 2008
Location: Zephyrhills, FLorida
Posts: 1,037
Now that is a nice console.
Reply With Quote
  #11
Old 04-11-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Quote:
Originally Posted by Ray_Welder View Post
Now that is a nice console.
x2
Reply With Quote
  #12
Old 04-11-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
thats pretty kool. mdf then what? just paint?
Reply With Quote
  #13
Old 04-11-2009
Ray_Welder's Avatar
Member

Join Date: Jan 2008
Location: Zephyrhills, FLorida
Posts: 1,037
Quote:
Originally Posted by shadow905 View Post
thats pretty kool. mdf then what? just paint?
Bedliner I think.
Reply With Quote
  #14
Old 04-11-2009
ClemsonRanger03's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Clemson, SC
Posts: 804
I actually attempted to fiberglass it, but I couldnt get it smooth, so I just bedlined it. Thats why there are some ins and outs. I learned a lot in the process though. I love it though, very useful and durable, and I was able to make use of the factory armrest, which with the old console was sagging a lot.
Reply With Quote
  #15
Old 04-11-2009
monkeysteeler12's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: vienna va
Posts: 663
well I finished mine at 7pm today, it's really cool and nice lookin. I'll post the pictures when I get home. But let me tell you, it includes bullet proof glass. :))
Reply With Quote
  #16
Old 04-11-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Jacob: How did you fasten it all together? With a framing stapler, screws, finish nails? I see some screw heads, but I'm just curious if that's how you did it.

I want to make one for my Ranger, but I am not sure how I want to put it together, and what all to include as of yet. Still thinking about it.
Reply With Quote
  #17
Old 04-11-2009
monkeysteeler12's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: vienna va
Posts: 663
yeah, thats bullet proof glass. came right out of a liquor store. everything was made out of scrap, and spare. i will be taking the bullet proof off, and painting it with bedliner, and then puting the glass back on. i ordered LEDs tonight, that will go under the frosted glass. should look really nice. im thinking of wiring it up so the LEDs flash with the music. should look awesome.

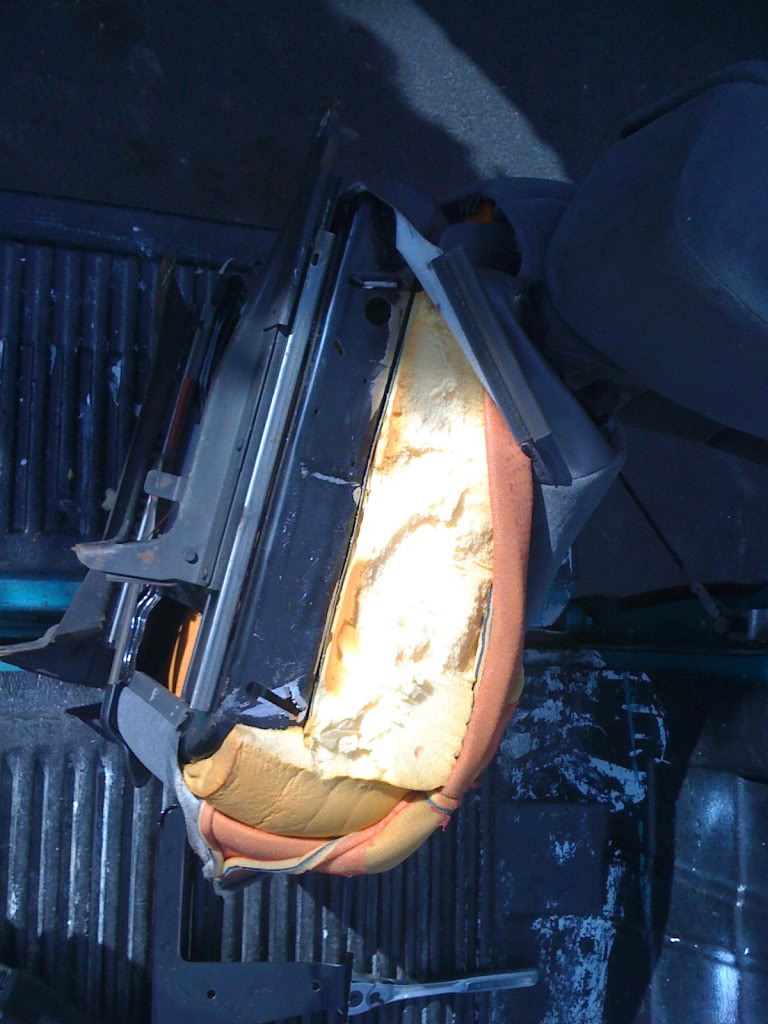

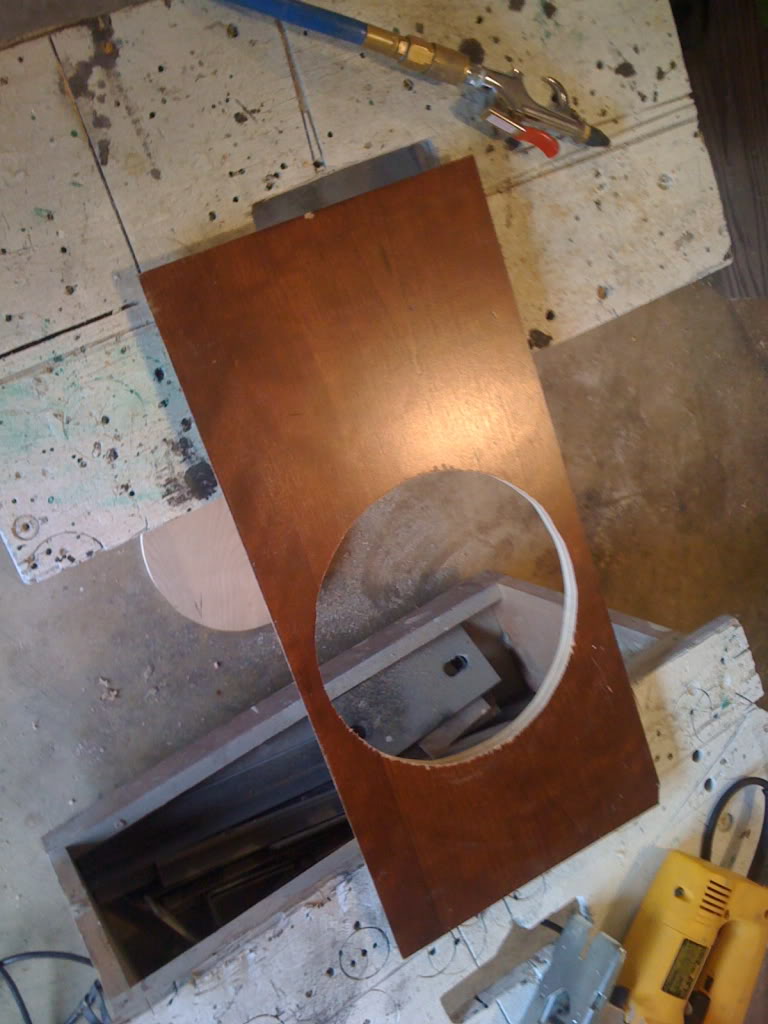

the 60/40 to 40/40 took a hour and 40 some min, shown from the iphone screen shot. and the sub box, took a hell of a lot more time. not sure how long exactly. about 3-4 hours though. the sub slams hard. at 200 rms, its plenty bass for my needs.

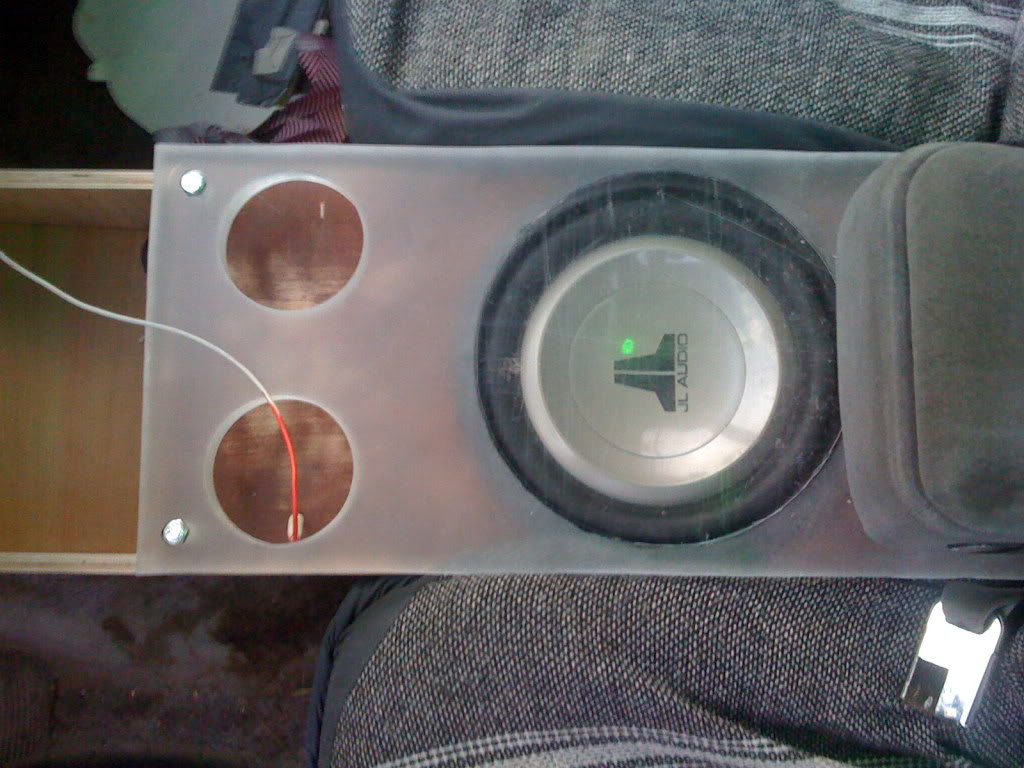

the two holes in thr glass, are cup holders. just above the cup holders, is a storage place. it about 4 inches deep, and looks like it can become very helpfull.

TOTAL COST: $00.00
IMG]http://i618.photobucket.com/albums/tt268/ashikxbox/40%2040%20seat%20and%20sub%20box%20making/IMG_0117.jpg[/IMG]
Name:  IMG_0116.jpg
Views: 44
Size:  118.8 KB
Name:  IMG_0119.jpg
Views: 42
Size:  97.4 KB
Name:  IMG_0118.jpg
Views: 44
Size:  107.0 KB

Name:  IMG_0120.jpg
Views: 44
Size:  103.2 KB
Name:  IMG_0122.jpg
Views: 44
Size:  144.7 KB
Name:  IMG_0006.png
Views: 44
Size:  26.6 KB
Name:  IMG_0124.jpg
Views: 43
Size:  104.1 KB
Name:  IMG_0123.jpg
Views: 43
Size:  95.8 KB
Name:  IMG_0126.jpg
Views: 43
Size:  108.8 KB
Name:  IMG_0125.jpg
Views: 43
Size:  104.0 KB
Name:  IMG_0128.jpg
Views: 43
Size:  114.6 KB
Name:  IMG_0127.jpg
Views: 43
Size:  103.1 KB
Name:  IMG_0129.jpg
Views: 43
Size:  99.9 KB
Name:  IMG_0131.jpg
Views: 43
Size:  97.4 KB

Name:  IMG_0133.jpg
Views: 43
Size:  86.7 KB
Name:  IMG_0132.jpg
Views: 44
Size:  79.3 KB
Name:  IMG_0135.jpg
Views: 46
Size:  119.0 KB

Name:  IMG_0134.jpg
Views: 43
Size:  78.1 KB
Name:  IMG_0137.jpg
Views: 44
Size:  89.1 KB
Name:  IMG_0136.jpg
Views: 43
Size:  81.7 KB
Reply With Quote
  #18
Old 04-12-2009
Ray_Welder's Avatar
Member

Join Date: Jan 2008
Location: Zephyrhills, FLorida
Posts: 1,037
Not bad, How did you ever cut holes in the glass?

also, Run a router down all the edges to round them off before your done. That will look alot cleaner.

And it might look cool if you finished it off, stained it, and put a good gloss coat on there.

And I think adding a piece to the side, run it against the glass up to the top edge. That would look good I think.


Last edited by Ray_Welder; 04-12-2009 at 12:14 AM.
Reply With Quote
  #19
Old 04-12-2009
monkeysteeler12's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: vienna va
Posts: 663
i like the frosted look. i frosted everything but where you can see the sub. so you can see the sub really bump.

the glass took a drill press, and one 3.5 inch metal hole saw.
Reply With Quote
  #20
Old 04-12-2009
Ray_Welder's Avatar
Member

Join Date: Jan 2008
Location: Zephyrhills, FLorida
Posts: 1,037
Quote:
Originally Posted by monkeysteeler12 View Post
i like the frosted look. i frosted everything but where you can see the sub. so you can see the sub really bump.

the glass took a drill press, and one 3.5 inch metal hole saw.
No the frosted looks good, I was saying stain and gloss the wood. I added to my post too.
Reply With Quote
  #21
Old 04-12-2009
ClemsonRanger03's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Clemson, SC
Posts: 804
Quote:
Originally Posted by Jimmeh View Post
Jacob: How did you fasten it all together? With a framing stapler, screws, finish nails? I see some screw heads, but I'm just curious if that's how you did it.

I want to make one for my Ranger, but I am not sure how I want to put it together, and what all to include as of yet. Still thinking about it.
I used wood glue and drywall screws. The screws arent really necessary in the end, mainly just hold it all together til the glue dries. Make sure to counter sink them though, deep so they are below the surface.
Reply With Quote
  #22
Old 04-12-2009
Ray_Welder's Avatar
Member

Join Date: Jan 2008
Location: Zephyrhills, FLorida
Posts: 1,037
Be careful with those finish nailers, I shot my pinky when I was younger.
it was a long nail, it went through the wood curved and came out where i had my finger.
Reply With Quote
  #23
Old 04-12-2009
monkeysteeler12's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: vienna va
Posts: 663
i let my friends dad do all of the nail gun stuff.

i was planing on spraying the wood with bed liner. the same stuff i have on my bumper, lightbar, and body.

soon im going to do the door panels and also maybe the dash. ( just dont know how to take the dash out)
Reply With Quote
  #24
Old 04-12-2009
Ray_Welder's Avatar
Member

Join Date: Jan 2008
Location: Zephyrhills, FLorida
Posts: 1,037
Quote:
Originally Posted by monkeysteeler12 View Post
i let my friends dad do all of the nail gun stuff.

i was planing on spraying the wood with bed liner. the same stuff i have on my bumper, lightbar, and body.

soon im going to do the door panels and also maybe the dash. ( just dont know how to take the dash out)
Thats not classy!
jk bedliner will look good.
Reply With Quote
  #25
Old 12-02-2010
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
What are you talking about bed liner is classy as hell thats why I put bed liner on the dining room table


Console looks good
