A Few More Pics

My one-of-a-kind OAK floor console.

Some PVC pipe made perfect cup holders, MUCH better than those flimsy plastic things FORD called cup holders.

The red button is for the wimpy air horn. It sounds more like an old lady farting than an air horn.

The two switches on the left are unused, but were connected to my fog & back up lights.

The switch on the right controls the 3 outlets (the back one has my radar detector plugged in). I'm able to use the outlets even if the truck is off, as long as the switch is on.
Those wooden tinker toy looking things in the outlets are made from oak. I drop them in any unused outlet to keep stuff from falling in there (like coins).

The storage area in back holds a TON of junk & keeps it mostly hidden.

The area below the switches & outlets is separated from the storage & cup holders. It hides my wiring & makes it pretty easy to access, just 4 screws and the entire top comes off.

The wiring is hidden & everything coming into or out of the console is covered in wire loom.









Glove box mod.

I ground off some of the OEM light bracket plastic housing thing so more of the LED light would shine down & towards the front of the glove box.
Most of the light from the LED still goes out the front.

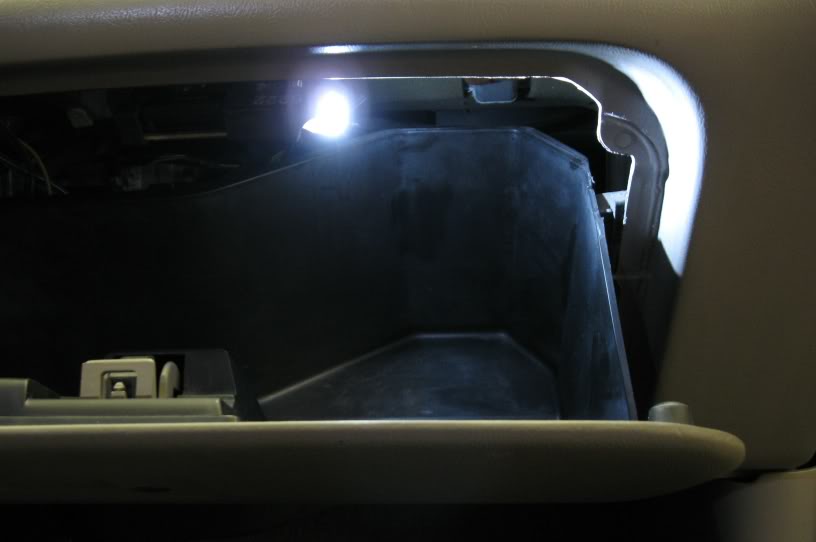

Name:  glovebox1.jpg
Views: 2
Size:  27.6 KB

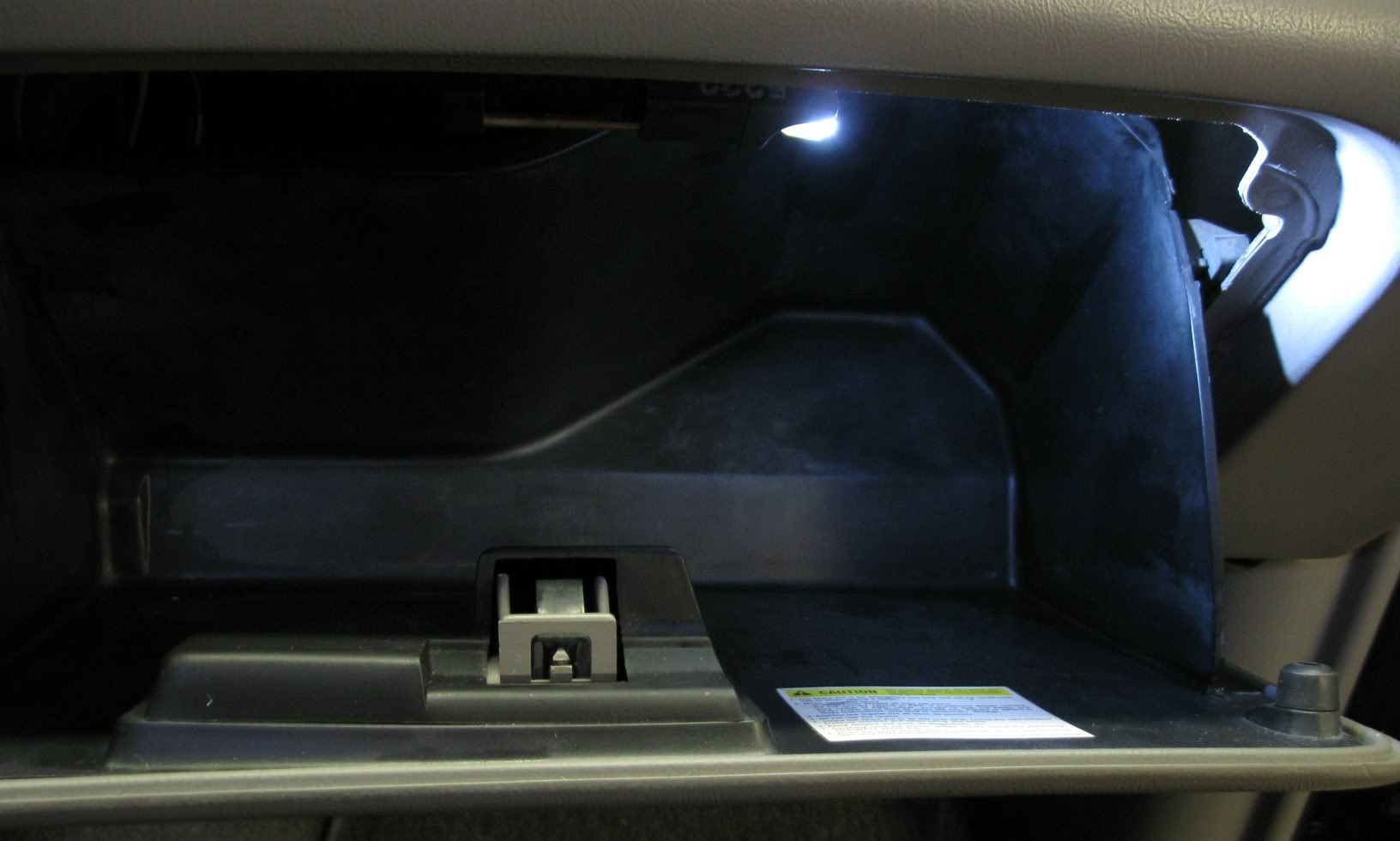

Name:  glovebox3.jpg
Views: 2
Size:  92.7 KB



Next project is a LED under hood light.
Reply With Quote
  #2
Old 12-21-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Looks good.

how is attached to the floor?
Reply With Quote
  #3
Old 12-21-2008
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Did you put the bed from the conversion van in there too?
Reply With Quote
  #4
Old 12-21-2008
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
I used some metal strapping fastened to the sides (inside the wiring area) and screwed it down using the holes from the original cup holder.
It has a little give in case somebody bangs their knee into it
Reply With Quote
  #5
Old 12-21-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by 98liftedranger View Post
Did you put the bed from the conversion van in there too?
Does remind me of the old 80's vans with wood gran consoles
Reply With Quote
  #6
Old 12-23-2008
Crackerstein's Avatar
Member

Join Date: Jan 2008
Location: Basically hanging out, sm
Posts: 604
It looks good but you should have counter sunk those screws and put wood putty in the holes to hide them.
Reply With Quote
  #7
Old 12-23-2008
country346's Avatar
Member

Join Date: Apr 2007
Location: East , Texas
Posts: 459
OP that is pretty sharp looking , I like how you counter sunk all the switches and really thuaght it out , Cool console .

If you werent smoking ilegal drugs you would have noticed in his original post , they are exposed in case he needs to get to wiring .
Reply With Quote
  #8
Old 12-23-2008
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
The switches aren't actually countersunk, they're just real low profile... only about 1/8" to 3/16" tall.
I have the same switches above my stereo (see my other post if you haven't checked it out already).
I got a dozen of them off the evilBay earlier this year for about $20.
They're all green LED's, but they had red, blue, green, orange, maybe even yellow.
The green matches my head unit & voltmeter too.
Reply With Quote
  #9
Old 12-23-2008
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
looks really good just not something i would put in my truck
