help looking for pics and ideas - Ranger-Forums - The Ultimate Ford Ranger Resource


Interior Semi-Tech General discussion of interior for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 05-04-2008
2WD_Ranger's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: richmond hill ga
Posts: 133
help looking for pics and ideas

i am bout to lift my truck and i want to also do the 60/40 to 40/40 with full console and i was thinking bout doing some painting on the interior put i dont know the best way to do it and save money so if yall got any ideas let me hear them and i am open to other mods as well
Reply With Quote
  #2
Old 05-04-2008
Tearloch's Avatar
Member

Join Date: Apr 2007
Location: Niagara Falls soon....
Posts: 467

60/40 to 40/40. reciprocating saw, thread and needle.



Painted the interior.. 2 cans of paint.

I did my own headlight black out mod... but it looks like i dont have any pictures.... lemme see what i can get.
Reply With Quote
  #3
Old 05-04-2008
LowMaz's Avatar
Member

Join Date: Feb 2007
Location: Sterling/ Amherst, MA
Posts: 788
what kind of paint did you use for your interior panels? and did you sand and prime them first?
Reply With Quote
  #4
Old 05-04-2008
Tearloch's Avatar
Member

Join Date: Apr 2007
Location: Niagara Falls soon....
Posts: 467
No did not sand or prime... but watch the radio cover... sprayed it, then it started to crackle (probably should have sanded it first, didnt know that there was a coating on it..).. had to scrape it off and start over.... the paint was Dupli-Color Vinyl & Fabric.
Reply With Quote
  #5
Old 05-04-2008
LowMaz's Avatar
Member

Join Date: Feb 2007
Location: Sterling/ Amherst, MA
Posts: 788
yea my covering to the radio bezel is chipped in a few areas (like quarter size pieces fell off), so it should be really easy for me to peel the rest off and paint it

just curious, how much is a can of this paint?
Reply With Quote
  #6
Old 05-04-2008
Tearloch's Avatar
Member

Join Date: Apr 2007
Location: Niagara Falls soon....
Posts: 467
i cant really emember, i got touch up paint also, and i think it was still under $20
Reply With Quote
  #7
Old 05-04-2008
schatten789's Avatar
Member

Join Date: Feb 2007
Location: Matagorda County, Texas
Posts: 735
you should sand all the panels
Reply With Quote
  #8
Old 05-04-2008
country346's Avatar
Member

Join Date: Apr 2007
Location: East , Texas
Posts: 459
Take it from someone who has painted their whole interior (eveything plastic got painted)
Prep is a must , When I painted my interior I probally spent over 50 alone in prep suplies
2 cans accetone , 3 sleaves each of 220 , 400 grit , 120 grit sanding sponges , rags , 2 rolls masking tape .
And using adhesion promoter is a must , it keeps it from pealing and cracking later on down the line . And u also have to shoot a couple layers of clear ot it will come off anytime something hits it .

As far as the 40-60 mod I used a dremal tool , I cant stress this enough take your time and plan pull off the cover , and look at the passenger seat for where you need to cut the foam , heat up a wire coat hanger it will cut and form the foam after that then you can see where to cut the seat pan . Then put your cover back one and cut and resew it . Mine looks completly stock I had almost 8 inches of space inbetween seats before I built my console .

This is what my interior looks like after about 20 hours of work and around 200 bucks of suplies including the cost of the dremal tool , paint and other stuff . plus 40 for seat covers . Ps I used 3 cans of black duplicolor vynil paint for dash and rear panel . 4 cans of krylon ultra flat Od green for all the plastic parts . 2 cans of krylon clear laquer .


You can see how the seat is contoured like a factory bucket , and the width of the console as a referance .

You can see the color scehme in this one with the black and Od trim .

Heres an idea of what kind of prep your looking at , It was still quicker to tape off everything than to take the dash out .

heres all the panels out while I pain the inside .
Reply With Quote
  #9
Old 05-04-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
I did the 60/40 to 40/40 mod about 3 years ago and added the Explorer full length center console, but I have recently redone part of the console to house my CB.

DSC_0039-2.jpg?t=1204328177
DSC_0046-4.jpg?t=1204328284
From a while ago:
DSC_0198.jpg?t=1174872746
DSC_0205.jpg?t=1174872771
Sorry those are the best pictures I have.
Reply With Quote
  #10
Old 05-04-2008
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Question, can you do the full length console with a stick? Has anybody tried this?
Reply With Quote
  #11
Old 05-04-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by Johnbaum13 View Post
Question, can you do the full length console with a stick? Has anybody tried this?
It has been done, you just have to cut out part of the forward cubby and make a shifter boot that will some how attach. There is a pic. floating around somewhere, I'll see if I can find it.
Reply With Quote
  #12
Old 05-04-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I think rwezing did it but he had to custom form the console for it to fit. Maybe that was the transfer case stick though...
Reply With Quote
  #13
Old 05-04-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Here ya go:
C1.jpg?t=1209954109
Reply With Quote
  #14
Old 05-04-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by 04blackedge View Post
I think rwezing did it but he had to custom form the console for it to fit. Maybe that was the transfer case stick though...
It was for the manual t-case.
Reply With Quote
  #15
Old 05-04-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Thats what I thought lol
Reply With Quote
  #16
Old 05-04-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
you dont have to cut it, it unbolts from the ring
Reply With Quote
  #17
Old 05-04-2008
LowMaz's Avatar
Member

Join Date: Feb 2007
Location: Sterling/ Amherst, MA
Posts: 788
yea i wanna put one of these in my 2wd 5 speed. as long as i see pics how its done im gonna do it.

wat should one of these cost me?
Reply With Quote
  #18
Old 05-04-2008
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Thanks guys! Def. gonna have to look into that!
Reply With Quote
  #19
Old 05-04-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by jgibbs View Post
yea i wanna put one of these in my 2wd 5 speed. as long as i see pics how its done im gonna do it.

wat should one of these cost me?
I paid $118ish shipped for mine.

Quote:
Originally Posted by Redneckstone View Post
you dont have to cut it, it unbolts from the ring
You're right, I forgot it unbolted.
Reply With Quote
  #20
Old 05-05-2008
2WD_Ranger's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: richmond hill ga
Posts: 133
thanks guys i am ready to get to work on mine
Reply With Quote
  #21
Old 05-06-2008
Zs02Edge's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Ocala, Fl & Woodland, WA
Posts: 253
Older pic so a few things have changed since I took the pic. IMO, less is more when painting interior parts. The dimple seen on the drivers seat is not a sloppy sew job from when I did the 40/40 conversion, it's from my wedging my 19C between the seat and console.

Reply With Quote
  #22
Old 05-06-2008
ChrisR1S's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
My truck is a bit older(1994) but same idea. 60/40 to 40/40 using a razor blade for the foam and a sawzall for the seat frame. Put in the $30 coinsole from walmart and a set of seat covers from advance auto that were $25ea.
Painted the interior with black duplicolor paint and vinyl(carpet and some trim) and the red is color matched duplicolor.(elec current red)

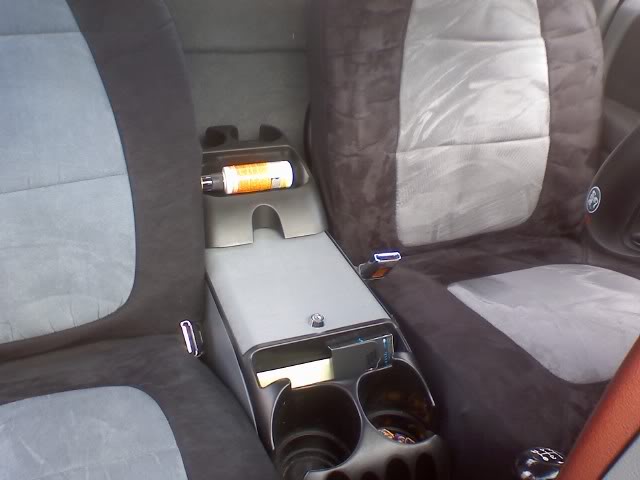

Name:  0218081000c.jpg
Views: 19
Size:  31.1 KB

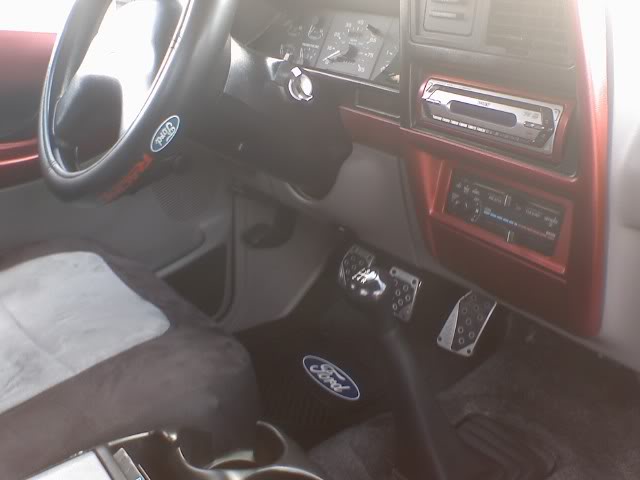

Name:  0218081000b.jpg
Views: 12
Size:  28.4 KB

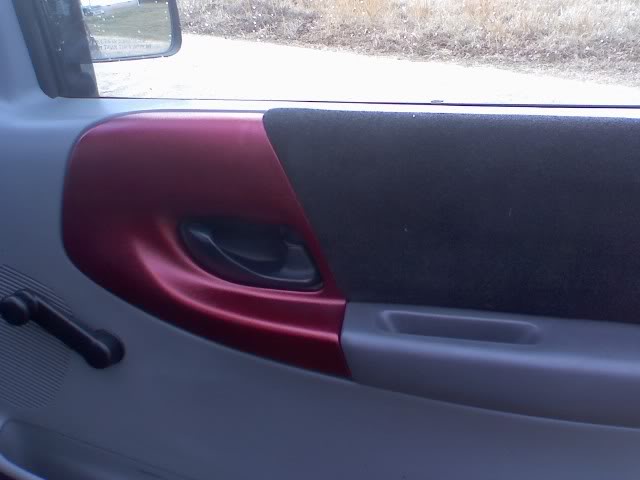

Name:  0218081000a.jpg
Views: 3
Size:  29.8 KB

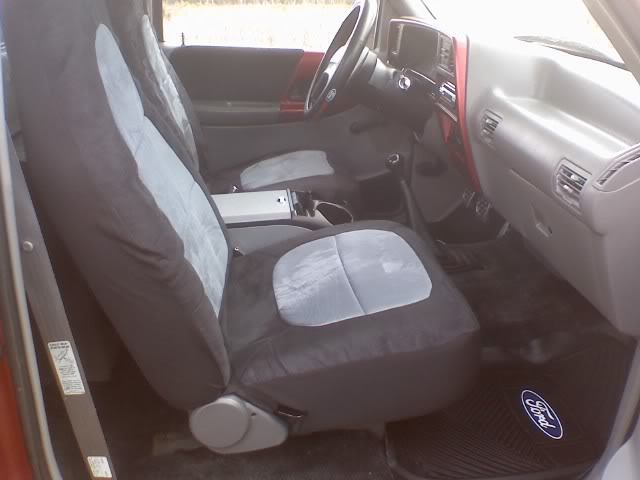

Name:  0218081000.jpg
Views: 5
Size:  33.2 KB
Reply With Quote
  #23
Old 05-06-2008
2WD_Ranger's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: richmond hill ga
Posts: 133
thanks yall great pics and advise i got one other ? what kinda setups do u guys have in ext. cabs for subs and systems pics would help thanks yall
Reply With Quote
